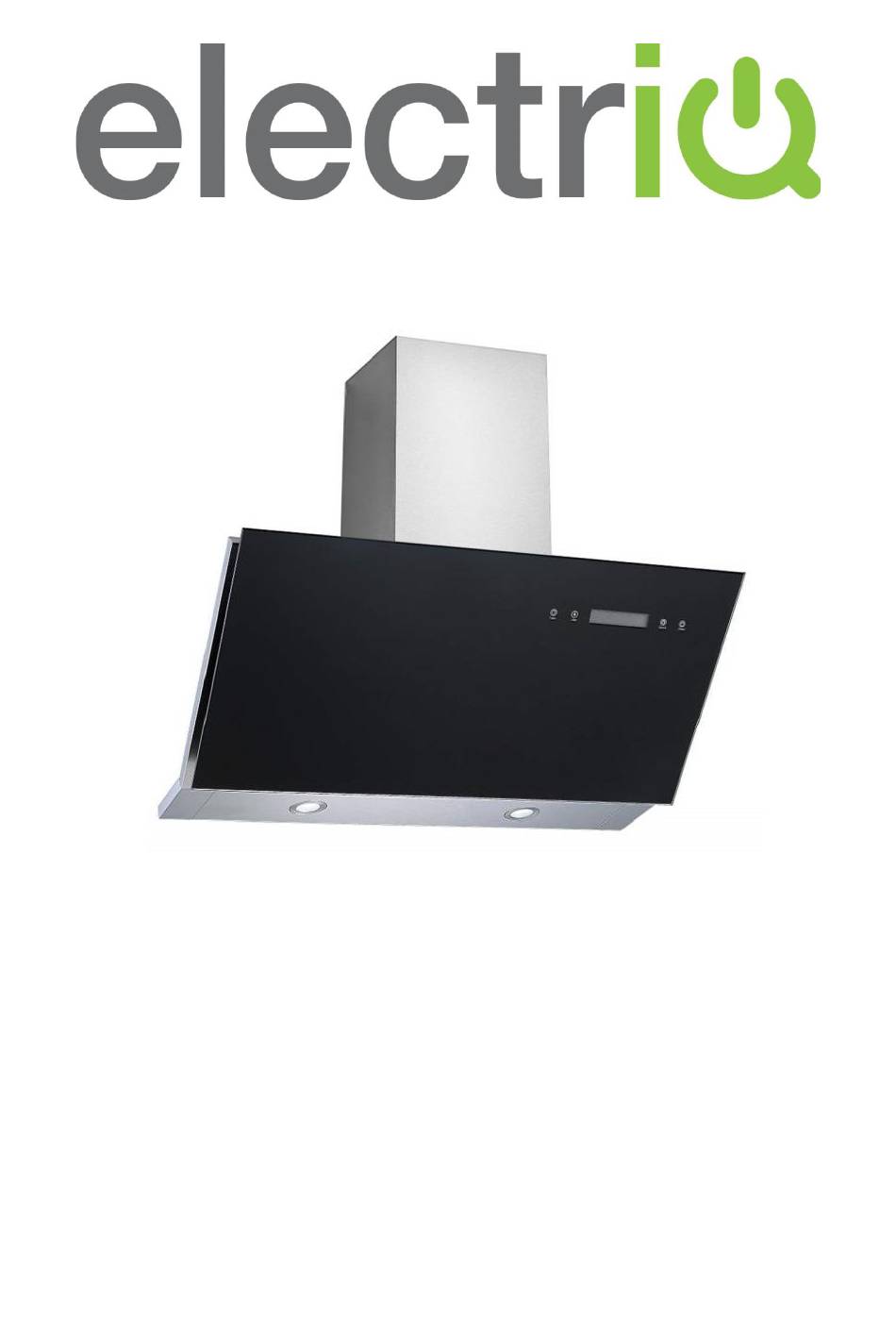

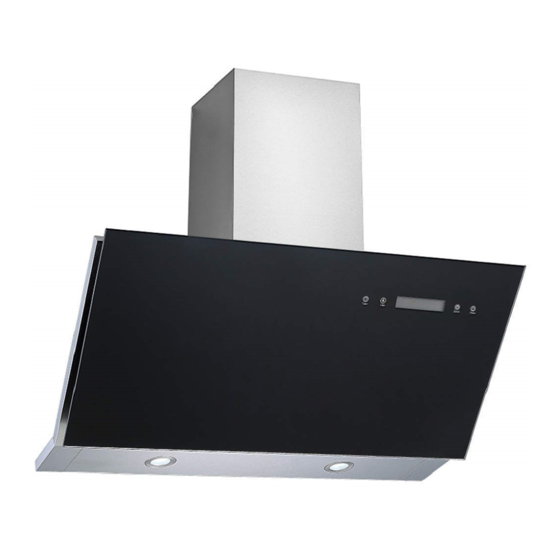

- Page 1 USER MANUAL ANGLED BLACK GLASS TOUCH CONTROL COOKER HOOD eiQCHA90B/ eiQCHA90SS Thank you for choosing electriQ Please read this user manual before using this product and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRODUCT OVERVIEW VENTING OPTIONS INSTALLATION FILTER INFORMATION OPERATION CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATION SUPPORT... -
Page 3: Safety
SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •... - Page 4 • The minimum distance between the surface of the hob and the lowest part of the hood should be at least 65cm. A distance of between 65cm and 75cm gives peak efficiency. • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
-
Page 5: Product Overview
PRODUCT OVERVIEW - PARTS SUPPLIED Description Illustration Qty. Cooker hood Chimney Exhaust Pipe Adaptor cable tie Plate I Plate II Screw (4mm x 40mm) Wall plug Screw (4mm x 8mm) Screw (4mm x 30mm) Air Flaps... -
Page 6: Venting Options
EXTERNAL VENTING If you have an outlet to the outside, your cooker hood can be connected as shown in the diagram using any suitable extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150mm) can be used. -
Page 7: Installation
INSTALLATION 1. Before installation, ensure you have not connected the appliance to the mains supply. 2. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect. 3. Install the hanging screw on a suitable place once the installation height is fixed, and keep it in line. - Page 8 5. The 2 x airflaps should be installed at this stage, as access is easier before the unit is wall mounted. On the top of the Hood Unit itself, where the air outlet vent is located, the 2 x flaps should be carefully installed, bending very slightly so the lugs at each end locate into the holes, enabling flaps to pivot upwards when the unit is in operation, opening up the outlet fully for the air to pass through.
- Page 9 NOTE: Remember not to fix the screw too tightly, so that later height adjustment can be done more easily. 9. Fix the chimney set into the chimney bracket and fix with 2 x screws (4mmx8mm), then fix the outer chimney bracket into wall with 2 x screws (4mm x 40mm), pull out the exhaust pipe to outside.
- Page 10 12. Before usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the identification plate (found inside the cooker hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home. Then plug the power lead into the power socket (or if connecting directly to the main via a switched spur, ensure the work is carried out by a competent, qualified person) and the cooker hood is then ready for use.
-
Page 11: Filter Information
Reference: eiQCF110 Carbon Filter Pack– fits model eiQCHA90B, eiQCHA90SS In order to install the activated carbon filters, the aluminium filter should be removed first. -
Page 12: Operation
OPERATION Press “ ” button once and the lights will be turned on. The LCD will show Press again to turn off. Press “ ” button once; the hood works at LOW speed and LCD will display low speed. Press the speed button repeatedly to cycle through Low Medium and Fast speeds. -
Page 13: Cleaning And Maintenance
MAINTENANCE Before cleaning, switch the unit off and pull out the plug, or switch off at the relevant mains switch if the unit has been hard-wired in. Make sure the unit has no power being fed to it. REGULAR CLEANING Use a soft cloth moistened with warm mildly soapy water or household cleaning detergent. -
Page 14: Troubleshooting
TROUBLESHOOTING Fault Cause Solution The fan blade is Light on, but jammed. Switch off the unit. Repair to be carried fan does not out by qualified service personnel only. The motor is work damaged. Both light Halogen light bulb Replace the bulb with correct rating. blown and fan do not work... -
Page 15: Technical Specification
INFORMATION FOR COOKER HOOD Symbol Value Unit Model identification eiQCHA90B/eiQCHA90SS Annual Energy 43.2 kWh/a hood Consumption Time increase factor Fluid Dynamic 33.2 hood Efficiency Energy Efficiency 45.1 hood Index Measured airflow rate 415.8 at the best efficiency Measured air pressure at best... -
Page 16: Support
At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0871 984 4416 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
