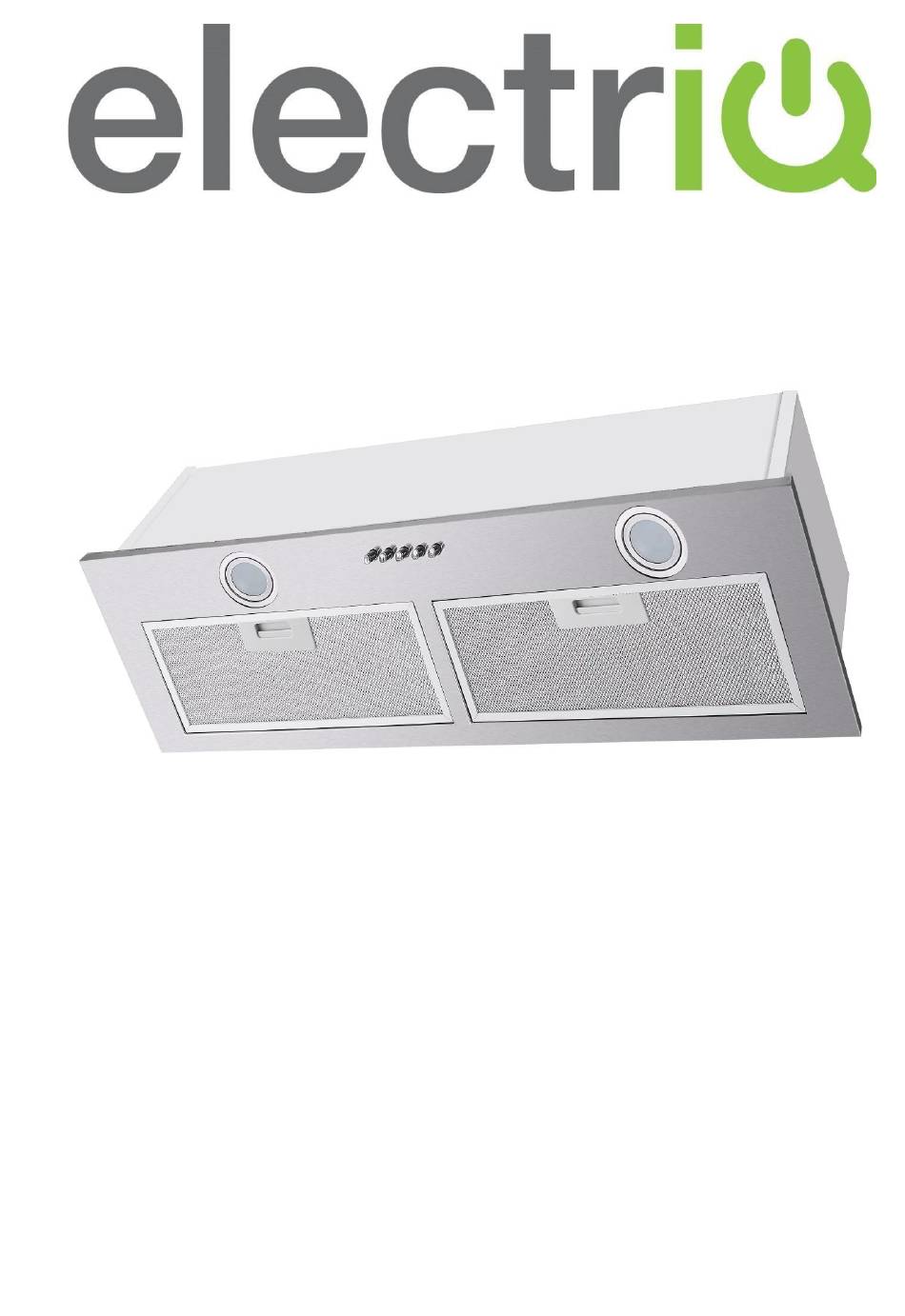

USER MANUAL
CANOPY COOKER HOOD
eiQCANOPY70TM
Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.
Advertisement
Table of Contents
Related Manuals for ElectrIQ eiQCANOPY70TM
Summary of Contents for ElectrIQ eiQCANOPY70TM
- Page 1 USER MANUAL CANOPY COOKER HOOD eiQCANOPY70TM Thank you for choosing your electriQ cooker hood. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTALLATION OPERATION CLEANING AND MAINTENANCE FILTER INFORMATION BULB REPLACEMENT TROUBSLEHSOOTING SUPPORT PRODUCT FICHE... - Page 3 SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •...
- Page 4 • The plug must be accessible after installation for isolation in case of an emergency – or an appropriate fused switch if the unit is hard-wired to the mains via a spur. • The minimum distance between the surface of the hob and the lowest part of the hood should be at least 65cm.
- Page 5 V-FLAP INSTALLATION DIMENSIONS...
-
Page 6: Installation
INSTALLATION Before installation, measure and cut a hole measuring 52cm x 72cm in your kitchen cabinet of appropriate size to fit the hood. The depth of the cabinet must be no less than 260mm and 50mm of space must be left at the two ends of the opening. Remove the filter by pulling the latch and then remove the 2 screws from the left and... -
Page 7: Operation
OPERATION Button Function Remarks Fan Off Turns off the fan Starts the fan at low speed. Suitable for Low Speed simmering and cooking which do not produce much steam Medium Starts the fan at medium speed. Provides ideal Speed ventilation for standard cooking Starts the fan at high speed. - Page 8 MONTHLY CLEANING FOR METALLIC ANTI-GREASE FILTER IMPORTANT NOTE: Clean the filter every month; an excessive build-up of grease can become a fire hazard. The filter collects grease, smoke and dust, so the filter directly affects the efficiency of the cooker hood. If it’s not cleaned, the grease residue (potentially flammable) will saturate on the filter.
-
Page 9: Filter Information
NOTE: • Make sure filters are securely locked in position, otherwise, they may become loose and be dangerous. • With activated carbon filters fitted you may notice suction is slightly reduced. Filters for eiQCANOPY70TM Grease Filter eiQTMCAN70 Carbon filter eiQTMCARBONCHIM... -
Page 10: Bulb Replacement
BULB REPLACEMENT The bulb must be replaced by either the manufacturer, a service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling the bulb, make sure it has completely cooled down before making contact with the hands. -
Page 11: Troubslehsooting
At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday... -
Page 12: Product Fiche
PRODUCT FICHE Symbol Value Unit Annual Energy kWh/a hood Consumption Time increase factor Fluid Dynamic Efficiency 11.7 hood Energy Efficiency Index 72.5 hood Measured airflow rate at 193.4 the best efficiency Measured air pressure at best efficiency point Maximum airflow 303.4 Measured electric power input at best efficiency...
