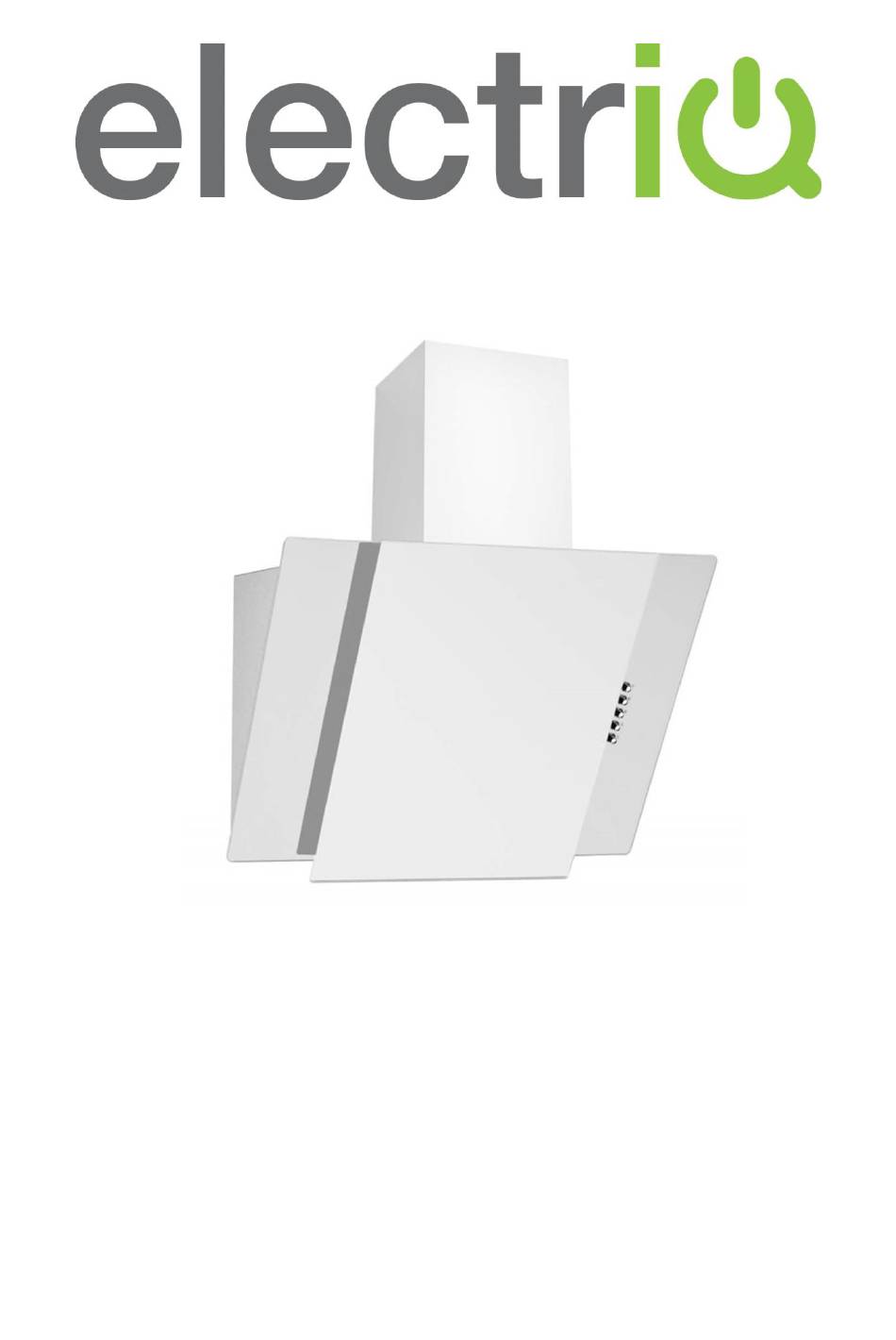

- Page 1 User Manual Angled 60cm Cooker Hood eiQCHC60W Thank you for choosing electriQ Please read this user manual before using this product and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRODUCT OVERVIEW VENTING OPTIONS INSTALLATION FILTER INFORMATION OPERATION CLEANING AND MAINTENANCE LIGHT REPLACEMENT TROUBLESHOOTING PRODUCT FICHE SUPPORT... -
Page 3: Safety
SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •... - Page 4 • The minimum distance between the surface of the hob and the lowest part of the hood should be at least 65cm. A distance of between 65cm and 75cm gives peak efficiency. • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
-
Page 5: Product Overview
PRODUCT OVERVIEW - PARTS SUPPLIED Description Illustration Qty. Cooker hood Chimney Exhaust Pipe Adaptor cable tie Plate I Plate II Screw (4mm x 40mm) Wall plug Screw (4mm x 8mm) Screw (4mm x 30mm) Air Flaps... -
Page 6: Venting Options
EXTERNAL VENTING If you have an outlet to the outside, your cooker hood can be connected as shown in the diagram using any suitable extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150mm) can be used. -
Page 7: Installation
INSTALLATION 1. Before installation, ensure you have not connected the appliance to the mains supply. 2. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect. Pic 1 3. Install the hanging screw on a suitable place once the installation height is fixed, and keep it in line. - Page 8 5. The 2 x airflaps should be installed at this stage, as access is easier before the unit is wall mounted. On the top of the Hood Unit itself, where the air outlet vent is located, the 2 x flaps should be carefully installed, bending very slightly so the lugs at each end locate into the holes, enabling flaps to pivot upwards when the unit is in operation, opening up the outlet fully for the air to pass through.
- Page 9 8. Adjust the height of the chimney to approximately the required height. Then install plate I on the chimney. Two screws (4mm x 8mm) are used. i Put the inner chimney into the outer chimney. Then pull the inner chimney upwards.
- Page 10 11. Take out the Aluminum filter and fix the safety hole with 2 x screws (4mm x30mm). PIC 9 12. Before usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the identification plate (found inside the cooker hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home.
-
Page 11: Filter Information
Reference: eiQCF110 Carbon Filter Pack– fits model eiQCHC60W In order to install the activated carbon filters, the aluminium filter should be removed first. -
Page 12: Operation
OPERATION Push button for model eiQCHC60W 1. Push stop button, and the motor will stop. 2. Push the Low button, and the motor runs at low speed. 3. Push the high button, and the motor runs at mid speed. 4. Push the High button, and the motor runs at high speed. -
Page 13: Iv. Light Replacement
3-6 months depending on how frequently the cooker hood has been used. They are not washable or reusable. eiQCF110 Carbon Filter Pack– fits model eiQCHC60W IV. Light Replacement Important: The light fitting must be replaced by the manufacturer, its service agent or similarly qualified persons. -
Page 14: Troubleshooting
TROUBLESHOOTING FAULT CAUSE SOLUTION The fan blade is Light on, but jammed. Switch off the unit. Repair to be carried fan does not out by qualified service personnel only. The motor is work damaged. Halogen light bulb Both light and Replace the bulb with correct rating. -
Page 15: Product Fiche
PRODUCT FICHE Symbol Value Unit eiQCHC60W Model identification Annual Energy 61.5 kWh/a hood Consumption Time increase factor Fluid Dynamic 22.8 hood Efficiency Energy Efficiency 67.6 hood Index Measured airflow rate 314.8 at the best efficiency Measured air pressure at best efficiency point 596.2... -
Page 16: Support
At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
