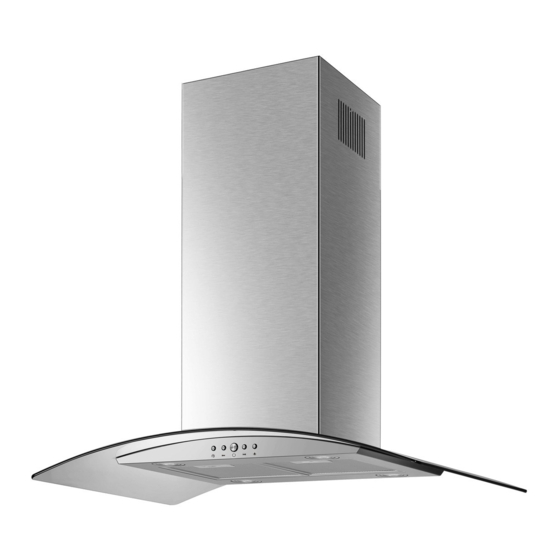

- Page 1 USER MANUAL ISLAND COOKER HOOD eiQCURVISL90SS eiQCURVISL90BL...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS INTRODUCTION DIMENSIONS UNPACKING YOUR APPLIANCE PRODUCT OVERVIEW – PARTS SUPPLIED OPTIONS FOR VENTILATION OPERATION MAINTENANCE TROUBLESHOOTING MANUFACTURER SUPPORT SPECIFICATION... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Whilst this product complies with all safety requirements, incorrect or inappropriate use can lead to personal injury and potential damage to property. Please read the contents of this instruction booklet or using this cooker hood. · The cooker hood must be installed in accordance with the installation instructions provided, making sure all measurements and guidance are followed. - Page 4 If the supply cord is damaged , it must be replaced by the · manufacturer, its service agent, or order to avoid an accident. · cooker hood should not be used by people (including children) with reduced physical , sensory , or mental capabilities, or by those who lack experience and knowledge , unless they have been given supervision and instruction on how to use the appliance by a person responsible for their safety.
-
Page 5: Introduction
INTRODUCTION Thank you for choosing an electriQ cooker hood. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. -
Page 6: Product Overview - Parts Supplied
PRODUCT OVERVIEW - SUPPLIED Description Illustration Qty. Cooker hood Chimney Adaptor Cable Tie Wall Bracket Hanging hook Metal angle bar Screw (ST4) (4mm x 30mm) Wall plug Expansion bolt (6mm x 50mm) Screw (M5) (5mm x 10mm) Screw (self-tapping) (4mm x 6mm) Metal washer Air Flaps... -
Page 7: Options For Ventilation
OPTIONS This hood supports both external venting or recirculation. The type of setup should be decided before commencing installation. EXTERNAL VENTING pipe is provided which allows the cooking odours to be extracted outside. If this is the chosen installation method consideration to the route of the vent pipe should be made. - Page 8 Do not connect the hood to the mains supply before installing it . 1. Position the hanging plate on the ceiling and then mark the position of the screw holes with a pencil. Securely the hanging plate to the ceiling, (30 mm) screws.
- Page 9 does not drop down whilst the main body of the hood to the angle bars. 5. On the top of the hood unit, where the air outlet vent is located, the 2 x air should be carefully installed, bending very slightly so the lugs at each the holes This enables to pivot upwards when the unit is in operation, opening up the outlet fully for the air to pass through.
- Page 10 MINIMUM CHIMNEY LENGTH Do not connect the hood to the mains supply before installing it. 1. Position the hanging plate on the ceiling and then mark the position of the screw holes with a pencil. Securely the hanging plate to the x ST4 (30 mm) ceiling, using screws.
- Page 11 Please note: The small spindles/lugs at each end of each holes on the housing, not the grooves above them. 4. Securely using 16 x M5(10mm) screws, and connect the outlet with the exhaust pipe (If venting externally) 5. Slide the inner chimney and outer chimney onto the angle bars.
- Page 12 (Available Separately） CARBON Activated carbon can be used to trap odours, and must be used if the unit is not vented externally. These are available from the same stockist the hood was purchased from under reference: eIQTMCARBONCURV CARBON In order to install the activated , the aluminium carbon grease...
-
Page 13: Operation
ON/OFF BUTTON Press this key to turn the power on and off. FAN SPEED DOWN BUTTON While the fan is operating, press this key to decrease the power one level. POWER UP BUTTON While the fan is operating press this key to increase the power one level. LIGHT BUTTON Press once to turn the lights on, press again to turn the lights off. -
Page 14: Maintenance
MAINTENANCE Before cleaning, switch the unit off and pull out the plug, or switch off at the relevant mains switch. If the unit has been hard-wired in. Make sure the unit has no power being fed to it. REGULAR CLEANING Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. - Page 15 LIGHT BULB REPLACEMENT , Although these ker hood is supplied with 4 long life LED light are designed to have a very long lifespan ,should one fail, replacements are available from the supplier of the hood and the guide below can be followed to replace it.
-
Page 16: Troubleshooting
2 Distance between 70cm and 80cm. performance the unit and the not good cooking plane too great. SUPPORT www.electriQ.co.uk Unit J6, Business Park Way, Elland , HX5 9DA : 0871 984 4416 Hours: 9:00am to 5:00pm Monday to Friday PROTECTION Waste electrical products should not be disposed of with household waste. - Page 17 The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process). (1) Install the cooker hood in a proper place where there is ventilation. (2) Clean the cooker hood regularly so as not to block the airway. (3) Remember to switch off the cooker hood light after cooking.
