Summary of Contents for ElectrIQ eiQ52CANGW

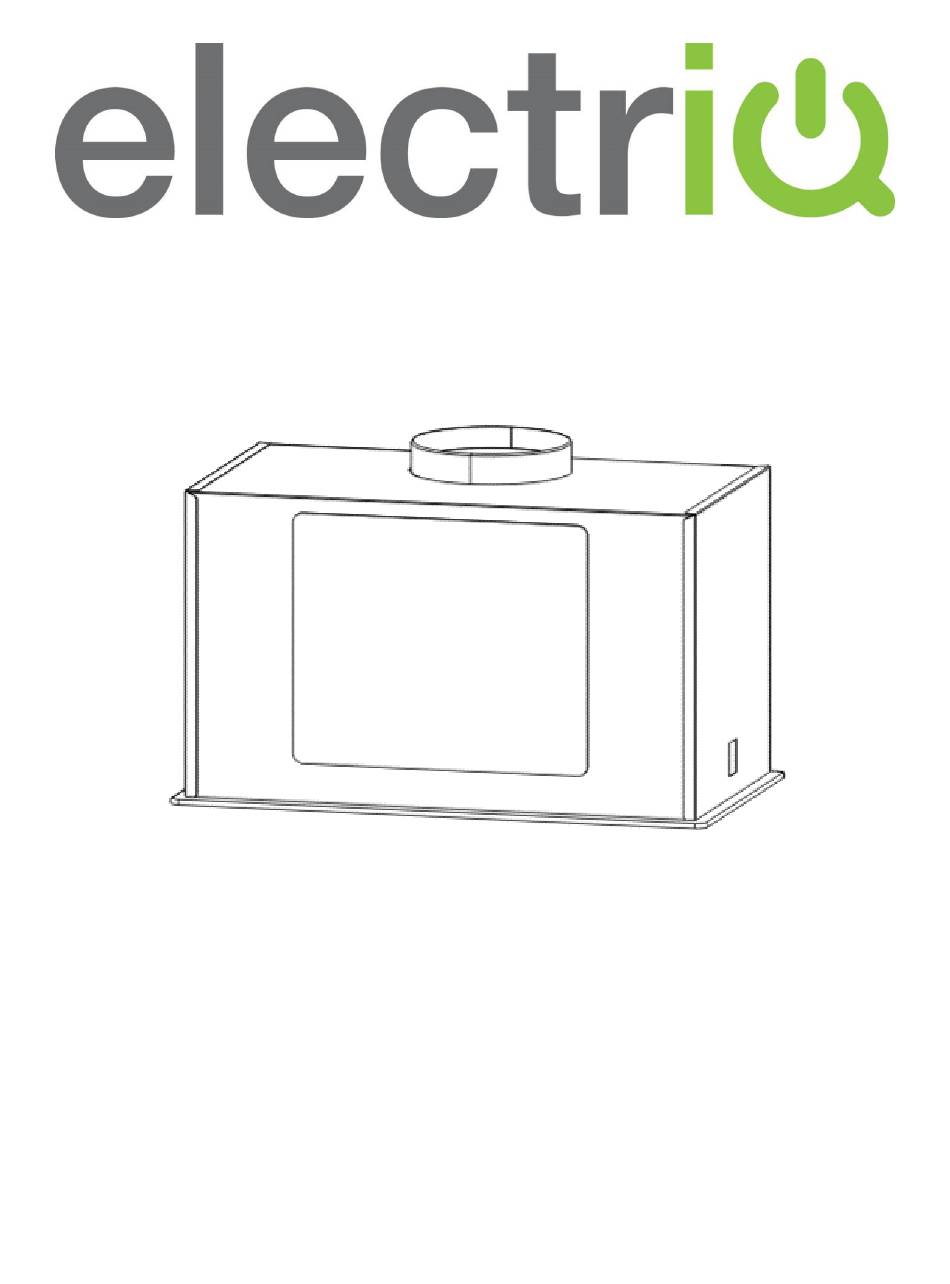

- Page 1 USER MANUAL BUILT IN COOKER HOOD eiQ52CANGW/BL eiQ72GWCAN eiQ72GBLCAN Thank you for choosing electriQ Please read this user manual before using this product and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY UNPACKING PRODUCT OVERVIEW INSTALLATION OPERATION CLEANING AND MAINTENANCE LIGHT BULB REPLACEMENT TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT... -
Page 3: Safety
SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •... - Page 4 • The minimum distance between the surface of the hob and the lowest part of the hood should be at least 65cm. A distance of between 65cm and 75cm gives peak efficiency. • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
-
Page 5: Unpacking
BEFORE USAGE Before usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the identification plate (found inside the cooker hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home. Plug the power lead into the power socket (or if connecting directly to the mains via a switched spur, ensure the work is carried out by a competent, qualified person) and the cooker hood is then ready for use. -
Page 6: Product Overview
PRODUCT OVERVIEW - PARTS SUPPLIED DESCRIPTION ILLUSTRATION Qty. Cooker hood Adaptor Cable Tie Air Flap... -
Page 7: Installation
INSTALLATION 1. The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface. 2. Drill a hole of 500*275(mm) for 52CM and 700*275(mm) for model 72CM in the cabinet. Unscrew the 4 screws on the outer glass frame panel, pull out the light wire, take down the outer glass frame panel. - Page 8 4. There are metal sliders at both sides, connecting with 2 screws per each slider. Screw out the outer 2 screws on both sliders, keep these screws safe. Loosen the inner 2 screws, so that the slider can move to inside or outside the body. 5.
-
Page 9: Operation
OPERATION TOUCH CONTROL (T10) ON/OFF BUTTON Press to turn the unit ON/ OFF POWER DOWN BUTTON When in use, press this button to decrease the power by one level. DIGITAL DISPLAY The units current speed will be displayed. POWER UP BUTTON When in use, press this button to increase the power one level. -
Page 10: Cleaning And Maintenance
MAINTENANCE Before cleaning, switch the unit off and pull out the plug, or switch off at the relevant mains switch if the unit has been hard-wired. Make sure the unit has no power being fed to it. REGULAR CLEANING Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. -
Page 11: Troubleshooting
TROUBLESHOOTING Fault Cause Solution The fan blade is jammed. Light on, but fan Switch off the unit. Repair to be carried out by does not work qualified service personnel only. The motor is damaged. Both light Halogen light bulb blown and fan do not Replace the bulb with correct rating. -
Page 12: Technical Specifications
SPECIFICATION Symbol Value Unit Annual Energy Consumption 47.29 kWh/a hood Time increase factor 1.28 Fluid Dynamic Efficiency 20.01 hood Energy Efficiency Index 67.79 hood Measured airflow rate at the best efficiency 240.89 Measured air pressure at best efficiency point 284.16 Maximum airflow 455.58 Measured electric power... -
Page 13: Support
At the end of its life, the appliance should not be disposed of with general household waste. Check with your Local Authority or retainer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0871 984 4416 Office hours: 9AM - 5PM Monday to Friday...
