2 OPERATIONAL

2.1

GENERAL INFORMATION

This chapter describes the daily use of the F073-T. This instruction is meant for users / operators.
•
The F073-T may only be operated by personnel who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
2.2

CONTROL PANEL

The control panel has three keys. The following keys are available:
Functions of the keys
PROG-key
This key is used to program and save new values or settings.
The PROG-key is also used to gain access to SETUP-level; please read chapter 3.
SELECT-key
This key is used to SELECT the displayed information.
CLEAR-key
This key is used to CLEAR the value of total.
2.3

OPERATOR INFORMATION AND FUNCTIONS

In general, the F073-T will always function at Operator level. The information displayed is dependent
upon the SETUP-settings. The signal from the connected sensor is processed by the F073-T in the
background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be
updated very quickly during a 30 second period, after which it will slow-down again.

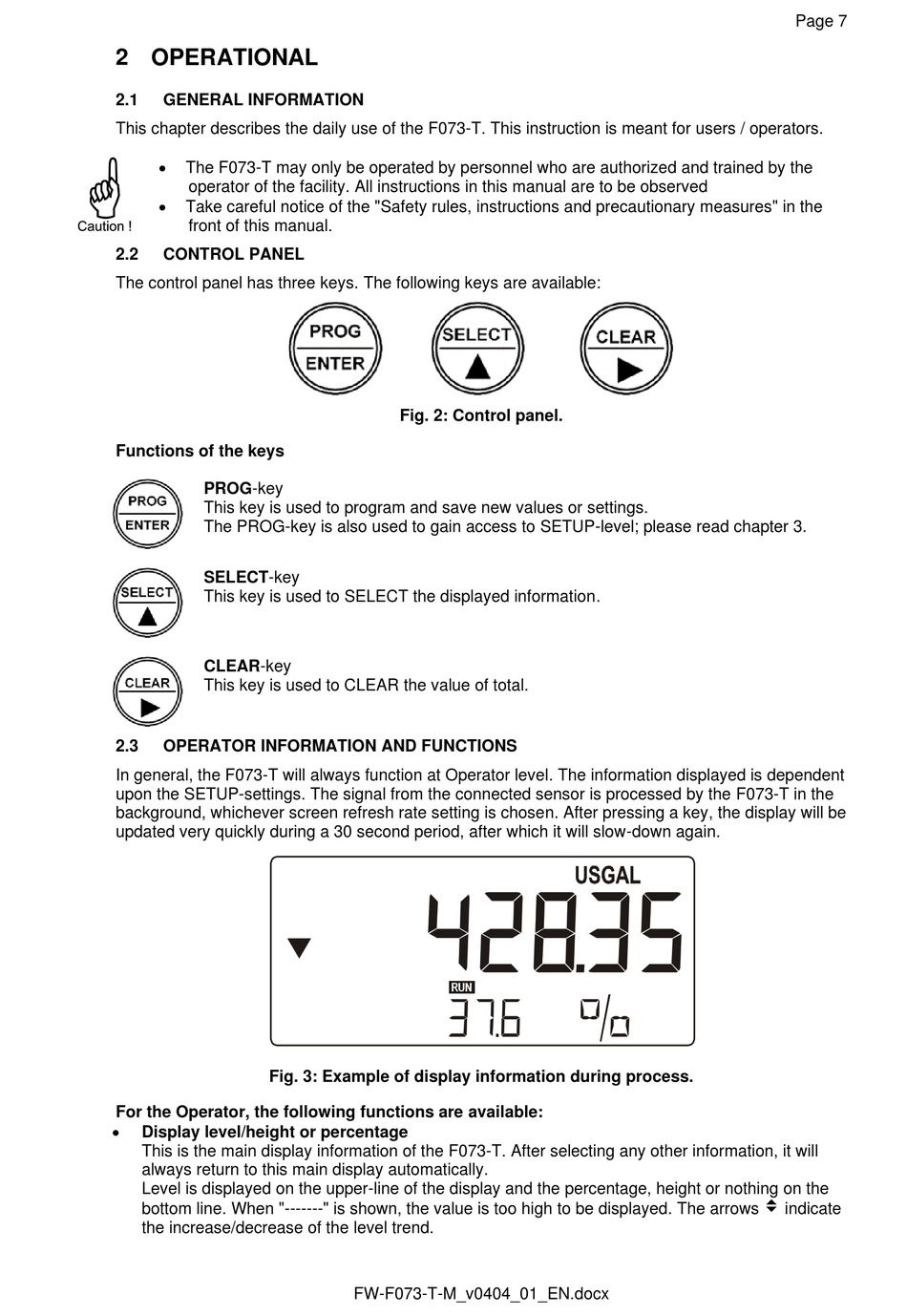

Fig. 3: Example of display information during process.

For the Operator, the following functions are available:
•
Display level/height or percentage
This is the main display information of the F073-T. After selecting any other information, it will
always return to this main display automatically.
Level is displayed on the upper-line of the display and the percentage, height or nothing on the
bottom line. When "-------" is shown, the value is too high to be displayed. The arrows  indicate
the increase/decrease of the level trend.

Fig. 2: Control panel.

RUN
