Page 26
4.5.4

POWER SUPPLY WIRING

When not directly supplied from mains (type PM), the external power supply must be an
approved ELV source, insulated from AC mains by double / reinforced insulation per CSA
C22.2 No. 61010-1 / UL61010-1 / EN/IEC 61010-1.
The F073-T can be powered from an external power supply. An internal power supply is also
available in the form of a lithium battery. When both external and internal power supplies are
available, the internal power supply is interrupted and will act as a backup supply. Note that the
optional backlight only works with an external power supply.
TERMINAL CONNECTORS SAFE AREA APPLICATIONS – TYPE PB / PX
4.6
Take careful notice of all safety and precautionary measures indicated in paragraph
4.5: Electrical Installation and review paragraph 4.5.3 and 4.5.4 before applying any
field or power supply wiring.
For Intrinsically Safe applications: read chapter 5.
Following terminal connectors are available on the F073-T Type PB / PX:
SENSOR SIGNAL
RESISTANCE INPUT
1

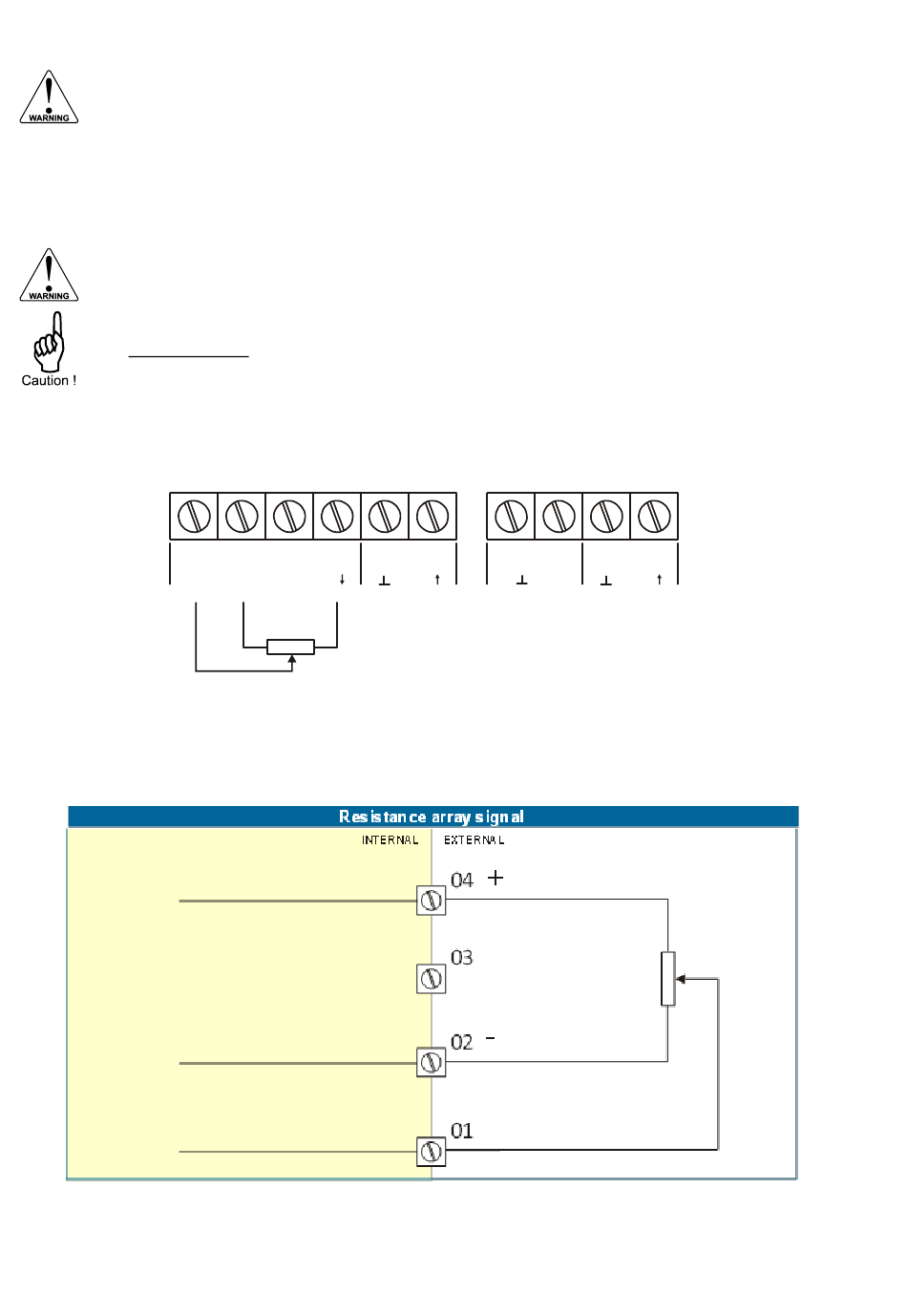

Fig. 13: Overview of terminal connectors F073-T – type PB / PX
4.6.1

TERMINALS 1-2, 4: SENSOR INPUT

The F073-T requires a resistance array signal which will be processed once per second. The input is
not isolated.

Fig. 14: Terminal connections - Resistance array input.

POWER SUPPLY
UNIT
TYPE: T TYPE: PX
-
2 3 4 5
+
FW-F073-T-M_v0404_01_EN.docx
ALARM
POWER SUPPLY
OUTPUT
TYPE: OT
8
6 7
+
R1 R1
BACKLIGHT
OPTION: ZB
9 10
+
