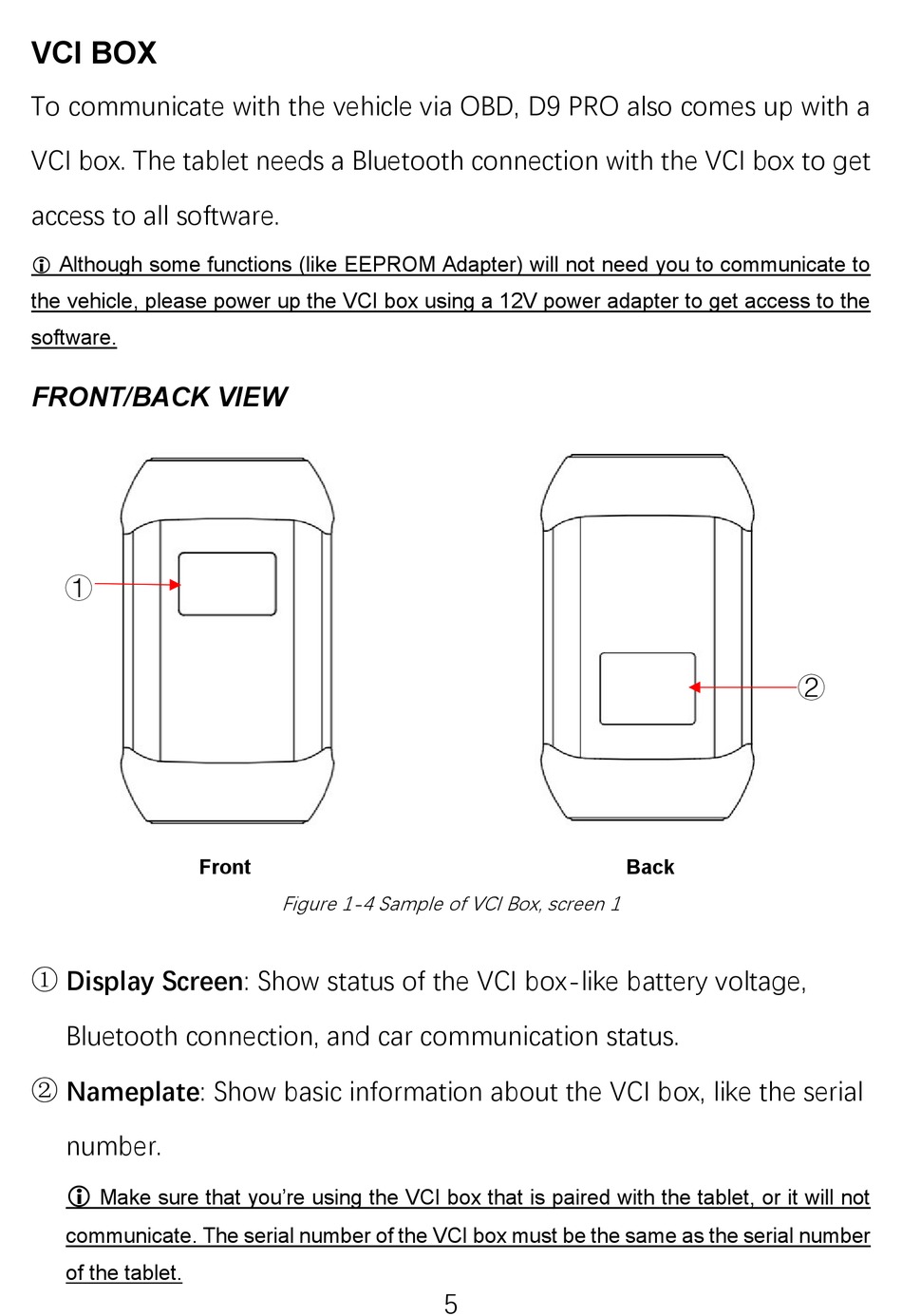

VCI BOX

To communicate with the vehicle via OBD, D9 PRO also comes up with a
VCI box. The tablet needs a Bluetooth connection with the VCI box to get
access to all software.
 Although some functions (like EEPROM Adapter) will not need you to communicate to
the vehicle, please power up the VCI box using a 12V power adapter to get access to the
software.
FRONT/BACK VIEW
①
Front
① Display Screen: Show status of the VCI box-like battery voltage,
Bluetooth connection, and car communication status.
② Nameplate: Show basic information about the VCI box, like the serial
number.

Make sure that you're using the VCI box that is paired with the tablet, or it will not
communicate. The serial number of the VCI box must be the same as the serial number
of the tablet.
Figure 1-4 Sample of VCI Box, screen 1
5
Back
②
