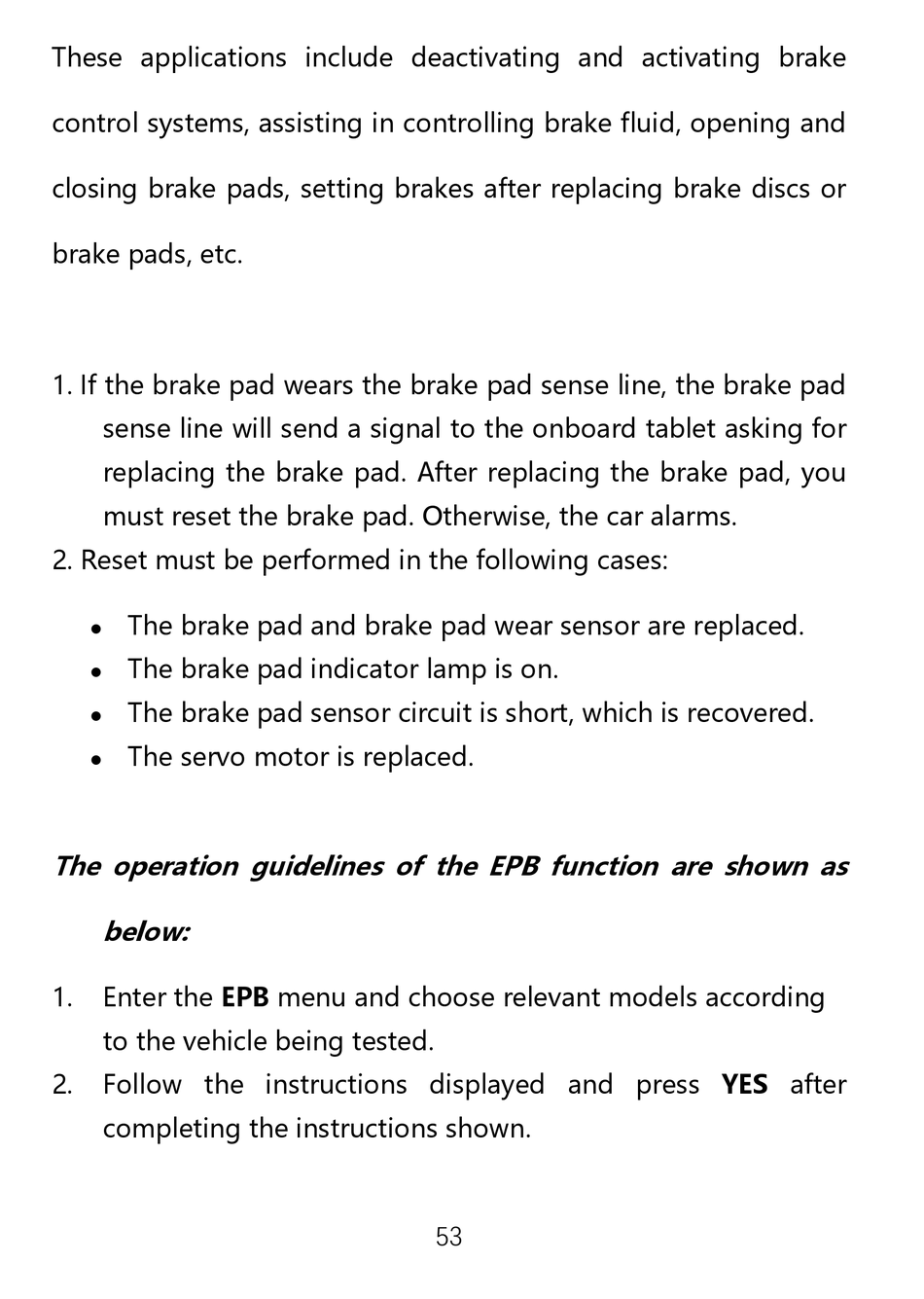

Xtool D9 Pro User Manual page 62

These applications include deactivating and activating brake
control systems, assisting in controlling brake fluid, opening and
closing brake pads, setting brakes after replacing brake discs or
brake pads, etc.
1. If the brake pad wears the brake pad sense line, the brake pad
sense line will send a signal to the onboard tablet asking for
replacing the brake pad. After replacing the brake pad, you
must reset the brake pad. Otherwise, the car alarms.
2. Reset must be performed in the following cases:
The brake pad and brake pad wear sensor are replaced.
⚫
The brake pad indicator lamp is on.
⚫
The brake pad sensor circuit is short, which is recovered.
⚫
The servo motor is replaced.
⚫
The operation guidelines of the EPB function are shown as
below:
1. Enter the EPB menu and choose relevant models according
to the vehicle being tested.
2. Follow the instructions displayed and press YES after
completing the instructions shown.
53
