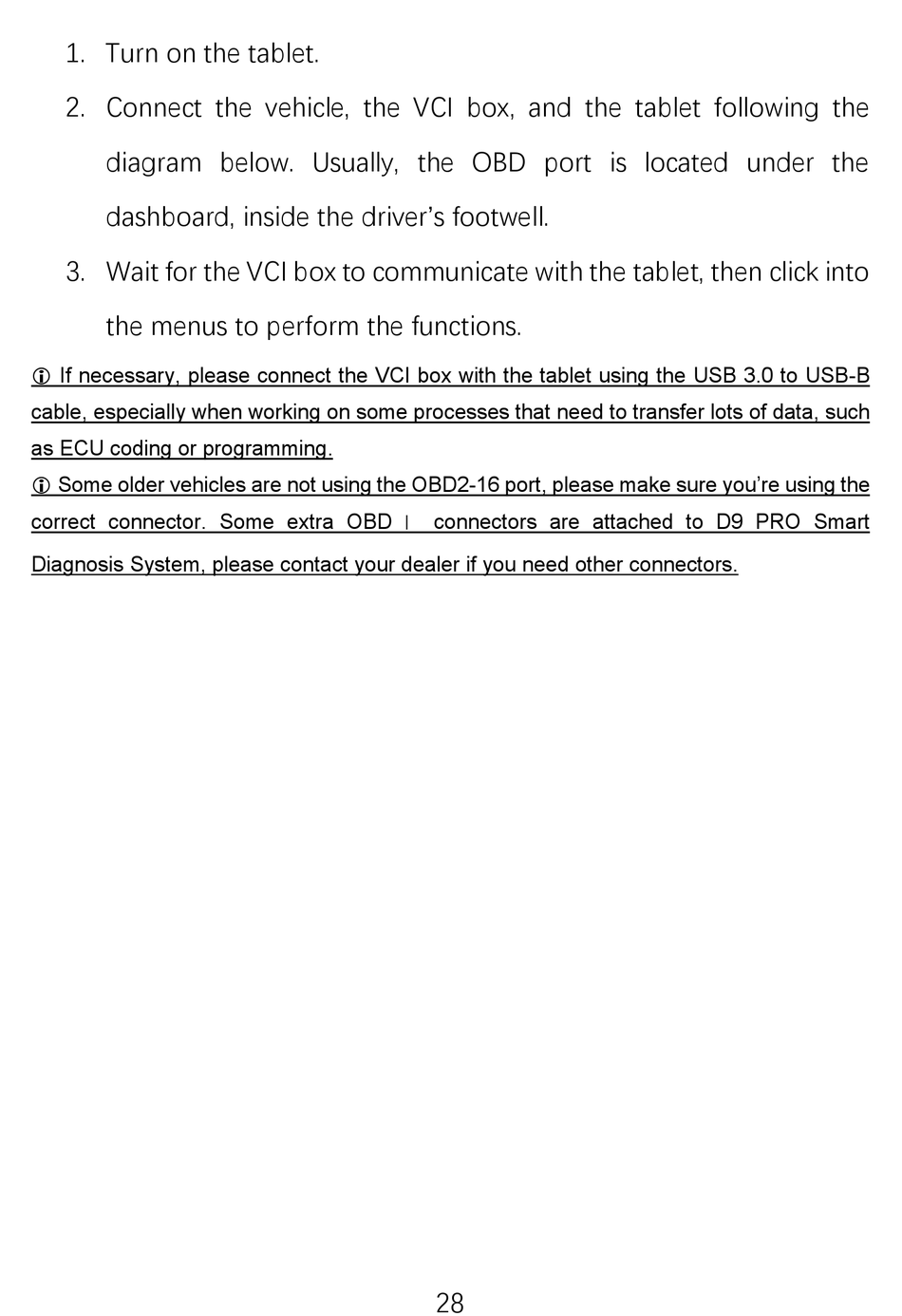

1. Turn on the tablet.
2. Connect the vehicle, the VCI box, and the tablet following the
diagram below. Usually, the OBD port is located under the
dashboard, inside the driver's footwell.
3. Wait for the VCI box to communicate with the tablet, then click into
the menus to perform the functions.
If necessary, please connect the VCI box with the tablet using the USB 3.0 to USB-B
cable, especially when working on some processes that need to transfer lots of data, such
as ECU coding or programming.
Some older vehicles are not using the OBD2-16 port, please make sure you're using the
correct connector. Some extra OBD Ⅰ connectors are attached to D9 PRO Smart
Diagnosis System, please contact your dealer if you need other connectors.
28
