User Manual
D7 Smart Diagnostic System
V6.5
Shenzhen Xtooltech Intelligent Co., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D7 and is the answer not in the manual?

Questions and answers

Игорь
February 8, 2025

Как активировать русский язык в диагностике прибора XTOOL D7 D7-EDA6FMW

1 comments:
Mr. Anderson
February 11, 2025

To activate the Russian language in Xtool D7, follow these steps:

1. Contact your dealer and provide the S/N (serial number) of your device along with a request to change the language to Russian. The technician will modify the language configuration in the backend system.
2. Go to Settings -> Language and choose Russian.
3. Go to Updates and update all the software again to apply the language change.

This answer is automatically generated

Сергей
January 27, 2025

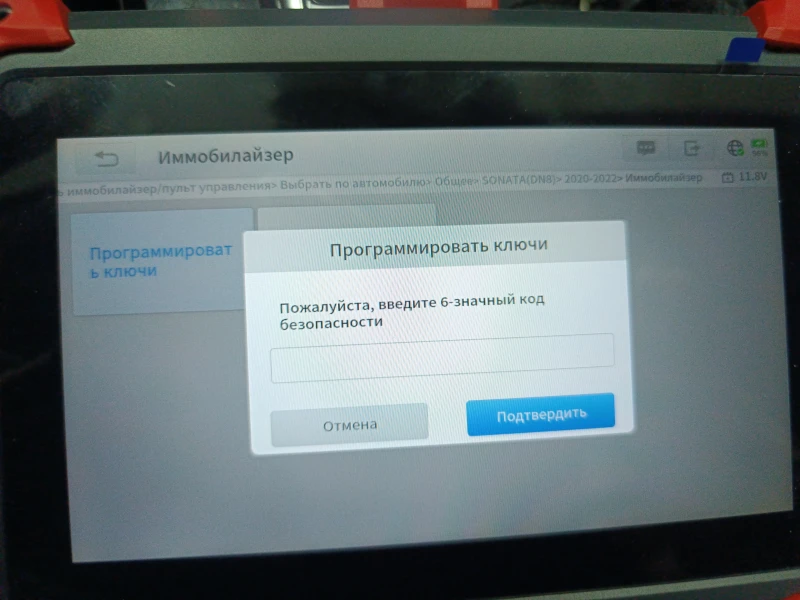

Здравствуйте запрашивает 6 значный код безопасности, где его искать? Где его взять?

User image 679769e958c63

Subscribe to Our Youtube Channel

Summary of Contents for Xtool D7

  • Page 1 User Manual D7 Smart Diagnostic System V6.5 Shenzhen Xtooltech Intelligent Co., LTD...
  • Page 2: Copyright

    CO., LTD. In countries where the trademarks, service marks, domain names, logos and the name of the company are not registered, XTOOL claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name. All other marks for the other products and the company’s name mentioned in the manual still belong to...
  • Page 3: Operation Instructions

    XTOOL. Use the device only as described in this manual. XTOOL is not responsible for any consequences of violating the laws and regulations caused by using the product or its data information...
  • Page 4: Cautions

    AUTIONS ⚫ Avoid shaking or dismantling the unit as it may damage the internal components. ⚫ Do not use hard or sharp objects to touch the LCD screen; ⚫ Do not use excessive force; ⚫ Do not expose the screen to strong sunlight for a long period. ⚫...
  • Page 5: Table Of Contents

    ONTENT TRADEMARKS ................I COPYRIGHT ..................I DECLARATION ................I OPERATION INSTRUCTIONS ............II CAUTIONS! ................... III AFTERSALES-SERVICES ............III CONTENT ..................I GENERAL INTRODUCTION ..........1 Front View of Tablet..................1 Back View of Tablet ..................2 Host Ports ......................2 Technical Specifications...............
  • Page 6 UPDATE ................14 DIAGNOSTIC ..............15 Vehicle Connection ................15 Begain Diagnostic ................17 Vehicle Selection ..................17 Diagnosis functions ..................20 SPECIAL FUNCTIONS ............29 5.1 OIL RESET .................. 30 5.2 EPB ....................31 5.3 SAS ....................33 5.4 DPF ....................36 5.5 BMS RESET ................
  • Page 7 FAQ ..................61 Q1: Failed to generate Diagnostic report ........... 61 Q2: How to print Diagnostic report ............. 62 Q3: Failed to extract files ..............63 Q4: Mailbox supported ............... 63 Q5: How to make an appointment for remote support ....... 63 Q6: How to generate and upload diagnostic log files ......
  • Page 8: General Introduction

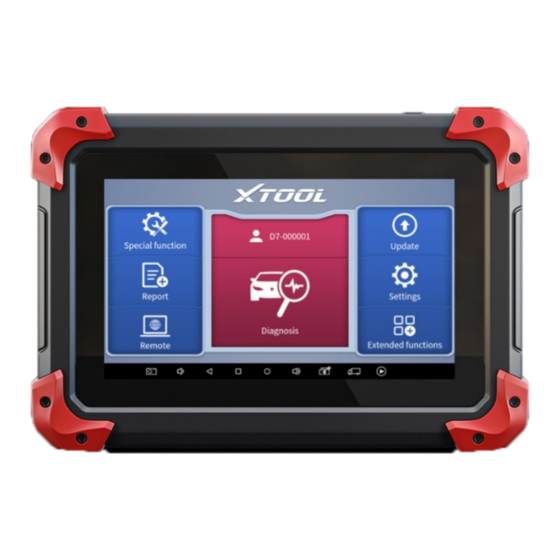

    1. G ENERAL NTRODUCTION The XTOOL D7 smart diagnostic system is an advanced flatbed scanning tool based on the Android operating system. It supports multi-language switching and is suitable for different countries and regions. The advantage of this obd2 scanner is not only its comprehensive functions, including...
  • Page 9: Back View Of Tablet

    BACK VIEW OF TABLET Fig 1-2 Sample of Tablet Back View The product model and S/N are laser-engraved on the back of the display tablet, and the small hole at the bottom is the Loudspeaker. ① Nameplate: Display basic information such as S/N and model etc. ②...
  • Page 10: Technical Specifications

    Micro USB: Battery charge or data synchronization with PC or DC. DB15 Port: This port is used to connect to the main test cable. Power Button: Long press to power on or off. In the power-on state, short press the button to make the device enter the sleep mode. TECHNICAL SPECIFICATIONS Table 1-1 Specification Description...
  • Page 11: Package Kit

    PACKAGE KIT Category Name Test connector OBD II-16 Main Cable P700 Tablet Charger for Tablet Main Units Charger US Adapter Charger EU Adapter Micro USB Cable Packing List Accessories User Manual Carton...
  • Page 12: Getting Started

    2. G ETTING TARTED ACTIVATION After first-time users press and hold the power button to turn on the system, the system will automatically enter the guide process and request to select the language for the operating system. Fig 2-1 Sample of Select Languages before Activation After setting the system language, you will enter the activation page, as shown in the figure below.
  • Page 13 Fig 2-2 Sample of Activation, screen 1 Click Start Activate to enter the activation page, as shown below: Fig 2-3 Sample of Activation, screen 2 A pop-up window showing Activation Success indicates that you have completed the first boot setup, click OK to enter the diagnostic system and start using the device.
  • Page 14: Main Interface

    Fig 2-4 Sample of Activation Succussed MAIN INTERFACE OPERATION SYSTEM As shown in the figure below, this interface is the main page of the operating system of the device. You can also return to this interface at any time by clicking 【...
  • Page 15 Settings for Android System Browser: Click on the browser icon to enter the browser to view the official website of XTOOL or search for other information. Gallery: Click the Gallery icon to enter the album to quickly view the pictures or screenshots stored in the device. You can select the picture...
  • Page 16: Diagnostic System Entrance

    DIAGNOSTIC SYSTEM ENTRANCE Once activated, you will automatically enter the diagnostic system with the following main screen. Tap on the Diagnostic application button on the menu, the main interface will be shown as below: Fig 2-7 Sample of Main menu of diagnostic program The main interface is mainly composed of Function Buttons and Navigation Buttons.
  • Page 17: Navigation Buttons

    Enter to select a vehicle Includes special functions for car Diagnostic You can view the vehicle diagnostic report In case of failure, you can control the diagnostic equipment remotely Users can upgrade the available software with one click Users can set the language, unit, Bluetooth, repair shop information, also can view information about this software Users can view more extended functions NAVIGATION BUTTONS...
  • Page 18: Notification Bar

    Increase volume Showing the Bluetooth states Click this button to return to the diagnostic vehicle interface Press for screen recording NOTIFICATION BAR Slide down to open the notification bar. Users can adjust the brightness of the screen when they need it, and you can also connect Wi-Fi and so on. Fig 2-8 Sample of Navigation Bat...
  • Page 19: Factory Reset

    FACTORY RESET When you choose to restore factory settings in the Android OS system, the device will automatically restart and enter the factory mode to pull the software. You can select the language in the following interface. Fig 2-9 Select the Languages of Android system After selecting the system language, click Next to enter the Wi-Fi connection page, as shown below: Fig 2-10 Connect to Wi-Fi...
  • Page 20 Select a network to connect to on the Wi-Fi connection page. After successful network connection, the automatic system will jump to Factory mode to download the software: Fig 2-11 Install all applications Once the software has been downloaded, the tablet will automatically reboot and request the system language selection again.
  • Page 21: Update

    Since restoring the factory settings will erase the user information on your device, you need to enter the email again to activate your device 3. U PDATE After activating the device, please update the software in "Update" first. The device will pull all currently supported software packages, and you can download them as needed.
  • Page 22: Diagnostic

    (ABS), airbag system (SRS), and perform kinds of actuation tests. VEHICLE CONNECTION The Diagnostic operation needs to connect the D7 smart Diagnostic system to a vehicle first so that the tablet can establish correct vehicle communication. Please perform the following steps: Turn on the tablet;...
  • Page 23 H6 Elite diagnostic function, please upgrade the vehicle diagnostic software to the latest version or consult the technical service department; 5. It is forbidden to use wiring harnesses other than Xtool for connection testing to avoid unnecessary losses;...
  • Page 24: Begain Diagnostic

    BEGAIN DIAGNOSTIC After the tablet device is properly connected to the vehicle, you could start the vehicle diagnosis. VEHICLE SELECTION The D7 supports the following 3 ways to access the smart diagnostics system. ⚫ AUTO SCAN ⚫ MANUAL INPUT ⚫...
  • Page 25 entrance to use this function. Please make sure that the car and the device are well connected before using this function. If your model is not recognized, please try the following steps: ① UPDATE all software, and check whether the APP is updated in [Settings] ②...
  • Page 26 Figure 4-5 Sample of Vehicle Selection by Ares OBD-Ⅱsupports reading the related fault codes of PCM; DEMO, a demonstration program; Click this button to experience and learn the operation process of the diagnostic function Some models provide multiple entry methods in the sub-menu, including: ⚫...
  • Page 27: Diagnosis Functions

    Enter "System Selection", you can also diagnose the vehicle according to the system according to your needs after selecting the model. DIAGNOSIS FUNCTIONS Diagnostics functions supported by D7 Smart Diagnostics System are as below:: ⚫ Read ECU Information ⚫...
  • Page 28 ⚫ READ ECU INFORMATION This function is to read ECU version information, which is the equivalent of "System Identification" or "System information in some electronic control systems, all mean to read ECU related software and hardware versions, models and production date of diesel engine, part number, etc. It is convenient for us to make a record in the maintenance process, and it also makes data feedback and management easier.
  • Page 29 Figure 4-9 Sample of Read DTC In the process of diagnosis, if the device shows “System is OK” or “No Trouble Code”, it means there is no related trouble code stored in ECU or some troubles are not under the control of ECU, most of these troubles are mechanical system troubles or executive circuit troubles, it is also possible that signal of the sensor may bias within limits, which can be judged in Live Data.
  • Page 30 temperature, intake air temperature, etc. Based on these parameters, we can judge directly where the problem lies, which helps to narrow the scope of maintenance. For some vehicles, during their actual operation, the problems such as performance characteristics offset, sensitivity reduction, can be judged in live data.
  • Page 31 ⚫ Custom Figure 4-13 Sample of Custom the PIDs Support to show the selected PIDs. Click Display All, back to the page which display all PIDs ⚫ Combine Support to select multiple PIDs and click Combine to make different graphs into one chart. Figure 4-14 Sample of the PIDs Combination...
  • Page 32 ⚫ Data recording Supports recording the current data value in the form of text, you can view the recorded files in Reports->Data Replay. Figure 4-14 Data Recording, Screen 1 Figure 4-14 Data Recording, Screen 2 ⚫ Pause Click this button to pause the timeline...
  • Page 33 ⚫ FREEZE FRAME When the signal of the sensor is abnormal, the ECU will save the data at that moment of failure to form a freeze-frame. It is usually used to analyze the reasons that may lead to car failures. The living data items supported by vehicles of different brands are not the same, so the freeze frames displayed when diagnosing vehicles of different brands may also be different.
  • Page 34 Figure 4-18 Sample of the Freeze frame for Renault Duster ii ph (Screen 2) Context when fault appeared: record the live data when fault appeared to help the user to know the vehicle status. *Some vehicles don't support this function; users will get a prompt when they click the menu. Current context: Displays the current live data stream associated with the Figure 4-19 Sample of the Freeze frame for Renault Duster ii ph (Screen 3)
  • Page 35 Additional data: record other data related to the fault Figure 4-20 Sample of the Freeze frame for Renault Duster ii ph (Screen 4) ⚫ SPECIAL FUNCTIONS Figure 4-21 Sample of the Special Functions for the Injection system of Renault Duster ii ph...
  • Page 36: Special Functions

    5. S PECIAL UNCTIONS The D7 Smart Diagnostic System supports 25 commonly used special reset functions, allowing you to quickly access your vehicle system for various scheduled services, maintenance, and reset performance, eliminating the need to reset after resolving common problems. This user manual lists some of the commonly used special reset services for your reference.
  • Page 37: Oil Reset

    5.1 OIL RESET Reset the Engine Oil Life System, which calculates the optimum oil life change interval based on the vehicle’s driving conditions and climate. The oil life reminder must be reset each time the oil is changed so that the system can calculate when the next oil change is required.
  • Page 38: Epb

    Enter Maintenance mileage reset menu. Input reasonable value of mileage and press OK. Figure 5-3 Sample of oil reset function (screen 2) Message of ‘Reset success’ displayed when Oil Reset function has successfully performed. 5.2 EPB Electronic Parking Brake (EPB) System reset is a popular special function. You can use this function to reset the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor, and body angle calibration.
  • Page 39 2. Reset must be performed in the following cases: ⚫ The brake pad and brake pad wear sensor are replaced. ⚫ The brake pad indicator lamp is on. ⚫ The brake pad sensor circuit is short, which is recovered. ⚫ The servo motor is replaced.
  • Page 40: Sas

    Figure 5-5 Sample of EPB function (screen 2) Wait until the message of ‘Successful operation’ popes up. And press OK to exit the menu. Enter the Exit maintenance mode menu and wait until the message of ‘‘Successful operation’ popes up. 5.3 SAS Steering Angle Sensors (SAS) System Calibration permanently stores the current steering wheel position as the straight-ahead position in the SAS...
  • Page 41 steering knuckle), performing four-wheel alignment, or recovering the car body, you must reset the steering angle. The operation guidelines of the SAS function are shown as below: Enter the SAS menu and choose relevant models according to the vehicle being tested. Enter the Set steering angle sensor menu and follow the instructions displayed.
  • Page 42 Figure 5-7 Sample of SAS function (screen 2) Follow the instructions displayed and press OK after completing the instructions shown. Figure 5-8 Sample of SAS function (screen 3) Wait until the following instruction is displayed and press OK after completing the instructions shown.
  • Page 43: Dpf

    Figure 5-9 Sample of SAS function (screen 4) Message of ‘Function execution is completed’ displayed when SAS function has successfully performed. 5.4 DPF The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control module (ECM).
  • Page 44 temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance. DPF regeneration may be performed in the following cases: ⚫ The exhaust back pressure sensor is replaced. ⚫ The PM trap is removed or replaced. ⚫...
  • Page 45 displayed. Read the carbon deposit load. Choose the drive to warm up and follow the instructions listed below. And press OK after completing the instructions shown. Figure 5-11 Sample of DPF function (screen 2) Read the note carefully and follow the instructions shown on the screen. And press OK after completing the instructions shown.
  • Page 46 Figure 5-12 Sample of DPF function (screen 3) Follow the instructions displayed and press OK after completing the instructions shown. Please pay attention to the Note. Figure 5-13 Sample of DPF function (screen 4) Press the OK button to start the regeneration. Figure 5-14 Sample of DPF function (screen 5)
  • Page 47 10. Wait for the value of carbon deposit to decrease until a message of ‘Emergency regeneration has been completed’ popes up, this process may take up to 40 minutes. Figure 5-15 Sample of DPF function (screen 5) 11. Wait for 2 minutes to let the particulate filter cool down. Figure 5-16 Sample of DPF function (screen 6) 12.
  • Page 48: Bms Reset

    5.5 BMS RESET The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle. This function enables you to perform a resetting operation on the monitoring unit of the vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
  • Page 49 Figure 5-17 Sample of BMS function (screen 1) Enter the battery manufacturer and press OK after the input. Figure 5-18 Sample of BMS function (screen 2) Enter the 10-digit battery serial number and press OK after the input.
  • Page 50: Throttle

    Figure 5-19 Sample of BMS function (screen 3) 5.6 THROTTLE Throttle Position Sensor (TPS) Match, this function enables you to make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.
  • Page 51 Figure 5-20 Sample of throttle function (screen 1) Wait until all the parameters are read and displayed. Figure 5-21 Sample of throttle function (screen 2) Press the F2 button and wait until a message of ‘Match successfully’ pops up.
  • Page 52: Injector Coding

    5.7 INJECTOR CODING This function can write the identification code of the fuel injector into the ECU so that the ECU can recognize and work normally. Write actual injector code or rewrite code in the ECU to the injector code of the corresponding cylinder for controlling accurately and correcting cylinder injection quantity.
  • Page 53 Figure 5-22 Sample of injector coding function (screen 1) Read and confirm the value stored in the cylinders. Figure 5-23 Sample of injector coding function (screen 2) Enter the Change the value of cylinder menu of the replaced injector(s), enter the new 5-digit value, and then press OK. Figure 5-24 Sample of injector coding function (screen 3)
  • Page 54: Gearbox Match

    Wait until the message ‘Write successfully’ pops up. Turn off the ignition switch. Wait until the message asked you to turn on the ignition switch. Re-enter the Fuel injection nozzle injection volume adjustment menu to check whether the new value(s) are shown. Figure 5-25 Sample of injector coding function (screen 4) 5.8 GEARBOX MATCH After changing the gearbox or changing the gearbox ECU, you need to use...
  • Page 55: Gear Learning

    Figure 5-26 Sample of gearbox matching function (screen 1) Wait until the message ‘Successful operation’ popes up. 5.9 GEAR LEARNING The crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the tablet to more accurately diagnose engine misfires. If gear learning is not performed for a car equipped with a Delphi engine, the MIL turns on after the engine is started.
  • Page 56 Read carefully and complete the requisites listed before performing the gear learning function. And press OK after completing the instructions shown Figure 5-27 Sample of gear learning function (screen 1) Read the instructions displayed and press Yes to start the learning process.
  • Page 57: Settings

    Release the accelerator pedal and press OK to exit the gear learning function. 6. S ETTINGS Click the Settings button to adjust the default settings and view information about the D7 Smart Diagnostic System. There are seven options available in the system settings: ⚫ Language ⚫...
  • Page 58: Units

    Step4: Back to Updates to pull all packages again UNITS You can switch the unit used by the system. D7 Smart Diagnostic System provides you with Metric, Imperial, and U.S. units. You can directly click on the unit you need, after the switch is successful, a blue checkmark will...
  • Page 59: My Workshop Info

    Fig 6-2 Select the Unit System MY WORKSHOP INFO Click on My Workshop Information, you can input your workshop information here. As shown in the figure below, you just need to fill in the valid information in the corresponding column and click "SUBMIT". And then it will show your workshop information in the report when you generate a diagnostic report, including your company name, address, website, telephone, and mailbox.
  • Page 60: Firmware Information

    Fig 6-3 Example of workshop information input FIRMWARE INFORMATION Fig 6-4 Sample of Firmware Information...
  • Page 61: About

    You can view the firmware information here, including the firmware name, the latest firmware version, the currently used firmware version, and the VCI firmware type. The Diagnostic tablet supports automatic firmware update, please make sure that the device is connected to the network when you enter the diagnostic software and the firmware will be automatically updated to the latest version.
  • Page 62: Report

    7. R EPORT Diagnostic Report is used for viewing and printing the saved files, such as Live Data, Trouble codes or pictures generated in the process of Diagnostic, users also can view a record of which cars have been previously tested. It includes 3 parts: ⚫...
  • Page 63 Fig 7-2 Sample of Reports information Fig 7-3 Sample of Reports List When you open the report, located in the header of the table is the studio information you filled in advance in the system setup, then the information of the vehicle, as shown as below:...
  • Page 64 IP address of the printer in the APP, or you can contact your dealer for help. D7 Smart Diagnostic System doesn’t provide the printer driver software, please install a third part App on the tablet if you need the print your Diagnostic report.
  • Page 65: Replay

    Step 4: Click the top-left corner of the screen and choose the printer you added before. Then click the button on the right to print. REPLAY This function allows you to replay the living data recorded during the Diagnostic process. Before replaying the living data, please make sure you have recorded the live data during the Diagnostic Fig 7-5 Sample of Data Recording List...
  • Page 66: File Manager

    To obtain remote support from your partners or XTOOL After-service Center: 1. Turn on the power of the tablet. 2. Click Remote in the Diagnostic application. The TeamViewer screen is displayed, and the device ID will be generated.
  • Page 67 4. Provide your ID to the partner or XTOOL technician, and then wait for him/her to send you a remote-control request. 5. A pop-up window will be displayed, asking you to confirm to allow the remote-control program to control your device.
  • Page 68: Faq

    9. FAQ Q1: FAILED TO GENERATE DIAGNOSTIC REPORT 1. Currently only perform diagnostic functions, that is, read ECU information, read code and clear code, live data, freeze frame, which can trigger a diagnostic report. Other functions, such as immobilization and maintenance services will not be displayed in the report. 2.
  • Page 69: Q2: How To Print Diagnostic Report

    Fig 9-3 click clear cache Q2: HOW TO PRINT DIAGNOSTIC REPORT The XTOOL device is compatible with third-party print drivers. You can download the printer driver you need in the browser that comes with the tablet to install it, and then set your printer in the OS settings. After the...
  • Page 70: Q3: Failed To Extract Files

    Q3: FAILED TO EXTRACT FILES Since the XTOOL tablet is equipped with an Android system, you have to confirm the system type of receiver. For Android: supports transferring files via Bluetooth, USB cable, etc.; For IOS: only supports transferring files through a wired connection (Bluetooth connection is not available).
  • Page 71: Q6: How To Generate And Upload Diagnostic Log Files

    Q6: HOW TO GENERATE AND UPLOAD DIAGNOSTIC LOG FILES The D7 tablet will automatically generate and store the diagnostic logs. When the device is connected to the Internet, it will automatically upload all the stored diagnostic logs to the backend system.
  • Page 72: Q9: Failed To Activate Or Register

    Q9: FAILED TO ACTIVATE OR REGISTER ⚫ For ‘Activation Failed’ Generally caused by network instability, please switch to a more stable network and try to activate again. ⚫ For ‘Registration Failed’ Generally, it is caused by the connection timeout or the sending timeout, please check whether you have blocked the outgoing network traffic to non- US regions like China.
  • Page 73: Warranty & Services

    ERVICES Shenzhen Xtooltech Intelligent Co., LTD.(the Company) warrants to the original retail purchaser of this XTOOL device that should this product or any part thereof during normal usage and under normal conditions be proven defective in material or workmanship that results in product failure...
  • Page 74: Compliance Information

    11. C OMPLIANCE NFORMATION FCC COMPLIANCE FCC ID: 2AW3IP700 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference This device must accept any interference received, including interference that may cause undesired operation.
  • Page 75: Ukca

    ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information This device meets the government's requirements for exposure to radio waves.
  • Page 76 P700 satisfies all the technical regulations applicable to the product within the scope of UK Radio Equipment Regulations (SI 2017/1206); UK Electri cal Equipment (Safety) Regulations (SI 2016/1101); and UK Electromagne tic Compatibility Regulations (SI 2016/1091) and declare that the same ap plication has not been lodged with any other UK Approved Body.
  • Page 77 SHENZHEN XTOOLTECH INTELLIGENT CO., LTD COMPANY ADDRESS: 17&18/F, BUILDING A2, CREATIVITY CITY, LIUXIAN AVENUE, NANSHAN DISTRICT, SHENZHEN, CHINA FACTORY ADDRESS: 2/F, BUILDING 12, TANGTOU THIRD INDUSTRIAL ZONE, SHIYAN STREET, BAOAN DISTRICT, SHENZHEN, CHINA SERVICE-HOTLINE: 0086-755-21670995/86267858 EMAIL: MARKETING@XTOOLTECH.COM FAX: 0755-83461644 WEBSITE: WWW.XTOOLTECH.COM...
