General Introduction - Xtool D9 Pro User Manual

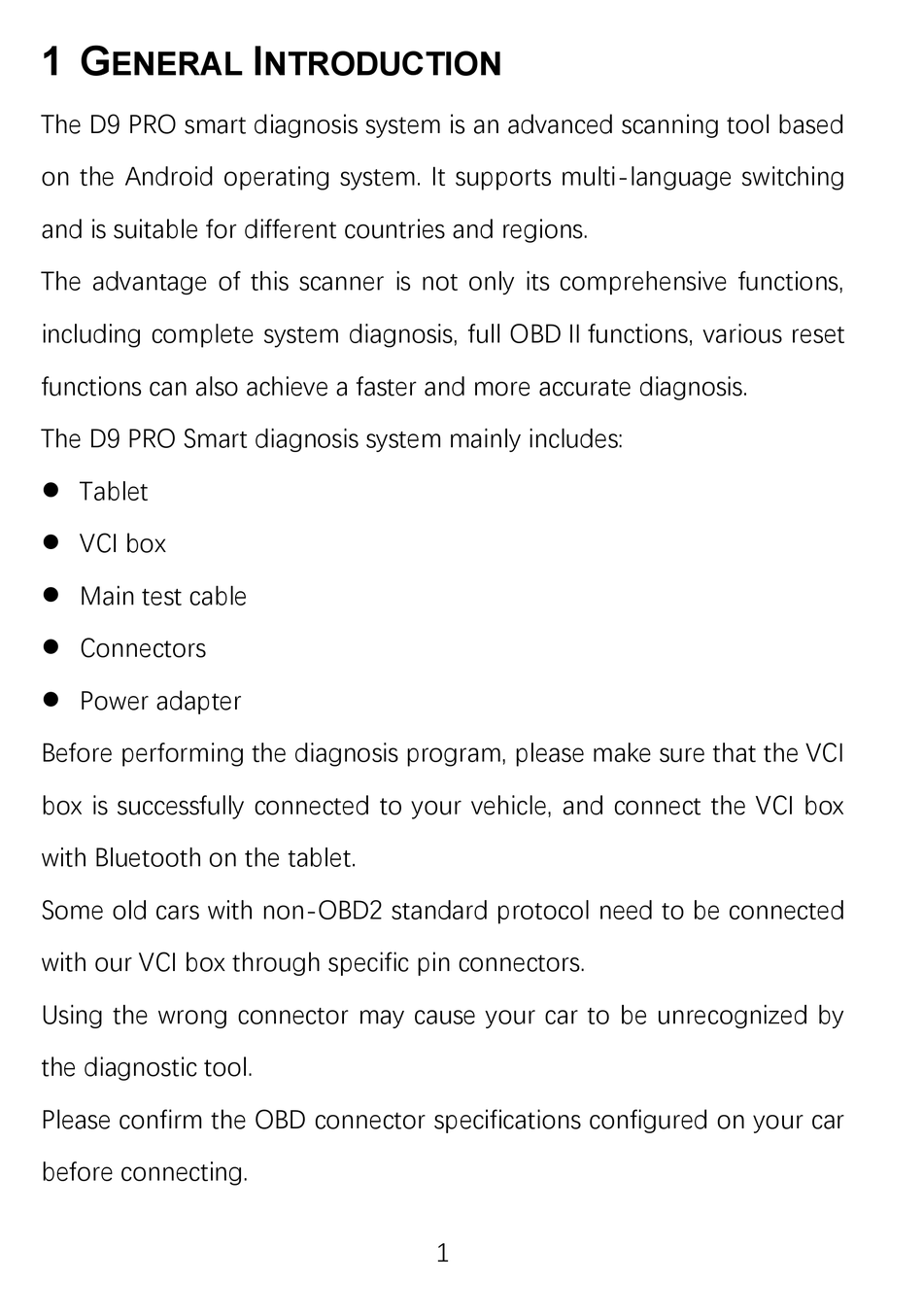

1 G I
ENERAL NTRODUCTION
The D9 PRO smart diagnosis system is an advanced scanning tool based
on the Android operating system. It supports multi-language switching
and is suitable for different countries and regions.
The advantage of this scanner is not only its comprehensive functions,
including complete system diagnosis, full OBDⅡfunctions, various reset
functions can also achieve a faster and more accurate diagnosis.
The D9 PRO Smart diagnosis system mainly includes:
⚫ Tablet
⚫ VCI box
⚫ Main test cable
⚫ Connectors
⚫ Power adapter
Before performing the diagnosis program, please make sure that the VCI
box is successfully connected to your vehicle, and connect the VCI box
with Bluetooth on the tablet.
Some old cars with non-OBD2 standard protocol need to be connected
with our VCI box through specific pin connectors.
Using the wrong connector may cause your car to be unrecognized by
the diagnostic tool.
Please confirm the OBD connector specifications configured on your car
before connecting.
1
