BASE ASSEMBLY

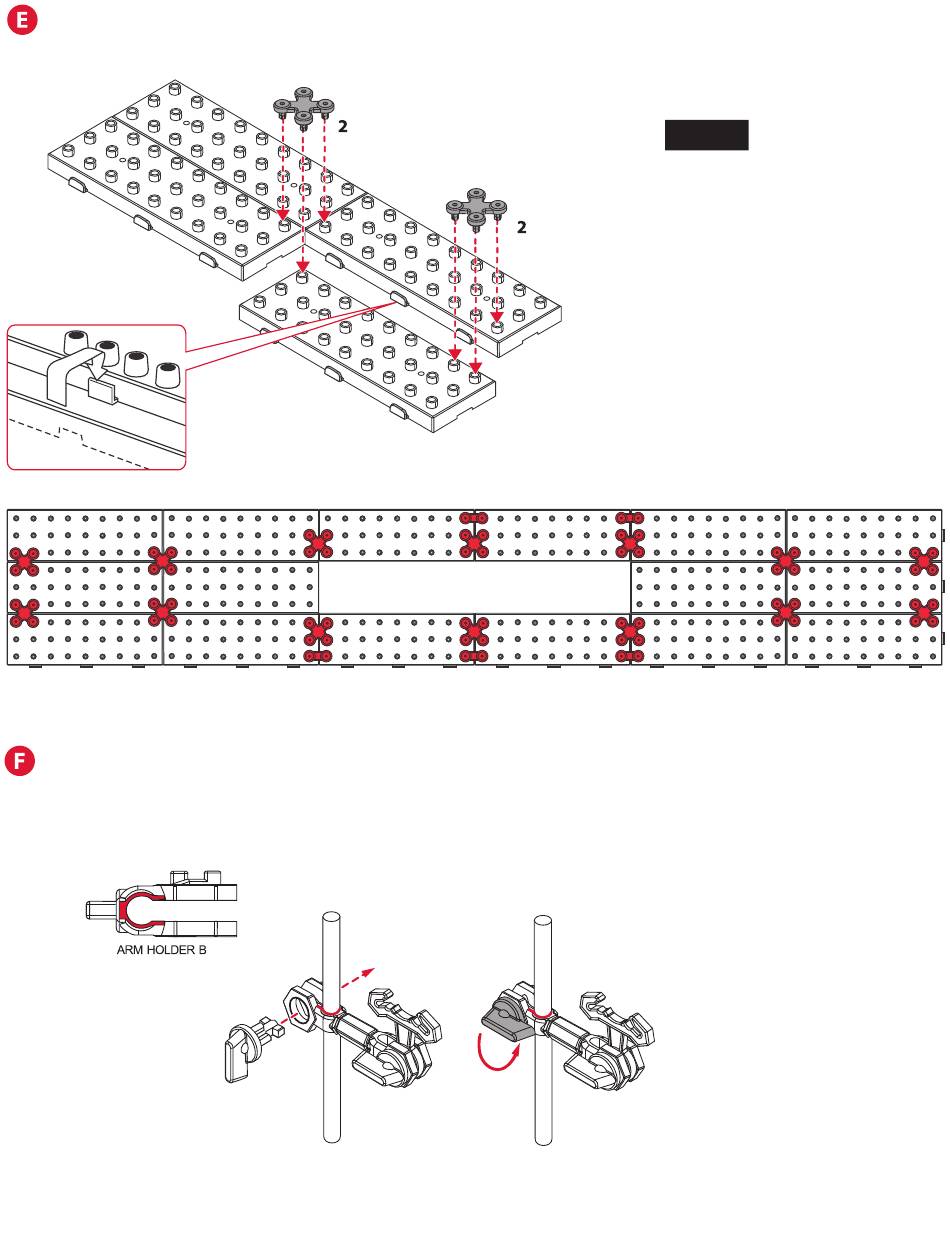

Step 1: Interlock
all Base block tabs
as shown below.

SHAFT ASSEMBLY

Step 1: Slide Arm Holder B of each arm on to a shaft and lock in place with Arm
Lock. Refer to the next page for orientation and location of each arm.
Page 4
Step 2: Press Base Holder A and
Base Holder B pieces into the Base
blocks for a more secure hold.
Seaich Corporation, LLC. All rights reserved. www.seaich.com | Spacerails, LLC. www.spacerails.com
NOTE:
Please see the included full size
drawings for the next several steps.
This will simplify the positioning of
the base, arms, shafts, and the rail
cut lengths.
Illustration of base with tabs
locked and Base Holders installed.
Approximately 17% of actual size.
