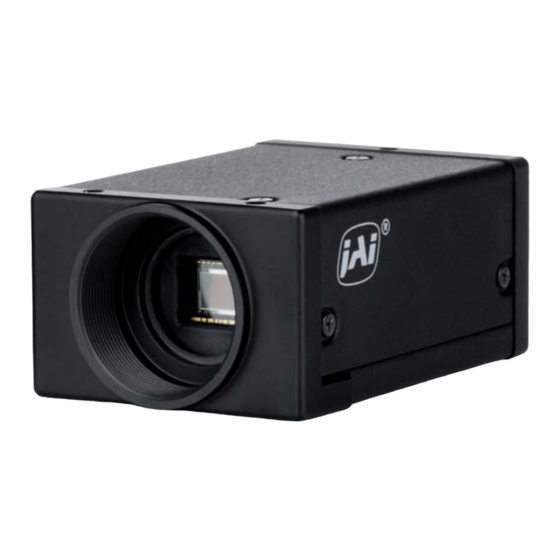

- Page 1 User's Manual CM-200 MCL CB-200 MCL Digital Monochrome / Color Compact Mini-CL Camera Document Version: 1.0 Camera Revision: 0...
-
Page 2: Table Of Contents
7.2.8. Black level BL=0 through BL=1023............20 7.3. Save and Load Functions................20 7.4. CM-200MCL/CB-200MCL command list............21 Camera Control Tool for CM-200MCL / CB-200MCL ..........23 8.1. Camera Control Tool Interface ..............23 8.1.1. Camera Control Tool Bar ..............23 8.2. The About Window...................23 8.3. - Page 3 CM-200 MCL / CB-200 MCL 8.5. Using the Camera Control Tool ..............25 External Appearance and Dimensions ..............27 Specifications ....................28 10.1. Spectral response .................28 10.2. Specification table ................29 Appendix ....................30 11.1. Precautions ..................30 11.2. Typical Sensor Characteristics..............30 11.3. References ..................31 User's Record .....................33 - 2 -...
-
Page 4: General
ITS (Intelligent Traffic Solutions), high-end surveillance and medical. The latest version of this manual can be downloaded from: www.jai.com The latest version of Camera Control Tool for CM-200MCL/CB-200MCL can be downloaded from: www.jai.com For camera revision history, please contact your local JAI distributor. -
Page 5: Locations And Functions
CM-200 MCL / CB-200 MCL 4. Locations and Functions ⑥ 3-M3depth4 ⑤ ④ (depth0.16) POWER / TRIG MINI-CL C-Mount ② ① ⑥ ③ 6-M3depth4 (depth0.16) 1 Lens mount C-mount (Note *1) 2 CCD sensor 1/2 inch CCD sensor 3 26-pin connector Camera Link Interface (Mini-CL) 4 12-pin connector DC+12V and trigger input (Note *2) -
Page 6: Pin Assignment
Hirose multi connector is not present on the rear panel. PoCL cameras require special frame grabbers that provide power to the camera via the Camera Link cable. Please consult www.jai.com party interfacing section) for information on available PoCL frame grabbers. -
Page 7: Input And Output Circuits
CM-200 MCL / CB-200 MCL 5.3. Input and output circuits In the following schematic diagrams the input and output circuits for video and timing signals are shown. 5.3.1. Iris video output Video Video Video Output Output Output This signal can be used for lens iris control in Continuous mode. The signal is taken from the CCD sensor output before the gain circuit. -
Page 8: Functions And Operations
An analogue iris video signal can be used for controlling the iris of an auto iris lens when operating in continuous mode. The camera has 2/3, 1/2, 1/4 or 1/8 partial scanning and vertical binning ( CM-200MCL only )for faster frame rates . -
Page 9: Continuous Operation Or Triggered Operation
CM-200 MCL / CB-200 MCL The following 10 steps can be selected by command SH=0 through SH=9. OFF (1/25), 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 Programmable Exposure (PE) The Exposure time can be programmed in 32 µs (1 LVAL period) increments. The range is from 2L to 1251L. -
Page 10: Auto-Detect Lval-Sync / - A-Sync Accumulation
6.1.6. Auto-detect LVAL–sync / - a-sync accumulation This function replaces the manual setting found in current JAI cameras. Whether accumulation is synchronous or a-synchronous in relationship to LVAL depends on the timing of the trigger input. When a trigger is received while FVAL is high (during readout), the camera works in LVAL synchronous mode , preventing reset feed through in the video signal. -
Page 11: Vertical Binning
6.1.8. Vertical Binning This function is only available for CM-200MCL camera. Binning mode (Command VB) is a function where the signal charge from 2 adjacent (vertical) pixels are added together and read out as one pixel. Binning results in half vertical resolution and higher frame rate. -
Page 12: Sensor Layout And Timing
CM-200 MCL / CB-200 MCL 6.2. Sensor Layout and timing 6.2.1. CCD Sensor Layout The CCD sensor layout with respect to pixels and lines used in the timing and video full frame read out is shown below. For Bayer color sequence, refer to chapter 6.1.7. Fig. -
Page 13: Horizontal Timing
CM-200 MCL / CB-200 MCL 6.2.2. Horizontal timing The LVAL period is shown for normal continuous mode. Horizontal Video Timing Full Frame Read out / Partial Read Out 1 LVAL 2080 clk = 32 μs 1 clk = 15.38 ns LVAL Valid data DATA OUT... -
Page 14: Partial Scanning
CM-200 MCL / CB-200 MCL 6.2.4. Partial Scanning Partial scan allows higher frame rate by reading out a smaller center portion of the image. This is particularly useful when inspecting objects that do not fill the whole height of the image. Fast-dump period Normal scan period Fast-dump period... -
Page 15: Vertical Binning
By activating this function, the frame rate is increased to 44.49 fps. This function is available only for CM-200MCL. Important Note Vertical Binning can not be used together with the Partial Scan. -
Page 16: Operation Modes
CM-200 MCL / CB-200 MCL Vertical timing Vertical Video Timing V Binning Frame rate : 627L 44.492 fps LVAL FVAL 1233+1234 1235+1236 1+2 3+4 DVAL 618L Valid data DATA CCD Exposure XEEN Fig.18. Vertical Timing for Vertical Binning 6.3. Operation Modes This camera can operate in 3 primary modes. - Page 17 CM-200 MCL / CB-200 MCL To use this mode: Set function: Trigger mode to “Edge pre-select”. TR=1 Scanning SC=0 to 4 V Binning VB=0, 1 Shutter mode to normal or programmable SM=0, SM=1 Shutter speed SH=0 to 9 Programmable exp. PE=2 to 1252 Other functions and settings Input:...
-
Page 18: Pulse Width Control Trigger Mode
CM-200 MCL / CB-200 MCL 6.3.3. Pulse Width Control Trigger Mode In this mode the accumulation time is equal the trigger pulse width. Here it is possible to have long time exposure. The maximum recommended time is <60 frames. For timing details, refer to fig. 13 through fig. 18 and fig. 21 & 22. To use this mode: Set function: Trigger mode to “Pulse width control”. -
Page 19: Mode And Function Matrix
Trigger input during FVAL LOW period 2L to 3L LVAL a-SYNC mode setting Fig.22. Pulse Width Control LVAL a-Synchronous 6.4. Mode and function matrix. The following table shows which functions will work in the different modes for CM-200MCL / CB- 200MCL. Shutter Accumulation Iris Func. -
Page 20: Configuring The Camera
7. Configuring the Camera 7.1. CL-serial control All configuration of the CM-200MCL / CB-200MCL camera is done the serial communication in the Camera Link connector. The camera can be set up from a PC running terminal emulator software, or using JAI's camera control software. -
Page 21: Setting Functions
Vertical binning VB=0, VB=1 This function is only for CM-200MCL camera. With Vertical binning the pixel charge from 2 adjacent lines are added together in the horizontal CCD register. This done by providing two pulses to the vertical CCD register for each line readout. -
Page 22: Cm-200Mcl/Cb-200Mcl Command List
This command will store the actual camera settings to 1 of the 3 user area in the camera EEPROM. EEPROM Area EA If received, the camera will return the last used user area number. 7.4. CM-200MCL/CB-200MCL command list Command Name Format... - Page 23 CM-200 MCL / CB-200 MCL Command Name Format Parameter Remarks TP?<CR><LF> 1=Active High TI=[Param.]<CR><LF> 0=Camera Link Trigger Input TI? <CR><LF> 1=Hirose 12pin D -Image Format BA=[Param.]<CR><LF> 0=10bit Bit Allocation BA?<CR><LF> 1=8bit 0=Full Frame 1=2/3 Partial SC=[Param.]<CR><LF> Scan Format 2=1/2 Partial SC? <CR><LF>...
-
Page 24: Camera Control Tool For Cm-200Mcl / Cb-200Mcl
CM-200 MCL / CB-200 MCL 8. Camera Control Tool for CM-200 MCL / CB-200 MCL The camera control Tool for Windows 2000/XP can be downloaded from www.jai.com. The control tool contents a camera control program and a developer’s kit for integrating the control tool in your own software. -
Page 25: Communication Window
The bar is red when the Camera Control Tool is not connected to a camera or when the camera is turned off. 8.3. Communication Window The Communication Window is used to connect the Camera Control Tool with the JAI camera. Camera Link communication: The ’CL Manufacturer/COM-ports’ list box also... -
Page 26: Camera Control Window
3. It is possible to work with the Camera Control Tool when the camera is online and when the camera is offline. 4. The newer JAI cameras always start up with the last used user area (but for some old models it will start up with the last saved user area.) 5. - Page 27 CM-200 MCL / CB-200 MCL Camera Control Tool does not show the actual camera settings (see 4. and 5.). a. To obtain the camera settings click “Synchronize Program”. b. To send the settings that are saved in the Camera Control Tool (last used settings) to the camera click “Synchronize Camera”.
-
Page 28: External Appearance And Dimensions
CM-200 MCL / CB-200 MCL 9. External Appearance and Dimensions 3-M3depth4 (0.2) (depth0.16) (2.28) (2.60) POWER / TRIG MINI-CL C-Mount (0.51) (1.97) 6-M3depth4 (0.2) (depth0.16) Fig. 24. Outline. Note: Cameras with the PoCL (Power-over-CL) option do not have the 12-pin connector. All other parts ar identical. -
Page 29: Specifications
CM-200 MCL / CB-200 MCL 10. Specifications 10.1. Spectral response Fig. 25. Spectral response for CM-200MCL Fig.26. Spectral response for CB-200MCL - 28 -... -
Page 30: Specification Table
CM-200 MCL / CB-200 MCL 10.2. Specification table Specifications CM-200MCL CB-200MCL Scanning system Progressive scan 24.98 frames/sec. Progressive Frame rate full frame (1251 lines/frame) Pixel clock 65 MHz 31.25kHz Line frequency (2080 pixels clock/line) CCD sensor 1/1.8″. Monochrome ICX274AL 1/1.8″ Color ICX274AQ Sensing area 7.13 (h) x 5.44 (v) mm... -
Page 31: Appendix
CM-200 MCL / CB-200 MCL 11. Appendix 11.1. Precautions Personnel not trained in dealing with similar electronic devices should not service this camera. The camera contains components sensitive to electrostatic discharge. The handling of these devices should follow the requirements of electrostatic sensitive components. Do not attempt to disassemble this camera. -
Page 32: References
CM-200 MCL / CB-200 MCL 11.3. References 1. This manual can for CM/CB-200MCL can be downloaded from www.jai.com 2. Datasheet for CM/CB-200MCL can be downloaded from www.jai.com 3. Camera control software can be downloaded from www.jai.com 4. Specifications for the CCD sensor Sony can be found on www.jai.com... - Page 33 CM-200 MCL / CB-200 MCL Index Bayer mosaic color, 3, 7 Binning, 1, 10, 15, 22 Binning mode, 10 Bit allocation, 1, 22 Black level, 1, 22, 31 Blemishes, 32 Camera Control Tool, 1, 3, 25, 26, 27, 28 Camera Link, 1, 4, 5, 6, 7, 9, 17, 18, 21, 22, 24, 26, 31 Camera Link connector, 6 CCD sensor, 4 Continuous operation, 3, 7, 16...
-
Page 34: User's Record
Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners. JAI A-S cannot be held responsible for any technical or typographical errors and reserves the right to make changes to products and documentation without prior notification. - Page 35 CM-200MCL Supplement The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera.
- Page 36 CB-200MCL Supplement The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera. mark shows that the environment-friendly use period of contained Hazardous Substances is 15 years.
