- Page 1 RM/TM-1405GE RMC/TMC-1405GE Digital Monochrome/Color Progressive Scan, Interline-Transfer GE Camera Document Version: F Document P/N: 10167...
- Page 3 The material contained in this manual consists of information that is proprietary to JAI Inc., and may only be used by the purchasers of the product. JAI, Inc. makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
- Page 4 Changes or modifications to this unit not expressly approved by the party responsible for FCC compliance could void the user’s authority to operate the equipment. RM/TM-1405GE Series Operation Manual JAI Inc. 625 River Oaks Parkway San Jose, CA 95134 Tel:(408) 383-0300...
-
Page 5: Table Of Contents
RM/TM-1405GE Series Table of Contents Disclaimer Notice ....................iii Table of Contents ....................v List of Figures ....................... vii List of Tables ......................ix Hardware Introduction ................9 Product Description ................... 9 Features ....................9 ... - Page 6 RM/TM-1405GE Series 4.3.6 Interrupt Moderation rate ................30 4.3.7 Calculating and setting Inter-Packet Delay ............30 4.3.8 Confirm the Filter Driver is used ..............31 Configuring the Camera ................33 Acquisition and Trigger Controls ..............33 ...
- Page 7 RM/TM-1405GE Series List of Figures Figure 1. 12-Pin Connector Pinouts ................12 Figure 2. GigE Ethernet Connector ................12 Figure 3. 12P-02S Interface Cable (optional) ..............13 Figure 4. Back-Focus Set-Screw Locations ..............15 ...
- Page 8 RM/TM-1405GE Series List of Tables Table 1 Table 1 12-Pin Connector ................12 Table 2 Video Output (Horizontal Timing) ..............23 Table 3 Video Output (Vertical Timing) ..............24 Table 4 External HD Locking and External VD Reset (Horizontal Timing) ......24 ...
-
Page 9: Hardware Introduction

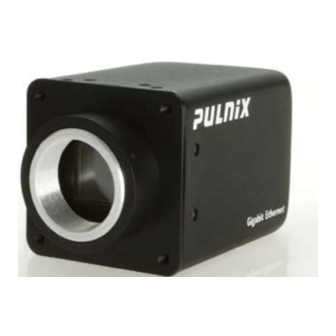

Hardware Introduction Product Description The JAI TM-1405GE is a high-speed progressive scan CCD camera. The interline-type CCD permits full vertical and horizontal resolution of very high speed shutter images and applications. The electronic shutter, which has speeds to 1/21,000 second, can be reset asynchronously by external pulse control. - Page 10 RM/TM-1405GE Series • Asynchronous reset The TM-1405GE captures asynchronous reset images and provides single-shot video output with single FDV. This makes it simpler for an ordinary frame grabber to capture the asynchronous reset images. The TM-1405GE’s asynchronous reset is flexible and accepts external horizontal drive (HD) for phase locking.
-
Page 11: Installation
RM/TM-1405GE Series Installation The following instructions will help you to set up your camera quickly and easily. JAI suggests that you read through these instructions first, before you unpack and set up your camera system. Getting Started 2.1.1 Unpacking Instructions JAI recommends that you save the original packing cartons for the cameras and accessories in case you need to return or exchange an item. -
Page 12: Connector Pin Configurations
The TM-1405GE camera requires 12V DC power obtained through the 12-pin connector located on the rear panel of the camera. JAI, Inc. power supplies feature a 122-240V AC / 12V DC 1.2A universal voltage supply. JAI recommends the following power supplies:... -
Page 13: Figure 3. 12P-02S Interface Cable (Optional)
2.2.3.2 JAI Power Cables If you are using JAI power cables, such as the 12P-02S, refer to the Figure 3 which shows the cable pin-out diagram and pinouts. The color-coded leads use Gray for Ground and Yellow for +12V. Figure 3. -
Page 14: Attaching The Camera Lens
RM/TM-1405GE Series Note: If using a power supply other than the standard PD-12U Series from JAI, certain characteristics are required of the power supply and the wiring in order to properly power the camera. The camera requires 12V immediately upon start-up; no slow ramps. Once power is applied, the power supply must be able to support a 2A to 2.5A in-rush current for... -
Page 15: Figure 4. Back-Focus Set-Screw Locations
RM/TM-1405GE Series Figure 4. Back-Focus Set-Screw Locations Installation... -
Page 16: Operation
3.2.1 Color Filter Array JAI AccuPiXEL cameras use Bayer CFA (color filter array) as their standard primary color filter. This filter provides the most popular color interpolation supported by numerous software suppliers. The digital format allows the camera to output accurate pixel data, including the color information. -
Page 17: Starting Pixel Configuration
R/G start or G/R start, as well as G/B start and B/G start. Once the correct scanning is configured, the rest of the interpolation will be exactly the same. Please contact JAI for further information regarding CCD manufacturers. -
Page 18: Camera Functions
When LUT is selected, black-level adjustment must be more accurate than for B/W cameras. For a detailed timing chart, please refer to the standard AccuPiXEL camera data sheet, or contact JAI. 3.2.6 Interpolation Software The color interpolation can be performed in the frame grabber or by using the host computer’s CPU. -
Page 19: Color Interpolation
3 x 3 interpolation, 2 x 2 interpolation, color matrix, white balance capability, etc. All AccuPiXEL color cameras are carefully designed for maximum color performance. JAI strongly suggests that you use digital output for the best performance. -
Page 20: Async Programmable Shutter Speed Control
RM/TM-1405GE Series Figure 7. Async No Shutter 3.5.2 Async Programmable Shutter Speed Control In Asynchronous Programmable Shutter mode, the video signal starts with internal VINIT. When the external VINIT pulse is applied, internal VINIT is latched to HD and the internal VINIT is delayed to set up the shutter speed period. -
Page 21: External Vinit With Pulse Width (No-Delay Shutter)
RM/TM-1405GE Series 3.5.3 External VINIT With Pulse Width (No-Delay Shutter) For multiple-camera applications such as 2D or 3D measurement and multi-angle inspection, simultaneous image capturing at an exact shutter timing for all cameras is a critical requirement. The TM-1405’s asynchronous pulse-width control mode provides no-delay shutter as standard. Regardless of the internal pulse timing, the camera discharges at the VINIT leading edge and transfers charges at the trailing edge of the pulse. -
Page 22: Camera Timing Charts
RM/TM-1405GE Series Camera Timing Charts Operation... -
Page 23: Video Output
RM/TM-1405GE Series Video Output Table 2 Video Output (Horizontal Timing) Horizontal Timing Number of pixels 30fps (μs) 1608 32.16 4.32 1392 27.84 0.96 1.22 2.14 Operation... -
Page 24: External Hd Locking And External Vd Reset
RM/TM-1405GE Series Table 3 Video Output (Vertical Timing) Vertical Timing Full Scan Area User Scan Area (SP:x, TL:y) Number of lines 30fps (μs) Number of lines 30fps (μs) 1053 33864.48 (nfp+11)+nrp+y ((nfp+11)+nrp+y)*32.12 418.08 (nfp+11)+nrp ((nfp+11)+nrp)*32.16 1040 33446.40 y*32.16 96.48 nrp+6 (nrp+6)*32.12 96.48 96.48... -
Page 25: 3.10 Asynchronous Reset
RM/TM-1405GE Series 3.10 Asynchronous Reset Table 6 Asynchronous Reset (L: lines) 30 fps (P: pixels) (μs) <1L <32.16 9L + 960P 308.64 160P 3.20 289.44 Table 7 Asynchronous Direct Shutter and Pulse-Width Control Asynchronous Direct Shutter Pulse-Width Control (ADS=n) (Pulse Width=z) (L: lines) 30 fps (μs) (L: lines) -
Page 26: Functions & Operations
A GigE Vision camera can be controlled by any software that understands the protocol. At JAI we provide the JAI GigE Vision SDK and Control Tool to interface with our cameras. The remainder of the manual will show screenshots of the JAI Control Tool but other 3rd party software will provide similar functionalities. -
Page 27: Video Data Rate (Network Bandwidth)
BayerRG/GB8 for color. 4.3.3 Disable Firewalls To ensure proper operation of the JAI SDK & Control Tool, all firewalls must be disabled. This also includes the Windows firewall. Click [Start], [Control Panel] for accessing the Windows firewall configuration. -
Page 28: Enabling Jumbo Frame
RM/TM-1405GE Series 4.3.4 Enabling Jumbo Frames (1) Click [Start] and click [Control Panel]. (2) Click [Performance and Maintenance]. (3) Click [System]. (4) Click [Hardware] tab. (5) Click [Device Manager] (6) Expand [Network adapters]. (7) Select target NIC, right-click, and click [Properties]. Note: The following procedure uses the Intel(R) PRO/1000 as an example. - Page 29 RM/TM-1405GE Series (8)Click [Advanced] tab. (9) Select Jumbo Frames in the Property list, and select the desired Value. This setting defines the maximum GevSCPS Packet Size the camera can use. (10)Click [OK]. (11)Close [Device Manager]. (12)Close [System Properties] clicking [OK]. Functions &...
-
Page 30: Setting Receive Descriptors
RM/TM-1405GE Series 4.3.5 Setting Receive Descriptors If the Network Connection Properties list contains a property called Receive Descriptors, then change its property to the maximum value supported by the NIC installed in the computer. Click “OK“ to save the property. 4.3.6 Interrupt Moderation rate If the Network Connection Properties list contains a property... -
Page 31: Confirm The Filter Driver Is Used
Confirm the Filter Driver is used The filter driver is installed as an optional function when JAI SDK is installed. If the filter driver is not installed at that time, it can be installed from All Programs => JAI SDK => GigE Vision Filter Driver =>... - Page 32 If it is not shown, confirm the setting in the “Settings” window. Access the “Settings” window by clicking on the icon to the left of the blue question mark icon. Refer to the “Getting Started Guide” provided with the JAI GigE Vision SDK and Control Tool for more information about controls in the “Settings” window.
-
Page 33: Configuring The Camera
RM/TM-1405GE Series Configuring the Camera The following sections describe the various features of the camera. Acquisition and Trigger Controls These controls affect exposure mode, exposure time, and image acquisition operations. Figure 10. Acquisition And Trigger Controls Category AcquisitionMode: controls how the camera behaves during image acquisition. The possible options are: •... -
Page 34: Analogcontrols
RM/TM-1405GE Series • SingleFrameRecording: Acquire a single image and store onto the onboard memory. Images can be read from the camera using SingleFrameReadout. • SingleFrameReadout: A single image will be read from the onboard memory. If no frames are available, a timeout may occur in some software. To retrieve the next image simply execute AcquisitionStart once. -
Page 35: Image Size Controls
RM/TM-1405GE Series Figure 11. AnalogControls Category GainRaw: controls the Gain value. VTop: affects digital gain. Decreasing the value results in a brighter image. It is recommended to use values below 220. VBottom: adjusts the black level of the image. Increasing the value will increase the black level and darken the image. -
Page 36: Figure 12. Image Output Example
RM/TM-1405GE Series SensorDigitizationTaps: the TM-1405GE is a single tap camera and uses one channel to read out images from the image sensor. WidthMax: shows the current valid maximum value for Width. HeightMax: shows the current valid maximum value for Height. Width: sets the width of the output image. -
Page 37: Lut (Look Up Table)
RM/TM-1405GE Series • BayerGB10: 10-bit Bayer pattern with Green and Blue pixels in first row. ScanMode: controls the image size captured by the image sensor. By changing to a smaller size you can achieve a faster frame rate. After changing ScanMode it is necessary to adjust the Width and Height value to a valid value. -
Page 38: Usersets
RM/TM-1405GE Series KneeX1: controls the X value of first Knee point. KneeY1: controls the Y value of first Knee point. KneeX2: controls the X value of second Knee point. This value must be greater than KneeX1. KneeY2: controls the Y value of second Knee point. KneeSet: after you have changed the values of the knee points click KneeSet to apply the setting. -
Page 39: Deviceinformation
Show camera’s general information such as version, model, and serial number. Figure 15. DeviceInformation Category DeviceVendorName: shows JAI, Inc. DevicModelName: shows the camera model name. DeviceVersion: shows the current camera version. DeviceID: the device serial ID. This is set at the factory and only available in Expert and Guru visibility modes. -
Page 40: Stream Channel Packet Size
RM/TM-1405GE Series Set GevCurrentIPConfigurationPersistenIP to True. Set GevPersistentIPAddress to the IP Address of your choosing. (Ex: 169.254.0.11) Set GevPersistentSubnetMask to the subnet mask of your choosing (Ex: 255.255.0.0) Subnet Mask must match the device to which the camera is communicating. Set GevPersistentDefaultGateway to the IP Address of your gateway. -
Page 41: Figure 17. Plc Lut Diagram
RM/TM-1405GE Series under the CountersAndTimersControls category, and the other parts are controlled under the IPEngine category. Figure 17. PLC LUT Diagram Note: Ext_VD, EXT_HD, EVINIT and INTG_CON all go the camera head. TTL Output (Strobe) goes outside the camera via Pin 8 of the 12-Pin cable. Configuring the Camera... -
Page 42: Signalroutingblock
RM/TM-1405GE Series Figure 18. 5.8.1 SignalRoutingBlock The Signal Routing Block is a group of switches that lets you route signals to the PLC Lookup Table. There are a total of 8 input lines, numbered from I0 to I7. Each input line can accept a number of different signals. -
Page 43: Figure 18. Plc
RM/TM-1405GE Series Here are the possible input signals into the PLC: Signal Source Signal Name / Input Pin Description 12 Pin External_Trigger_In_Pin6 External trigger signal. 12 Pin External_VD_In_Pin7 External vertical drive signal. 12 Pin External_HD_In_Pin9 External horizontal drive signal. 12 Pin External_INT_In External Integration Control / Read Out Inhibit signal. -
Page 44: Controlbits
RM/TM-1405GE Series This table show possible signals each input line can accept (“(D)” specifies factory defaults): Signal Name / Input Pin External_Trigger_In_Pin6 X(D) External_VD_In_Pin7 X(D) External_HD_In_Pin9 X(D) External_INT_In X(D) Internal_FDV_Out Internal_LDV_Out Internal_CAM_STROBE_Out X(D) PLC_ctrl0 PLC_ctrl2 PLC_ctrl3 PLC_Q2 PLC_Q3 PLC_Q6 PLC_Q7 Counter1Gt Counter1Eq Timer1Out... -
Page 45: Plc Lookuptable
RM/TM-1405GE Series Figure 20. ControlBits 5.8.3 PLC LookupTable The PLC Lookup Table lets you connect any input signal I0-I7 to any Lookup Table output signal Q0- Q17. You can manipulate your inputs using simple or complex Boolean operations. Each Q output results from the Boolean operations of 4 input variables and 3 Boolean operators. -
Page 46: Plcspecialconfigurations
RM/TM-1405GE Series • (Variable0 Op0 Variable1) Op1 (Variable2 Op2 Variable3) All Q# controls follow this format: • PLC_Q#_Variable0: the first input signal. • PLC_Q#_Operator0: a Boolean operator. • PLC_Q#_Variable1: the second input signal. • PLC_Q#_Operator1: a Boolean operator. • PLC_Q#_Variable2: the third input signal. •... -
Page 47: Figure 22. Plc Special Configurations
RM/TM-1405GE Series Figure 22. PLC Special Configurations Figure 23. CountersAndTimersControls Configuring the Camera... -
Page 48: Counters
RM/TM-1405GE Series 5.8.5 Counters The General Purpose Counter lets you maintain a count between 0 and 232-1 (long integer). You can use different inputs to increment, decrement, or clear the counter value. The General Purpose Counter outputs two separate signals that indicate when the count is equal to and greater than the compare value that you set: Counter1Gt and Counter1Eq. -
Page 49: Pulse Generators Controls
RM/TM-1405GE Series CounterResetActivation: select the signal event type that will reset the counter. The counter will be reset to 0. Available options: • Off: no decrement events • RisingEdge: increment when the signal goes from Low to High • FallingEdge: increment when the signal goes from High to Low. •... -
Page 50: Plc Grabber Features
RM/TM-1405GE Series TimerGranularityFactor: a multiplier value used to scale the Delay and the Duration in increments of 30 nsec. TimerPeriod: shows the timer’s period in units of nsec. TimerTriggerActivation: select the signal state of the TriggerSource to start the Timer. •... -
Page 51: Register Map
RM/TM-1405GE Series iii. Set PLC_Q5_Variable0 to One. (Integration signal always on.) Example 2: Setting the camera to accept internal trigger signal generated via Timer 1: Set ExposureMode to one of Asynchronous modes. Setup the Timer (Pulse Generator) a. Set TimerSelector to Timer1. b. - Page 52 RM/TM-1405GE Series Read/ Visibility Category / Feature Value Range Default Value Write Level AcquisitionFrameCount 1-255 Beginner AcquisitionStart Execute Command Beginner AcquisitionStop Execute Command Beginner AcquisitionRecordingWrapAr False False Expert ound True BlockBufferCount Depends on image size. Expert BlockBufferCurrentIndex 0 to (BlockBufferCount – 1) Expert ExposureMode Beginner...
- Page 53 RM/TM-1405GE Series Read/ Visibility Category / Feature Value Range Default Value Write Level CounterSelector Counter1 Counter1 Beginner CounterDecrementEventSour Beginner PLC_Q16_RisingEdge PLC_Q16_FallingEdge PLC_Q16_AnyEdge PLC_Q16_LevelHigh PLC_Q16_LevelLow CounterDuration 0-4294967295 Beginner CounterEventSource Beginner PLC_Q17_RisingEdge PLC_Q17_FallingEdge PLC_Q17_AnyEdge PLC_Q17_LevelHigh PLC_Q17_LevelLow CounterResetActivation Beginner RisingEdge FallingEdge AnyEdge LevelHigh LevelLow CounterResetSource PLC_Q3...
- Page 54 RM/TM-1405GE Series Read/ Visibility Category / Feature Value Range Default Value Write Level GevPersistentDefaultGatewa 000.000.000.000 - 255.255.255 000.000.000.000 Expert GevCurrentIPConfigurationPe Beginner rsistenIP ImageSizeControl SensorDigitizationTaps Expert WidthMax 0 – 1392 Beginner HeightMax 0 - 1040 Beginner Width 0 to (WidthMax - OffsetX) Beginner Height 0 to (HeightMax - OffsetY)
- Page 55 RM/TM-1405GE Series Read/ Visibility Category / Feature Value Range Default Value Write Level UserSets UserSetLoadStatus InProgress Expert Failure Success UserSetSelector Default Beginner UserSet1 … UserSet6 UserSetLoad Execute Command Beginner UserSetSave Execute Command Beginner UserSetDefaultSelector Default UserSet1 Expert UserSet1 … UserSet6 Configuring the Camera...
-
Page 56: Troubleshooting
Following are troubleshooting tips for common problems. In general, the problems listed in this section are solved by following these instructions. If there is no solution listed to the problem you are encountering, contact a JAI Inc. representative. 6.1.1 Symptom: No Video Remedies: Check that the following are properly connected and operational. - Page 57 RM/TM-1405GE Series Mailing Address Mail: JAI, Inc. Sales Department 625 River Oaks Parkway San Jose, CA 95134 ATTN: Video Applications Web Site: www.jai.com Troubleshooting...
-
Page 58: Appendix
RM/TM-1405GE Series Appendix Specifications Table 8 TM-1405GE Camera Specifications Table Feature TM-1405GE Imager 1/2” progressive scan interline transfer CCD (ICX205AL/AK) Active Area 6.47mm x 4.84mm Active Pixels 1392 (H) x 1040 (V) Cell Size 4.65μm x 4.65μm Display Mode 1392 (H) x 1040 (V) @ 30 Hz (Active Pixels) Internal/External auto switch HD/VD, 4.0 Vp-p impedance 4.7 K Ω... -
Page 59: Tm-1405Ge Physical Dimensions
RM/TM-1405GE Series 7.1.1 TM-1405GE Physical Dimensions Figure 24. Physical Dimensions Caution: When mounting the camera to any fixture, do not use screws that extend more than 5 mm into the camera housing to avoid possible damage to the internal circuitry. For attaching the tripod mounting plate, only the supplied screws should be used. -
Page 60: Spectral Response
RM/TM-1405GE Series 7.1.2 Spectral Response Figure 25. Monochrome Spectral Response Figure 26. Color Spectral Response Appendix... - Page 62 Europe, Middle East & Africa Phone +45 4457 8888 Fax +45 4491 3252 Asia Pacific Phone +81 45 440 0154 Fax +81 45 440 0166 Americas Phone (Toll-Free) 1 800 445-5444 Phone +1 408 383-0301 www.jai.com...
