P/N 06-235975-001
November 2002
Fire Alarm/Suppression
Design, Installation,
Operation and
Maintenance Manual
FM
R
LISTED
APPROVED
MEA
Listed
firealarmresources.com

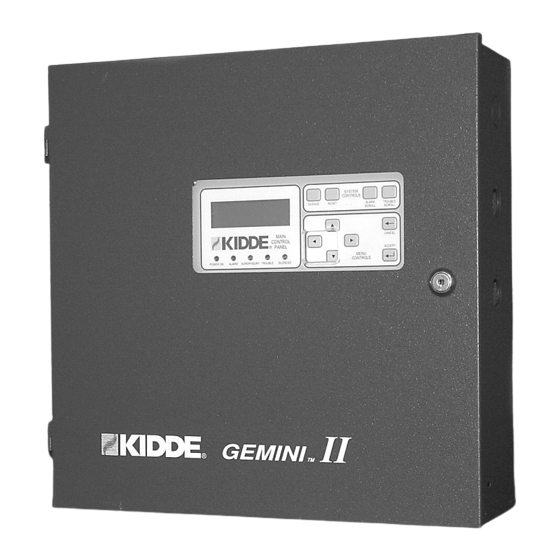

Gemini™ II
Control Pane
LISTED
CSFM
Listed
l

Advertisement

Table of Contents
loading

Related Manuals for Kidde Gemini II

Summary of Contents for Kidde Gemini II

  • Page 1 P/N 06-235975-001 November 2002 Gemini™ II Fire Alarm/Suppression Control Pane Design, Installation, Operation and Maintenance Manual LISTED LISTED APPROVED CSFM Listed Listed firealarmresources.com...
  • Page 2 firealarmresources.com...
  • Page 3 P/N 06-235975-001 November 2002 Gemini II Fire Alarm/Suppression Control Pane Design, Installation, Operation and Maintenance Manual firealarmresources.com...
  • Page 4 THIS PAGE INTENTIONALLY LEFT BLANK. firealarmresources.com...

  • Page 5: Foreword

    Kidde-Fenwal assumes no responsibility for the application of any systems other than those addressed in this manual. The technical data contained herein is limited strictly for information purposes only. Kidde-Fenwal believes this data to be accurate, but it is published and presented without any guarantee or warranty whatsoever. Kidde-Fenwal disclaims any liability for any use that may be made of the data and information contained herein by any and all other parties.
  • Page 6 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 November 2002 firealarmresources.com...

  • Page 7: Table Of Contents

    Kidde Gemini II System TABLE OF CONTENTS Foreword ..............................i List of Appendices ............................v List of Illustrations ............................vi List of Tables ..............................vii Safety Summary ............................ix PARAGRAPH TITLE PAGE General Information ........................ 1-1 Introduction ..........................1-1 System Description ........................1-1 Hazard Analysis .........................
  • Page 8 Kidde Gemini II System TABLE OF CONTENTS (cont.) PARAGRAPH TITLE PAGE 2-6.1 Silencing Alarms ........................2-3 2-6.2 Silencing a Supervisory or Trouble Event .................. 2-3 2-6.3 Non-Silenceable Event ......................2-3 2-6.4 Resound ............................ 2-3 LED indicators ........................... 2-3 Using the Menu System ......................2-4 Viewing Lists ..........................

  • Page 9: List Of Appendices

    Kidde Gemini II System TABLE OF CONTENTS (cont.) PARAGRAPH TITLE PAGE 7-3.1.1 Electrical Connections ....................... 7-1 7-3.1.2 Grounding ..........................7-1 7-3.1.3 Wiring Conductors ........................7-2 7.3.1.4 DC Load Distribution ......................... 7-2 7-3.1.5 Enclosure Location ........................7-2 7-3.1.6 Printed Circuit Boards ........................ 7-3 7-3.2...

  • Page 10: List Of Illustrations

    Kidde Gemini II System LIST OF ILLUSTRATIONS FIGURE TITLE PAGE Typical UL System Diagram ...................... 1-2 Main Control Panel, Front Display Panel ................... 1-2 Input and Output: Main Control Panel and Remote Hazard Unit ..........1-3 Remote Hazard Unit Optional Front Panel Display ..............1-7 Remote Display Unit, Front Panel Display .................
  • Page 11 Main Control Panel (MCP) Specifications .................. 1-11 Remote Hazard Unit (RHU) Specifications ................1-16 Remote Display Unit (RDU) Specifications ................1-20 Gemini II Parts List ........................6-1 Recommended Conductor Sizes ....................7-2 Resistance of Copper Wire Per 1000 feet ................. 7-2 Recommended Color Code For Fire Suppression Installations ..........
  • Page 12 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 viii November 2002 firealarmresources.com...

  • Page 13: Safety Summary

    Kidde Gemini II System SAFETY SUMMARY This entire manual must be read and understood before installation. Installation Precautions Adherence to the following will aid in problem-free installation with long-term reliability: - Several different sources of power can be connected to this fire alarm control panel. Disconnect all sources WARNING of power before servicing.
  • Page 14 Kidde Gemini II System Auxiliary Equipment used in the system may not be technically compatible with the control panel. It is essential to use only equipment listed for service with your control panel. Telephone lines needed to transmit alarm signals from a premise to a central monitoring station may be out of service or temporarily disabled.

  • Page 15: General Information

    Kidde Gemini II System CHAPTER 1 GENERAL INFORMATION INTRODUCTION HAZARD ANALYSIS SYSTEM DESCRIPTION • What type of suppression system will be used? • In what type of environment will the system be used? • Is battery backup required? • Is flexible discharge sequencing and control required? •...
  • Page 16 Kidde Gemini II System Main Control Panel RDU # 1 for MCP SYSTEM 24 Vdc CONTROLS ALARM SCROLL SIGNAL ALARM RESET SUP/TBL SILENCE SCROLL SCROLL Class A, Style 7 SYSTEM CONTROLS RS-485 Data Pairs. MAIN CANCEL SUP/TBL SCROLL CONTROL POWER...
  • Page 17 Kidde Gemini II System Main Control Panel and Remote Hazard Units To and from other RS-485 Data Highway System Units Outputs Inputs from Indicating Circuit # 1 field devices RS485 Style Y or Z Detection Circuit # 1 Port Style B or D...
  • Page 18 Kidde Gemini II System RESET 06-235975-001 November 2002 firealarmresources.com...
  • Page 19 Kidde Gemini II System Notes November 2002 06-235975-001 firealarmresources.com...
  • Page 20 Kidde Gemini II System REMOTE HAZARD UNIT ALARM SCROLL SUP/TBL SCROLL List ALARM SCROLL SUP/ SCROLL DISPLAY SILENCE RESET 06-235975-001 November 2002 firealarmresources.com...

  • Page 21: Remote Display Unit

    Kidde Gemini II System SIGNAL SILENCE v1.BA LOCAL STATUS NORMAL RESET 12:00 09-17-02 ALM00 SUP0 TBL00 SYSTEM CONTROLS REMOTE ALARM HAZARD SCROLL UNIT SUP/TBL SCROLL SIGNAL POWER ON ALARM SUPERVISORY TROUBLE SILENCED ALARM SCROLL SUP/ SCROLL REMOTE DISPLAY UNIT ALARM SCROLL...

  • Page 22: Communications And The Data Highway

    Kidde Gemini II System v1.BA ALARM SCROLL SYSTEM STATUS NORMAL 12:00 09-17-02 SYSTEM ALM00 SUP0 TBL00 CONTROLS SUP/TBL SCROLL POWER REMOTE DISPLAY UNIT RESET SILENCE Remote Display Unit data highway to/from other units in the system Output Inputs RS485 port...

  • Page 23: Agency Approvals

    Kidde Gemini II System AGENCY APPROVALS SUPPRESSION SYSTEMS CAUTION The design of the suppression system must always be per the relevant Kidde Suppression System Design Manual and the applicable NFPA Standard referenced in Table 1-2. November 2002 06-235975-001 firealarmresources.com...
  • Page 24 Kidde Gemini II System 06-235975-001 1-10 November 2002 firealarmresources.com...
  • Page 25 Kidde Gemini II System a i l i t i November 2002 1-11 06-235975-001 firealarmresources.com...
  • Page 26 Kidde Gemini II System t i u l l u y l l t s i t i u c t i y l l t s i t i u c t i y l l t s i...
  • Page 27 Kidde Gemini II System f i t a i l November 2002 1-13 06-235975-001 firealarmresources.com...
  • Page 28 Kidde Gemini II System a t l . s t y l l v i t t i u t i u l i t t s i 06-235975-001 1-14 November 2002 firealarmresources.com...
  • Page 29 Kidde Gemini II System Notes: November 2002 1-15 06-235975-001 firealarmresources.com...
  • Page 30 Kidde Gemini II System i t i 06-235975-001 1-16 November 2002 firealarmresources.com...
  • Page 31 Kidde Gemini II System t i u l l u y l l t s i t i u c t i y l l t s i t i u c t i y l l t s i...
  • Page 32 Kidde Gemini II System f i t a i l 06-235975-001 1-18 November 2002 firealarmresources.com...
  • Page 33 Kidde Gemini II System t i u t i u l i t t s i , l e " 5 " 0 " 5 ° 2 ° 0 ° 0 ° 9 Notes: November 2002 1-19 06-235975-001 firealarmresources.com...
  • Page 34 Kidde Gemini II System 06-235975-001 1-20 November 2002 firealarmresources.com...

  • Page 35: Operation

    Kidde Gemini II System CHAPTER 2 OPERATION When the trouble or alarm condition clears, the following INTRODUCTION occurs: This chapter explains how to read the front panel display, • The buzzer is turned off (if it hasn"t been turned off interpret the LEDs, access various lists at the Main Control already by the SIGNAL SILENCE button).

  • Page 36: Reading The Status Display

    Kidde Gemini II System Alarm Message Format READING THE STATUS DISPLAY First line, left side – Origin of the event; can be MCP (Main Under normal conditions, when there are no current alarms Control Panel), RHU (Remote Hazard Unit) or RDU or trouble messages, the front panel displays the status of (Remote Display Unit).

  • Page 37: Silencing Alarm, Supervisory And Trouble Events

    Kidde Gemini II System e n c s e l M C P L E N C E D N O T R E L E A S I A L M 0 1 S U P 0 T B L 0 0 Figure 2-7.

  • Page 38: Using The Menu System

    Kidde Gemini II System POWER ON Indicator–Lights green when the unit is receiv- The Remote Display Unit has only one LED indicator la- ing AC power and it is within the specified voltage range. beled POWER. It operates as follows:...

  • Page 39: Viewing Lists

    Kidde Gemini II System The Main Menu allows the operator to access the Isolate, Release type: Kidde Control Head, Deluge 10, Deluge List, Set and Test Menus, but it must be noted that while 15 or Deluge On-until-reset. the List Menu is readily accessible, the others are pass- Auto release delay: Zero to 60 seconds.
  • Page 40 Kidde Gemini II System Figure 2-12. List Menu 06-235975-001 November 2002 firealarmresources.com...

  • Page 41: Reset

    Kidde Gemini II System 4. Select All Events to view the entire list or select Range message description Event origin; can be of Events to see messages for a particular time period. MCP, RHU, or RDU. EventLog Listing In this step, you will enter the start month for the range...

  • Page 42: Event Messages

    Kidde Gemini II System municating with a device which has been de-regis- Abort IP FLT Fault on the abort input circuit. tered but still connected. In this case, the MCP will Abort IP ISO Abort input has been isolated by the send a message to the device causing it to remain operator.
  • Page 43 Kidde Gemini II System OptRyIsoFAIL Optional relay isolation failure. Update FAIL The Main Control Panel could not get an update of events from the Remote Prog Rel ISO MCP programmable relay isolated. Hazard or Remote Display Unit. PSU FLT Power supply failure...
  • Page 44 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 2-10 November 2002 firealarmresources.com...

  • Page 45: Functional Description

    Kidde Gemini II System CHAPTER 3 FUNCTIONAL DESCRIPTION 3-2.2 Automatic Release SYSTEM OPERATION Auto release begins when a decisive alarm is detected at The previous chapter described the messages at the panel the unit. When the unit is configured for single zone, a de-...

  • Page 46: Abort

    MCP. The MCP then operates the solenoids of For details of installation of suppression systems, please the Agent cylinders via its Release Output terminals within refer the appropriate Kidde Suppression System design one second. The hazard area into which the gas is dumped manual.
  • Page 47 2. All unused Release Circuit terminals must be terminated with 2K Ohm resistors as shown in the wiring diagrams in Appendix E. 3. For details of installation of suppression Systems, please refer to the appropriate Kidde Suppression System design manual.
  • Page 48 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 November 2002 firealarmresources.com...

  • Page 49: Scheduled Maintenance

    At the Main Control Panel the buzzer operates for 1 second every The Kidde Gemini II allows service personnel to conduct a 5 seconds and the Trouble relay is de-energized. If there is...

  • Page 50: 4-3.2 Battery Maintenance And Check

    Kidde Gemini II System Pressing the manual release switch displays the following 4-3.3 LCD/LED Test message: The LCD/LED test can only be performed when there are W/T Man. Rel. no current alarms (when there are no alarms the ALARM, SUPERVISORY, TROUBLE, and SIGNAL SILENCED in-...

  • Page 51: Troubleshooting

    The problem should be investigated and • Indicating output circuits 1 and 2 corrected by a qualified Kidde service engineer. • Alarm, Trouble, and Programmable relay outputs NameTag FAIL: If the MCP menus are used to change the •...
  • Page 52 Kidde Gemini II System This problem will be corrected if the MCP is again re- set, and all RHUs and RDUs reply correctly to the re- quest by the MCP for an update. Event Error: This will only occur if an error has occurred at a device resulting in an unspecified event.

  • Page 53: Parts List

    Kidde Gemini II System CHAPTER 6 PARTS LIST INTRODUCTION The table below provides a complete list of Kidde Gemini II assembly parts, subassemblies and associated equipment. Table 6-1. Gemini II Parts List & I I i . t u l e t .
  • Page 54 Kidde Gemini II System Table 6-1. Gemini II Parts List, continued I I i I I i & i r T I I i t i u I I i & I I i I I i I I i...

  • Page 55: Installation And Configuration

    Only trained and qualified personnel should install and con- Do not under any circumstances run AC power, figure the Kidde Gemini II. They must be totally familiar speaker, PA, intercom or switch control wiring and experienced with wiring diagrams and components,...

  • Page 56: 7-3.1.3 Wiring Conductors

    24 Vdc, 4-wire smoke de- tectors and other listed, compatible external loads may be powered by the Kidde Gemini II power supply. DC load cal- culations must be performed to determine if the power sup- ply is capable of providing the total system current demand.

  • Page 57: Printed Circuit Boards

    Kidde Gemini II System enclosure must not be exposed to ambient temperatures 7-3.2 Unit Installation Procedures below 32°F (0°C) or above 120°F (49°C). Relative humid- The first step in the installation procedure is to prepare sys- ity should not exceed 93% non-condensing @ 100°F tem layout and wiring drawings.
  • Page 58 Kidde Gemini II System TB3: 24 Vdc output Battery connection TB6: Indicator, release and TB1: AC Power stop valve outputs R2- R2+ R1- R1+ 1- AC & 24V AC MAINS INPUT RESET NON-RESET PSU PLUG STOP V RELEASE SOUNDER 2...

  • Page 59: Installing Backup Batteries

    Kidde Gemini II System screws exposed. Carefully place the two keyholes c. With the backbox held by the top two screws, place over the screws in the wall. Ensure the enclosure the bottom two mounting screws in place. Tighten has its door hinge sockets located to the left as all screws.

  • Page 60: 7-3.2.3 Connecting Ac Power

    Kidde Gemini II System .218 diameter - 4 holes on back surface. 6.5” 0.75” 0.75” 0.75” 4.45” 2.9” ground 0.75” 8.0” 2.25” .215 diameter - 2 holes on each side for a total of 4. 5.0” 1.5” 1/2” - 3/4” (.875 - 1. 125) diameter combination knockout in 2 places on top and bottom for a total of 4.
  • Page 61 Kidde Gemini II System b. Pull all system wiring through the installed conduit n. Enter the Configuration Parameters for the MCP into the enclosure. through the Menu System as described in Para- graph 7-4. c. Mount the MCP Power Supply and PCB/Display Assembly into the enclosure.

  • Page 62: Installing The Remote Hazard Unit (Rhu)

    De-isolate the Release Output of the MCP via menus. d. Power-up the MCP (the display should read "Sys- tem status normal"). The Kidde Gemini II MCP is now completely functional. e. Connect battery to the RHU. (The RHU hardware 7-3.2.5 INSTALLING THE REMOTE HAZARD UNIT...

  • Page 63: Installing The Remote Display Unit (Rdu)

    RDU. The MCP should show RHU. one trouble "Unregistered RDU." The RDU will con- tinue to show "Unregistered." The Kidde Gemini II RHU is now completely functional. 3. Set the configuration of the RDU using the MCP Menu 7-3.2.6 INSTALLING THE REMOTE DISPLAY UNIT...

  • Page 64: 7-3.3 Hazard Block Installation Procedures

    Kidde Gemini II System 7-3.3 Hazard Block Installation Procedures The following 24 Vdc Solenoids are approved/listed to be operated by the Gemini II in the configurations listed above: 7-3.3.1 INPUT DEVICE CONNECTION • Kidde Control Head Solenoid P/N 890181 Field devices such as Smoke Detectors, Waterflow •...

  • Page 65: Configuration Procedures

    Kidde Gemini II System 8 on W104 on the MCP printed circuit board (see Ap- 7-4.2 Setting the Date and Time pendix E). If the last unit on the network is an RHU, 1. To set the Time for the entire system (to ensure that all short the same pins on W104 on that RHU.
  • Page 66 (3) Waterflow Input AND Detection Zone 2. , l a e l i c. Solenoid: Select either Kidde Control Head Sole- , l a e l i noids for clean agent suppression systems or FM Sprinkler Solenoid valves for water deluge systems.

  • Page 67: 7-4.4 Configuring Remote Display Units (Rdus)

    Kidde Gemini II System lease and Abort inputs to the RDU are sent to the 5. Use the up and down arrow to display the RDU that RHU to which it is assigned. The complete proce- needs to be configured.

  • Page 68: 7-4.6 De-Registering Rhus And Rdus

    Kidde Gemini II System 7-4.6 De-Registering RHUs and RDUs c. Local Discharge condition d. Local Manual release condition An unregistered RHU will monitor its hazard circuitry and generate any alarm, supervisory or trouble events that it e. Local Waterflow condition detects.

  • Page 69: Canadian Systems

    Kidde Gemini II System a. Press the down arrow to display the Main Menu. b. Select ‘Set’. c. Scroll down and select ‘Stop Valve Control’. d. Select ‘Add S/valve slave’. e. The first registered RHU will be shown. Use the down arrow keys to select the RHU to be set as a stop valve control slave.
  • Page 70 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 7-16 November 2002 firealarmresources.com...

  • Page 71: Battery Capacity Calculations

    CALCULATION BASIS The MCP and RHU of the Gemini II System operate on 120 Vac/240 Vac 50/60 Hz power. Each of these units is provided a battery backup to supply the 24 Vdc operating voltage in case of loss of the AC main power.
  • Page 72 Kidde Gemini II System Notes: 1. The Auxiliary Power Output current value stated is the maximum allowable sum total of both the Resettable and Non- resettable Auxiliary Power Outputs. 2. The standby and alarm values for the MCP include those of the Alarm and Trouble Relays.
  • Page 73 800 mA. 7. Since the Power Supply of the Kidde Gemini II unit is rated at 4.0 Amps, the system designer should ensure that the system circuits are loaded so as to keep the calculated total alarm current equal to or less than 4.0 Amps.
  • Page 74 Kidde Gemini II System BATTERY CAPACITY CALCULATIONS Based on the "Duration" for which battery backup is required (from section A-1) and the "Total Standby Power" and "Total Alarm Power" values for the MCP and RHU (from Section A-3), the next step is to calculate the battery capacity in Ampere-Hours (AH) using Tables A-4 and A-5).
  • Page 75 A-5.1 Sample 1: 24-hour Standby and Five Minutes in Alarm (With Partial Use of Auxiliary Power Output) Consider a two-hazard UL Gemini II Control System with one MCP and one RHU used for a CO System with the Auxiliary Power Output used only to supply RDUs.
  • Page 76 Kidde Gemini II System A-5.1.2 MAIN CONTROL PANEL Table A-8. Power Consumption Calculation Table A-9. Battery Capacity Calculation 06-235975-001 November 2002 firealarmresources.com...
  • Page 77 Kidde Gemini II System A-5.1.3 REMOTE HAZARD UNIT Table A-10. Power Consumption Calculation Table A-11. Battery Capacity Calculations November 2002 06-235975-001 firealarmresources.com...
  • Page 78 A-5.2 Sample #2: 24-hour Standby and Five Minutes in Alarm (With Full Use of Auxiliary Power Output) Consider a two-hazard UL Gemini II Control System with one MCP and one RHU used for a CO System with the Auxiliary Power Output used to power RDUs, as well as other external devices.
  • Page 79 Kidde Gemini II System A-5.2.2 MAIN CONTROL PANEL Table A-14. Power Consumption Calculations Table A-15. Battery Capacity Calculations November 2002 06-235975-001 firealarmresources.com...
  • Page 80 Kidde Gemini II System A-5.2.3 REMOTE HAZARD UNIT Table A-16. Power Consumption Calculations Table A-17. Battery Capacity Calculations 06-235975-001 A-10 November 2002 firealarmresources.com...
  • Page 81 A-5.3 Sample #3: 90 Hour Standby and Ten Minutes in Alarm (With Full Use of Auxiliary Power Output) Consider a two-hazard UL Gemini II Control System with one MCP and one RHU used for two independent deluge water spray systems.
  • Page 82 Kidde Gemini II System A-5.3.2 MAIN CONTROL PANEL Table A-20. Power Consumption Calculation Table A-21. Battery Capacity Calculations 06-235975-001 A-12 November 2002 firealarmresources.com...
  • Page 83 Kidde Gemini II System A-5.3.3 REMOTE HAZARD UNIT Table A-22. Power Consumption Calculations Table A-23. Battery Capacity Calculations November 2002 A-13 06-235975-001 firealarmresources.com...
  • Page 84 A-5.4 Sample #4: 24-hour Standby and Five Minutes in Alarm (With Partial Use of Auxiliary Power Output) Consider a two-hazard ULI/ULC Gemini II Control System with one MCP and one RHU used for a CO System with the Auxiliary Power Output used only to power RDUs.
  • Page 85 Kidde Gemini II System A-5.4.2 MAIN CONTROL PANEL Table A-26. Power Consumption Calculation Table A-27. Battery Capacity Calculation November 2002 A-15 06-235975-001 firealarmresources.com...
  • Page 86 Kidde Gemini II System A-5.4.3 REMOTE HAZARD UNIT Table A-28. Power Consumption Calculation Table A-29. Battery Capacity Calculations 06-235975-001 A-16 November 2002 firealarmresources.com...
  • Page 87 A-5.5 Sample #5: 24-hour Standby and Five Minutes in Alarm (With Full Use of Auxiliary Power Output) Consider a three-hazard ULI/ULC Gemini II Control System with one MCP and two RHUs used for a CO System with the Auxiliary Power Output used to power RDUs, as well as other external devices.
  • Page 88 Kidde Gemini II System A-5.5.2 MAIN CONTROL PANEL Table A-32. Power Consumption Calculations Table A-33. Battery Capacity Calculations 06-235975-001 A-18 November 2002 firealarmresources.com...
  • Page 89 Kidde Gemini II System A-5.5.3 REMOTE HAZARD UNITS 1 & 2 Table A-34. Power Consumption Calculations Table A-35. Battery Capacity Calculations November 2002 A-19 06-235975-001 firealarmresources.com...
  • Page 90 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 A-20 November 2002 firealarmresources.com...

  • Page 91: List Of Compatible Devices

    Kidde Gemini II System APPENDIX B LIST OF COMPATIBLE DEVICES UL LISTED DEVICES Smoke Detectors, Bases and Accessories . l o . l o . l o y t i F ° . l o . l o . l o .
  • Page 92 Kidde Gemini II System Detect-A-Fire Rate Compensated Heat Detectors 06-235975-001 November 2002 firealarmresources.com...
  • Page 93 Kidde Gemini II System Chemetronics Heat Detectors November 2002 06-235975-001 firealarmresources.com...
  • Page 94 Kidde Gemini II System Manual Release Stations, Abort Stations, Suppression Switches and Accessories Agent Release Control Heads, and Solenoids — — — — & — . r f . r f — 06-235975-001 November 2002 firealarmresources.com...
  • Page 95 Kidde Gemini II System Notification Appliances and Accessories November 2002 06-235975-001 firealarmresources.com...
  • Page 96 Kidde Gemini II System Notification Appliances and Accessories, continued Miscellaneous Devices 06-235975-001 November 2002 firealarmresources.com...
  • Page 97 Kidde Gemini II System ULC LISTED DEVICES Smoke Detectors, Bases and Accessories Notification Appliances and Accessories November 2002 06-235975-001 firealarmresources.com...
  • Page 98 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 November 2002 firealarmresources.com...

  • Page 99: Factory Mutual Requirements For Pre-Action And Deluge Type Sprinkler Systems

    APPENDIX C FACTORY MUTUAL REQUIREMENTS FOR PRE-ACTION AND DELUGE TYPE SPRINKLER SYSTEMS SYSTEM GUIDELINES Kidde Gemini II System installation applications which re- quire Factory Mutual (FM) approval of Pre-Action and Del- uge Sprinkler Systems must conform to the following guidelines: •...
  • Page 100 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 November 2002 firealarmresources.com...

  • Page 101: Central Station Operation

    APPENDIX D CENTRAL STATION OPERATION CENTRAL STATION OPERATION For Central Station operation, the Kidde Gemini II Main Control Panel (MCP) must be configured for Central Sta- tion use through the Configuration Set menu. A Silent Knight DACT Model 5104 must be wired to the MCP, as shown in Figure D-1.
  • Page 102 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 November 2002 firealarmresources.com...

  • Page 103: Wiring Diagrams

    Kidde Gemini II System APPENDIX E WIRING DIAGRAMS (SEE NOTE 4) (SEE NOTE 2) RELEASE OF TWO SOLENOIDS STOP VALVE NON-RESETTABLE POWER SIG. CKT. 2 (CLASS A, STYLE Z) (SEE NOTE 1) RESETTABLE POWER 24 VDC SIG. CKT. 1 BATTERIES...
  • Page 104 Kidde Gemini II System (SEE NOTE 4) RELEASE OF TWO SOLENOIDS (SEE NOTE 2) STOP VALVE NON-RESETTABLE POWER SIG. CKT. 2 (CLASS B, STYLE Y) 0.5W (SEE NOTE 1) RESETTABLE POWER SIG. CKT. 1 24 VDC (CLASS B, STYLE Y) BATTERIES 0.5W...
  • Page 105 Kidde Gemini II System FROM RESET NON-RESET 24V OUT 120V, 60Hz AC SUPPLY LCD CONTRAST SWITCH UL864/1481 LISTED POWER SUPPLY NETWORK ADDRESS SWITCH SW3 ADDRESS FROM PREVIOUS DEVICE CH 1 PIN # PIN # CHASSIS 24V IN CHANNEL TO NEXT DEVICE...
  • Page 106 Kidde Gemini II System TO EOL FOR STYLE B (CLASS B) TO CONTROL PANEL FOR STYLE D (CLASS A) (USING MODEL 2WB - 2 WIRE BASE P/N 70-501000-001) NOTE: FOR CANADIAN APPLICATIONS, ALL FIELD LOCATED EOL RESISTORS MUST BE MOUNTED IN AN EOL BACKBOX (P/N 06-129963-001).
  • Page 107 MAXIMUM CIRCUIT WIRING RESISTANCE IS TO BE 6.0 OHMS. NOTE: MAXIMUM CIRCUIT WIRING RESISTANCE IS TO BE 3.7OHMS. Details of Wiring Kidde Control Head Solenoids to Release Circuit Terminals FM GROUP B & D SOLENOIDS FM GROUP A SOLENOIDS SINGLE SOLENOID SINGLE SOLENOID...
  • Page 108 NOTE: MAXIMUM CIRCUIT WIRING RESISTANCE IS TO BE 3.7 OHMS. NOTE: MAXIMUM CIRCUIT WIRING RESISTANCE IS TO BE 6.0 OHMS. Details of Wiring Kidde Control Heads to Stop Valve Terminals FM GROUP A SOLENOIDS FM GROUP B & D SOLENOIDS...
  • Page 109 (1)One Kidde Solenoid Control Head wired to Release terminals R2-/R1+. (2) One Kidde Solenoid Control Head wired to Release terminals R1-/R1+ and R2-/R2+ respectively. (3) One Kidde Solenoid Control Head wired to Release terminals R2-/R1+ plus one Kidde Solenoid Control Head wired to Stop Valve terminals Stop V-/Stop V+.
  • Page 110 Kidde Gemini II System TB1000 BATTERY TB1000 BATTERY 2 EACH 12 4 EACH 12 BATTERIES BATTERIES 2 EACH P/N 06-115915-047 : 4 EACH P/N 06-115915-047 : 24 AH, 24 VDC 12 AH, 24 VDC 2 EACH P/N 06-115915-046 : 4 EACH P/N 06-115915-046 :...
  • Page 111 Kidde Gemini II System November 2002 06-235975-001 firealarmresources.com...
  • Page 112 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 E-10 November 2002 firealarmresources.com...
  • Page 113 Kidde Gemini II System APPENDIX F SPECIAL REQUIREMENTS FOR CANADIAN SYSTEMS CONFORMING TO ULC-S527-99 GENERAL This chapter describes the operation and installation of the GEMINI features unique to Main Control Panel P/N 84-322001-010 and Remote Hazard Unit P/N 84-322002-005. OPERATION...
  • Page 114 Kidde Gemini II System Inside the front door, each enclosure has a Dead Front INSTALLATION AND CONFIGURATION Panel that protects the operator from hazardous voltages inside the unit. Carefully remove the MCP from the packaging and inspect for damage. The enclosure, Power Supply and MCP mod-...
  • Page 115 Kidde Gemini II System 10. Correct installation of the Display Modules may be CAUTION checked by invoking the LED/Display test. Press the Do not plug the ribbon cable into the left-hand SUPV/TBL Scroll and Alarm Scroll buttons simulta- connector of Display Module 1 as damage to neously.
  • Page 116 Kidde Gemini II System THIS PAGE INTENTIONALLY LEFT BLANK. 06-235975-001 November 2002 firealarmresources.com...
  • Page 117 TECHNICAL MANUAL USER FEEDBACK FORM (Use this report to indicate deficiencies, user remarks and recommendations relating to the publication. Fold on dotted line, tape and mail to KIDDE-FENWAL, Inc., 400 Main Street, Ashland, MA 01721, Attn. Documentation Manager or FAX to 508-881-8920) DATE: 1.
  • Page 118 FOLD Place Stamp Here KIDDE-FENWAL, Inc. 400 Main Street Ashland, MA 01721 Attn. Documentation Manager FOLD firealarmresources.com...
  • Page 119 firealarmresources.com...
  • Page 120 LIMITED WARRANTY STATEMENT Kidde-Fenwal, Inc. represents that this product is free from defects in material and workmanship, and it will repair or replace any product or part thereof which proves to be defective in workmanship or material for a period of twelve (12) months from the date of installation but not to exceed eighteen (18) months after shipment by Kidde-Fenwal Inc.
