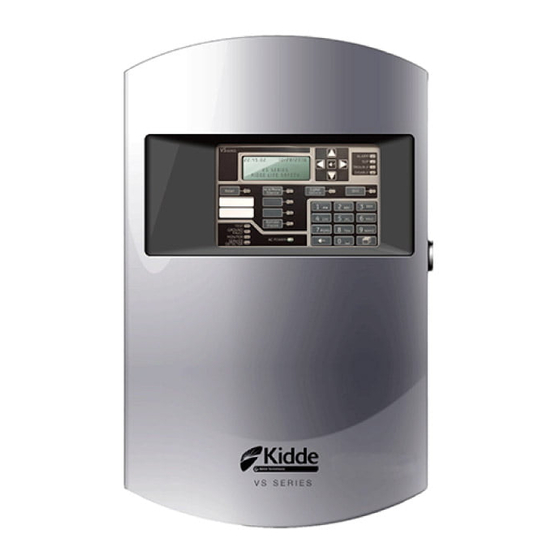

Kidde VS Series Technical Reference Manual

page of 268

/ 268
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

VS1 and VS4 Technical

Reference Manual

P/N 3102351-EN • REV 005 • ISS 28DEC18

Table of Contents

Need help?

Do you have a question about the VS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kidde VS Series

Page 1 VS1 and VS4 Technical Reference Manual P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 2 United Technologies Corporation, except where specifically permitted under US and international copyright law. Trademarks and The VS1 and VS4 name and Kidde logo are trademarks of United Technologies patents Corporation. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
Page 3: Table Of Contents
Content Important information iv Minimum system requirements vii To get started vii Chapter 1 Installation and wiring 1 Panel backbox installation 2 Panel electronics installation 4 Panel backbox wire routing 5 AC power wiring 6 Panel transformer wiring 7 Battery wiring (TB8) 8 Notification appliance circuit wiring (TB2) 10 Addressable device loop wiring 12 Alarm, trouble, and supervisory relay wiring (TB3) 16...
Page 4 Chapter 3 System operation 125 Operation overview 127 LCD display screen 128 System LEDs 132 LED display expander LEDs 133 Control buttons 134 Component descriptions 138 Events with event messages 139 Event ID numbers and descriptions 142 Viewing event details 147 Resetting the panel 147 Silencing panel and annunciator buzzers 148 Silencing notification appliances 148...
Page 5 Chapter 5 Diagnostics, maintenance, and testing 173 Preventive maintenance schedule 174 Fast Ground Check 174 Recalibrate device 174 Flash Device LED 175 Loop comm check 175 Control panel testing 176 Electronic testing of a device (test fire) 177 SA-DACT testing 178 Conducting a lamp test 179 Starting and stopping a walk test 179 Using HyperTerminal 181...
Page 6: Important Information
Important information Limitation of liability This product has been designed to meet the requirements of NFPA 72 National Fire Alarm and Signaling Code, NFPA 720 Standard for the Installation of Carbon Monoxide (CO) Detection and Warning Equipment, UL 864 Standard for Control Units and Accessories for Fire Alarm Systems, and ULC-S527 Standard for Control Units for Fire Alarm Systems, UL 2017 General Purpose Signaling Devices and systems.
Page 7 equipment attached to the same phone line. Series installation of an RJ-31X jack is depicted in the wiring diagram. If you have any questions concerning these instructions, you should consult your telephone company or a qualified installer. Testing When programming emergency numbers or making test calls to emergency numbers, remain on the line and briefly explain to the dispatcher the reason for the call.
Page 8 • The dialer contains no user serviceable parts. In case of defects, return the dialer for repair. • You may not connect the dialer to a public coin phone or a party line service provided by the telephone company. Industry Canada information The Industry Canada label identifies certified equipment.
Page 9: Minimum System Requirements
Minimum system requirements The table below lists the minimum hardware requirements for each type of system for which the control panel is listed. Table 1: Minimum hardware requirements for applications System Equipment needed Protected Premises (Local) Fire Alarm System Control panel Appropriately sized batteries Auxiliary Fire Alarm System, Local Energy Type Control panel...
Page 10 7. Review Chapter 1 “Installation and wiring” starting on page 1. 8. Check the field wiring for opens, grounds, and shorts before connecting. 9. Connect AC power and ground wiring. See “AC power wiring” on page 6. The panel cannot be started on batteries only.
Page 11: Installation And Wiring
Chapter 1 Installation and wiring Summary This chapter covers all control panel wiring, such as AC power, NACs, device loops, and battery wiring. Content Panel backbox installation 2 Panel electronics installation 4 Panel backbox wire routing 5 AC power wiring 6 Panel transformer wiring 7 Battery wiring (TB8) 8 Notification appliance circuit wiring (TB2) 10...
Page 12: Panel Backbox Installation
Chapter 1: Installation and wiring Panel backbox installation Note: Observe all applicable codes and standards, as well as AHJ and owner guidance when selecting a location for the panel installation. The panel backbox can be surface mounted or semiflush mounted. To surface mount the panel backbox: 1.
Page 13 Chapter 1: Installation and wiring Figure 1: Surface and semiflush mounting details (1) Surface mount (3) Trim skirt (2) Semiflush mount Figure 2: Panel backbox, backbox with door, and backbox with door and trim ring attached (1) Surface mounting holes (3) Backbox with door attached (2) Semiflush mounting holes (4) Backbox with door and trim ring attached...
Page 14: Panel Electronics Installation
Chapter 1: Installation and wiring Table 2: Backbox and backbox with door dimensions (in. and cm) Model D1 [1] D5 [1] 21.50 3.85 15.50 14.25 10.25 23.6 (54.6) (9.8) (19) (39.4) (36.2) (26.0) (12.4) (59.9) (6.8) 28.0 3.85 22.0 15.75 10.25 30.1 (71.1)
Page 15: Panel Backbox Wire Routing
Chapter 1: Installation and wiring Figure 3: Panel electronics installation Panel backbox wire routing Using the diagram below, keep power-limited wiring in the shaded area and nonpower-limited wiring in the unshaded area at all times. P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 16: Ac Power Wiring
Chapter 1: Installation and wiring Figure 4: Panel backbox wire routing (1) Power-limited only when connected to a power-limited source. If connected to a nonpowerlimited source, all wiring on terminal block TB3 must be NPFPL, NPFPLR, or NPFPLP rated wire or equivalent, in accordance with the NFPA 70 National Electrical Code and routed separately from all power-limited wiring.
Page 17: Panel Transformer Wiring
Chapter 1: Installation and wiring Caution: The middle connection (EARTH GND) on the terminal block makes a mechanical connection to the chassis even with the ground wire removed. Terminate the incoming AC power wiring as shown in Figure 5. Figure 5: AC power wiring (1) Line (4) 5 A, 250 V, SLO-BLO (Littelfuse (2) Earth ground...
Page 18: Battery Wiring (Tb8)
Chapter 1: Installation and wiring Figure 6: Transformer secondary wiring location Figure 7: Transformer primary and secondary wiring (1) 120 or 230 VAC IN (3) Transformer (2) Earth ground (4) 24 VAC IN Battery wiring (TB8) Caution: Connect and disconnect standby batteries only with the AC power applied. The control panel has a 24 VDC rechargeable battery circuit that is capable of charging up to two 12 VDC, 26 Ah sealed lead acid batteries.
Page 19 Chapter 1: Installation and wiring Table 3: Batteries for VS1 and VS4 panels Model Rating 12V4A 12 volts, 4.5 Ah 12V6A5 12 volts, 7.2 Ah 12V10A 12 volts, 11 Ah 12V17A 12 volts, 18 Ah 12V24A 12 volts, 26 Ah Figure 8: Battery wiring location Figure 9: Battery wiring (1) Red...
Page 20: Notification Appliance Circuit Wiring (Tb2)
Chapter 1: Installation and wiring Notification appliance circuit wiring (TB2) The control panel provides either two or four notification appliance circuits depending on which model you have. Each circuit can be individually configured for continuous, temporal, synchronized, coded, or city tie output. Circuit specifications •...
Page 21 Chapter 1: Installation and wiring Figure 10: NAC wiring location Figure 11: VS1 panel Class B NAC wiring NAC1– – – NAC1+ EOLR NAC2– – – NAC2+ Figure 12: VS4 panel Class B NAC wiring NAC1– – – NAC1+ EOLR –...
Page 22: Addressable Device Loop Wiring
Chapter 1: Installation and wiring Figure 13: VS4 panel Class A NAC wiring NAC1– – – NAC1+ NAC2– – – NAC2+ – – Note: For VS1 Class A NAC wiring, see “SA-CLA wiring” on page 26. Addressable device loop wiring The VS1 and VS4 control panels have addressable device circuits that you can use with addressable detectors and modules (Table 4).
Page 23 Chapter 1: Installation and wiring Circuit specifications • Class B, Class A, or Class X • Communication line voltage: Maximum 20.6 V peak-to-peak • Circuit current: 0.5 A max. • Allowable circuit resistance: 66 Ω max. • Allowable circuit capacitance: 0.5 µF max. •...
Page 24 Chapter 1: Installation and wiring Figure 16: Class A wiring [1] (1) Loop card (2) Loop device Figure 17: Class X wiring [2] (1) Loop card (4) SLC devices with an isolator base (2) Isolator module (5) UL/ULC listed enclosure (3) SLC devices (6) For Class X wiring, un-isolated devices must be mounted in a cabinet with isolators on the incoming...
Page 25 Chapter 1: Installation and wiring Figure 18: Single SLC interface card LEDs (VS1 and VS4 panels) (1) LED DS3: SLC fault: Solid ON to indicate an open (2) LED DS1: Device communication: Flashes to fault. Flashes to indicate a short fault. indicate normal device communications.
Page 26: Alarm, Trouble, And Supervisory Relay Wiring (Tb3)
Chapter 1: Installation and wiring Figure 20: Panel SLC number configurations (1) Panel label (3) Connector J14 (secondary position) (2) Connector J16 (primary position) Alarm, trouble, and supervisory relay wiring (TB3) The control unit provides three pre-programmed common event relays for alarm, supervisory, and trouble events.
Page 27: Remote Annunciator Wiring (Tb4)
Chapter 1: Installation and wiring Figure 21: Terminal wiring location Figure 22: Relay wiring terminals (1) Common trouble relay (3) Common alarm relay (2) Common supervisory relay (4) Auxiliary/Smoke power output Note: The figure above shows the panel in a normal state. Remote annunciator wiring (TB4) The control panel provides a connection for up to eight remote annunciators.
Page 28 Chapter 1: Installation and wiring • Circuit current: 30 mA max. • Circuit resistance: 90 Ω • Circuit capacitance: 0.3 µF • Ground fault impedance: 0 to 5 kΩ • RS-485 communications speed: 9600 baud • Wiring: 18 to 14 AWG (1.0 to 2.5 mm ) twisted pair •...
Page 29: Auxiliary/Smoke Power Output Wiring
Chapter 1: Installation and wiring Figure 25: Annunciator channel wiring (Class B) (1) Channel 1 (3) Annunciator (2) Channel 2 Auxiliary/smoke power output wiring The control panel provides resettable and continuous AUX power output circuits. Use the resettable AUX power output for devices such as four-wire detectors or beam detectors. Use the continuous AUX power output for devices such as remote annunciators or door holders.
Page 30 Chapter 1: Installation and wiring • Continuous circuit (AUX power 1): 24 VDC nominal at 500 mA (up to 1 Amp of alarm current is available on AUX 1 if you reduce the total available control panel NACs alarm current by the total amount of AUX 1 + AUX 2 alarm current over 500 mA). Use this circuit to supply 24 VDC continuous power.
Page 31: Sa-Dact Wiring
Chapter 1: Installation and wiring SA-DACT wiring The optional SA-DACT provides communications between the control panel and the central station over a telephone line system. The SA-DACT is listed for use with the following DACRs. Table 5: DACRs used with the SA-DACT Receiver Models Formats...
Page 32 Chapter 1: Installation and wiring Figure 29: SA-DACT wiring (1) TELCO Line 2 (7) Telephone protector (2) Tip (8) RJ-31X block (supplied by installer) (3) Ring (9) 8-position, 4-conductor modular cords (4) Protected premises punch down block (supplied by the customer) (5) PBX (10) LINE 1 (6) TELCO Line 1...
Page 33: Sa-232 Wiring
Chapter 1: Installation and wiring SA-232 wiring The optional SA-232 card can be wired to a printer to print system events or wired to a computer to read from and write to the panel using the configuration utility. Circuit specifications •...
Page 34 Chapter 1: Installation and wiring Figure 31: Printer wiring (1) Printer (4) RS-232 cable (2) DB-25 serial port on back of printer (5) To RS-232 card (3) DB-25 male Figure 32: DB-25 pin connections (1) Pin 1 (5) Pin 25 (2) Pin 2: TXD (red wire) (6) Pin 20: DTR (green wire) (3) Pin 3: RXD (white wire)
Page 35 Chapter 1: Installation and wiring Figure 33: Computer download wiring (1) Computer (4) RS-232 cable (2) DB-9 COM port on back of computer (5) To RS-232 card (3) DB-9 female Figure 34: Pin designations on female DB-9 plug (back view) (1) Pin 2 RXD (3) Pin 5 COM (2) Pin 3 TXD...
Page 36: Sa-Cla Wiring
Chapter 1: Installation and wiring SA-CLA wiring The SA-CLA card is used to supply wiring for Class A NACs and redundant Class B remote annunciator circuits on VS1 control panels. Circuit specifications • Operating current Standby: 3 mA Alarm: 60 mA max. •...
Page 37: Sa-Eth Wiring
Chapter 1: Installation and wiring Figure 36: SA-CLA Redundant Class B remote annunciator circuit SA-ETH wiring The optional SA-ETH card provides a standard Ethernet network connection for connecting to a local network or connecting to a computer to read from or write to the panel using the configuration utility.
Page 38: Ctm Module Wiring
Chapter 1: Installation and wiring Figure 37: SA-ETH wiring (1) Ethernet card (3) To network connection (PC, router, switch, etc.) (2) Network cable Figure 38: SA-ETH LEDs (1) Ethernet card (4) LED 2 (DS2): Speed (2) LED 4 (DS4): Collision (5) LED 1 (DS1): Link (3) LED 3 (DS3): Duplex CTM module wiring...
Page 39 Chapter 1: Installation and wiring • All alarm points or zones (if programmed as a zoned system) must be programmed to activate the dedicated NAC • The NAC used must be programmed as City Tie Wiring The following wiring diagrams show how the polarity switches during an alarm condition. Figure 39: CTM module wiring (panel in normal condition) (1) Normal condition (5) Public fire alarm reporting system...
Page 40: Rpm Module Wiring
Chapter 1: Installation and wiring RPM module wiring The Reverse Polarity Module (RPM) is an interface between the control panel and a reverse polarity receiver. It provides off-premises signal transmission for systems that must comply with NFPA requirements. When used as a reverse polarity remote station transmitter, it can be connected to either a single circuit (alarm or alarm and trouble) or up to three circuits (alarm, supervisory, and trouble).
Page 41 Chapter 1: Installation and wiring Figure 42: Alarm and trouble transmitted on a single circuit (1) Control panel TB3 (4) From COM on RPM (black wire) (2) From TRBL on RPM (yellow wire) (5) From +24 on RPM (red wire) (3) From ALRM on RPM (brown wire) Note: JP1 on the RPM must be OUT.
Page 42 Chapter 1: Installation and wiring P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 43: Front Panel Programming
Chapter 2 Front panel programming Summary This chapter shows how to configure the system using the control buttons on the front panel. For information on programming the system using the optional Configuration Utility (CU), refer to the Help available in the CU. The panel user interface is the primary interface of the fire alarm system.
Page 44 Chapter 2: Front panel programming Dialer options 70 NET options 72 Auto programming procedure 72 Labeling devices 73 Labeling zones 73 Performing incremental programming 74 Incremental programming options 74 Incremental programming procedure 75 Labeling devices 76 Labeling zones 76 Adding and removing devices from programmed systems 77 Device programming options 77 Adding devices 79 Removing devices 80...
Page 45: Ul/Ulc Programming Requirements
Chapter 2: Front panel programming UL/ULC programming requirements NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements of the listing agency, certain programming features or options must be limited to specific values or not used at all as indicated below.
Page 46 Chapter 2: Front panel programming Programmable Possible settings Listing Permitted Permitted Panel default feature or option Agency (Y/N) settings Automatic delay 0 to 300 seconds UL, ULC 0 to 60 seconds 0 seconds in through release (combined) release correlation; 10, 20, 30, correlation;...
Page 47: Getting Started
Chapter 2: Front panel programming Getting started You can program the system using the command buttons on the front panel, or a PC with the optional configuration utility (CU), or both. If you plan to use the configuration utility, refer to the Help system for complete programming instructions.
Page 48 Chapter 2: Front panel programming Figure 44: Correlation group operation Correlation group (links input devices to output devices) Input devices (smoke Output devices and detector, pull station) by NAC devices (strobe, themselves or in a zone horn) Input Output device device Zone input...
Page 49 Chapter 2: Front panel programming • All riser type supervised output modules The following inputs are not included in correlation group 001 during auto programming: • Relay and sounder bases with the Follow option set to Head. All sounder bases are programmed as Relay during auto programming.
Page 50 Chapter 2: Front panel programming • In-suite signal silence applies only to output devices and NACs that are configured as silenceable. It cannot be used in local alarm signaling applications. • You cannot use a delay timer with in-suite correlation groups. •...
Page 51 Chapter 2: Front panel programming database. This method is typically used to add just a few devices. See “Adding and removing devices from programmed systems” on page 77. Advanced programming Advanced programming is used to apply custom programming to a new or previously programmed fire alarm system.
Page 52 Chapter 2: Front panel programming Factory default settings The panel is shipped from the factory with default settings. You can accept or change these settings as needed. Note: Depending on panel equipment and programming, some of these settings may not be available.
Page 53 Chapter 2: Front panel programming • Event notification Trouble > Printer: Yes Disable > NET: Yes Trouble > Dialer: Acct 1 Disable > CID: 521 (NAC1), 522 (NAC2), 526 (NAC3), Trouble > NET (1-8): No 527 (NAC4) Trouble > CID: 321 (NAC1), 322 (NAC2), Test >...
Page 54 Chapter 2: Front panel programming Default loop configuration settings • Loop class: Class B • Zone Type: Alarm Correlation group: 001 Notes - By default, NACs, zones, and most devices are assigned to correlation group 001. - Relay and sounder bases with the Follow option set to Head are not automatically assigned to correlation groups.
Page 55 Chapter 2: Front panel programming Active > NET (1-8): No Active > CID: 110 Alarm verify > Printer: Yes Alarm verify > Dialer: None Alarm verify > NET (1-8): None Alarm verify > CID: 118 Disable > Printer: Yes Disable > Dialer: Acct 1 Disable >...
Page 56 Chapter 2: Front panel programming Default contact ID event codes Contact ID codes are used to report events that take place in the fire alarm system to a central monitoring station (CMS) via a dialer or over a network. The following table lists the default Contact ID (CID) codes for panel and loop events.
Page 57 Chapter 2: Front panel programming Event Event Loop 3 Uncfgrd trbl (trouble) Loop 1 map fault Loop 3 map mismatch Loop 1 card fault (disable) Loop 3 over limits Loop 1 card fault (trouble) Loop 3 mapping Loop 1 Uncfgrd alarm (disable) Loop 4 device 000 Loop 1 Uncfgrd alarm (active) Loop 4 initialization...
Page 58 Chapter 2: Front panel programming Event Event Net rcvr8 comm fault Waterflow active Net rcvr1 conf fault (disable) Zone active Net rcvr1 conf fault (trouble) Zone trouble Net rcvr2 conf fault (disable) Zone disable Net rcvr2 conf fault (trouble) Zone pre alarm Net rcvr3 conf fault (disable) Zone alarm verify Net rcvr3 conf fault (trouble)
Page 59: Device Type Descriptions
Chapter 2: Front panel programming Device type descriptions Device types determine the operation of the points to which they are assigned. The following tables contain all possible device types. Available device types depend on the device and on the marketplace selected for the panel. Some device types are unavailable in some marketplaces.
Page 60 Chapter 2: Front panel programming Device type Description Duct detectors (SD) Duct alarm For duct smoke detectors. All activations are immediately considered as alarms. The panel and detector cannot be reset to normal until the smoke condition has cleared. [1] Duct supervisory (latching and Duct supervisory latching.
Page 61 Chapter 2: Front panel programming Device type Description Heat + CO monitor latching For heat + CO detectors that trigger an active alarm event (fixed-temperature heat) or a CO latching monitor event. Detectors with this device type remain active until the condition that activated them is restored and the control panel is reset.
Page 62 Chapter 2: Front panel programming Device type Description Photoelectric smoke detectors (PS/PD) Smoke For smoke detectors and contact devices. All activations are immediately considered as alarms. The panel and detector cannot be restored to normal until the smoke condition has cleared and the control panel is reset. Smoke verified For smoke detectors and contact devices.
Page 63 Chapter 2: Front panel programming Device type Description Supervisory nonlatching For detectors that trigger an active supervisory event. Detectors with this device type remain active until the condition that activated them is restored. Resetting the control panel is not required. Photoelectric smoke and CO detectors (PCOS/PCD) Smoke Alarm + CO alarm For smoke + CO detectors that trigger an active alarm event (smoke or CO).
Page 64 Chapter 2: Front panel programming Device type Description Smoke supervisory latching + For smoke + CO detectors that trigger a supervisory latching event (smoke) or CO monitor latching monitor latching event (CO). Detectors with this device type remain active until the condition that activated them is restored and the panel is reset.
Page 65 Chapter 2: Front panel programming Device type Description Smoke verified + CO monitor For smoke + CO detectors that trigger an alarm verify event first, and then trigger latching an active alarm event only after confirming the alarm condition (smoke) or trigger a monitor latching event (CO).
Page 66 Chapter 2: Front panel programming Device type Description Smoke verified + CO monitor For smoke + CO detectors that trigger an alarm verify event first, and then trigger nonlatching an active alarm event only after confirming the alarm condition (smoke) or trigger a monitor nonlatching event (CO).
Page 67 Chapter 2: Front panel programming Device type Description Waterflow No Delay For connecting vane type and pressure flow switches. Activations are considered as alarms. No alarm delay applies to waterflow activations for this device type. Circuit cannot be restored until devices are restored to normal and the panel is reset.
Page 68 Chapter 2: Front panel programming Device type Description Continuous nonsilenceable For latching strobes and notification appliances that generate a temporal pattern. (latched) Continuous silenceable For strobes and notification appliances that generate a noncoded tone. Genesis audible visible For Genesis and Enhanced Integrity horns and strobes. Genesis and Enhanced silence Integrity appliances maintain synchronization per UL 1971.
Page 69: Displaying The Program Menu
Chapter 2: Front panel programming Device type Description Supervised output (latched) For Class B latched output modules that output an unsynchronized signal. Does not follow signal silence. Supervised outputs Class A For Class A latched output modules that output an unsynchronized signal. Does not (latched) follow Signal Silence.
Page 70: Setting Daylight Saving Time
Chapter 2: Front panel programming Setting daylight saving time Daylight saving time options allow the panel to switch automatically from standard to daylight saving time and vice versa. To program daylight saving time options: 1. Display the Program menu and choose Date and Time. 2.
Page 71: Changing The Passwords
Chapter 2: Front panel programming Table 18: Sample values for daylight saving time Month start: March Week start: Second Week day start: Sunday Hour start: Month end: November Week end: First Week day end: Sunday Hour end: Adjustment minutes: Changing the passwords The second step in programming the panel is to change the level one, level two, and remote annunciator passwords.
Page 72: Setting Up The Programmable Keys
Chapter 2: Front panel programming Note: The current language, marketplace, and loop device configuration settings are not affected by the Restore Defaults command. To restore the default settings: 1. Press the Menu button and choose Program. 2. Choose Restore Defaults. 3.
Page 73 Chapter 2: Front panel programming Figure 46: Programmable keys 00:00:00 01/01/07 Key 1 Key 1 Key 2 Key 2 label label Note: You cannot program a key while it is active. When the “Key is active” message is displayed, wait until the key deactivates before continuing. Table 19: Programmable key functions Function Option...
Page 74 Chapter 2: Front panel programming Function Option Behavior when user key is pressed Alarm ON Used for manual evacuation in the Canadian marketplace. Pressing the Alarm ON button places the control panel in the alarm condition, activates all drillable outputs which include all notification appliance circuits and all sounder bases, and signals the central station with CID 115.
Page 75: Clearing The Event History Log
Chapter 2: Front panel programming 8. If you chose Disable, press the down arrow to edit the Control option, and indicate what the key should control. Choose: • Members • Corr Grp • Both Press Enter to reopen the previous menu, and then choose Save. Note: This option is not available for Unlatch, Activate, or Restore.
Page 76: Updating The Firmware
Chapter 2: Front panel programming • If the system history log is filled with event records resulting from a faulty device, problem, or situation, you can clear the history log after the problem is addressed. Note: When the history log is full, the oldest event is deleted when a new event is added. To clear the event history log: 1.
Page 77: Restarting The Panel
Chapter 2: Front panel programming Restarting the panel The Panel Restart command restarts (reboots) the panel without having to cycle AC power. To restart the panel: 1. Press the menu button and choose Program. 2. Choose Panel Restart. 3. Enter your level two password. 4.
Page 78: Auto Programming The Panel
Chapter 2: Front panel programming Auto programming the panel Auto programming detects and applies default settings to installed devices, NACs, remote annunciators, and expansion cards. You can control many aspects of the process by programming the options listed in: • “Auto programming options”...
Page 79 Chapter 2: Front panel programming Table 20: Auto programming options [1] Option Description Auto zoning This option controls whether devices are automatically assigned to zones. The number of devices assigned to a zone is based on the type of panel: •...
Page 80 Chapter 2: Front panel programming Option Description Follow This option controls the conditions that will activate relay or sounder detector bases. Select from the following values. Head: The base is controlled by the detector’s settings. • The base activates when the detector goes into alarm, unless the detector is set for alarm verification.
Page 81 Chapter 2: Front panel programming Table 21: Auto programming — Dialer options [1] Option Description Account 1 Account ID: Enter the four-digit ID code for account 1 Note, if you do not change the default of FFFF, no events will be sent.) Primary receiver number: Enter the primary receiver’s phone number.
Page 82 Chapter 2: Front panel programming NET options Table 22 describes the network options used to set up the Ethernet card. Table 22: Auto programming — NET options Option Description Enter the six-digit code for the central monitoring station (CMS) account. Account ID Enter the IP address for the CMS.
Page 83 Chapter 2: Front panel programming option the cursor is on. Also, the options you select are preserved and will be displayed the next time you auto program. 6. When you have finished, press Enter. The panel begins auto programming and displays the number of devices on the system. If you have more than one loop, the device counts are per loop.
Page 84: Performing Incremental Programming
Chapter 2: Front panel programming 2. Enter a text label for the zone (two lines of 20 characters). The default label is “Zone XX.” 3. Press Enter to save the label and go to the next number of the zone. Note: Pressing the Enter button saves the current label, and then goes to the next zone number so that you can quickly go to each zone and label it.
Page 85 Chapter 2: Front panel programming Device option Description Example: When a PCOS/PCD on a sounder base has a follow set to Head, the base is only triggered when a smoke event is generated. The base does not trigger when a CO event is generated.
Page 86 Chapter 2: Front panel programming The panel begins incremental programming and displays the number of devices in the system. If the panel has two or more loops, the device counts for each loop are given separately. The system displays the number of old and new devices. 6.
Page 87: Adding And Removing Devices From Programmed Systems
Chapter 2: Front panel programming 5. Repeat steps 3 and 4 until all zones are labeled. 6. When you have finished labeling, move the cursor to the zone number, and then press the Cancel button to continue with the next incremental programming option. Adding and removing devices from programmed systems You can add an additional device or several devices to a system that has already been...
Page 88 Chapter 2: Front panel programming Device option Description Event notification Sets the options needed for messages for the active, alarm verify, disable, maintenance, prealarm, test, trouble, and active3 events. See “Factory default settings” on page 42 for device event notification default settings. Printer: Yes or No.
Page 89 Chapter 2: Front panel programming Device option Description Head: The base is controlled by the detector’s settings: • The base activates when the detector goes into alarm, unless the detector is set for alarm verification. • If the detector is set for alarm verification, the base activates when the detector goes into alarm verification.
Page 90 Chapter 2: Front panel programming 3. Press Enter again, and enter a level two password (if you are not already logged on). The Add Device screen is displayed. 4. Verify the device that you are about to add, and press Enter. The Device programming menu displays.
Page 91: Advanced Programming
Chapter 2: Front panel programming 5. Verify the device you are about to delete by reviewing the information on the screen. Before continuing, be sure that this is the device you want to remove. Once removed, the process cannot be reversed. 6.
Page 92 Chapter 2: Front panel programming • Loop class programming • Reset inhibit • Zone programming • Auto signal silence • In-suite signal silence • Day start • Night start • Daylight savings • Date • Aux power reset • LCD banner •...
Page 93 Chapter 2: Front panel programming Option Description Loop 2 Fst Grp [1] [2] Select: 001 to 025 to combine loop 1 and 2 devices in the same fast groups — or — 101 to 125 to use separate fast groups for loop 2 devices. Loop 3 Enable [1] Select Yes to enable loop 3.
Page 94 Chapter 2: Front panel programming Using fast groups Note: To meet the UL\ULC requirement that evacuation signals activate within 10 seconds, assign sounder base detectors to “fast” correlation groups. See “Programming fast groups for sounder bases” on page 89. If you are new to correlation group programming, see “What is a zone?” on page 37. Adding members to correlation groups Correlation groups can include zones, NACs, devices, unconfigured alarm events, and the common trouble event.
Page 95 Chapter 2: Front panel programming To add the Common Trouble Event to a correlation group: 1. Press the Menu button and choose Programming. 2. Choose Advanced Program and enter the level 2 password. 3. Choose Common Trouble then choose Trouble. 4.
Page 96 Chapter 2: Front panel programming To copy the members of a correlation group: 1. Press the Menu button and choose Programming. 2. Choose Advanced Program and enter the level 2 password. 3 Choose Loop Configuration. 4. Choose Correlation Groups. 5. Enter the number of the correlation group to be programmed. (Values range from 001 to 199.) 6.
Page 97 Chapter 2: Front panel programming To add a delay to a correlation group: 1. Press the Menu button and choose Programming. 2. Choose Advanced Program and enter the level 2 password. 3 Choose Loop Configuration. 4. Choose Correlation Groups. 5. Enter the number of the correlation group. (Values range from 001 to 199.) 6.
Page 98 Chapter 2: Front panel programming are activated after the reset duration and an additional delay time assigned to the correlation group, provided the device triggering the output device is still active. When you configure a correlation group to activate, restore, or disable with the common outputs assigned to reset activate or restore, the priorities are defined from highest to lowest, as shown below.
Page 99 Chapter 2: Front panel programming To enable in-suite signal silence for a correlation group: 1. Press the Menu button and choose Programming. 2. Choose Advanced Program and enter the level 2 password. 3 Choose Loop Configuration. 4. Choose Correlation Groups and enter the number of the correlation group. (Values range from 001 to 199.) 5.
Page 100 Chapter 2: Front panel programming for loop 3 and groups 151 to 175 for loop 4. See “Changing loop configuration options” on page 82. For best performance use the fast correlation groups for bulk activations, such as entire floors and save the slower correlation groups for small sets of activations such as individual suites or hotel rooms.
Page 101: Device Programming
Chapter 2: Front panel programming Device programming Each device that operates on a notification appliance circuit (NAC) or device loop has operating parameters that must be set. This includes assigning a device type and label, programming event notification, etc. Note: Addressable devices are programmed by entering the address of the device to be programmed, then setting the device options.
Page 102 Chapter 2: Front panel programming Option Description Event notification Sets notification options (printer, coder, dialer, and contact ID) for the active, alarm verify, disable, maintenance, prealarm, test, trouble, and active3 for secondary events. See on page 49. See “Factory default settings” on page 42 for device event notification default settings. 1.
Page 103 Chapter 2: Front panel programming Option Description Night prealarm% Set the nighttime prealarm percentage to Off or 50, 55, 60, 65, 70, 75, 80, or 90 percent. This is the amount of smoke that indicates a prealarm event before an actual alarm event is indicated.
Page 104 Chapter 2: Front panel programming Option Description Type Select the device type based on the type of device you are programming. Refer to “Device type descriptions” on page 49 for a list of all possible device types. To program an input or output device: 1.
Page 105 Chapter 2: Front panel programming In addition, configuration is required to control how these devices are activated. Relay bases can be activated by: • The detector to which they are attached • One or more correlation groups Sounder bases can be activated by: •...
Page 106 Chapter 2: Front panel programming Table 27: Output modules configurable as latched outputs Output modules MCC2 CC1S MCC1S MCRR MCC1 Relay bases RB [1] RB4 [1] [1] Relay bases support any of the following detectors: HFS/HFD, HRS/HRD, IPHS, IS, PHS/PHD, or SD. To configure the base as a latched output, configure the attached detector’s base type to “Relay”...
Page 107 Chapter 2: Front panel programming 4. Choose Device. 5. If the panel has multiple loops, choose the loop to be configured. 6. Enter the device address to be configured. Device details are displayed. 7. Set the Base Type option to Relay. 8.
Page 108 Chapter 2: Front panel programming 5. Select either Class A or Class B. 6. Choose Save. 7. Press the Menu button to exit menu mode, or continue programming. Mapping loop device circuits To use mapping, you must enable it for each loop in the system. Mapping a device data circuit provides useful information about the circuit that can be used for troubleshooting or documenting the electrical positions of devices in the system when used in conjunction with a PC running the configuration utility (CU).
Page 109 Chapter 2: Front panel programming There are several reasons why the maps may not match. For example, if you just enabled mapping, the panel maps the devices in the system and stores the map in panel RAM, but because there is no map in the panel database, you get a map mismatch. Saving the map in the panel database synchronizes the two maps and removes the map fault from the system.
Page 110 Chapter 2: Front panel programming Using the configuration utility to map the system If mapping is enabled, you may have a discrepancy between the map that was downloaded to the panel from the configuration utility and the map that resides in the control panel RAM. If the two maps do not match, the system generates a map mismatch event.
Page 111 Chapter 2: Front panel programming Option Description Waterflow: Activates alarm events when a waterflow switch closes. Select this zone type when the devices in the zone are only connected to waterflow switches. Note: Do not mix device and zone types. For example, do not place a nonlatching supervisory device in an alarm zone.
Page 112 Chapter 2: Front panel programming Panel programming The panel options to be configured include: • NAC circuits (“NACs”) • Printer • Annunciator class • IP address (“IP”) • Annunciator • Subnet mask (“MSK”) • Dialer and network (“CMS device”) • Gateway (“GWY”) Most options have a factory default setting that you can accept or change.
Page 113 Chapter 2: Front panel programming Option Description Genesis (nonsilenceable or with audible silence or with audible/visible silence): For Genesis horns and strobes and Enhanced Integrity strobes. Genesis and Enhanced Integrity appliances maintain synchronization per UL 1971. When using Genesis or Enhanced Integrity notification appliances, you must select one of the Genesis NAC types for proper system-wide strobe synchronization.
Page 114 Chapter 2: Front panel programming Option Description Correlation groups Enter the number of the correlation group. Press Enter to toggle the group’s status. • “Included” adds the item to the group. • “Excluded” removes the item from the group When you have finished, choose Exit. A correlation group is a collection of addressable input devices (detectors and input modules) and output devices (panel NACs, NAC modules, relay modules, sounder and relay bases).
Page 115 Chapter 2: Front panel programming To program an NAC: 1. Display the panel configuration options menu. See “Panel programming” on page 102. 2. Choose Panel NAC. 3. Enter the NAC (number) you want to program, and then press Enter. Note: NAC 3 and 4 are not available if either NAC 1 or 2 or both are set to Class A.
Page 116 Chapter 2: Front panel programming Option Description Expanders Set expanders to None, 1, or 2. This is the number of LED expander modules you are using with the annunciator. Label Enter a text label for the annunciator (two lines of 20 characters). When you have finished, choose Save.
Page 117 Chapter 2: Front panel programming Table 32: CMS device options Option Description Dialer See “Dialer programming” on page 108. Swinger shutdown Set swinger shutdown to Off or 1 to 255 repetitions. When you have finished, press Enter to save. Note: Off is the only acceptable setting for UL/ULC installations.
Page 118 Chapter 2: Front panel programming Option Description Note: Event notification Programming event notification here is only required if you selected “Event” as your dialer account or network event notification setting. See “Dialer programming” below. Set the alarm, supervisory, monitor, trouble, disable, prealarm, alarm verify, maintenance alert, and test event information by choosing one and then setting the notification information.
Page 119 Chapter 2: Front panel programming Table 33: Dialer programming options Option Description Type Set the dialer type to one of the following values. Dual line: Uses LINE 1 and LINE 2 to transmit events to the central station receiver and performs modem functions. In this mode, the dialer supervises and reports faults on both lines.
Page 120 Chapter 2: Front panel programming Zone: When a device is a member of a zone, only the zone information is reported or transmitted. Device information is not reported or transmitted. This setting uses zone event notification settings for reporting events. Make sure the zone event notification settings are correct.
Page 121 Chapter 2: Front panel programming 6. Press the Menu button to exit menu mode, or continue programming. CMS network (transmitter) programming Note: Connecting to a central monitoring station (CMS) using a TCP/IP Ethernet network does not comply with CAN/ULC S559 3 edition requirements.
Page 122 Chapter 2: Front panel programming Option Description Event notification Set event notification (event reporting) to: Device: Only device information is reported or transmitted, no zone information. This setting uses device event notification settings for reporting events. Make sure the device event notification settings are correct. See “Central monitoring station device programming”...
Page 123 Chapter 2: Front panel programming communicate with a printer, you must install the optional SA-232 module in the panel and connect it to a compatible serial (RS-232) printer. To program a printer: 1. Display the panel configuration options menu. See “Panel programming” on page 102. 2.
Page 124 Chapter 2: Front panel programming 4. Choose MSK. 5. Enter the network card’s subnet mask number. 6. Choose GWY. 7. Enter the network card’s gateway number. 8. Choose Save. 9. Press the Menu button to exit menu mode, or continue programming. Port CU programming To communicate with the CU, you must enter the same TCP/IP port number that you defined in the CU’s TCP IP Port field.
Page 125 Chapter 2: Front panel programming AC voltage programming AC voltage is used to select the rated voltage of the mains supply connected to the control panel. The possible values are 110, 115, 120, 220, 230, and 240 VAC. Note: Use 110, 115, and 120 only on 120 VAC control panel models. Use 220, 230, and 240 only on 230 VAC control panel models.
Page 126 Chapter 2: Front panel programming Option Description Auto signal silence Set auto signal silence to: Off: Does not allow the panel to automatically silence the signals. 5 to 30 minutes: Allows the panel to automatically silence the signals after the selected time period expires. Suite signal silence Set the timer duration.
Page 127 Chapter 2: Front panel programming Option Description Standalone mode When Standalone mode is selected Yes, and an SLC (loop) card loses communication with the panel for more than 18 seconds, the SLC card will enter standalone mode of operation. In this mode, the panel will: •...
Page 128 Chapter 2: Front panel programming place. Each event has a factory default setting that can be used with no additional programming. Table 36: Default panel event settings Panel event Printer Dialer NET (1-8) Alarm ON Acct 1 Aux. power 1 (disable) None Aux.
Page 129 Chapter 2: Front panel programming Panel event Printer Dialer NET (1-8) Drill None Internal fault Acct 1 IP gateway trouble None Local AC power (disable) None Local AC power (trouble) None Net rcvr conf fault Acct 1 Net comm fault (1-8) (disable) None Net comm fault (1-8) (trouble) Acct 1...
Page 130 Chapter 2: Front panel programming Printer: Yes or No. This controls whether event information is sent to the printer Dialer: • Acct 1 & 2: Event information is sent to both dialer accounts • Acct 1: Event information is sent to dialer account one •...
Page 131 Chapter 2: Front panel programming Loop event Printer Dialer NET (1-8) Loop 2 fault (trouble) Acct 1 Loop 2 map fault Acct 1 Loop 2 card fault (disable) (e.g., line fault) None Loop 2 card fault (trouble) (e.g., line fault) Acct 1 Loop 2 Uncfgrd alarm (disable) None...
Page 132 Chapter 2: Front panel programming Loop event Printer Dialer NET (1-8) Loop 2 map mismatch None Loop 4 over limits None Loop 2 mapping None To program loop events: 1. Press the Menu button and choose Programming. 2. Choose Advanced Program and enter the level 2 password. 3.
Page 133 Chapter 2: Front panel programming 4. Choose the desired Loop Uncfgrd Alarm. (Loops 2 through 4 options are displayed only if you have more than one loop). 5. Choose Correlation Groups and enter the number of the correlation group. 6. Press Enter to toggle between possible values: To add the event to the group, choose Included.
Page 134 Chapter 2: Front panel programming Notes • Every trouble event turns on the output devices in the correlation group it is assigned to, so make sure you are not assigning the common trouble to an output group that turns on devices that you do not want to turn on (e.g., NACs).
Page 135: System Operation
Chapter 3 System operation Summary This chapter covers the front panel display, operating the panel, and controlling devices, NACs, and zones. Content Operation overview 127 Front panel display 127 Control panel operations 127 LCD display screen 128 System normal display screen 128 System off-normal display screen 129 Event details display screens 130 System LEDs 132...
Page 136 Chapter 3: System operation NACs that cannot be silenced 149 Conducting a lamp test 150 Activating and restoring output devices 150 Unlatching latched output devices 151 Activating and restoring panel NACs 151 Activating and restoring sensor bypass 152 Activating and restoring gas accelerated response 153 Disabling and enabling devices 153 Disabling and enabling zones 154 Disabling and enabling panel events 155...
Page 137: Operation Overview
Chapter 3: System operation Operation overview Front panel display The front panel display is the user interface for the control panel. The display is comprised of the LCD, LED indicators, and control buttons that are used to operate and program the panel. Figure 47: Front panel display layout (1) LCD display (3) System LEDs...
Page 138: Lcd Display Screen
Chapter 3: System operation • Executes the appropriate programmed output response for the input that signaled the event • Communicates event information to the LCD display and the remote annunciator • Sends a record of the event to the remote annunciator and to the control panel’s history log •...
Page 139 Chapter 3: System operation Figure 48: LCD under normal conditions Time Date 00:00:00 01/01/07 Banner (Line 1) Banner (Line 2) Banner area System login indication 00:00:00 Login:2 System off-normal display screen During an off-normal event, such as an alarm, supervisory, monitor, trouble, prealarm, alarm verify, disablement, or test, the LCD screen changes to display important information about the event.
Page 140 Chapter 3: System operation Figure 49: LCD under off-normal conditions Active points Time Disabled points 00:00:00 A001 D001 Event Event type 001 Alarm Active number message Computer room closet Device Floor 1 label Event details display screens The off-normal events that take place in the system contain event information that is displayed on the LCD screen.
Page 141 Chapter 3: System operation Figure 51: Internal event (panel and loop events) details display screen Note: See “Event ID numbers and descriptions” on page 142 for a list of event numbers. Figure 52: Zone event details display screen Zone number Zone Lobby pull station Label...
Page 142: System Leds
Chapter 3: System operation System LEDs LEDs indicate system events and system operation. Table 38: System LEDs Description Alarm Red LED. Flashes when there is an active alarm event on any loop. On steady once acknowledged. Trouble Yellow LED. Flashes when there’s a fault with a monitored circuit or system component or when a circuit is disabled.
Page 143: Led Display Expander Leds
Chapter 3: System operation LED display expander LEDs The D16L-VS LED Display Expander provides LED annunciation for up to 16 zones. The expander provides two LEDs for each zone. You can install two display expanders in the panel. LED operation zones 1 through 12 (Also applies to zones 17 through 28 if the second LED expander is installed.) •...
Page 144: Control Buttons
Chapter 3: System operation Control buttons Common control buttons Common control buttons on the front panel perform a variety of functions. Table 39 below identifies the common controls and describes their functions. Table 39: Common controls Button Description Remote Disconnect CMS devices (dialer and network card): Disables or enables the dialer and network CMS connection and purges all pending event transmission to the CMS.
Page 145 Chapter 3: System operation Buttons for working with menus and entering text Table 40 below describes the menu command buttons and the buttons on the alphanumeric keyboard. Use the alphanumeric keypad to enter passwords, create text labels, and enter device and group numbers.
Page 146 Chapter 3: System operation Button Description Down Arrow Scrolls forward to the next event (when the panel is in display mode) Moves the cursor down (when the panel is in menu mode) Enter Displays detailed information about the selected event (when the panel is in display mode) Opens a submenu or jumps to the Save function in the menu so you can quickly save your changes (when the panel is in menu mode)
Page 147 Chapter 3: System operation Table 41: Functions available for programmable buttons (Key #1 and Key #2) Function Description Activate The first press turns on outputs in any number of correlation groups. The button LED turns The second press turns off these same outputs and the button LED. Disable The first press disables any number of correlation groups, correlation group members, or both.
Page 148: Component Descriptions
Chapter 3: System operation • Activate, Restore, and Disable take priority over in-suite signal silence. • A single Restore or Disable takes priority over one or more Activates. • Restore or Group Disable only affects devices from correlation groups that have been added to the list for that button.
Page 149: Events With Event Messages
Chapter 3: System operation Item Description Transformer: Changes 120 or 230 volt AC supply voltage to 24 volt AC. Main AC wiring block and fuse holder: Provides connections for 120 or 230 volt AC (primary power) from dedicated service. Includes a primary power fuse (5 A). RS-232 card connector (J3): Provides a connection for the optional RS-232 card for connecting a printer or downloading from the configuration utility.
Page 150 Chapter 3: System operation Event type Printer [1] Zone alarm Alarm active ALRM ACT Zone waterflow Alarm active ALRM ACT Alarm ON Alarm active ALRM ACT Supervisory type reporting Input duct alarm Supervisory DUCT ACT CO supervisory Gas CO active Zone supervisory Supervisory SUPV ACT...
Page 151 Chapter 3: System operation Internal event (panel or loop event) MON ACT | 18:00:18 01/01/2007 E:010 Loop 2 Initializing Where: MON ACT = Monitor event 18:00:18 01/01/2007 = Time and date the event took place E:010 = Event 010 (see “Event ID numbers and descriptions” on page 142) Loop 2 initializing = Label (could be the default label or a custom label) Zone event ALRM ACT | 18:00:34 01/01/2007...
Page 152: Event Id Numbers And Descriptions
Chapter 3: System operation Event ID numbers and descriptions Table 43: Event ID numbers and descriptions Event description Event description Loop 1 initialization: Loop 1 is starting up Loop 2 map mismatch: The loop 2 map in RAM and the loop 2 map in the database Loop 1 fault: A short or open was detected do not match on loop 1 affecting the communications...
Page 153 Chapter 3: System operation Event description Event description Loop 4 map fault: A mapping fault was Common disable: A disable event is taking detected on loop 4 while the panel was place on the control panel mapping the devices Common trouble: A trouble event is taking Loop 4 card fault: The loop 4 card is not place on the control panel present or it is not working properly...
Page 154 Chapter 3: System operation Event description Event description Self test fault: A fault was detected while Net Comm Fault 08: Communications testing the panel’s internal subsystems between the panel and network receiver 08 (memory, flash, code, etc.) failed Internal fault: The control panel detected an Net Conf Fault 01: The panel failed to internal hardware or software error communicate with the network receiver 01...
Page 155 Chapter 3: System operation Event description Event description NAC 2 trouble: An open or short was Zone 5 (active, trouble, disable, prealarm, detected on NAC 2 or there is a problem alarm verify, maintenance alert, or test was with the EOL detected in zone 5) NAC 3 trouble: An open or short was Zone 6 (active, trouble, disable, prealarm,...
Page 156 Chapter 3: System operation Event description Event description Zone 19 (active, trouble, disable, prealarm, Zone 27 (active, trouble, disable, prealarm, alarm verify, maintenance alert, or test was alarm verify, maintenance alert, or test was detected in zone 19) detected in zone 27) Zone 20 (active, trouble, disable, prealarm, Zone 28 (active, trouble, disable, prealarm, alarm verify, maintenance alert, or test was...
Page 157: Viewing Event Details
Chapter 3: System operation Viewing event details The off-normal events that take place in the system contain event information that is displayed on the LCD screen. Additional information is available on a secondary screen called the Event Details screen. To display the event details screen: 1.
Page 158: Silencing Panel And Annunciator Buzzers
Chapter 3: System operation • When the reset process is complete, “Reset” clears from the LCD and the Reset LED turns off. • If the condition causing an “Alarm Active” condition has not cleared (smoke is still present in detector chamber, pull station was not reset, etc.) the panel remains in an alarm state after resetting and the NACs and other outputs do not reactivate.
Page 159 Chapter 3: System operation When you silence the signals: • The Signal Silence LED lights to indicate that the notification appliances are off. • If Genesis horn/strobe or horn-only devices are used on NACs programmed for Genesis operation, Signal Silence silences the horns and strobes based on system programming. Pressing Signal Silence a second time while the panel is in an alarm state causes the signals to turn on again.
Page 160: Conducting A Lamp Test
Chapter 3: System operation Conducting a lamp test A lamp test lights all of the LEDs on the panel and the LED annunciator and tests the LCD so that you can verify proper operation. LEDs stay on for 15 seconds. To conduct a lamp test: 1.
Page 161: Unlatching Latched Output Devices
Chapter 3: System operation Unlatching latched output devices Latched outputs are devices that are configured to shut down air handlers and dampers automatically when an alarm activates, and to keep them shut down until they are manually unlatched and restored. For this reason, devices configured as latched output devices must be manually unlatched and then restored.
Page 162: Activating And Restoring Sensor Bypass
Chapter 3: System operation Activating and restoring sensor bypass Use the Activate Sensor Bypass option to stop the photoelectric element on the PHS/PHD detector from generating supervisory messages on the LCD, while still using the heat element of the same PHS/PHD. Sensor Bypass is applicable to PHS/PHD devices with device type as “Heat + Smoke Supv Latching,”...
Page 163: Activating And Restoring Gas Accelerated Response
Chapter 3: System operation Activating and restoring gas accelerated response Use the Activate Gas Accelerated Response option to turn on the accelerated response mode. Use the Restore Gas Accelerated Response option to turn off the accelerated response mode. Under normal conditions, it takes approximately four minutes at 400 PPM of CO before a CO detector activates.
Page 164: Disabling And Enabling Zones
Chapter 3: System operation • The LCD displays an event to indicate that the device is disabled. • The common Trouble LED flashes and the panel goes into a trouble state. • The common Trouble relay changes state. • The disabled and active points indicators on the LCD increment. The event is transmitted off-premises, if programmed to do so.
Page 165: Disabling And Enabling Panel Events
Chapter 3: System operation When you disable a zone: • The common Disable LED turns on • On a zone/device system, the LCD displays disabled messages for the zone and all of the devices in the zone • On a zone only system, the LCD displays a disabled message for the zone •...
Page 166 Chapter 3: System operation Table 44: Panel events that can be disabled Event Ground fault Battery charger Battery low Battery missing AC power System AC power Aux. power 1 Aux. power 2 Dialer line 1 fault Dialer line 2 fault Net Conf Fault 01 Net Conf Fault 02 Net Conf Fault 03...
Page 167: Disabling And Enabling Loop Events
Chapter 3: System operation When you disable an event: • The common Disable LED turns on • The common Trouble LED flashes and the panel goes into a trouble state • The common Trouble relay changes state • The disabled and active points indicators on the LCD increment •...
Page 168: Disabling And Enabling Panel Nacs
Chapter 3: System operation Event Loop 4 unconfigured alarm Loop 1 unconfigured trouble Loop 2 unconfigured trouble Loop 3 unconfigured trouble Loop 4 unconfigured trouble To disable or enable a loop event: 1. Press the Menu button and choose Control. 2.
Page 169: Disabling And Enabling The Dialer And Network
Chapter 3: System operation To disable or enable a panel NAC: 1. Press the Menu button and choose Control. 2. Enter a level one password. 3. Choose Enable/Disable. 4. Choose Panel NAC. 5. Select the NAC that you want to disable or enable. 6.
Page 170: Conducting A Walk Test
Chapter 3: System operation To start and stop a fire drill: 1. To start a drill, press and hold the Drill button for two seconds. The Drill button LED turns on indicating that the drill is active, and the control panel turns on all notification appliance circuits.
Page 171 Chapter 3: System operation single 3-3-3 cycle sounds for NAC types: temporal nonsilenceable, temporal silenceable, coder basic, coder continuous, coder 120spm, and coder temporal on the audible devices. • For trouble events, the appropriate LEDs and the buzzers turn on. In the audible (NAC) test mode a two-second pulse sounds on the audible devices.
Page 172 Chapter 3: System operation To end a walk test: 1. Press the Menu button and choose Test. 2. Choose Walk Test Silent or Walk Test Audible. 3. Choose either All Devices or Zone. 4. If you chose Zone, enter the zone ID of the zone where you are ending the walk test. 5.
Page 173: Reports
Chapter 4 Reports Summary This chapter describes how to create the panel’s available reports. Content Basic steps for viewing and printing reports 164 History report 164 Walk Test report 165 Device Maintenance report 166 System Status report 167 Correlation Groups report 167 Correlation Group Configuration report 167 Zone report 168 System Configuration report 168...
Page 174: Basic Steps For Viewing And Printing Reports
Chapter 4: Reports Basic steps for viewing and printing reports To view or print a report: 1. Press the Menu button and choose Reports. 2. Select the report that you want to run. 3. Supply values for the options requested. 4.
Page 175: Walk Test Report
Chapter 4: Reports • Alarm: Includes only alarm events in the report • Date forward: Lets you enter a starting date for the report. The report includes all events from that date forward. To view an All or Alarm History report: 1.
Page 176: Device Maintenance Report
Chapter 4: Reports Device Maintenance report The panel provides a Device Maintenance report of all detectors in the system. The report can include: all detectors, all detectors over 20% dirty, or all detectors over 80% dirty. The report displays the device, along with its dirty percentage and sensitivity setting. Device Maintenance reports can be printed or viewed on the LCD.
Page 177: System Status Report
Chapter 4: Reports System Status report The panel provides a System Status report for all active points in the system. The report can include: all active points, all alarm points, all supervisory points, all trouble points, all disabled points, or all other points. System status reports can be printed or viewed on the LCD. To view a System Status report: 1.
Page 178: Zone Report
Chapter 4: Reports To view a Correlation Group Configuration report: 1. Press the menu button and choose Reports. 2. Choose Corr Group Config. 3. Choose one of the following: Suite Sig Sil Activation Count — or — Delay Zone report The panel provides a Zone report that lists all of the devices that are in a selected zone.
Page 179: Internal Status Report
Chapter 4: Reports Loop/zone configuration report: Displays loop class, zone, device, mapping, and correlation group configuration information. Event configuration report: Displays loop event and panel event configuration information. Dialer configuration report: Displays central monitoring station event notification settings for the points in the system.
Page 180: Diagnostics Reports
Chapter 4: Reports To view device serial numbers: 1. Press the menu button and choose Reports. 2. Choose Device Details. 3. Choose Serial #. Diagnostics reports There are two Diagnostics reports designed to show the communication performance of the devices on a loop. Comm Retries report This report lets you display a list of devices that have required two, three, or four consecutive communication poll retries.
Page 181: Internal Fault Report
Chapter 4: Reports To view a Comm Retries diagnostic report: 1. Press the menu button and choose Reports. 2. Choose Diagnostics. 3. Choose Comm Retries. To view a Response Quality diagnostic report: 1. Press the Menu button and choose Reports. 2.
Page 182: Releasing Report
Chapter 4: Reports Releasing report The Releasing report displays the correlation group, activation count and delay time To view a Releasing report: 1. Press the menu button and choose Reports. 2. Choose Releasing. 3. Choose the releasing device for which you want a report. 4.
Page 183: Chapter 5 Diagnostics, Maintenance, And Testing
Chapter 5 Diagnostics, maintenance, and testing Summary This chapter provides diagnostics, preventive maintenance, and testing information. Content Preventive maintenance schedule 174 Fast Ground Check 174 Recalibrate device 174 Flash Device LED 175 Loop comm check 175 Control panel testing 176 Canadian tests for grounds, opens, and shorts 177 Electronic testing of a device (test fire) 177 SA-DACT testing 178...
Page 184: Preventive Maintenance Schedule
Chapter 5: Diagnostics, maintenance, and testing Preventive maintenance schedule Refer to the NFPA 72 section on Inspection, Testing, and Maintenance, the Canadian Electrical Code Part I, CAN/ULC-S524, or CAN/ULC-S536 for more information on required inspection and testing methods and frequencies for fire alarm systems and devices. For detector sensitivity and functionality testing, refer to the detector manufacturer’s installation instructions.
Page 185: Flash Device Led
Chapter 5: Diagnostics, maintenance, and testing 3. Choose Recalibrate Device. 4. Choose the loop the device is on. Note: If the panel only has one loop, the loop selection screen does not display. Go to the next step. 5. Choose the number of the device that you want to recalibrate. 6.
Page 186: Control Panel Testing
Chapter 5: Diagnostics, maintenance, and testing 2. Enter a level two password. 3. Choose Loop Comm Check. You can monitor the progress of the check on the Diagnostics screen. 4. Once the check is complete, choose “Continue” to go to the report Diagnostics screen, and then continue with the next step.
Page 187: Electronic Testing Of A Device (Test Fire)
Chapter 5: Diagnostics, maintenance, and testing Panel door key Sound level meter • A complete check of installed field wiring and devices should be made at regular intervals in accordance with NFPA 72, Canadian Electrical Code Part I, ULC-S524, and ULC-S536 requirements.
Page 188: Sa-Dact Testing
Chapter 5: Diagnostics, maintenance, and testing To test fire a device: 1. Press the Menu button and choose Test. 2. Choose Test Fire. 3. Enter a level one password. 4. Choose the loop the device is on. Note: If the panel only has one loop, the loop selection screen does not display. Go to the next step.
Page 189: Conducting A Lamp Test
Chapter 5: Diagnostics, maintenance, and testing 7. Press Cancel to return to the previous menu. — or — Press the Menu button to exit menu mode. Conducting a lamp test A lamp test lights all of the LEDs on the panel and the LED annunciator and tests the LCD so that you can verify proper operation.
Page 190 Chapter 5: Diagnostics, maintenance, and testing • For alarm events, the appropriate panel and annunciator LEDs and buzzers turn on. In the audible (NAC) test mode a four-second pulse sounds for NAC types: continuous nonsilenceable, continuous silenceable, Genesis nonsilenceable, Genesis with audible silence only, and Genesis with audible and visible silenceable on the audible devices.
Page 191: Using Hyperterminal
Chapter 5: Diagnostics, maintenance, and testing Note: To see the activation and restoration of all walk test events, the panel must be reset prior to ending the walk test. Once the reset is complete, you can end the walk test and view a walk test report.
Page 192 Chapter 5: Diagnostics, maintenance, and testing To set up a HyperTerminal connection: 1. Start HyperTerminal. 2. In the Connection Description dialog box, type a name for the connection in the Name box then click OK. 3. In the Connect To dialog box, select the COM port you are using to connect your laptop computer to the control panel, and then click OK.
Page 193: Replacing A Device In Alarm
Chapter 5: Diagnostics, maintenance, and testing Replacing a device in alarm You can replace a device with a new device of the same type while it is in alarm. You may need to do this when the device is faulty or for troubleshooting purposes. If you replace a device while it is in alarm, the device and control panel operate as follows: •...
Page 194 Chapter 5: Diagnostics, maintenance, and testing P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 195: Appendix A Panel Specifications
Appendix A Panel specifications Summary This appendix lists all of the specifications for the control panel. Content Control panel specifications 186 P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 196: Control Panel Specifications
Appendix A: Panel specifications Control panel specifications VS1 panel VS4 panel Device loops 1 loop Class B, Class A, or Class X 1 loop, expandable to 4, Class A, Class supporting up to 64 device addresses B, or Class X. Each loop supporting up to (any combination of detectors and 250 device addresses (125 detectors and modules)
Page 197 Appendix A: Panel specifications VS1 panel VS4 panel Loop circuit Maximum loop resistance: 66 Ω Maximum loop capacitance: 0.5 µF Communication line voltage: Maximum 20.6 V peak-to-peak Operating current (fully loaded loop) Stand by: 55 mA/45 mA Alarm: 125 mA/115 mA (this does not include two-wire smoke modules) Circuit current: 0.5 A max.
Page 198 Appendix A: Panel specifications P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 199: Appendix B Worksheets
Appendix B Worksheets Summary This appendix contains all of the worksheets needed to program the panel, calculate NAC requirements and battery requirements. Content Battery calculation worksheet 190 Notification appliance circuit calculations worksheet 194 Introduction 194 What you’ll need 194 Worksheet method 196 Equation method 197 Notification appliance voltage drop calculation worksheet 200 RZI16-2 24V IN riser maximum wire run calculation 202...
Page 200: Battery Calculation Worksheet
Appendix B: Worksheets Battery calculation worksheet Use this worksheet to determine the minimum amp hour capacity required for the panel’s standby battery. You can obtain operating current requirements for notification appliances from their respective installation sheets. Battery calculation worksheet Standby Alarm (Fire) current (mA) current (mA)
Page 201 Appendix B: Worksheets Worksheet A: Control panel current load Standby Alarm Qty x Standby Qty x Alarm Devices current (mA) current (mA) current (mA) current (mA) Base panel See note [1] See note [2] below below First loop on 1st SLC card (fully loaded loop) Second loop on 1st...
Page 202 Appendix B: Worksheets Worksheet B: Auxiliary/smoke power current load Standby Alarm Qty x Standby Qty x Alarm Devices current (mA) current (mA) current (mA) current (mA) UM or MAB [1] RLCD(F) RLCD-C(F) RLED-C(F) LED24 RZI16-2 [2] Sounder base Total Aux Standby current = (cannot exceed 500mA)
Page 203 Appendix B: Worksheets Worksheet C: CO device current load For a system using CO devices, determine the total amount of CO signal current in milliamps required by all of the CO devices that derive power from the battery while the panel is in CO alarm mode. Use the alarm currents on the sounder base installation sheet for your calculations.
Page 204: Notification Appliance Circuit Calculations Worksheet
Appendix B: Worksheets Notification appliance circuit calculations worksheet Introduction This topic shows you how to determine the maximum cable length of a notification appliance circuit (NAC) for a given number of appliances. Two methods are presented: worksheet and equation. The worksheet method is simpler, but your installation must meet the criteria listed on the worksheet.
Page 205 Appendix B: Worksheets The power type reflects the type of power supplied to the NAC terminals at minimum voltage. The current draw of notification appliances can vary substantially with the type of power supplied: full-wave rectified (VFWR) or regulated and filtered DC (R&F). It is important to know the power type at minimum terminal voltage.
Page 206 Appendix B: Worksheets Worksheet method Use this worksheet to determine the maximum cable length of a notification appliance circuit for a given number of appliances. Use this worksheet only if all the appliances are regulated. That is, they must have a minimum operating voltage of 16 V.
Page 207 Appendix B: Worksheets Equation method Appliance operating voltage and current Regulated notification appliances have an operating range from 16 V to 33 V. Use 16 V as the minimum appliance voltage when using regulated notification appliances. When using special application notification appliances, refer to the installation sheets to determine the minimum appliance voltage required.
Page 208 Appendix B: Worksheets Refer to the appliance installation sheets for Ia. Remember to use the maximum operating current specified for FWR power. 2. Calculate the minimum voltage (Vm). Vm = Vs − (Itot × K) Where: Vs = source voltage Itot = total current (from above) K = load factor VS1 panel:...
Page 209 Appendix B: Worksheets = 20.4 V − 0.40 V = 20.0 V Vd = Vm − Va = 20.0 V − 16.0 V = 4.0 V Rmax = Vd / Itot = 4.0 V / 2.0 A = 2.0 Ω Lc = (Rmax / Rw) / 2 = (2.0 Ω...
Page 210: Notification Appliance Voltage Drop Calculation Worksheet
Appendix B: Worksheets Notification appliance voltage drop calculation worksheet Use the notification appliance voltage drop calculation worksheet to calculate the voltage drop of your NAC circuits over the distance of your wire. NAC 1 voltage drop calculations Circuit length Total circuit Wire resistance per Voltage current [2]...
Page 211 Appendix B: Worksheets Notes [1] Use the manufacturer’s published wire resistance expressed in ohms per foot. For typical values, see Table 46 on page 197. [2] Use the Maximum operating current at worst-case VFWR from the installation or catalog sheet of each device.
Page 212: Rzi16-2 24V In Riser Maximum Wire Run Calculation
Appendix B: Worksheets RZI16-2 24V IN riser maximum wire run calculation Use the APS/BPS notification appliance circuit calculation in the Remote Booster Power Supply Manual (P/N 3100485-EN) to calculate maximum wire run distance for RZI16-2 NAC circuits. RZI16-2 24V IN cable length VS1 AUX1 VS4 AUX1 APS/BPS...
Page 213: Device Loop Maximum Wire Length Worksheet
Appendix B: Worksheets Device loop maximum wire length worksheet Use the instructions provided below to calculate the maximum wire length for a device loop. The maximum wire length is made up of two components: the total amount of wire and the longest circuit path.
Page 214 Appendix B: Worksheets Figure 56: Device circuit path diagram 10 ft (3 m) 200 ft (61 m) FACP 30 ft (9 m) 200 ft 100 ft (61 m) (30 m) 100 ft 1000 ft (30 m) (305 m) P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 215 Appendix B: Worksheets Table 50: Longest allowable circuit path with zero UM or MABs configured for two-wire smoke detectors Number of Number of Maximum allowable wire distance using nontwisted, nonshielded and detectors modules (1 twisted, nonshielded wire pairs (evenly distributed) or 2 18 AWG 16 AWG...
Page 216 Appendix B: Worksheets Table 51: Longest allowable circuit path with 1 to 5 UM or MABs configured for two-wire smoke detectors Number of Number of Maximum allowable wire distance using nontwisted, nonshielded and detectors modules (1 or twisted, nonshielded wire pairs (evenly distributed) 2 channel) 18 AWG 16 AWG...
Page 217 Appendix B: Worksheets Table 52: Longest allowable circuit path with 6 to 10 UM or MABs configured for two-wire smoke detectors Number of Number of Maximum allowable wire distance using nontwisted, nonshielded and detectors modules (1 twisted, nonshielded wire pairs (evenly distributed) or 2 18 AWG 16 AWG...
Page 218 Appendix B: Worksheets Table 53: Longest allowable circuit path with 11 to 15 UM or MABs configured for two-wire smoke detectors Number of Number of Maximum allowable wire distance using nontwisted, nonshielded and detectors modules (1 twisted, nonshielded wire pairs (evenly distributed) or 2 18 AWG 16 AWG...
Page 219: Correlation Groups Worksheet
Appendix B: Worksheets Correlation groups worksheet The correlation groups worksheet is used to document the devices, zones, and NACs that are assigned to each group. Group Device Zone number numbers numbers numbers P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 220: Device Settings Worksheet
Appendix B: Worksheets Device settings worksheet The device settings worksheet is used to document the configuration and settings for each of the devices on the system. Note: For default settings, see “Factory default settings” on page 42. Type of device ☐...
Page 221 Appendix B: Worksheets ☐ Genesis audible visible silence ☐ Duct supervisory (latching and ☐ Monitor nonlatching nonlatching) ☐ Monitor latching ☐ Auto sync output Silenceable ☐ Heat + CO alarm ☐ Genesis-audible silence ☐ Auto sync output ☐ Heat + CO monitor latching ☐...
Page 222 Appendix B: Worksheets Event notification Active Print ☐ Yes ☐ No ☐ Yes ☐ No Dialer ☐ Acct 1 ☐ Acct 1 & 2 ☐ Acct 2 ☐ None Code (four-digit coded output) Trouble Print ☐ Yes ☐ No ☐ Yes ☐...
Page 223: Loop Worksheet
Appendix B: Worksheets Test Print ☐ Yes ☐ No ☐ Yes ☐ No Dialer ☐ Acct 1 ☐ Acct 1 & 2 ☐ Acct 2 ☐ None Code (four-digit coded output) Loop worksheet The loop worksheet is used to document your loop settings. Note: For default settings, see “Factory default settings”...
Page 224: Panel Configuration Worksheet
Appendix B: Worksheets Panel configuration worksheet The panel configuration worksheet is used to document the configuration and settings of the system programming options. Note: For default settings, see “Factory default settings” on page 42. Class ☐ Class B ☐ Class A Type ☐...
Page 225 Appendix B: Worksheets Annunciator Class ☐ Class B ☐ Class A Type ☐ Off ☐ LCD-C ☐ LCD ☐ LED ☐ Graphic Expanders ☐ None ☐ 1 or 2 Label Line 1 Label Line 2 Event notification Trouble Print ☐ Yes ☐...
Page 226 Appendix B: Worksheets Line 1 dialing ☐ Tone ☐ Pulse Line 1 cut Line 1 cut duration / supervision (10 – 120) Line 2 dialing ☐ Tone ☐ Pulse Line 2 cut Line 2 cut duration / supervision (10 – 120) Tone wait ☐...
Page 227: Panel Operation Worksheet
Appendix B: Worksheets Panel operation worksheet The panel operation worksheet is used to document the configuration and settings of your control panel programming options. Note: For default settings, see “Factory default settings” on page 42. Language ☐ English ☐ French ☐...
Page 228: Zone Settings Worksheet
Appendix B: Worksheets Zone settings worksheet The zone settings worksheet is used to document the configuration and settings for each of the zones on the system. Notes • Print a copy of this worksheet for each zone in the system. •...
Page 229 Appendix B: Worksheets Code (four-digit coded output) Prealarm Print ☐ Yes ☐ No NET (1-8) ☐ Yes ☐ No Dialer ☐ Acct 1 ☐ Acct 1 & 2 ☐ Acct 2 ☐ None Code (four-digit coded output) Alarm verify Print ☐...
Page 230 Appendix B: Worksheets P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 231: Appendix C Applications
Appendix C Applications Summary This appendix has sounder base applications that can be used with the SB4U/ABST sounder base. Content Local alarm signaling applications 222 What is local alarm signaling? 222 Typical wiring for a local alarm signaling application 222 Programming sounder bases for a local alarm signaling application 223 Programming sounder bases for a T3T4 Fire Alarm/CO emergency signaling application per NFPA 720, UL 2017 224...
Page 232: Local Alarm Signaling Applications
Appendix C: Applications Local alarm signaling applications What is local alarm signaling? In local alarm signaling applications, an audible detector base (sounder base) automatically sounds an alarm signal when its detector is activated. All other sounder bases on the same riser remain silent until their detectors are activated.
Page 233 Appendix C: Applications Figure 57: Typical wiring for a local alarm signaling application (1) SLC IN + NC (no connection) (2) SLC IN − (9) SLC OUT + (3) AUX riser 24 VDC + (10) SLC OUT − (4) AUX riser 24 VDC − (11) Alternate riser supervision circuit (5) First detector (12) Double screw terminal block...
Page 234 Appendix C: Applications Message Line 1: SMOKE_<N>, where <N> can be the device address or other number Base Type: Sounder Follow: Head 3. Configure the RM1 or CT1 module as follows: Device type: Monitor Message Line 1: 24VDC_RISER Programming sounder bases for a T3T4 Fire Alarm/CO emergency signaling application per NFPA 720, UL 2017 Figure 58: Wiring the sounder base for a T3T4 Fire/CO alarm (1) AUX riser +...
Page 235 Appendix C: Applications Notes • For PS/PD, PHS/PHD, IPHS, and SD detectors configured as “Supervisory Non-latching” device type or for PCOS/PCD detectors (smoke element) configured as “Smoke Supervisory Non-latching” device type, if the base is Relay/Sounder, then the follow type option cannot be configured as “Head.”...
Page 236: Correlated Zone And System Alarm Signaling Applications
Appendix C: Applications Notes • Channel 1: T3T4-TC3 (fire): The device at serial number visible on T3T4 device. • Channel 2: T3T4-TC4 (CO): The device at serial number + seventh location. • CO alarm signals are required to activate TC4 CO evacuation signals. CO supervisory or CO monitor signals are not allowed to activate CO evacuation signals.
Page 237 Appendix C: Applications Figure 59: Typical wiring for a zone alarm signaling application (1) SLC IN + (7) SLC OUT + (2) SLC IN − (8) SLC OUT − (3) First detector (9) Active (4) Last detector (10) Normal (5) JP1:L 24 VDC monitor (11) AUX riser 24 VDC + (6) NC (no connection) (12) AUX riser 24 VDC −...
Page 238 Appendix C: Applications To program a zone alarm signaling application: 1. Set the panel’s Event Notification option to Zone. 2. Configure the smoke detectors in Zone 1 as follows: Device Type: Smoke or Smoke Heat depending on the detector model Message Line 1: SMOKE_<N>, where <N>...
Page 239 Appendix C: Applications 6. Configure Correlation 001 as follows: Inputs: Zone 1 Outputs: The polarity reversal or CT1 module labeled ZONE_1 SOUNDERS System alarm signaling applications What is system alarm signaling? In system alarm signaling applications, all sounder bases sound when any alarm signal- initiating device is activated.
Page 240 Appendix C: Applications RM1 Riser Monitor module. You can also use a CT1 module and a PAM-1 control relay for this purpose. In addition a G1M-RM is required for synchronization. Figure 60: Typical wiring for a system alarm signaling application (1) SLC IN + (7) SLC OUT + (2) SLC IN −...
Page 241: In-Suite Signal Silence Applications
Appendix C: Applications To program sounder bases for local alarm signaling: 1. Set the panel’s Event Notification option to Device. 2. Configure the smoke detectors as follows: Message Line 1: SMOKE_<N>, where <N> can be the device address or other number Base Type: Sounder Follow: None, Head, Alarm, Alm + Vrfy, or Alm + PreAlm...
Page 242 Appendix C: Applications Figure 61: Building with a separate audible circuit for each floor and separate circuits for audibles within and not within dwelling units (1) Floor 1 (7) NAC 2 (13) NAC 8 (2) Floor 2 (8) NAC 3 (14) NAC 9 (3) Floor 3 (9) NAC 4...
Page 243 Appendix C: Applications group, and an “in-suite” correlation group. The following tables show the inputs and outputs for these groups. To create correlations for in suite signal silence: 1. Create a set of correlations for each floor. 2. Create a single hallway correlation to control hallway sounders on all floors. 3.
Page 244 Appendix C: Applications Floor 5 Correlation Input Output No in-suite signal silence Floor 5 dwelling and hallway inputs Floor 5 dwelling and hallway audibles Creating a hallway correlation The hallway correlation ensures that an alarm detected anywhere in the building will turn on all audibles located in hallways throughout the building.
Page 245 Appendix C: Applications For example, if an alarm occurs on the third floor: • The Floor 3 Correlation turns on the sounders on the floor of the alarm (including those inside dwelling units). • The Hallway Correlation turns on hallway sounders throughout the building. •...
Page 246 Appendix C: Applications P/N 3102351-EN • REV 005 • ISS 28DEC18...
Page 247: Appendix D Device Types To Personality Codes Correlation
Appendix D Device types to personality codes correlation Summary Device types must be used when programming devices, but personality codes are described on the Signature Series installation sheets. This table correlates the different device types with their respective personality codes. Table 54: Device types vs.
Page 248 Appendix D: Device types to personality codes correlation Model Device type Personality code CC1S Continuous Non-Silenceable (Latched) (5) Signal - supervised output (Class B) CC1S Continuous Silenceable (5) Signal - supervised output (Class B) CC1S Genesis Audible Visible Silence (25) Signal - supervised auto sync output (Class B) CC1S Genesis Non-Silenceable (25) Signal - supervised auto sync output (Class B)
Page 249 Appendix D: Device types to personality codes correlation Model Device type Personality code Supervisory Latching (4) Active - NO latching (Class B) Supervisory Non-Latching (3) Active - NO nonlatching (Class B) Unlatch outputs (3) Active - NO nonlatching (Class B) Waterflow (2) Alarm - NO delayed latching (Class B) Waterflow No Delay...
Page 250 Appendix D: Device types to personality codes correlation Model Device type Personality code Relay Non-Silence NC (32) Monitor - NO input/output NC Relay Non-Silence NC (Latched) (32) Monitor - NO input/output NC Relay Non-Silence NO (31) Monitor - NO input/output NO Relay Non-Silence NO (Latched) (31) Monitor - NO input/output NO Relay Silence NC...
Page 251 Appendix D: Device types to personality codes correlation Model Device type Personality code Remote Reset (3) Active - NO nonlatching (Class B) Remote Signal Silence (3) Active - NO nonlatching (Class B) Smoke (1) Alarm - NO latching (Class B) Smoke Class A (9) Alarm - NO latching (Class A) Supervised Output...
Page 252 Appendix D: Device types to personality codes correlation Model Device type Personality code Relay Non-Silenceable (Latched) (8) Signal - dry contact output Relay Silence (8) Signal - dry contact output MCRR Relay Non-Silenceable (8) Signal - dry contact output MCRR Relay Non-Silenceable (Latched) (8) Signal - dry contact output MCRR...
Page 253 Appendix D: Device types to personality codes correlation Model Device type Personality code PCOS/PCD Smoke Supervisory Latching + CO (64) CO Active3 - latching Supervisory Latching PCOS/PCD Smoke Supervisory Latching + CO (67) CO Active3 - nonlatching Supervisory Non-Latching PCOS/PCD Smoke Supervisory Latching + CO (64) CO Active3 - latching Monitor Latching PCOS/PCD Smoke Supervisory Latching + CO...
Page 254 Appendix D: Device types to personality codes correlation Model Device type Personality code PHS/PHD Heat + Smoke Alarm (50) Photo Active3 Latching PHS/PHD Heat + Supv Smoke Latching (50) Photo Active3 Latching PHS/PHD Heat + Supv Smoke Non-Latching (51) Photo Active3 Nonlatching PHS/PHD Smoke Heat (1) Alarm - NO latching (Class B)
Page 255 Appendix D: Device types to personality codes correlation Model Device type Personality code Genesis Audible Silence (25) Signal - supervised auto sync output (Class B) Genesis Audible Visible Silence (25) Signal - supervised auto sync output (Class B) Genesis Non-Silenceable (25) Signal - supervised auto sync output (Class B) Relay Non-Silenceable (8) Signal - dry contact output...
Page 256 Appendix D: Device types to personality codes correlation Model Device type Personality code Remote Drill (3) Active - NO nonlatching (Class B) Remote Reset (3) Active - NO nonlatching (Class B) Remote Signal Silence (3) Active - NO nonlatching (Class B) Smoke (1) Alarm - NO latching (Class B) Smoke Class A...
Page 257: Appendix E Releasing Module
Appendix E Releasing Module Summary The REL is an analog addressable device that communicates directly with the fire alarm panel’s Signature loop controller. The REL controls sprinkler, pre-action, and deluge systems, and may also be used to release extinguishing agents, such as CO2, Halon, or foam. The REL offers a wide range of options that ensures dependable service while preventing the unnecessary release of extinguishing agents.
Page 258 Appendix E: Releasing Module Figure 62: REL releasing module Do’s and don’ts Use the following do’s and don’ts when configuring and using a REL module and panel events. • Configure the REL through the CU. Do not use the front panel to program the REL to perform auto programming, incremental programming, adding REL devices to a correlation group, and correlation group copy.
Page 259 Appendix E: Releasing Module • Don’t configure Disable members using the User key for correlation groups with panel events. • Install a relay confirmation circuit to indicate when the release and prerelease circuits are active. • Don’t power the REL from the panel. You must power the REL using a compatible power supply.
Page 260: Specifications
Appendix E: Releasing Module Device Condition LCD message None No riser Trouble Trouble Pull (Manual) Expanded message: Internal fault [2} Supervised Output (Prerelease_1) None (Prerelease_2) Supervised Output (Release_1) None (Release_2) Supervised Short Trouble Trouble Output Release_1 [1] (Release_1) Expanded message: Supervised output short Open Trouble Trouble...
Page 261: Index
Index auxiliary current, 186 fire alarm system, vii output wiring, 19 fail delay, 35, 115 failure delay, 42 power, 132 power wiring, 6 backbox voltage, 6, 115 installation, 2 account ID, 108 panel, vii ACK/Panel Silence, 134, 148 wire routing, 5 button, 134 backlight, 128 activating...
Page 262 Index Class B, 10 daylight saving time, 42, 60 Class B circuit specifications, 17 sample values, 60 cleaning detector, 174 default clearing history, 66 loop configuration, 44 passwords, 42 device, 42, 106, 159 programming options, 61 network transmitter, 111 settings, 61 coder, 102 delay time, 86 comm retries report, 170...
Page 263 Index configuration report, 168 details, 128, 147 disabling, 159 disabling, 155 enabling, 159 enabling, 155 line 01 and 02, 108 history log, 66 mode, 35 ID numbers, 142 testing, 178 notification, 42, 91, 115 type, 108 off-normal, 128 dialer programming, 110 programming, 117, 122 dirty percentage, 166 reporting, 108, 111...
Page 264 Index in-suite signal silence, 39, 88 application, 231 mains supply, 6, 115 elapse timer, 89 maintenance schedule, 174 internal event, 128, 141 fault, 120 fault report, 171 map mismatch, 98 status report, 169 mapping, 44, 115 ion detector, 50 enable/disable/mismatch, 98 IP address, 42, 111, 113 marketplace, 42, 115 isolators, 186...
Page 265 Index backbox, vii, 5 modes, 37, 40 buzzer, 148 NACs, 105 configuration options, 108, 111, 112, 114 panel options, 81 configuration report, 168 requirements, 35 electronics, 4 unconfigured alarm events, 122 event programming, 117 program a printer, 113 events, 155 program panel events, 119 installation, 2 program panel operation, 115...
Page 266 Index walk test, 165 synchronization, 13 zone, 168 signal silence, 56 reset button, 134 inhibit, 42, 115 LED, 132 panel, 147 signaling line circuit, 250 Reset button, 134 silencing resettable circuit, 19 annunciator buzzer, 148 response quality report, 170 NACs automatically, 149 restart panel, 67 panel buzzer, 148 restorals, 111...
Page 267 Index telnet, 114 wire temporal, 102 length calculation, 194, 203 test fire, 177 resistance, 197 test signal frequency, 35 wire routing, 5 testing wiring control panel, 176 AC power, 6 devices, 177 annunciator channel, 18 dialers, 178 auxiliary/smoke power output, 19 LEDs, 132 batteries, 8 time and date, setting, 59...
Page 268 Index P/N 3102351-EN • REV 005 • ISS 28DEC18...

This manual is also suitable for:

Vs1 Vs4

Kidde VS Series Technical Reference Manual

Chapter 1 Installation and Wiring

Chapter 2 Front Panel Programming

Chapter 3 System Operation

Chapter 4 Reports

Chapter 5 Diagnostics, Maintenance, and Testing

Appendix A Panel Specifications

Appendix B Worksheets

Appendix C Applications

Appendix D Device Types to Personality Codes Correlation

Appendix E Releasing Module

Index

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kidde VS Series

Summary of Contents for Kidde VS Series

This manual is also suitable for:

Table of Contents
