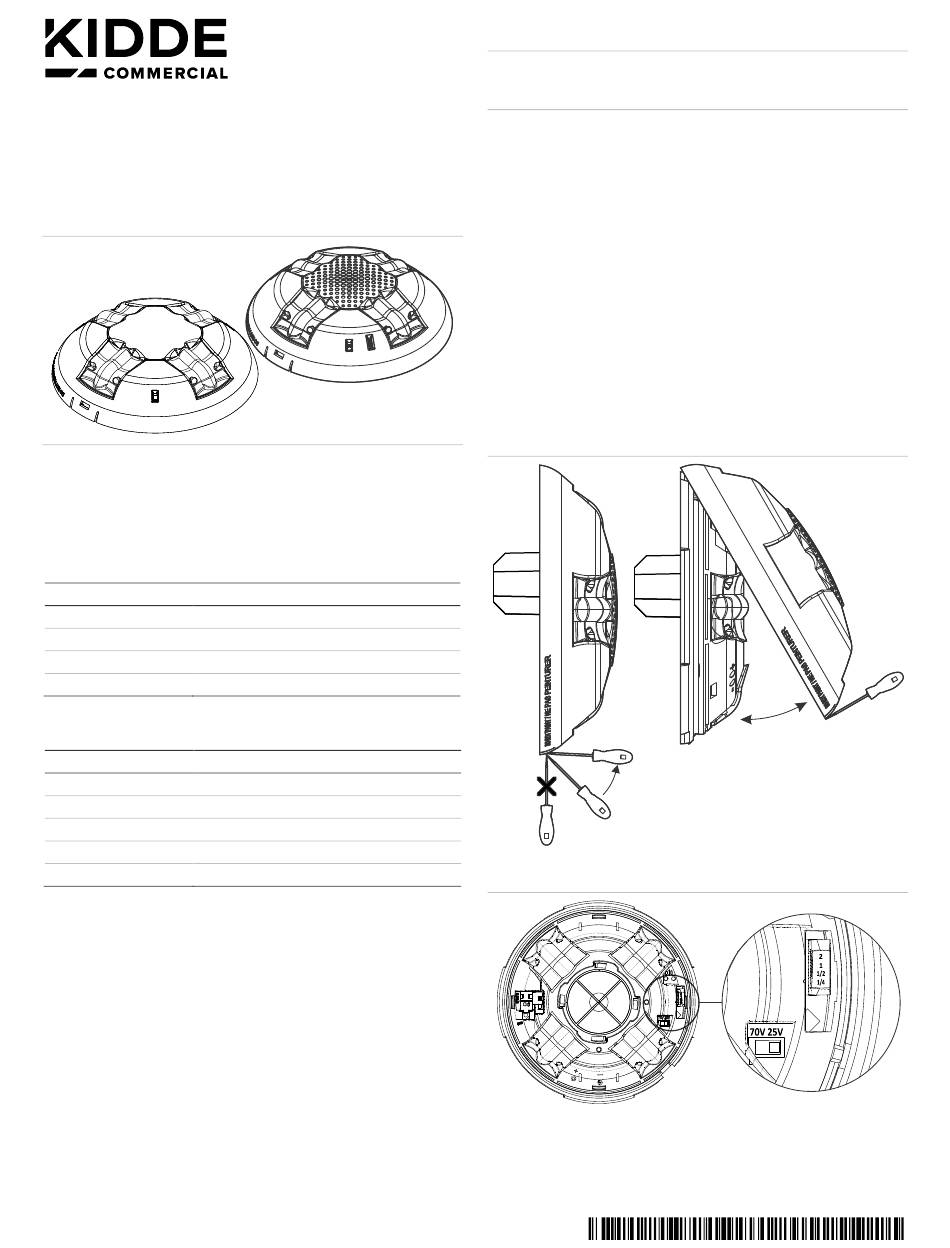

Kidde EGCSVH Installation Sheet

Genesis LED EGCSVH and
EGCVH High-Candela Speaker-
Strobe Installation Sheet
Description
Genesis LED EGCSVH speaker-strobe and EGCVH strobe are ceiling-
or wall-mounted fire alarm notification appliances designed for indoor
dry applications. See Table 1 and Table 2 below for models.
Table 1: Strobes
Catalog number Description
EGCVHRF Strobe, ceiling, red, FIRE
EGCVHWF Strobe, ceiling, white, FIRE
EGCVHRN Strobe, ceiling, red, no marking
EGCVHWN Strobe, ceiling, white, no marking
Table 2: Speaker-strobes
Catalog number Description
EGCSVHRF Speaker-strobe, ceiling, red, FIRE
EGCSVHWF Speaker-strobe, ceiling, white, FIRE
EGCSVHRN Speaker-strobe, ceiling, red, no marking
EGCSVHWN Speaker-strobe, ceiling, white, no marking
EGCSVHWA Speaker-strobe, ceiling, white, ALERT
Genesis LED EGCSVH Series notification appliances feature:
• Field-configurable speaker and strobe outputs. See Figure 2 and
Figure 3.
• Enhanced synchronization circuitry to comply with the latest
requirements of UL 1638 and CAN/ULC-S526.
• Input wiring test points available from the front of the appliance
when the cover is removed.
• Speakers that are approved for low frequency sounder
applications when used with compatible tone file and systems.
Note: Synchronized operation requires a separately installed
synchronization device. See the control unit or remote booster/auxiliary
power supply compatibility list for compatible synchronization devices.
© 2023 Carrier
Configuration
Caution: Equipment damage hazard. Using excessive force when
removing the appliance cover may damage the cover and prevent it
from latching in place.
To configure the notification appliance:
1. Remove the appliance cover. See Figure 1.
Insert a small, flat-bladed screwdriver into the slot at the bottom of
the appliance.
Gently pull up on the screwdriver to pry the bottom of the
appliance cover down and away from the appliance.
Lift the bottom of the cover out and over the top of the appliance.
2. Select the speaker's voltage and power setting. See Figure 2.
Set the voltage for 25 or 70 VRMS. Set the power for 1/4, 1/2, 1, or
2 watts.
3. Select the strobe's output for 135, 150, 177, or 185 candelas. See
Figure 3.
4. Replace the appliance cover. Press until it snaps firmly into place.
Figure 1: Removing and replacing the cover
Figure 2: Speaker switch settings
1 / 4 P/N 3102946-EN • REV 001 • ISS 17OCT23
