Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

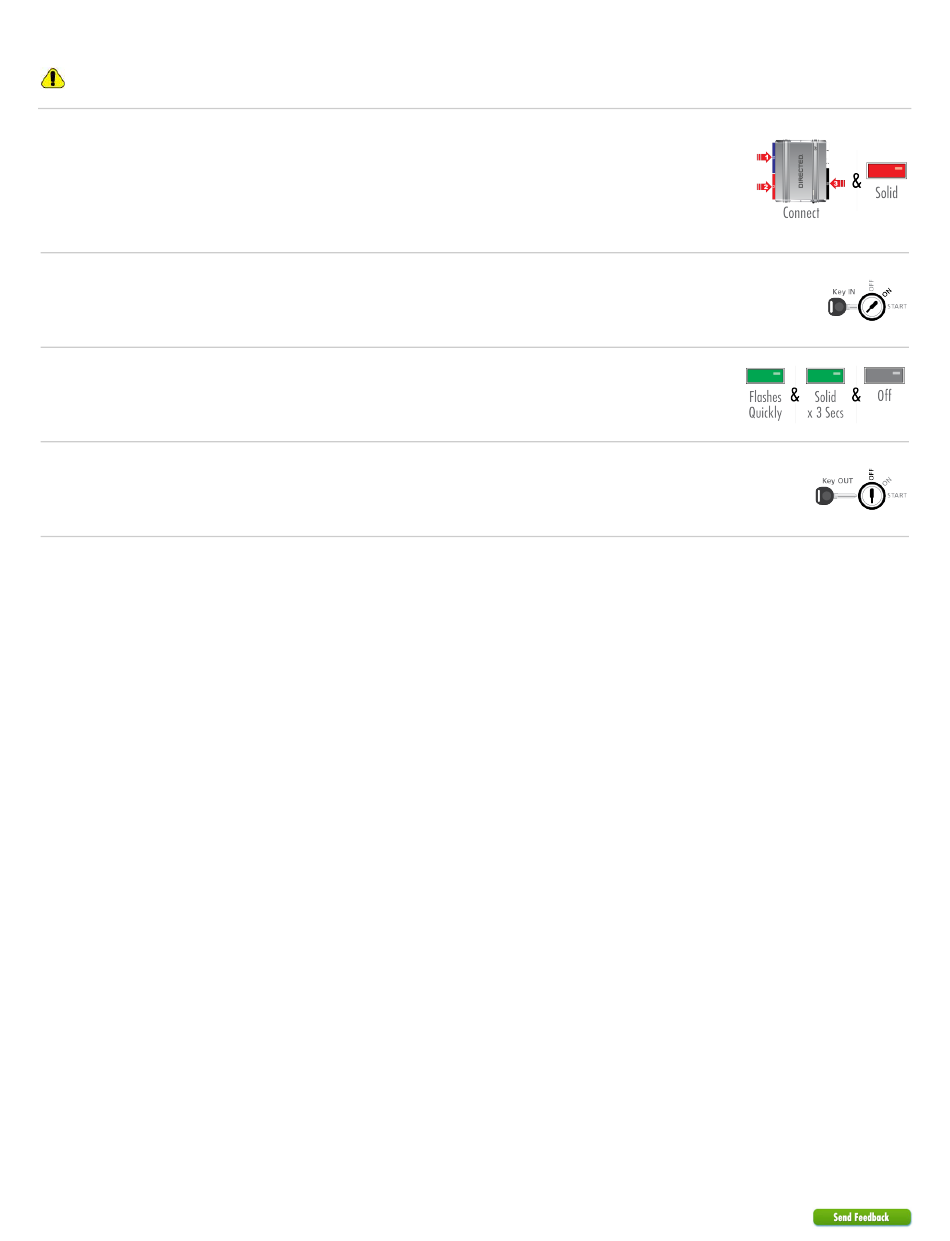

The harnesses must be connected in this exact order:
1. Connect the 14-pin.
1
2. Connect the 12-pin.
3. Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
2
Turn the ignition on.
3
The LED will flash green quickly then turn on solid green for 3 seconds, then turn off.
4
Turn the ignition off when the module is successfully programmed.
You have successfully completed the module programming sequence.
12
403.MIT4 2.07 2012 Mitsubishi Galant
