INSTALLATION GUIDE
DB3
2012 Mitsubishi Galant. 403.MIT4 2.07
Designed by Installers for Installers
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Directechs DB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Directed Directechs DB3

Summary of Contents for Directed Directechs DB3

  • Page 1 2012 Mitsubishi Galant. 403.MIT4 2.07 Designed by Installers for Installers © 2022 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s...

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Adding wires to an empty pin Vehicle connections Module programming Module programming for convenience only (skip transponder) Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming...

  • Page 3: Introduction

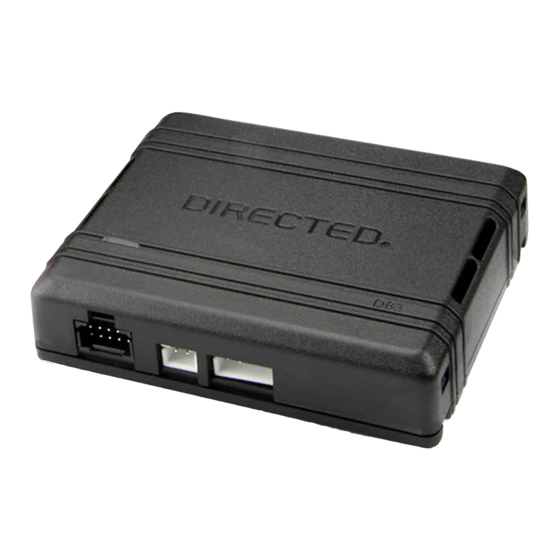

    Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.MIT4 2.07 2012 Mitsubishi Galant ©2022 VOXX•DEI LLC.

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Immobilizer Bypass-Data No Key Req'd Entry Monitoring Driver Door Pin RAP Shut Down (Retained ACC Power) Entry Monitoring Trunk/Hatch Pin Remote Start Takeover Brake Status (foot brake) SmartStart...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required T-Harness is not compatible.

  • Page 6: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( OBDII Junction Block ETACS-ECU Driver’s Fuse/Junction Block Diagnostic Connector XKD2D65 front view (white connector, left rear of dash fuse box) (white connector front of fuse box) HS CAN High: Red, pin 6 (-) Unlock: Lt.Green/Red, pin 14...

  • Page 7: Locating Components In The Vehicle

    Locating components in the vehicle 403.MIT4 2.07 2012 Mitsubishi Galant ©2022 VOXX•DEI LLC. All rights reserved.

  • Page 8: Adding Wires To An Empty Pin

    Adding wires to an empty pin Solder onto a diode, cut away the rest of the wire. Solder the wire to secure it on the metal pin. Empty pin Diode This part can be removed because only the metal pin is needed to secure the contact in the empty pin.

  • Page 9: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2012 Mitsubishi Galant. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
  • Page 10 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green No Connection No Connection H3/2 Blue No Connection No Connection H3/3 Red/White No Connection [2] No Connection H3/4 White/Violet No Connection No Connection H3/5 Violet/Black No Connection [3]...
  • Page 11 Additional remote start connections (Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.) Connects To Wire Wire Location (+/-) Wire Color 12 Volts ignition switch, white 6 pin plug, pin 1 blue/yellow (40A) Accessory ignition switch, white 6 pin plug, pin 4...

  • Page 12: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. The harnesses must be connected in this exact order: 1. Connect the 14-pin. 2. Connect the 12-pin. 3. Connect the 10-pin. When the LED turns on solid red, proceed with the next step. Turn the ignition on.

  • Page 13: Module Programming For Convenience Only (Skip Transponder)

    Module programming for convenience features only (skip transponder programming) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. To connect the module: Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position.

  • Page 14: Connecting The Module

    Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior to moving onto programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1.

  • Page 15: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
  • Page 16 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 17: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 18: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 19: Feature And Option List

    Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 20: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 21: Quick Reference Guide (Customer Copy)

    3 possible ways you can send commands to your vehicle, using the: Park (P). • Factory remote. • Aftermarket remote. Press the Remote Start button on the transmitter.* • Directed SmartStart application via your smartphone. & Parking lights The parking lights will flash once to indicate the vehicle is Press...
  • Page 22 Notes 403.MIT4 2.07 2012 Mitsubishi Galant ©2022 VOXX•DEI LLC. All rights reserved.
