Initialisation of the DESKLINE DL7 parallel system
®

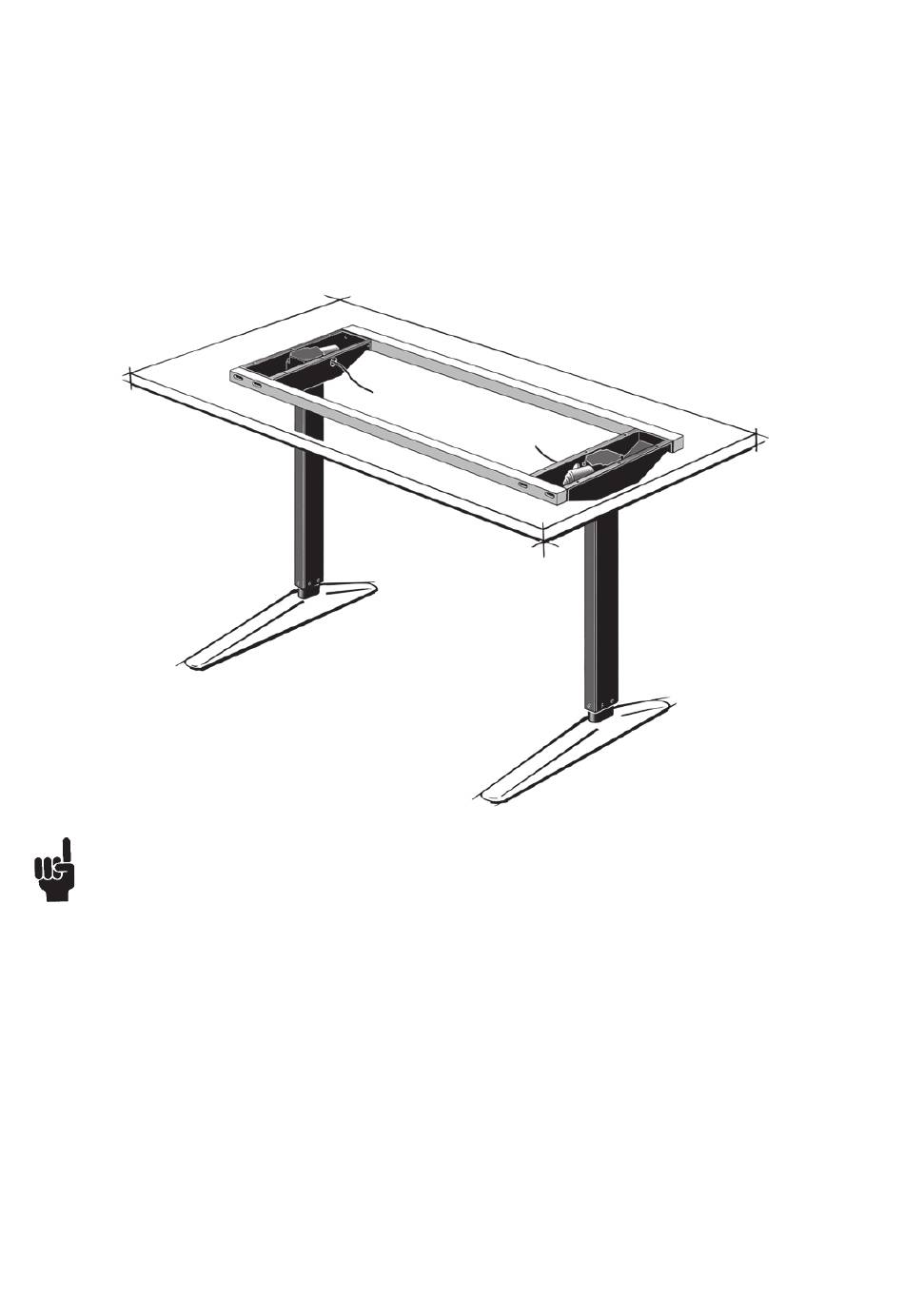

To obtain parallel operation of a DESKLINE system it is necessary that the system at first activation drives the lifting units DL7
®
in end stop position bottom. Thus the control box CBD4/CBD5 registers the bottom position for each lifting unit.
Besides the system has to be initialised when exchanging the lifting units or the control box.
Forced initialisation under normal operation is done by driving the DL7's into end stop at the bottom. Pushing the down button
again within 10 sec. will start the initialisation after 1.25 sec delay.
The button must be pressed during the full sequence.
When using the DL7R, the stroke length must be configured to 470 mm prior to use.
