Mounting guidelines for the DL7R

Mounting of the top frame
There are 2 ways to mount the motor housing to a top frame. Either use the 2 outer placed holes on the short side of the
motor housing and nut and bolt or use the 2 inner placed holes on the short side of the motor housing with thread (M8) and
screws. If you choose the screws, we advise you to fasten the desk frame by means of 4 pcs. of M8 screws of a good quality
and a suitable length, which must not go further into the motor housing than max. 30 mm.
We advise you to use the 6 pcs. of ø6 holes for mounting the tabletop.
Mounting of the foot
The DL7R is to be mounted on the foot by using 4 pcs. of
M6 screws of a good quality and a suitable length, which
must not go further into the column than max. 30 mm.
Always place the DL7R column on top of the foot construction due to the upside down design.

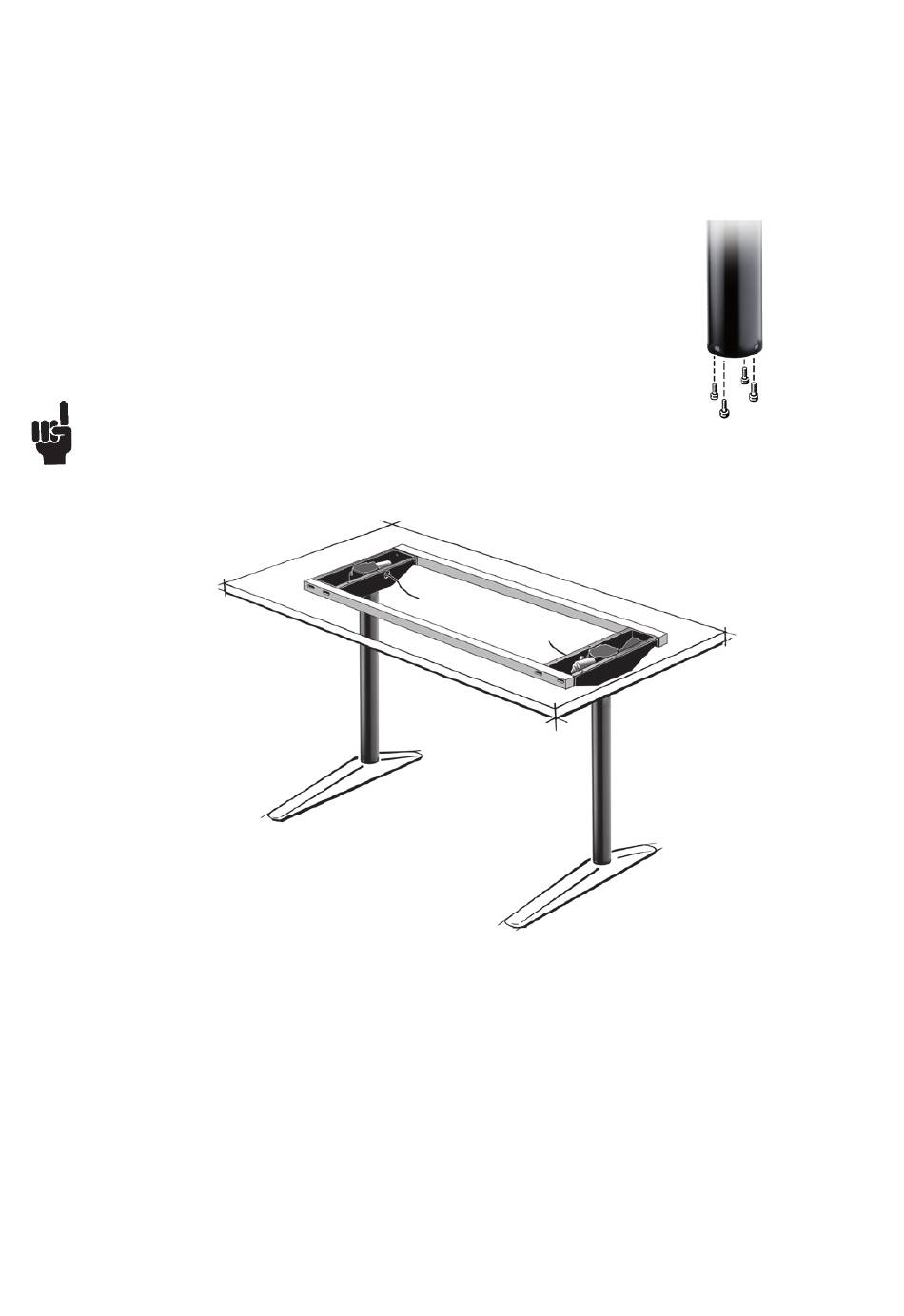

Example of how to mount the DL7R DESKLINE system
®
