Metra Electronics Saddle Tramp BC-DSPX-HD2 Installation Instructions Manual

Hide thumbs Also See for Saddle Tramp BC-DSPX-HD2:

Advertisement

Quick Links

Download this manual

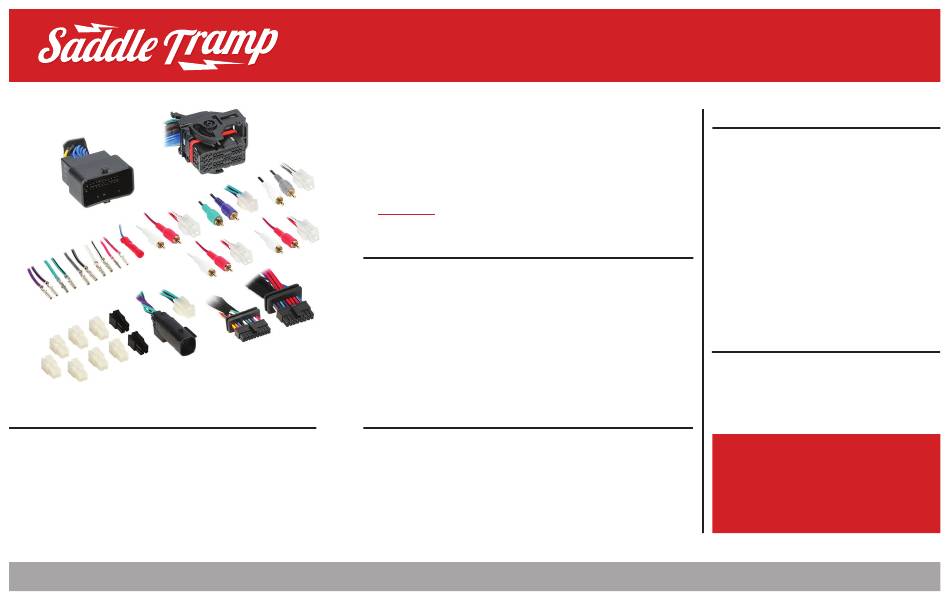

KIT COMPONENTS
• A) Saddle Tramp DSP
• B) BC-9715 Harness
• C) Instruction Sheet
The World's best kits.
®
Harley-Davidson Street Glide, Electra Glide,
Ultra, and Limited Models 2014-Up†
Road Glide 2015-Up†
†
Non-amplified models only
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Saddle Tramp DSP with radio reflash capabilities
• Reprograms the OE radio to a flat frequency response curve
• All settings done via the AXXESS DSP XL application
• BC-9715 pre-wired harness included for ease of installation
• DSP offers 31 adjustable EQ bands per channel
• Up to 10 channels of programmable output
• Fully adjustable crossover
TOOLS REQUIRED
• Panel removal tool
• Phillips screwdriver
• Torx screwdrivers
• Allen wrenches
MetraOnline.com
© COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
BC-DSPX-HD2
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Harley Davidson Street Glide, Electra Glide,
Reflashing the Radio . ........................................4-5
Equipment Installation
Interface Assembly ..........................................6
BC-9715 Harness Assembly ...........................7-8
DSP Setup ..........................................................9-19
Troubleshooting . ..................................................20
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Saddle Tramp interface and
harness included
Antenna Adapter: Included
Handlebar control interface: Included
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
REV. 10/15/21 INSTBC-DSPX-HD2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Saddle Tramp BC-DSPX-HD2 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics Saddle Tramp BC-DSPX-HD2

Summary of Contents for Metra Electronics Saddle Tramp BC-DSPX-HD2

  • Page 1: Table Of Contents

    BC-DSPX-HD2 I N S TA L L AT I O N I N S T R U C T I O N S Harley-Davidson Street Glide, Electra Glide, TABLE OF CONTENTS Fairing Disassembly Ultra, and Limited Models 2014-Up† Harley Davidson Street Glide, Electra Glide, Road Glide 2015-Up†...

  • Page 2: Fairing Disassembly

    FAIRING DISASSEMBLY Harley Davidson Street Glide, Electra Glide, Ultra, and Limited models 2014-Up 1. Remove (4) T-27 Torx screws from the inner fairing. (Figure A) 2. With a firm grip on the windshield, remove (3) T-27 Torx screws. Remove the windshield, the outer fairing will also be loosened. (Figure B) 3. Remove the outer fairing, unplugging the headlight. (Figure C) (Figure A) (Figure C) 4. Remove (2) T-27 Torx screws to remove the fairing vent, and then remove the vent. (Figure D) Continued on next page (Figure B) (Figure D) 386.257.1187 MetraOnline.com...

  • Page 3: Harley Davidson Road Glide 2015-Up

    FAIRING DISASSEMBLY (CONT) Harley Davidson Road Glide 2015-Up 6. Remove the speaker grills with a panel removal tool and remove (1) Torx screw 1. Remove the lower T-27 Torx screws on from each side. (Figure E) either side holding the deflector wings. CAUTION: The fairing will be loose at this (Figure A) point. Have a helper hold it to keep from Note: Only the lower (2) need to be damaging it when removing the screws. removed. 7. Remove the fairing and set aside. (Figure A) (Figure D) 2. Remove (1) 3/16" Allen screw securing each turn signal. (Figure B) 8. Remove (4) 3/16" Allen screws from the sides of the radio. 3. With a firm grip on the windshield, Note: These screws will be reused in the remove (4) Phillips screws and set the Kit Assembly. windshield aside. (Figure C) CAUTION: Be sure to hold the radio 4. Remove the top fairing trim clipped to when removing the last screw so it does...

  • Page 4: Reflashing The Radio

    REFLASHING THE OE RADIO BC-DSPL-HD2 BC-9715 Harness • Reflashes the OE radio curve to a flat response • Add an amp harness 2014-up HD with OE radio and fairing • Provides pre-terminated input and output wires • Water Tight Saddle Tramp Case • RCA output harnesses included • 31 Band graphic equalizer or 5 Band parametric EQ per channel • Pre-wired rear speaker output, used with BC-9720 backbone harness (sold separately) • Pre-wired for quick installation when retaining the OE radio • Universal for all amps • BC-9715 harness with pre-wired inputs and outputs • Wire covered in protective cloth tape • Independent equalization for all outputs • Independent crossover for all outputs • Selectable slope (12, 24, 36, or 48db per octave) • Signal Delay ® • Settings adjusted via Bluetooth in a smart device application (tablet or mobile phone), ®...
  • Page 5 REFLASHING THE OE RADIO (CONT) Below are images of the Frequency response curves of a stock Harley Davidson non-amplified radio. Frequency response curve after the Saddle Tramp DSP reflashes the OE radio. Interface only works with non-touchscreen radios Works with 4-Button Works with 8-Button Does not work with Touchscreen REV. 10/15/21 INSTBC-DSPX-HD2...

  • Page 6: Interface Assembly

    BC-DSPX-HD2 INTERFACE ASSEMBLY Saddle Tramp WR Box Assembly 1 1. Unsnap the Cap from the case. Insert the overmolded gaskets from the BC-9715 harness into the respective opening in the front of the Cap, making sure the Zip-tie Mounts Case grommets are properly seated. 2. Slide the DSP board out of the case and plug in the 16 and 20 pin connectors. Saddle Tramp DSP 3. Reinsert the DSP board into the case and Circuit Board snap the Cap into place. The arrows on the Cap should be pointed toward the Cap (with O-ring) Saddle Tramp logo on the case. 4. Find a secure mounting location for the DSP case. It is recommended that 16-Pin...

  • Page 7: Bc-9715 Harness Assembly

    BC-9715 HARNESS INSTALLATION 1. Unplug the OE radio connector and BC-9715 t-Harness BC-9715 t-Harness install the BC-9715 t-harness. OE Connector removed from radio OE Connector removed from radio 2. The installation of the pre-wired harness is designed to work with multiple styles of aftermarket amplifiers with different types of inputs and outputs. Both input (white connectors) and output (black connectors) wires on the BC-9715 harness use Molex terminals that are pre-crimped onto the speaker leads; loose Molex connectors are included to allow the user to pin the connectors accordingly. If the amplifier uses Molex Micro Fit connectors for the inputs and outputs, simply match the amplifier’s speaker configuration and plug them in using the provided connectors. If the amp uses RCA inputs, pre-terminated Molex connectors with RCAs already wired are provided. The option to hardwire the speaker inputs and outputs would be the final option.
  • Page 8 BC-9715 HARNESS INSTALLATION I N S TA L L AT I O N D I A G R A M Installation of BC-9715 The diagram shown here provides a visual representation of how the BC- 9715 harness should be installed. Radio output 4ch amp placement OE Radio Plug To speakers BC-DSPL-HD2 Not used for this installation High level Input...

  • Page 9: Dsp Setup

    MOBILE APP SETUP INSTRUCTIONS BLUETOOTH CONNECTION The Saddle Tramp Digital Signal Processor (DSP) uses the AX-DSP-XL app to setup, program, and SCAN: Press this button to start the Bluetooth pairing process, then select the interface once it is control the setup of your DSP. found. “Connected” will appear in the top left corner of the app once it is paired. Note: The interface must be powered during this process. SETUP INSTRUCTIONS: The General Information tab for installing the interface. DISCONNECT: Disconnects the interface from the app. REV. 10/15/21 INSTBC-DSPX-HD2...
  • Page 10 MOBILE APP CONFIGURATION IDENTIFY: Click this button to confirm that the interface is connected properly. If so, a chime will RESET TO DEFAULTS: Resets the interface to factory settings. During the reset process the be heard from the front left speaker.* amplifiers will shut off for 5-10 seconds. VEHICLE TYPE: Select the vehicle type from the drop down box, select EITHER * Only installations where the interface is connected to a front left speaker. EQUALIZER (EQ) TYPE: User has the option of optimizing the motorcycle’s sound quality with a Graphic or Parametric equalizer. LOCK DOWN: Click this button to save the selected settings. Attention! This button must be selected before closing the app or cycling the key; otherwise, all settings will be lost. SAVE CONFIGURATION: Saves the current configuration to the mobile device. RECALL CONFIGURATION: Recalls a configuration from the mobile device. ABOUT: Displays information about the app, vehicle, interface, and mobile device. SET PASSWORD: Assign a 4-digit password to lock the interface. If no password is desired, use “0000”. This will clear out any currently set password. It is not necessary to lock down the interface when setting a password. Note: A 4-digit only password must be chosen; otherwise, the interface will show “password not valid for this device”. 386.257.1187 MetraOnline.com...
  • Page 11 MOBILE APP SELECT VEHICLE TYPE Under the configuration screen is where the user tells the DSP the type of Harley Davidson it is ALL Flash FlatEQ HighLevInput - 2014-2020 connected to. This is also the section that will allow you to reflash your radio. Reflash your factory radio for a flat response. Output voltage from DSP reduced Within the Vehicle Type selection screen are 5 choices. ALL Flash FlatEQ LowLevInput - 2014-2020 Reflash your factory radio for a flat response. Output voltage from DSP increased ALL OE Curve - 2014-2020 Return your OE radio to the factory curve All - 1998 to 2013 No reflash required All - 2014-2020 Use if your Harley Davidson has OE amplifier(s)
  • Page 12 MOBILE APP OUTPUTS Output Channels Location: Location of speaker. Group : Used to join channels together for simple equalization. Example: Left front woofer/midrange and left front tweeter will be considered simply left front. The letter M denotes the speaker assigned as the married speaker. Invert: Will invert the phase of the speaker. Mute: Will mute desired channel(s) for tuning individual channels. 386.257.1187 MetraOnline.com...
  • Page 13 MOBILE APP CROSSOVER ADJUST If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass filter to keep the low frequency signals out. If a subwoofer is not being installed, change the front and rear crossover points down to 20Hz for a full range signal, or to the lowest frequency the speakers will play down to. Selecting High Pass and Low Pass will provide one crossover frequency adjustment. Band Pass should only be chosen if installing just front speakers, with one dedicated amp for the woofers/mids, a second dedicated amp for the tweeters, along with a subwoofer. Select the desired crossover slope, 24db, 36db, or 48 db. Higher is steeper, but it is recommended that one uses High Pass/24db octave slopes for crossovers on a bike. REV. 10/15/21 INSTBC-DSPX-HD2...
  • Page 14 MOBILE APP EQUALIZER ADJUST Graphic EQ The front, rear, and sub channels can be adjusted independently within this tab, with 31 bands of equalization available. It is best to tune this by using an RTA (Real Time Analyzer). • The Gain slider on the far left is for the channel selected. 386.257.1187 MetraOnline.com...
  • Page 15 MOBILE APP PARAMETRIC EQ Each output has a 5 Band parametric EQ per channel. Each band will give the user the ability to adjust: Q Factor Frequency Gain The FLAT button above Filter #1 will reset all curves back to flat. REV. 10/15/21 INSTBC-DSPX-HD2...
  • Page 16 MOBILE APP DELAY ADJUST Allows a delay of each channel. If a delay is desired, first measure the distance (in inches) from each speaker to the listening position, then enter those values to the corresponding speaker. Add (in inches) to the desired speaker to delay it. 386.257.1187 MetraOnline.com...
  • Page 17 MOBILE APP INPUTS/LEVELS Clipping Level - Use this feature to protect sensitive speakers, like tweeters, from being driven past their capabilities. If the input signal of the DSP clips, the audio will be reduced by 20dB. Turning down the stereo will allow the audio to come back on at a normal level. The sensitivity of this feature can be adjusted to the listening preference of the user. Chime Volume - Not applicable at this time. Amp Turn On SignalSense - Will turn the amplifier on when an audio signal is detected, and keep on for (10) seconds past the last signal. This ensures the amplifier doesn’t shut off between tracks. Always On - Will keep the amplifiers on as long as the bike is cycled on. Turn-on Delay - Can be used to delay amp turn-on to avoid turn-on pops. Subwoofer Input - For selecting either a dedicated subwoofer input or summed from the front and rear inputs. REV. 10/15/21 INSTBC-DSPX-HD2...
  • Page 18 MOBILE APP LOCKING DOWN DATA Last and the most important... You MUST lock down your configuration!!! 386.257.1187 MetraOnline.com...
  • Page 19 SPECIFICATIONS General Inputs • Operating Voltage 10-16-volts • Input Impedance 1M Ohm • DC Standby Current Draw 7mA • Input Channels • Operation Current Draw 150mA • Input Options High-level or Low-level selectable through Bluetooth app • Adjustments/Controls Application via Bluetooth • Input Type Differential-Balanced • Remote Output 12-volts DC (signal sense or with ignition) • Input Voltage High Level Range 0 - 28-volts (peak-to-peak) Low Level Range 0 - 4.9-volts (peak-to-peak) Performance Outputs • Equalizer Type 15 Band Graphic EQ, +/- 10dB • Output Channels • THD <0.03% • Output Voltage Up to 5-volts RMS • Frequency Response 20Hz - 20kHz • Output Impedance 50 Ohms • Crossover Frequency 3-Way Low pass, Bandpass, High pass • Crossover Type Linkwitz-Riley • Crossover Slopes 12, 24, 36, 48 • Sampling...

  • Page 20: Troubleshooting

    TROUBLESHOOTING TIP: If you have pinned the Molex Micro fit connector improperly. You will need to use a Pin Extractor tool. HOUSING PULL OUT TERMINAL TIP OF TOOL AND WIRE INSERTED ON THE SIDE OF TERMINAL EXTRACTOR TOOL LOCKING TANGS PUSHED IN LOCKING TANGS PUSHED IN HOUSING EXTRACTOR TERMINAL TOOL 386.257.1187 MetraOnline.com...
  • Page 21 REV. 10/15/21 INSTBC-DSPX-HD2...
  • Page 22 386.257.1187 MetraOnline.com...
  • Page 23 REV. 10/15/21 INSTBC-DSPX-HD2...
  • Page 24 BC-DSPX-HD2 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com Tech Support Hours (Eastern Standard Time) Monday - Friday: 9:00 AM - 7:00 PM Saturday: 10:00 AM - 7:00 PM Sunday: 10:00 AM - 4:00 PM ® NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected...
