Metra Electronics CADILLAC 95-2004 Installation Instructions Manual

Dash kit for 1997-2001 cadillac catera & 1996-1999 cadillac deville (column shift only)

Table of Contents

Download this manual

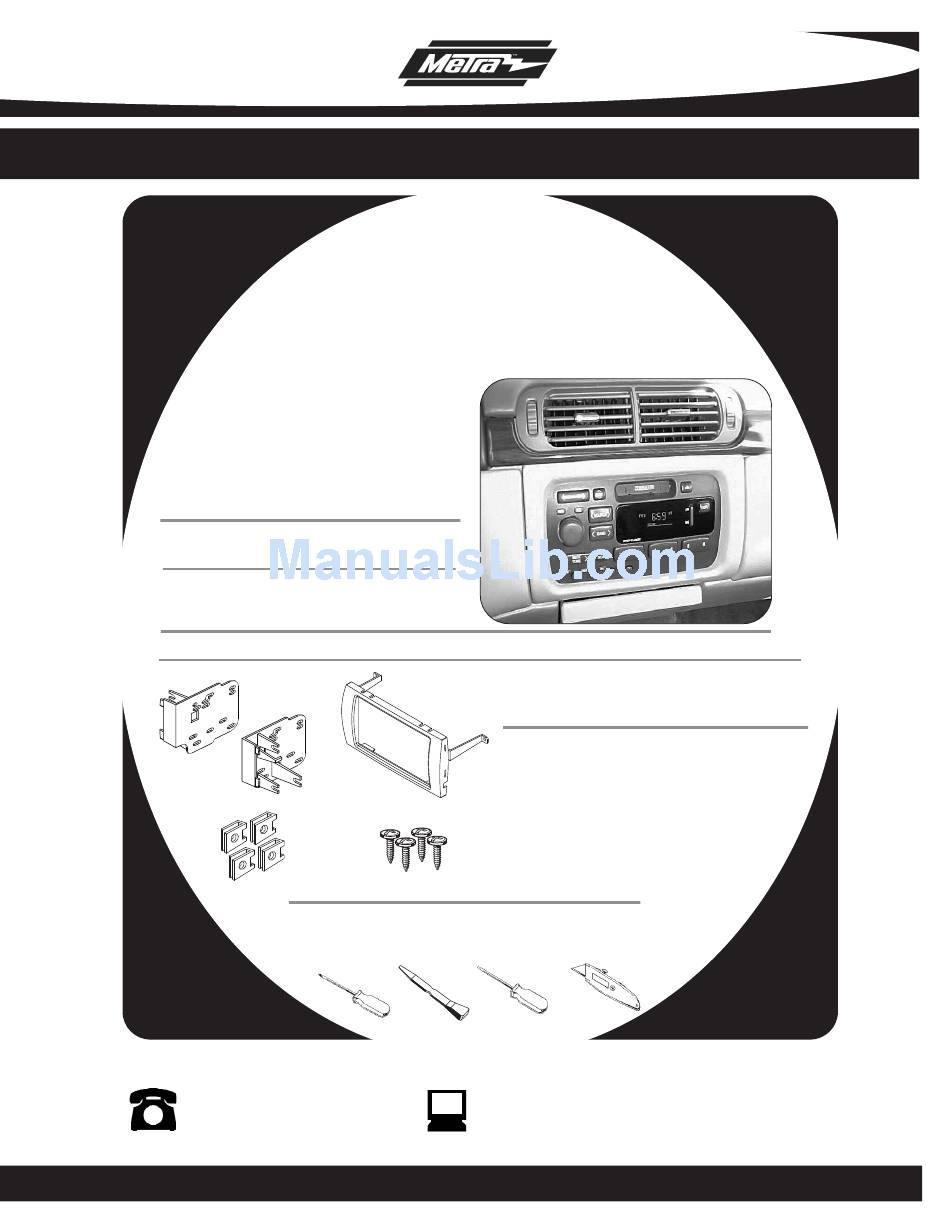

INSTALLATION INSTRUCTIONS FOR PART 95-2004

APPLICATIONS

Cadillac

1997-2001 Catera

1996-1999 Deville

(Column Shift Only)

95-2004

KIT FEATURES

• DDIN Head Unit Provision

• ISO Stacked Head Unit Provision

KIT COMPONENTS

• ( A) DDIN Brackets • ( B) DDIN Trim Plate • ( C) (4) Speed Clips • ( 4) Phillips Head Screws

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

HARNESS:

• GMRC-03 - 1997-2002 Cadillac Interface W/O Onstar

• GMOS-06 - 1997-2002 Cadillac Interface W/ Onstar

ANTENNA ADAPTER:

• 40-GM10 - GM Antenna Adapter

TOOLS REQUIRED:

• Phillips Screwdriver • Panel Removal Tool • Small Flat Blade Screwdriver • Cutting Tool

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the CADILLAC 95-2004 and is the answer not in the manual?

Page 1 • GMOS-06 - 1997-2002 Cadillac Interface W/ Onstar ANTENNA ADAPTER: • 40-GM10 - GM Antenna Adapter TOOLS REQUIRED: • Phillips Screwdriver • Panel Removal Tool • Small Flat Blade Screwdriver • Cutting Tool METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION...
Page 2 95-2004 TABLE OF CONTENTS Dash Disassembly 1997-2001 Cadillac Catera ......1 1996-1999 Cadillac Deville Kit Preparation 1997-2001 Cadillac Catera .
Page 3 95-2004 1997-2001 CADILLAC CATERA Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (1) Phillips head screw from inside the ashtray and remove ash- tray. (Figure A) Remove screw covers from the radio trim panel. Remove traction control and hazard switch covers.
Page 4 95-2004 1997-2001 CADILLAC CATERA Cut and remove the three shaded tabs on both brackets. (Figure A) 1996-1999 CADILLAC DEVILLE Cut and remove the shaded tab from both brackets, and both of the tabs on the trim plate. (Figure B) Install (4) speed clips into the sub- dash mounting positions.
Page 5 95-2004 DOUBLE DIN / STACKED ISO DIN HEAD UNIT PROVISIONS Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. Attach the Double DIN brackets to the inside edge of the Double DIN trim plate.
