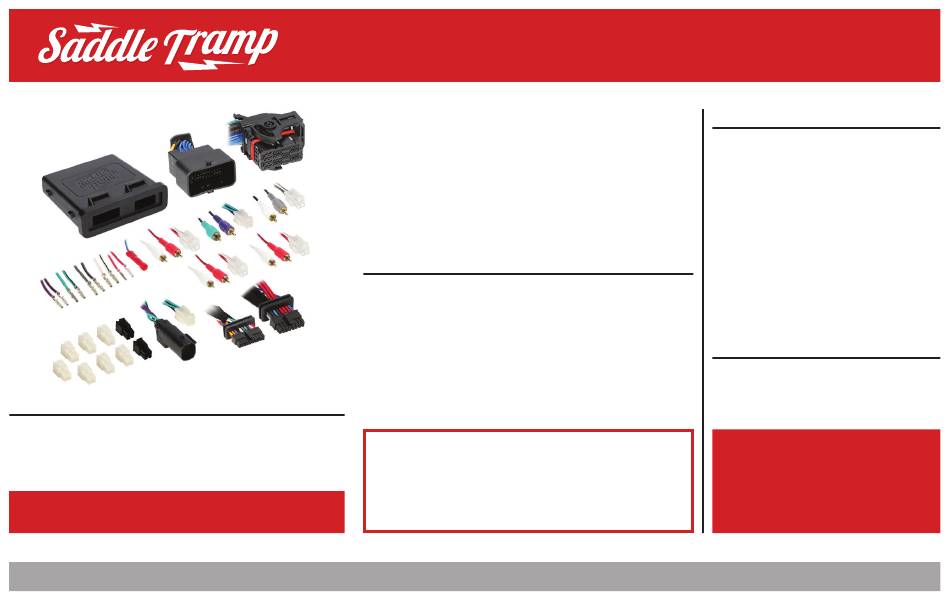

WHAT'S IN THE BOX
• Saddle Tramp DSP
• BC-9715 Harness
• Instruction Sheet
IMPORTANT: The Saddle Tramp DSP is not a re-flash tool. Please see
information on Page 4, regarding usage of the product.
The World's best kits.
®
Harley-Davidson Street Glide, Electra Glide,
Ultra, and Limited Models
Road
Glide 2015-UP
Visit metraonline.com to view the available installation parts and
Motorcycle accessories.
KIT FEATURES
• Saddle Tramp DSP with radio reflash capabilities
• Reprograms the OE radio to a flat frequency response curve
• All programming is done using the AXXESS DSP XL app on Android
devices ONLY
• BC-9715 pre-wired harness included for ease of installation
• 31-band graphic EQ, or 5 band parametric EQ per channel
• Up to 10 channels of programmable output
• Fully adjustable crossover
IMPORTANT: For the best performance, and to ensure you're able to
use all the features of your Saddle Tramp DSP powered by Axxess
technology, we recommend downloading the free Axxess updating
software for Windows operating systems at the URL link below:
axxessinterfaces.com/resources/updater-software
MetraOnline.com
2014-UP
© COPYRIGHT 2022 METRA ELECTRONICS CORPORATION
BC-DSPX-HD2
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Harley Davidson Street Glide, Electra Glide,
Equipment Installation
Reflashing the OE Radio .............................4-5
BC-DSPX-HD2 Interface Assembly ........................6
BC-9715 Harness Installation . ....................... 7-9
Mobile App Setup ............................................10-17
Specifications . .......................................................18
Troubleshooting ............................................. 19
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Allen wrenches (FLT Models)
• Torx screwdrivers (FLH and FLT Models)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
REV. 3/11/22 INSTBC-DSPX-HD2

Advertisement

Table of Contents
loading

Summary of Contents for Metra Electronics Saddle Tramp BC-DSPX-HD2

  • Page 1: Table Of Contents

    BC-DSPX-HD2 I N S TA L L AT I O N I N S T R U C T I O N S Harley-Davidson Street Glide, Electra Glide, TABLE OF CONTENTS Fairing Disassembly Ultra, and Limited Models 2014-UP Harley Davidson Street Glide, Electra Glide, Road Glide 2015-UP Ultra, and Limited Model 2014-UP....2 Harley Davidson Road Glide 2015-UP .....3 Visit metraonline.com to view the available installation parts and...
  • Page 2: Fairing Disassembly

    FAIRING DISASSEMBLY Harley Davidson Street Glide, Electra Glide, Ultra, and Limited models 2014-UP 1. Remove (4) T-27 Torx screws from the inner fairing. (Figure A) 2. With a firm grip on the windshield, remove (3) T-27 Torx screws. Remove the windshield, the outer fairing will also be loosened. (Figure B) 3. Remove the outer fairing, unplugging the headlight. (Figure C) (Figure A) (Figure C) 4. Remove (2) T-27 Torx screws to remove the fairing vent, and then remove the vent. (Figure D) Continued on next page (Figure B) (Figure D) 386.257.1187 MetraOnline.com...
  • Page 3: Harley Davidson Road Glide 2015-Up

    FAIRING DISASSEMBLY (CONT) Harley Davidson Road Glide 2015-UP 6. Remove the speaker grills with a panel removal tool and remove (1) Torx screw 1. Remove the lower T-27 Torx screws from each side. (Figure E) holding the deflector wings, one on CAUTION: The fairing will be loose at this either side. (Figure A) point. Have a helper hold it to keep from Note: Only the lower (2) need to be damaging it when removing the screws. removed. 7. Remove the fairing and set aside. (Figure A) (Figure D) 2. Remove (1) 3/16" Allen screw securing each turn signal. (Figure B) 8. Remove (4) 3/16" Allen screws from the sides of the factory radio. 3. With a firm grip on the windshield, Note: These screws will be reused in the remove (4) Phillips screws and set the Kit Assembly. windshield aside. (Figure C) CAUTION: Be sure to hold the radio 4. Remove the top fairing trim clipped to when removing the last screw so it does...
  • Page 4: Reflashing The Oe Radio

    REFLASHING THE OE RADIO BC-DSPX-HD2 BC-9715 Harness • Reflashes the OE radio curve to a flat response • Add an amp harness 2014-up HD with OE radio and fairing • Provides pre-terminated input and output wires • Water Tight Saddle Tramp Case • RCA output harnesses included • 31-band graphic EQ, or 5 band parametric EQ per channel • Pre-wired rear speaker output, used with BC-9720 backbone harness (sold separately) • Pre-wired for quick installation when retaining the OE radio • Universal for all amps • BC-9715 harness with pre-wired inputs and outputs • Wire covered in protective cloth tape • Independent equalization for all outputs • Independent crossover for all outputs • Selectable slope (12, 24, 36, or 48db per octave) • Signal Delay • Settings are adjusted using the AXXESS DSP XL app on Android devices ONLY • Read, write, and store configurations for future recall • Password protect feature available in the mobile app • USB Micro-B updatable Product Information:...
  • Page 5 REFLASHING THE OE RADIO (CONT) Below are images of the Frequency response curves of a stock Harley Davidson non-amplified radio. Frequency response curve after the Saddle Tramp DSP reflashes the OE radio. DSP is compatible with these H-D Radios Works with 4-Button Works with 11-Button Works with GTS Touchscreen REV. 3/11/22 INSTBC-DSPX-HD2...
  • Page 6: Bc-Dspx-Hd2 Interface Assembly

    BC-DSPX-HD2 INTERFACE ASSEMBLY Saddle Tramp WR Box Assembly 1 1. Unsnap the Cap from the case. Insert the overmolded gaskets from the BC-9715 harness into the respective opening in the front of the Cap, making sure the grommets are properly seated. 2. Slide the DSP board out of the case and plug in the 16 and 20 pin connectors. 3. Reinsert the DSP board into the case and snap the Cap into place. The arrows on the Cap should be pointed toward the Saddle Tramp logo on the case. 4. Find a secure mounting location for the DSP case. It is recommended that the cap be installed facing down. The Zip-tie Mounts on each side of the case can be used to secure the DSP into place. 386.257.1187 MetraOnline.com...
  • Page 7: Bc-9715 Harness Installation

    BC-9715 HARNESS INSTALLATION 1. Unplug the OE radio connector and BC-9715 t-Harness BC-9715 t-Harness install the BC-9715 t-harness. OE Connector removed from radio OE Connector removed from radio 2. The installation of the pre-wired harness is designed to work with multiple styles of aftermarket amplifiers with different types of inputs and outputs. Both input (white connectors) and output (black connectors) wires on the BC-9715 harness use Molex terminals that are pre-crimped onto the speaker leads; loose Molex connectors are included to allow the user to pin the connectors accordingly. If the amplifier uses Molex Micro Fit connectors for the inputs and outputs, simply match the amplifier’s speaker configuration and plug them in using the provided connectors. If the amp uses RCA inputs, pre-terminated Molex connectors with RCAs already wired are provided. The option to hardwire the speaker inputs and outputs would be the final option.
  • Page 8 BC-9715 HARNESS INSTALLATION Installation of BC-9715 The diagram shown here provides a visual representation of how the BC- 9715 harness should be installed. 386.257.1187 MetraOnline.com...
  • Page 9 INSTALLATION (CONT’D) SETUP INSTRUCTIONS The Saddle Tramp DSP uses the AX-DSP-XL app, exclusively on Android to program and control the setup of your DSP. (Figure A) 1. Download and install the AXDSP-XL App from the Google Play Store. 2. Open the app and follow the instructions on the Bluetooth Connection tab to pair the mobile device to the BC-DSPX-HD2. (Figure A ) 3. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down button to save the configuration. (Figure B) 4. Connect the amp turn-on wire from the BC-DSPX-HD2 harness. 5. Click the Identify button to confirm that the BC-DSPX-HD2 is connected properly. If so, a chime will be heard from the front left speaker. Test all functions of the installation for proper operation. NOTE: We recommend that you update the interface before installation, using the Axxess updater, Micro-B USB, and a Windows PC.
  • Page 10: Mobile App Setup

    MOBILE APP SELECT VEHICLE TYPE Under the configuration screen is where the user tells the DSP the type of Harley Davidson it is Flash – FLAT CURVE – 2014 TO 2020 connected to. This is also the section that will allow you to reflash your radio. Reflash your non-touchscreen factory radio for a flat response. Flash – Flat Curve GTS Radio – 2019+ Select Radio type: Reflash your factory touchscreen radio for a flat response. No Flash – 1998 to 2013 These radios do not require a Flash. No Flash – 2014 to 2020 Use if your Harley Davidson had OE amplifier(s) Return to OE Curve –...
  • Page 11 MOBILE APP CONFIGURATION IDENTIFY: Click this button to confirm that the interface is connected properly. If it is, a chime will RESET TO DEFAULTS: Resets the interface to factory settings. During the reset process the be heard from the front left speaker.* amplifiers will shut off for 5-10 seconds. VEHICLE TYPE: Select the vehicle type. * Only installations where the interface is connected to a front left speaker. EQUALIZER (EQ) TYPE: User has the option of optimizing the motorcycles sound quality with a Graphic or Parametric equalizer. LOCK DOWN: Click this button to save the selected settings. Attention! This button must be selected before closing the app or cycling the key; otherwise, all settings will be lost. SAVE CONFIGURATION: Saves the current configuration to the mobile device. RECALL CONFIGURATION: Recalls a configuration from the mobile device. ABOUT: Displays information about the app, vehicle, interface, and mobile device. SET PASSWORD: Assign a 4-digit password to lock the interface. If no password is desired, use “0000”. This will clear out any currently set password. It is not necessary to lock down the interface when setting a password. Note: A 4-digit only password must be chosen; otherwise, the interface will show “password not valid for this device”. REV. 3/11/22 INSTBC-DSPX-HD2...
  • Page 12 MOBILE APP CROSSOVER ADJUST If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass filter to keep the low frequency signals out. If a subwoofer is not being installed, change the front and rear crossover points down to 20Hz for a full range signal, or to the lowest frequency the speakers will play down to. Selecting High Pass and Low Pass will provide one crossover frequency adjustment. Band Pass should only be chosen if installing just front speakers, with one dedicated amp for the woofers/mids, a second dedicated amp for the tweeters, along with a subwoofer. Select the desired crossover slope, 24db, 36db, or 48 db. Higher is steeper. 386.257.1187 MetraOnline.com...
  • Page 13 MOBILE APP EQUALIZER ADJUST The front, rear, and sub channels can be adjusted independently within this tab with 31 bands of equalization available. It is best to tune this by using an RTA (Real Time Analyzer). • The Gain slider on the far left is for the channel selected. REV. 3/11/22 INSTBC-DSPX-HD2...
  • Page 14 MOBILE APP PARAMETRIC EQ Each output has a 5 Band parametric EQ per channel. Each band will give the user the ability to adjust: Q Factor Frequency Gain The FLAT button above Filter #1 will reset all curves back to flat. 386.257.1187 MetraOnline.com...
  • Page 15 MOBILE APP DELAY ADJUST Allows a delay of each channel. If a delay is desired, first measure the distance (in inches) from each speaker to the listening position, then enter those values to the corresponding speaker. Add (in inches) to the desired speaker to delay it. REV. 3/11/22 INSTBC-DSPX-HD2...
  • Page 16 MOBILE APP INPUTS/LEVELS Clipping Level - Use this feature to protect sensitive speakers, like tweeters, from being driven past their capabilities. If the input signal of the DSP clips, the audio will be reduced by 20dB. Turning down the stereo will allow the audio to come back on at a normal level. The sensitivity of this feature can be adjusted to the listening preference of the user. Chime Volume - Not available in this application. Amp Turn On SignalSense - Will turn the amplifier on when an audio signal is detected, and keep on for (10) seconds past the last signal. This ensures the amplifier doesn’t shut off between tracks. Always On - Will keep the amplifiers on as long as the bike is cycled on. Turn-on Delay - This feature isn’t available on 2014-and up Harley Davidson Motorcycles. Subwoofer Input - For selecting either the sum of the front & rear inputs or the subwoofer LFE input. 386.257.1187 MetraOnline.com...
  • Page 17 MOBILE APP LOCKING DOWN DATA Last and the most important... You MUST lock down your configuration!!! REV. 3/11/22 INSTBC-DSPX-HD2...
  • Page 18: Specifications

    SPECIFICATIONS General Inputs • Operating Voltage 10-16-volts • Input Impedance 1M Ohm • DC Standby Current Draw 7mA • Input Channels • Operation Current Draw 150mA • Input Options High-level or Low-level selectable through Bluetooth app • Adjustments/Controls Application via Bluetooth • Input Type Differential-Balanced • Remote Output 12-volts DC (signal sense or with ignition) • Input Voltage High Level Range 0 - 28-volts (peak-to-peak) Low Level Range 0 - 4.9-volts (peak-to-peak) Performance Outputs • Equalizer Type 31 Band Graphic EQ, +/- 10dB • THD <0.03% • Output Channels • Frequency Response 20Hz - 20kHz • Output Voltage Up to 5-volts RMS • Crossover Frequency 3-Way Low pass, Bandpass, High pass • Output Impedance 50 Ohms • Crossover Type Linkwitz-Riley • Crossover Slopes 12, 24, 36, 48 • Sampling...
  • Page 19: Troubleshooting

    TROUBLESHOOTING TIP: If you have pinned the Molex Micro fit connector improperly. You will need to use a Pin Extractor tool. HOUSING PULL OUT TERMINAL TIP OF TOOL AND WIRE INSERTED ON THE SIDE OF TERMINAL EXTRACTOR TOOL LOCKING TANGS PUSHED IN LOCKING TANGS PUSHED IN HOUSING EXTRACTOR TERMINAL TOOL REV. 3/11/22 INSTBC-DSPX-HD2...
  • Page 20 BC-DSPX-HD2 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com Tech Support Hours (Eastern Standard Time) Monday - Friday: 9:00 AM - 7:00 PM Saturday: 10:00 AM - 7:00 PM Sunday: 10:00 AM - 4:00 PM ® NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected...
