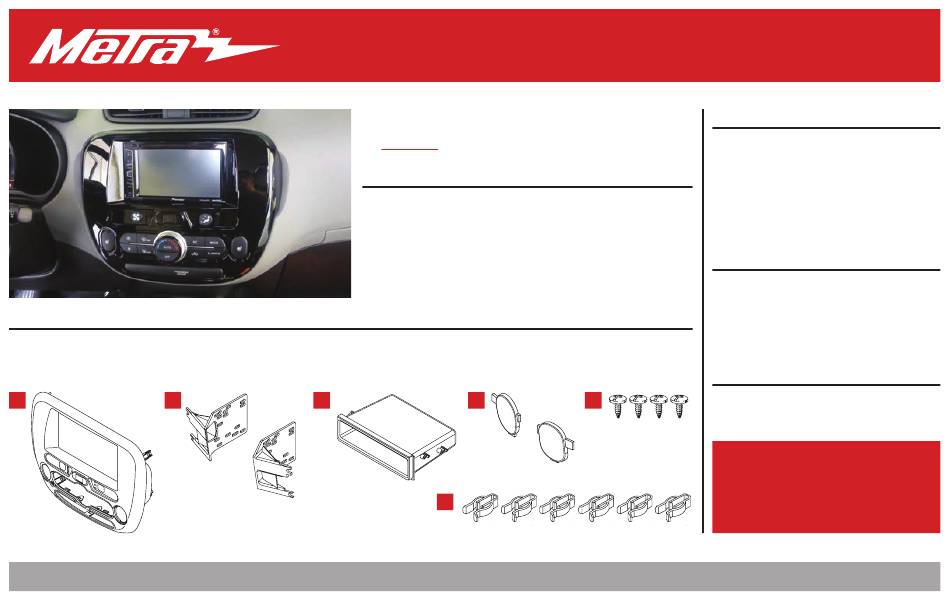

KIT COMPONENTS
• A) Radio/climate trim panel with climate display • B) Radio brackets • C) Pocket • D) Heated seat blank plugs • E) (4) #8 x 3/8" Phillips screws
• F) (6) Panel clips • G) Axxess interface and wiring harness (not shown)
A
B
Metra. The World's Best Kits.
®
Kia Soul
(with NAV)
*Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes climate display for fan speed, mode, and temp, which was
displayed on the factory radio
• Includes an Axxess interface and wiring harness
• Includes an AX-CAM6V and antenna adapter for a complete installation
• Painted high gloss black
C
F
MetraOnline.com
2014 up*
D
E
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
99-7388HG
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly...................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket...................3
–ISO DDIN radio provision......................................3
Axxess Interface Installation .............................4-11
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring harness: Included with kit
Antenna adapter: Included with kit
Steering wheel control interface: Included with kit
12v to 6v camera step-down: AX-CAM6V Included with kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 11/19/18 INST99-7388HG
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-7388HG
Summary of Contents for Metra Electronics 99-7388HG
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/19/18 INST99-7388HG...
-
Page 2: Dash Disassembly
(Figure B) components. (Figure A) Continue to Kit Preparation To the 99-7388HG radio/climate trim panel (Figure A) with climate display: 2. If the vehicle is not equipped with heated seats, snap in the heated seat (Figure A) blank plugs. -
Page 3: Iso Ddin Radio Provision
KIT ASSEMBLY ISO DIN radio provision with pocket ISO DDIN radio provision 1. Secure the radio brackets to the pocket 1. Secure the radio brackets to the radio using the (4) #8 x 3/8” Phillips screws using the screws supplied with the provided. -
Page 4: Table Of Contents
AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS • Provides NAV outputs (parking brake, reverse, speed sense) Connections..........................5-6 • Retains audio controls on the steering wheel Installing the Axxess Interface and AX-HYKIA-SPDIF ..............6 • Retains the factory backup camera Programming the Axxess Interface and Climate Display ............7 •... -
Page 5: Connections
CONNECTIONS From the 16-pin harness with stripped leads to the aftermarket radio: From the 7388 harness to the aftermarket radio: • Connect the Red wire to the accessory wire. There are (2) 7388 harnesses. Harness (a) is for 2018-up models, and harness (b) is for 2017 models. -
Page 6: Installing The Axxess Interface And Ax-Hykia-Spdif
CONNECTIONS INSTALLING THE AXXESS INTERFACE (CONT.) AND AX-HYKIA-SPDIF 3.5mm jack steering wheel control retention: With the key in the off position: The 3.5mm jack is to be used to retain audio controls on the steering wheel. For the radios listed below: Connect the female 3.5mm connector with stripped leads, to the •... -
Page 7: Programming The Axxess Interface And Climate Display
PROGRAMMING THE AXXESS INTERFACE AND CLIMATE DISPLAY Programming the Axxess interface: FINAL ASSEMBLY 1. For the steps below, the L.E.D. located inside the interface can only be seen while active. The interface does not need to be opened to see the L.E.D. 1. -
Page 8: Steering Wheel Control Settings
STEERING WHEEL CONTROL SETTINGS L.E.D. feedback * Note: If the Axxess interface flashes Red (7) times, and you do not have an Alpine radio connected to it, that means the Axxess interface does not detect a radio connected to it. Verify The (18) Red L.E.D. -
Page 9: Changing Radio Type
STEERING WHEEL CONTROL SETTINGS (CONT.) Changing radio type Radio legend If the L.E.D. flashes do not match the radio you have connected, you must manually program the 1 flash - Eclipse (Type 1) † 7 flashes - Alpine * 13 flashes - LG Axxess interface to tell it what radio it is connected to. -
Page 10: Remapping The Steering Wheel Control Buttons
STEERING WHEEL CONTROL SETTINGS (CONT.) Remapping the steering wheel control buttons Button Function Legend Once the Axxess interface has been programmed, the button assignment for the steering wheel 1. Volume-Up 7. Preset-Up 13. On-Hook controls may be reassigned if so desired. For example, if the Seek Up button is preferred to be 2. -
Page 11: Dual Assignment Instructions (Long Button Press)
STEERING WHEEL CONTROL SETTINGS (CONT.) Dual assignment instructions (long button press) Dual Assignment legend The Axxess interface has the capability to assign (2) functions to a single button, except Volume 1. Not allowed 7. Preset-Up 13. On-Hook Up and Volume Down. Follow the steps below to program the button(s) to the desired setting. 2. - Page 12 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/19/18 INST99-7388HG...
