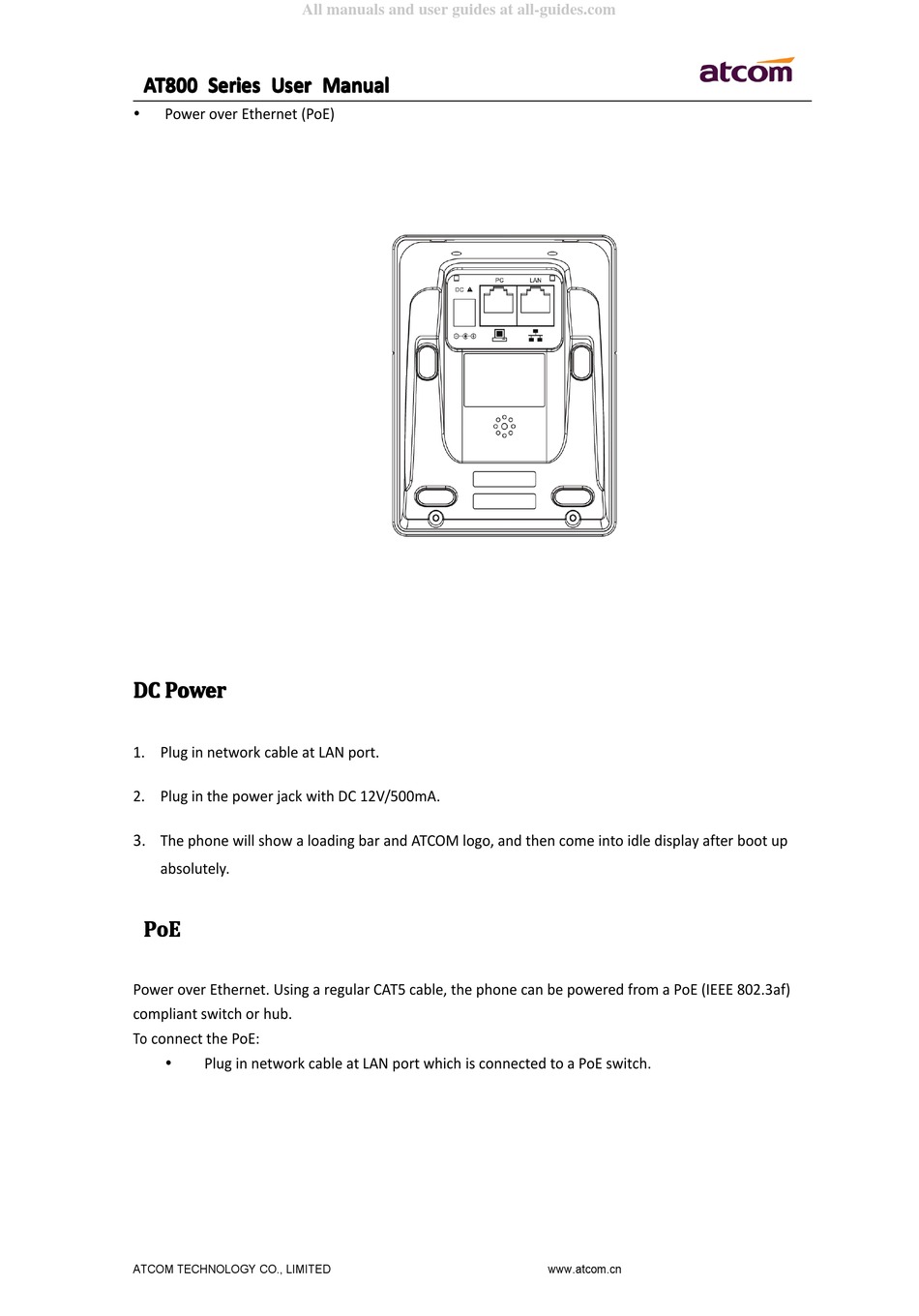

� Power over Ethernet (PoE)
DC DC

DC Power

DC Power Power Power
1. Plug in network cable at LAN port.
2. Plug in the power jack with DC 12V/500mA.
3. The phone will show a loading bar and ATCOM logo, and then come into idle display after boot up
absolutely.

PoE

PoE PoE PoE
Power over Ethernet. Using a regular CAT5 cable, the phone can be powered from a PoE (IEEE 802.3af)
compliant switch or hub.
To connect the PoE:
� Plug in network cable at LAN port which is connected to a PoE switch.
