Backyard Discovery ATLANTIS Manual page 3

Owners Manual - Parts Identification

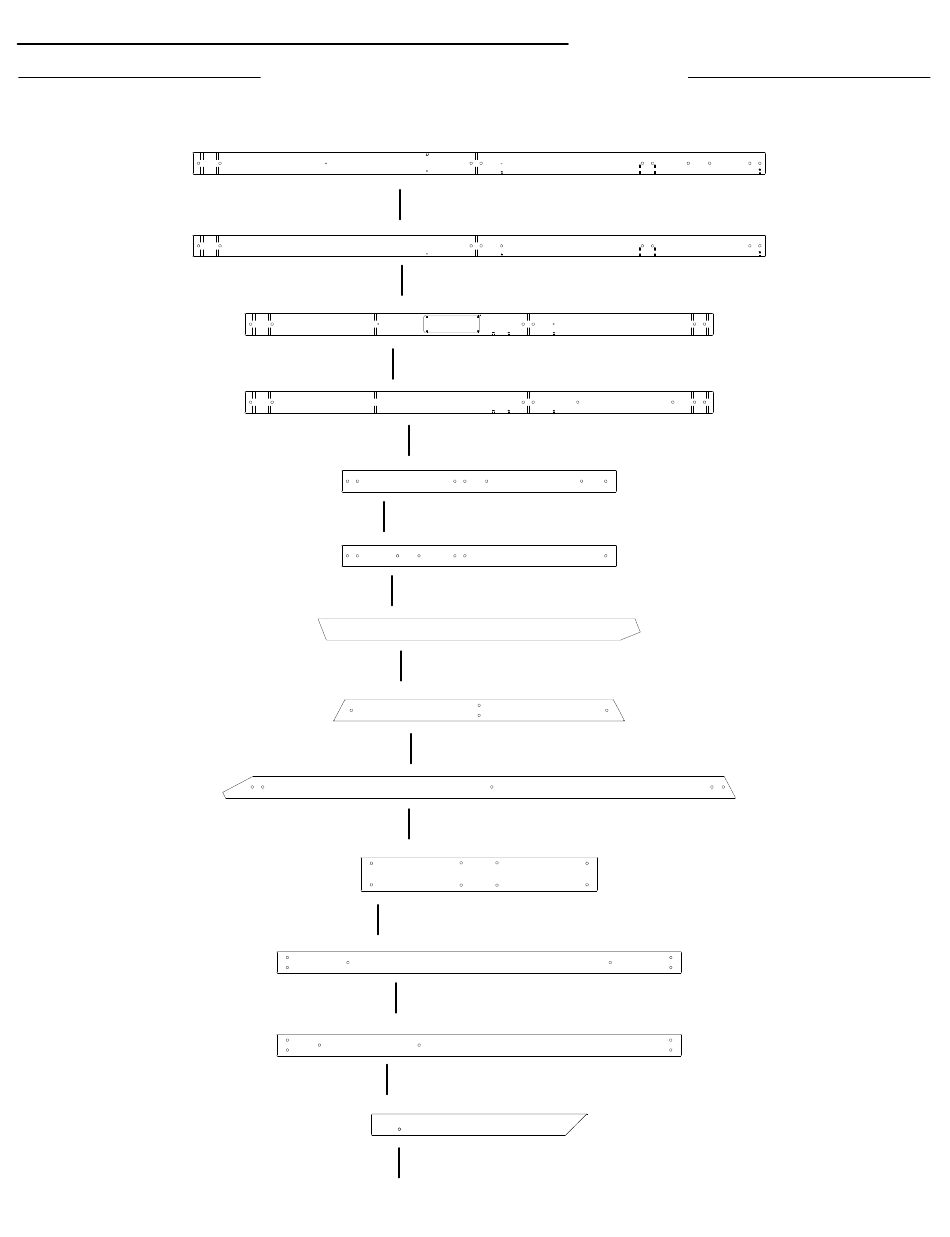

Wood Components (Not to Scale)
E1
TOWER LEG - W4L16280
1 3/8"x3 3/8"x90 1/2" (36x86x2298)
(x1)
E2
TOWER LEG - W4L16279
1 3/8"x3 3/8"x90 1/2" (36x86x2298)
(x1)
E3
TOWER LEG W/TAG - W2A03400
1 3/8"x3 3/8"x74" (36x86x1880)
(x1)
E6
TOWER LEG - W4L16278
1 3/8"x3 3/8"x74" (36x86x1880)
(x1)
E4
CLUB HOUSE LEG - W4L16772
1 3/8"x3 3/8"x43 3/8" (36x86x1102)
(x1)
E5
CLUB HOUSE LEG - W4L16771
1 3/8"x3 3/8"x43 3/8" (36x86x1102)
(x1)
E30
ROCKWALL RAIL - W4L16273
1 3/8"x3 3/8"x51" (36x86x1294)
(x2)
E50
END SUPPORT - W4L14651
1 1/2"x3 1/2"x46" (36x86x1168)
(x1)
E77
ANGLE BRACE - W4L14652
1 3/8"x3 3/8"x81" (36x86x2056)
(x2)
G1
SWING BEAM MOUNT - W102365
1"x5 1/4"x37 3/8" (24x134x950)
(x1)
H1
LEFT FLOOR RAIL - W100557
1"x3 3/8"x63 7/8" (24x86x1624)
(x1)
H2
RIGHT FLOOR RAIL - W4L16276
1"x3 3/8"x63 7/8" (24x86x1624)
(x1)
H3
ROOF RAFTER - W100559
1"x3 3/8"x34" (24x86x864)
(x4)
3
