WARNING
Adult Assembly Required.
The assembly manual must be retained since it contains important information
Not suitable for children under two years due to sharp points and small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
CAN ICES-003 (B)/NMB-003(B)
average 2 person assembly time
average tube slide assembly time
assembly time may vary based on skill level
SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT
Made in China INS-1902022B-TACOMA FALLS-ENG 8-30-23

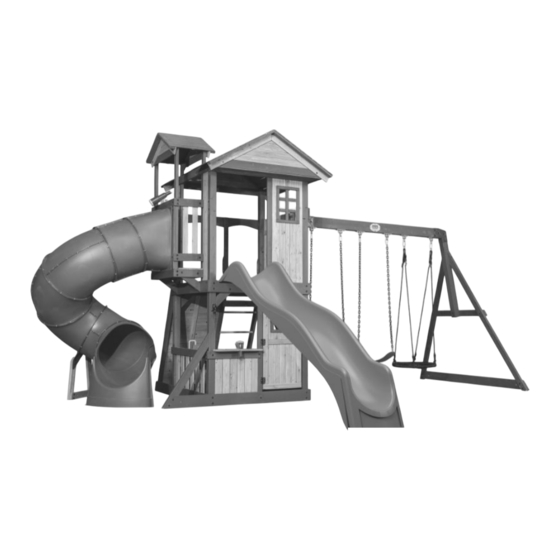

TACOMA FALLS SWING SET
Model # 1902022B
For the most up to date assembly manual,
to register your set, or to order replacement parts please visit
www.backyarddiscovery.com
YOU NEED TO ORDER REPLACEMENT PARTS.
Owner's Manual & Assembly Instructions
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
800-856-4445

Advertisement

loading
Need help?

Need help?

Do you have a question about the TACOMA FALLS 1902022B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery TACOMA FALLS 1902022B

Summary of Contents for Backyard Discovery TACOMA FALLS 1902022B

  • Page 1 TACOMA FALLS SWING SET MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Pittsburg, KS 66762 800-856-4445 Model # 1902022B Owner's Manual & Assembly Instructions WARNING Adult Assembly Required. The assembly manual must be retained since it contains important information Not suitable for children under two years due to sharp points and small parts.
  • Page 2 Basic Setup Dimensions & Assembly Notes Owner's Manual Place the set on level ground, not less than 6'- 7" [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will •...
  • Page 3 Wood Components (Not to Scale) Parts Identification SWING BEAM - W4L12440 3 3/8"x5 1/4"x89 1/2" (86x134x2274) (x1) SB 9" BLOCK - W4L12441 3 3/8"x5 1/4"x9" (86x134x228) (x1) POST - W4L12286 3"x3"x89 1/2" (76x76x2274) (x1) POST - W4L12287 3"x3"x89 1/2" (76x76x2274) (x1) POST - W4L12288 3"x3"x89 1/2"...
  • Page 4 Wood Components (Not to Scale) Parts Identification WALL UPRIGHT - W4L12405 1 3/8"x2 3/8"x57 3/4" (36x60x1467) (x2) DOOR STOP - W4L12501 1 3/8"x1 3/8"x3 7/8" (36x36x100) (x2) GROUND BOARD - W4L12290 1"x5 1/4"x70 3/4" (24x134x1798) (x1) GROUND BOARD - W4L12291 1"x5 1/4"x72 1/4"...
  • Page 5 Wood Components (Not to Scale) Parts Identification DECK SUPPORT - W4L12403 DECK SUPPORT - W4L12306 1"x3 3/8"x13 5/8" (24x86x345) 1"x3 3/8"x47" (24x86x1194) (x2) (x2) DECK SUPPORT - W4L12410 DECK SUPPORT - W4L12414 1"x3 3/8"x11 3/4" (24x86x297) (x1) 1"x3 3/8"x30 3/8" (24x86x772) (x1) DECK SUPPORT - W4L12408 1"x3 3/8"x30 3/8"...
  • Page 6 Wood Components (Not to Scale) Parts Identification COUNTER TOP - W4L12321 COUNTER TOP - W4L12320 5/8"x5 1/4"x32 3/4" (16x134x832) 5/8"x5 1/4"x32 3/4" (16x134x832) (x1) (x1) FACIA - W4L12430 COUNTER TOP - W4L12423 5/8"x5 1/4"x51" (16x134x1296) (x1) 5/8"x5 1/4"x22 1/2" (16x134x570) (x1) DECK BOARD - W4L12409 5/8"x3 3/8"x32 1/4"...
  • Page 7 Wood Components (Not to Scale) Parts Identification ROCK BOARD - W4L12499 ROCKWALL CLEAT - W4L12965 5/8"x2 3/8"x27 3/4" (16x60x706) 5/8"x2 3/8"x54 1/2" (16x60x1385) (x1) (x1) WINDOW TRIM - W4L12419 WINDOW TRIM - W4L12420 WINDOW TRIM - W4L12435 5/8"x1 3/8"x14 1/4" (16x34x361) 5/8"x1 3/8"x11 7/8"...
  • Page 8 Wood Components (Not to Scale) Parts Identification ROOF PANEL - W2A02754 ROOF PANEL - W2A02756 1 3/8"x19 7/16"x63 5/8" (35x494x1616) (x1) 1 3/8"x20 3/8"x21 5/16" (35x517x541) (x2) ROOF PANEL - W2A02755 1 3/8"x19 7/16"x63 5/8" (35x494x1616) (x1) WALL PANEL - W2A02751 WALL PANEL - W2A02748 (x2) 1 1/16"x20 7/16"x36 1/2"...
  • Page 9 Hardware Components Parts Identification H100197 H100458 LAG SCREW WH BLK LAG SCREW WH BLK (x27) (x3) 5/16x2 5/16x2 1/2 H100201 SCREW PFH BLK H100797 SCREW PWH BLK (x39) 8x2-1/2 (x20) H100391 H100202 SCREW PWH BLK SCREW PFH BLK (x15) (x26) 8x5/8 H100382 SCREW PFH BLK...
  • Page 10 Hardware Components Parts Identification H100363 BOLT WH BLK (x1) 5/16X6 H100396 BOLT WH BLK (x9) 5/16x1/2 H100534 BOLT WH BLK (x2) 5/16x4 1/2 H100468 BOLT WH BLK (x17) 5/16x1 H100415 BOLT WH BLK (x46) 5/16x3 3/4 H100407 BOLT WH BLK (x8) 5/16x1 1/2 H100503...
  • Page 11 Hardware Components Parts Identification H100004 NUT BARREL WH H100192 NUT BARREL WH BLK H100193 NUT BARREL WH BLK H100469 NUT BARREL WH BLK (x3) (x2) (x39) 5/16 x 5/8 5/16x1-1/2 5/16x7/8 (x7) 5/16x5/8 H100398 T-NUT BLK H100804 T-NUT H100379 T-NUT BLK (x26) (x20) 8/32...
  • Page 12 Accessories (Not to Scale) Parts Identification A4M00927 QUICK LINK SD (x4) A100164 A100118 BYD ID TAG (LARGE) AGES 3-10 HAND GRIP METAL GREEN 381 c/c (x1) (x3) A4M00926 CARABINER SD (x6) A100325 SWING BEAM EXTENSION BRACKET-LEFT A4M01045 (x1) BELL ASSEMBLY A4M00993 A100326 EXTENDED SWING BEAM BRACKET...
  • Page 13 Accessories (Not to Scale) Parts Identification A6P00037 A6P00362 GREEN HC ROCK #2 26" HD BELT SWING (x12) (x2) A6P00274 KNOB - DR.BRN (x1) A6P00096 Telescope (x1) A6P00330 INDUCTIVE BURNER KIT A6P00331 BLENDER (x1) A6P00333 FAUCET (x1) A6P00335 STOVE BASE A6P00332 (x1) PREMIUM SINK (x1)
  • Page 14 Accessories (Not to Scale) Parts Identification A6P00336 BOIL POT (x1) A6P00337 A6P00338 POT/PAN LID FRY PAN (x2) (x1) A6P00339 A6P00340 SPATULA LADLE (x1) (x1) A6P00324 CHALK BOARD LARGE (x1)
  • Page 15 Accessories (Not to Scale) Parts Identification A100287 SLIDE VF 10 FT (x1) A4M01126 26" WEB SWING (x1) A100314 "A" REVISION TAG (x1)
  • Page 16 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 17 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 9/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 9/16" STD Sockets 1/2" & 9/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Optional Claw Hammer...
  • Page 18 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 19 STEP 1 Phase 1 1 3/8 in [34 mm] POST - W4L12288 UPPER POST - W4L12428 3"x3"x21 1/4" (76x76x541) 3"x3"x89 1/2" (76x76x2274) (x1) (x1) FACIA - W4L12401 POST - W2A02758-1 1"x3 3/8"x56 3/4" (24x86x1440) (x1) UPPER POST - W4L12397 3"x3"x89 1/2" (76x76x2274) (x1) 3"x3"x21 1/4"...
  • Page 20 STEP 2 Phase 1 1 3/8 in [34 mm] UPPER POST - W4L12428 POST - W4L12286 3"x3"x21 1/4" (76x76x541) 3"x3"x89 1/2" (76x76x2274) (x1) (x1) FACIA - W4L12400 1"x3 3/8"x56 3/4" (24x86x1440) (x1) UPPER POST - W4L12397 POST - W4L12287 3"x3"x89 1/2" (76x76x2274) 3"x3"x21 1/4"...
  • Page 21 STEP 3 Phase 1 20 1/8 in [512 mm] FACIA - W4L12402 GROUND BOARD - W4L12290 DECK RAIL - W4L12294 1"x3 3/8"x49 1/8" (24x86x1248) (x1) 1"x5 1/4"x70 3/4" (24x134x1798) (x1) 1"x5 1/4"x51" (24x134x1296) (x1) H100379 H100415 BOLT WH BLK T-NUT BLK H100198 WASHER LOCK EXT BLK (x10)
  • Page 22 STEP 4 Phase 1 UPPER DECK RAIL - W4L12299 GROUND BOARD - W4L12292 DECK RAIL - W4L12296 1"x5 1/4"x50 1/8" (24x134x1272) 1"x5 1/4"x49 1/8" (24x134x1248) 1"x5 1/4"x51" (24x134x1296) (x1) (x1) (x1) H100503 BOLT WH BLK H100198 WASHER LOCK EXT BLK (x4) 5/16x3-1/2 H100197...
  • Page 23 STEP 5 Phase 1 FACIA - W4L12427 H100201 SCREW PFH BLK H100379 T-NUT BLK 1"x3 3/8"x49 1/8" (24x86x1248) (x4) 8x2-1/2 (x1) (x2) 5/16 (x1) FACIA FLUSH FLUSH (x4) SCREW - 2 1/2" ASSEMBLY NOTE: FOR EASE OF ASSEMBLY INSTALL SHOWN T-NUTS AT THIS TIME.
  • Page 24 STEP 6 Phase 1 DECK SUPPORT - W4L12308 DECK SUPPORT - W4L12311 H100200 SCREW PFH BLK 1"x1 3/8"x41" (24x34x1040) 1"x1 3/8"x3" (24x34x76) (x16) (x2) 8x1 1/2 (x4) ASSEMBLY NOTE: REPEAT THIS ON BOTH SIDES AS SHOWN (x16) SCREW - 1 1/2" (x4) DECK SUPPORT 1 7/8 in...
  • Page 25 STEP 7 Phase 1 H100457 BOLT WH BLK (x2) 5/16x2 H100197 LAG SCREW WH BLK BRACE - W4L12312 (x3) 5/16x2 1/2 1 3/8"x3 3/8"x13 5/8" (36x86x347) (x3) H100198 WASHER LOCK EXT BLK (x6) 8x19 H100205 BOLT WH BLK H100379 T-NUT BLK (x1) 5/16x2-1/4 (x3)
  • Page 26 STEP 8 Phase 1 H100201 SCREW PFH BLK DECK SUPPORT - W4L12306 (x8) 8x2-1/2 1"x3 3/8"x47" (24x86x1194) (x2) (x1) DECK SUPPORT (x8) SCREW - 2 1/2" (x1) DECK SUPPORT...
  • Page 27 STEP 9 Phase 1 CROSS SUPPORT - W4L12315 H100378 BOLT WH BLK H100468 BOLT WH BLK 1"x5 1/4"x65 1/4" (24x134x1658) (x1) (x6) 5/16x1 3/4 (x1) 5/16x1 CROSS SUPPORT - W4L12314 1"x5 1/4"x65 1/4" (24x134x1658) (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x7)
  • Page 28 STEP 1 0 Phase 1 H100378 BOLT WH BLK H100197 LAG SCREW WH BLK (x2) 5/16x1 3/4 (x4) 5/16x2 1/2 CROSS BRACE - W4L12966 1"x5 1/4"x17" (24x134x430) (x2) H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK (x2) 5/16 (x6) 8x19 (x2) T-NUT - 5/16"...
  • Page 29 STEP 1 1 Phase 1 21 7/8 in [556 mm] H100192 NUT BARREL WH BLK H100407 BOLT WH BLK (x2) (x2) 5/16x7/8 5/16x1 1/2 WALL UPRIGHT - W4L12303 1"x2 3/8"x51 3/4" (24x60x1314) (x1) H100199 WASHER LOCK EXT BLK H100198 WASHER LOCK EXT BLK (x2) (x2) 12x19...
  • Page 30 STEP 1 2 Phase 1 LOWER RAIL - W4L12304 H100458 H100198 LAG SCREW WH BLK WASHER LOCK EXT BLK (x2) (x2) 5/8"x3 3/8"x47" (16x86x1194) 5/16x2 8x19 (x1) (x2) WASHER - 8x19 (x2) LAG SCREW - 2" (x1) LOWER RAIL...
  • Page 31 STEP 13 Phase 1 H100198 WASHER LOCK EXT BLK H100197 LAG SCREW WH BLK (x3) 8x19 (x1) 5/16x2 1/2 BRACE - W4L12500 1 3/8"x3 3/8"x37 3/4" (36x86x959) (x1) H100205 BOLT WH BLK H100379 T-NUT BLK (x2) 5/16x2-1/4 (x2) 5/16 (x1) WASHER - 8x19 (x1) LAG SCREW - 2 1/2"...
  • Page 32 STEP 1 4 Phase 1 H100200 SCREW PFH BLK H100198 WASHER LOCK EXT BLK H100468 BOLT WH BLK (x2) 8x1 1/2 LOWER RAIL - W4L12305 (x2) (x1) 8x19 5/16x1 5/8"x3 3/8"x24 7/8" (16x86x632) (x1) H100199 WASHER LOCK EXT BLK COUNTER SUPPORT - W4L12424 (x1) H100458 12x19...
  • Page 33 STEP 1 5 Phase 1 PICKET - W4L12317 H100380 SCREW PFH BLK PICKET - W4L12316 PICKET - W4L12323 (x24) 5/8"x2 7/8"x21" (16x74x533) 8x1 1/8 5/8"x3 3/8"x21" (16x86x533) (x1) 5/8"x3 3/8"x21" (16x86x533) (x3) (x2) (x3) PICKET NOTE: EVENLY SPACE ANY GAPS BETWEEN BOARDS. FLUSH (x1) PICKET...
  • Page 34 STEP 16 Phase 1 5 in [126 mm] H100380 SCREW PFH BLK PICKET - W4L12316 PICKET - W4L12395 (x24) 8x1 1/8 5/8"x3 3/8"x21" (16x86x533) 5/8"x3 3/8"x21" (16x86x533) (x4) (x2) 3 in [77 mm] FLUSH (x24) (x2) SCREW - 1 1/8" PICKET (x4) PICKET...
  • Page 35 STEP 17 Phase 1 COUNTER TOP SUPPORT - W4L12322 1"x5 1/4"x9 7/8" (24x134x250) H100197 LAG SCREW WH BLK (x3) H100198 WASHER LOCK EXT BLK (x1) 5/16x2 1/2 (x1) 8x19 COUNTER TOP SUPPORT - W4L12425 H100391 SCREW PFH BLK 1"x5 1/4"x9 7/8" (24x134x250) (x8) (x1) INSIDE VIEW...
  • Page 36 STEP 1 8 Phase 1 COUNTER TOP - W4L12320 COUNTER TOP - W4L12321 5/8"x5 1/4"x32 3/4" (16x134x832) 5/8"x5 1/4"x32 3/4" (16x134x832) (x1) (x1) H100200 SCREW PFH BLK (x16) 8x1 1/2 COUNTER TOP - W4L12319 COUNTER TOP - W4L12318 5/8"x5 1/4"x23 5/8" (16x134x600) 5/8"x5 1/4"x23 5/8"...
  • Page 37 STEP 19 Phase 1 H100380 SCREW PFH BLK (x4) 8x1 1/8 COUNTERTOP CLEAT - W4L12426 5/8"x2 3/8"x5 7/8" (16x60x150) (x1) CENTER SUPPORT BETWEEN THE SHOWN COUNTER TOP BOARDS. (x1) COUNTERTOP CLEAT (x4) SCREW - 1 1/8"...
  • Page 38 STEP 20 Phase 1 H100200 SCREW PFH BLK COUNTER TOP - W4L12423 (x3) 8x1 1/2 5/8"x5 1/4"x22 1/2" (16x134x570) (x1) ASSEMBLY NOTE: ALIGN THE PILOT HOLES TO LOCATE K7 BOARD. (x3) SCREW - 1 1/2" (x1) COUNTER TOP...
  • Page 39 STEP 21 Phase 1 H100807 H100804 SCREW POH BLK H100806 T-NUT SCREW POH BLK (x9) 8/32x1 (x9) 8/32x1 1/8 (x18) 8/32 DOOR PANEL - W2A02757 1 1/8"x16 1/2"x43 7/8" (27x493x1072) (x1) A4M00624 A4M00994 HINGE (DOOR, SPRING LOADED) HINGE (DOOR, NON-SPRING LOADED) (x2) (x1) ASSEMBLY NOTE:...
  • Page 40 STEP 22 Phase 1 H100382 SCREW PFH BLK (x1) 8x1 3/4 A6P00274 KNOB - DR.BRN (x1) (x1) SCREW - 1 3/4" NOTE PILOT HOLE (x1) KNOB - DR.BRN...
  • Page 41 STEP 23 Phase 1 WINDOW TRIM - W4L12436 H100816 WINDOW TRIM - W4L12435 SCREW PFH BLK (x8) 8x7/8 5/8"x1 3/8"x10 3/8" (16x34x265) 5/8"x1 3/8"x12" (16x34x306) (x2) (x2) H100387 SCREW PFH BLK WINDOW TRIM - W4L12438 WINDOW TRIM - W4L12437 (x4) 8x1-1/4 5/8"x1 3/8"x12"...
  • Page 42 STEP 24 Phase 1 DOOR STOP - W4L12501 H100201 SCREW PFH BLK 1 3/8"x1 3/8"x3 7/8" (36x36x100) (x2) (x4) 8x2-1/2 ASSEMBLY NOTE: MOUNT THE DOOR STOPS USING THE DIMENSIONS AS SHOWN. (x1) DOOR STOP (x2) SCREW - 2 1/2" (x1) DOOR STOP (x2) SCREW - 2 1/2"...
  • Page 43 STEP 25 Phase 1 FLOOR PANEL - W2A02747 (x1) 1 1/4"x14 5/8"x49 1/16" (32x372x1247) H100200 SCREW PFH BLK (x60) 8x1 1/2 FLOOR PANEL - W2A02746 (x1) 1 1/4"x20 7/16"x49 1/16" (32x519x1247) FLOOR PANEL - W2A02749 1 1/4"x11 7/8"x49 1/16" (32x302x1247) (x1) ASSEMBLY TIP: PLACE FLOOR PANELS AS...
  • Page 44 STEP 26 Phase 1 H100198 WASHER LOCK EXT BLK (x4) 8x19 WALL UPRIGHT - W4L12398 1 3/8"x2 3/8"x60 3/8" (36x60x1533) (x2) H100205 BOLT WH BLK (x4) 5/16x2-1/4 H100379 T-NUT BLK (x4) 5/16 (x2) WASHER - 8x19 (x2) BOLT - 2 1/4" (x2) T-NUT - 5/16"...
  • Page 45 STEP 27 Phase 1 DECK SUPPORT - W4L12408 H100457 BOLT WH BLK 1"x3 3/8"x30 3/8" (24x86x772) (x1) (x2) 5/16x2 H100199 WASHER LOCK EXT BLK H100192 NUT BARREL WH BLK A100340 (x2) 12x19 L BRACKET 2.5x38x50x55 (x2) (x2) 5/16x7/8 2 1/8 in ASSEMBLY NOTE: [55 mm] THE BRACKET ORIENTATION...
  • Page 46 STEP 28 Phase 1 2 in [51 mm] H100396 BOLT WH BLK (x2) 5/16x1/2 DECK SUPPORT - W4L12403 1"x3 3/8"x13 5/8" (24x86x345) (x2) H100192 NUT BARREL WH BLK H100199 WASHER LOCK EXT BLK (x2) 5/16x7/8 (x2) 12x19 (x2) NUT BARREL - 7/8" (x2) WASHER - 12x19 (x2)
  • Page 47 STEP 29 Phase 1 H100205 BOLT WH BLK H100198 WASHER LOCK EXT BLK (x2) 5/16x2-1/4 (x4) 8x19 BRACE - W4L12418 1 3/8"x3 3/8"x13 7/8" (36x86x351) (x2) H100379 T-NUT BLK H100457 BOLT WH BLK (x2) 5/16 (x2) 5/16x2 (x2) BOLT - 2 1/4" ASSEMBLY NOTE: AT THIS TIME YOU WILL (x2)
  • Page 48 STEP 30 Phase 1 H100197 LAG SCREW WH BLK (x4) 5/16x2 1/2 WALL UPRIGHT - W4L12405 1 3/8"x2 3/8"x57 3/4" (36x60x1467) (x2) H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK (x2) 5/16 (x4) 8x19 PRE-INSTALL T-NUTS (x2) WALL UPRIGHT (x2) T-NUT - 5/16"...
  • Page 49 STEP 31 Phase 1 H100198 WASHER LOCK EXT BLK DECK SUPPORT - W4L12414 H100205 BOLT WH BLK (x2) 8x19 (x2) 1"x3 3/8"x30 3/8" (24x86x772) 5/16x2-1/4 (x1) ASSEMBLY TIP: MOUNT H4 USING THE T-NUTS INSTALLED ON THE PREVIOUS STEP. (x1) DECK SUPPORT (x2) (x2) BOLT - 2 1/4"...
  • Page 50 STEP 32 Phase 1 H100396 BOLT WH BLK TOP RAIL BOARD - W4L12406 H100197 LAG SCREW WH BLK H100468 BOLT WH BLK (x2) 5/16x1/2 (x4) 5/16x2 1/2 (x2) 1"x3 3/8"x13 5/8" (24x86x345) 5/16x1 (x2) H100199 H100192 NUT BARREL WH BLK H100198 WASHER LOCK EXT BLK WASHER LOCK EXT BLK...
  • Page 51 STEP 33 Phase 1 H100198 WASHER LOCK EXT BLK H100205 BOLT WH BLK (x2) 8x19 (x2) 5/16x2-1/4 TOP RAIL BOARD - W4L12404 1"x3 3/8"x30 3/8" (24x86x772) (x1) H100379 T-NUT BLK (x2) 5/16 (x1) (x2) TOP RAIL BOARD T-NUT - 5/16" (x2) WASHER - 8x19 (x2)
  • Page 52 STEP 34 Phase 1 H100201 SCREW PFH BLK DECK SUPPORT - W4L12410 (x4) 8x2-1/2 1"x3 3/8"x11 3/4" (24x86x297) (x1) ASSEMBLY NOTE: USE THE PILOT HOLES IN H3 TO ALIGN AND MOUNT IT. (x1) DECK SUPPORT (x4) SCREW - 2 1/2"...
  • Page 53 STEP 35 Phase 1 DECK BOARD - W4L12409 DECK BOARD - W4L12411 5/8"x3 3/8"x32 1/4" (16x86x820) 5/8"x3 3/8"x32 1/4" (16x86x820) (x1) (x2) H100200 SCREW PFH BLK (x22) 8x1 1/2 DECK BOARD - W4L12412 5/8"x3 3/8"x32 1/4" (16x86x820) (x1) ASSEMBLY NOTE: USING THE PRE-DRILLED HOLES MOUNT THE FLOOR BOARDS WITH THE PROVIDED SCREWS.
  • Page 54 STEP 36 Phase 1 H100468 BOLT WH BLK H100192 NUT BARREL WH BLK (x2) (x2) 5/16x1 5/16x7/8 A100340 L BRACKET 2.5x38x50x55 (x2) H100199 WASHER LOCK EXT BLK (x2) 12x19 2 1/8 in [55 mm] ASSEMBLY NOTE: THE BRACKET ORIENTATION IS CRITICAL.
  • Page 55 STEP 37 Phase 1 H100396 BOLT WH BLK H100197 LAG SCREW WH BLK H100192 NUT BARREL WH BLK (x2) 5/16x1/2 (x4) 5/16x2 1/2 (x2) 5/16x7/8 TOP RAIL BOARD - W4L12406 1"x3 3/8"x13 5/8" (24x86x345) (x2) H100198 WASHER LOCK EXT BLK H100199 WASHER LOCK EXT BLK (x2)
  • Page 56 STEP 38 Phase 1 H100198 WASHER LOCK EXT BLK H100205 BOLT WH BLK (x4) 8x19 (x4) 5/16x2-1/4 SLIDE ATTACHMENT BOARD - W4L12407 1"x2 3/8"x27 5/8" (24x60x703) (x2) H100379 T-NUT BLK (x4) 5/16 (x4) WASHER - 8x19 (x4) T-NUT - 5/16" (x4) BOLT - 2 1/4"...
  • Page 57 STEP 39 Phase 1 H100407 BOLT WH BLK H100192 H100378 NUT BARREL WH BLK BOLT WH BLK (x1) 5/16x1 1/2 (x1) (x1) 5/16x7/8 5/16x1 3/4 WALL UPRIGHT - W4L12302 1"x2 3/8"x52 1/2" (24x60x1334) (x1) H100379 T-NUT BLK H100198 H100199 WASHER LOCK EXT BLK WASHER LOCK EXT BLK (x1) 5/16...
  • Page 58 STEP 40 Phase 1 19 3/8 in [492 mm] H100192 NUT BARREL WH BLK H100396 BOLT WH BLK H100378 BOLT WH BLK (x1) 5/16x7/8 (x2) 5/16x1/2 WALL UPRIGHT - W4L12396 (x2) 5/16x1 3/4 1"x2 3/8"x36 1/2" (24x60x927) (x1) H100379 T-NUT BLK H100198 H100199 WASHER LOCK EXT BLK...
  • Page 59 STEP 1 Phase 2 LEFT UPRIGHT - W4L12490 1 3/8"x3 3/8"x58" (36x86x1474) (x1) H100201 SCREW PFH BLK (x8) 8x2-1/2 LADDER RUNG - W4L12492 1"x3 3/8"x19 1/4" (24x86x489) (x4) (x8) (x1) SCREW - 2 1/2" LEFT UPRIGHT (x4) LADDER RUNG...
  • Page 60 STEP 2 Phase 2 H100201 SCREW PFH BLK MIDDLE UPRIGHT - W4L12491 (x8) 8x2-1/2 1 3/8"x3 3/8"x58" (36x86x1474) (x1) (x1) MIDDLE UPRIGHT (x8) SCREW - 2 1/2"...
  • Page 61 STEP 3 Phase 2 H100200 SCREW PFH BLK REAR SUPPORT - W4L12493 (x4) 8x1 1/2 5/8"x3 3/8"x21 1/4" (16x86x541) (x1) (x4) SCREW - 1 1/2" (x1) REAR SUPPORT...
  • Page 62 STEP 4 Phase 2 H100391 SCREW PFH BLK (x6) RIGHT UPRIGHT - W4L12495 1 3/8"x3 3/8"x58" (36x86x1474) (x1) H100379 T-NUT BLK ATTACHMENT BOARD - W4L12494 (x2) 5/16 5/8"x4"x49 1/8" (16x102x1248) (x1) ASSEMBLY NOTE: (x2) ADD T-NUTS AS SHOWN T-NUT - 5/16" PRIOR TO INSTALLING THE Y2 BOARD.
  • Page 63 STEP 5 Phase 2 ROCK BOARD - W4L12496 ROCK BOARD - W4L12499 H100398 T-NUT BLK 5/8"x3 3/8"x27 3/4" (16x86x706) 5/8"x2 3/8"x27 3/4" (16x60x706) (x8) (x1) (x24) ROCK BOARD - W4L12497 ROCK BOARD - W4L12498 5/8"x3 3/8"x27 3/4" (16x86x706) 5/8"x3 3/8"x27 3/4" (16x86x706) (x4) (x4) H100200...
  • Page 64 STEP 6 Phase 2 H100380 SCREW PFH BLK ROCKWALL CLEAT - W4L12965 (x11) 8x1 1/8 5/8"x2 3/8"x54 1/2" (16x60x1385) (x1) ASSEMBLY TIP: PLACE AND CENTER N5 BOARD AS SHOWN. (x11) SCREW - 1 1/8" (x1) ROCKWALL CLEAT...
  • Page 65 STEP 7 Phase 2 H100473 WASHER LOCK INT BLK H100489 BOLT PTH BLK A6P00037 GREEN HC ROCK #2 (x24) (x24) 8x15 1/4x3/4 (x12) NOTE ARROW (x24) SHOULD FACE UP. BOLT - 3/4" (x24) WASHER - 8x15" (x12) GREEN HC ROCK #2 ASSEMBLY TIP: INSTALL ROCKS USING THE SHOWN HARDWARE WITH...
  • Page 66 STEP 8 Phase 2 H100379 T-NUT BLK H100205 BOLT WH BLK H100198 WASHER LOCK EXT BLK (x4) 5/16 (x4) 5/16x2-1/4 (x7) 8x19 H100468 BOLT WH BLK H100192 NUT BARREL WH BLK (x1) 5/16x1 (x1) 5/16x7/8 ROCK WALL ASSEMBLY H100407 BOLT WH BLK H100199 WASHER LOCK EXT BLK FROM THE PREVIOUS STEP...
  • Page 67 STEP 1 Phase 3 H100200 SCREW PFH BLK TOP RAIL BOARD - W4L12417 (x5) 8x1 1/2 1"x3 3/8"x25 5/8" (24x86x652) (x1) (x1) FLUSH TOP RAIL BOARD (x5) SCREW - 1 1/2"...
  • Page 68 STEP 2 Phase 3 H100380 SCREW PFH BLK (x8) 8x1 1/8 WALL BOARD - W4L12399 5/8"x5 1/4"x52 3/8" (16x134x1329) (x2) NOTE BOARD ORIENTATION. BOARD ONLY FITS ONE WAY. (x2) WALL BOARD (x8) SCREW - 1 1/8"...
  • Page 69 STEP 3 Phase 3 H100380 SCREW PFH BLK (x24) 8x1 1/8 WALL PANEL - W2A02751 (x2) 1 1/16"x20 7/16"x36 1/2" (27x519x927) (x1) (x1) (x24) WALL PANEL WALL PANEL SCREW - 1 1/8"...
  • Page 70 STEP 4 Phase 3 H100380 SCREW PFH BLK (x10) 8x1 1/8 WALL PANEL - W2A02748 (x1) 1 1/16"x15 15/16"x52 3/8" (27x405x1331) (x1) (x10) WALL PANEL SCREW - 1 1/8"...
  • Page 71 STEP 5 Phase 3 WINDOW FRAME - W4L12421 WINDOW TRIM - W4L12419 H100395 SCREW PFH BLK H100816 SCREW PFH BLK (x2) 1"x1 3/8"x16 7/8" (24x34x429) 5/8"x1 3/8"x14 1/4" (16x34x361) 8x3/4 (x8) 8x7/8 (x1) (x2) WINDOW TRIM - W4L12420 WINDOW FRAME - W4L12422 H100200 SCREW PFH BLK 5/8"x1 3/8"x11 7/8"...
  • Page 72 STEP 6 Phase 3 UPPER PICKET - W4L12416 H100380 SCREW PFH BLK 5/8"x2 3/8"x26 1/4" (16x60x666) (x16) 8x1 1/8 (x4) (x4) UPPER PICKET (x16) SCREW - 1 1/8" ASSEMBLY NOTE: FOLLOW THESE STEPS ON BOTH SIDES. INSIDE VIEW 2 1/8 in [55 mm] 5/8 in [16 mm]...
  • Page 73 STEP 7 Phase 3 FACIA - W4L12431 5/8"x4 3/8"x51" (16x112x1296) (x1) H100200 SCREW PFH BLK (x12) 8x1 1/2 FACIA - W4L12430 5/8"x5 1/4"x51" (16x134x1296) (x1) (x1) (x1) FACIA FACIA (x12) SCREW - 1 1/2"...
  • Page 74 STEP 1 Phase 4 ROOF CLEAT - W4L12433 5/8"x2 3/8"x3 15/16" (16x60x100) (x1) H100387 SCREW PFH BLK (x4) 8x1-1/4 ROOF JOIST - W4L12432 H100382 SCREW PFH BLK 1"x3 3/8"x30 3/8" (24x86x770) (x4) (x2) 8x1 3/4 ASSEMBLY TIP: OPTION: IF YOU DON'T HAVE (x1) A HELPER YOU CAN ASSEMBLE THE ROOF JOISTS...
  • Page 75 STEP 2 Phase 4 H100380 SCREW PFH BLK FACIA BOARD - W4L12967 (x12) 8x1 1/8 5/8"x3 3/8"x34 5/8" (16x86x880) (x4) GUSSET PANEL - W2A02752 5/8"x47"x12 3/4" (16x1194x324) (x2) DO THESE STEPS TWICE MAKE SURE THE CORNERS OR POINTS ALIGN AS SHOWN. TIP: FOR EASE OF ASSEMBLY: LAY M16 BOARDS ON LEVEL GROUND AND ALIGN A...
  • Page 76 STEP 3 Phase 4 H100534 BOLT WH BLK (x2) 5/16x4 1/2 GUSSET PANEL FROM PREVIOUS STEP H100407 BOLT WH BLK (x2) (x2) 5/16x1 1/2 FACIA - W4L12429 H100198 H100379 WASHER LOCK EXT BLK T-NUT BLK 1"x3 3/8"x51" (24x86x1296) (x1) (x4) (x4) 8x19 5/16...
  • Page 77 STEP 4 Phase 4 H100194 BOLT WH BLK (x4) 5/16x2 1/2 GUSSET PANEL - W2A02750 1 1/16"x12 3/4"x34 9/16" (27x326x874) (x2) H100198 H100379 WASHER LOCK EXT BLK T-NUT BLK (x4) (x4) 8x19 5/16 TOP RAIL BOARD - W4L12434 5/8"x3 3/8"x30 3/8" (16x86x772) (x2) (x2) GUSSET PANEL...
  • Page 78 STEP 5 Phase 4 H100200 SCREW PFH BLK (x12) 8x1 1/2 ROOF PANEL - W2A02756 1 3/8"x20 3/8"x21 5/16" (35x517x541) (x2) (x2) ROOF PANEL ASSEMBLY TIP: USE A HELPER TO HOLD THE PANELS AND TO MAKE SURE THE PANELS ARE CENTERED (x12) ON THE PEAK DURING ASSEMBLY.
  • Page 79 STEP 6 Phase 4 H100200 SCREW PFH BLK (x10) 8x1 1/2 ROOF PANEL - W2A02753 (x2) 1 3/8"x15 13/16"x63 5/8" (35x401x1616) (x2) (x1) SCREW - 1 1/2" ROOF PANEL (x8) SCREW - 1 1/2" (x1) ROOF PANEL ASSEMBLY TIP: USE A HELPER TO HOLD THE PANELS AND HELP MAKE SURE THE PANELS ARE CENTERED ON THE PEAK...
  • Page 80 STEP 7 Phase 4 H100200 SCREW PFH BLK (x8) 8x1 1/2 ROOF PANEL - W2A02755 ROOF PANEL - W2A02754 1 3/8"x19 7/16"x63 5/8" (35x494x1616) 1 3/8"x19 7/16"x63 5/8" (35x494x1616) (x1) (x1) (x1) ROOF PANEL (x8) SCREW - 1 1/2" ASSEMBLY TIP: INSTALL THE RP3 PANEL USING THE SAME STEPS AS SHOWN ON THE RP2 PANEL.
  • Page 81 STEP 1 Phase 5 H100416 BOLT WH BLK (x4) 5/16x3 H100468 BOLT WH BLK (x2) 5/16x1 A100118 HAND GRIP METAL GREEN 381 c/c (x3) H100379 T-NUT BLK (x6) 5/16 (x2) T-NUT - 5/16" (x2) BOLT - 3" (x2) T-NUT - 5/16" (x2) BOLT - 1"...
  • Page 82 STEP 1 Phase 6 SB 9" BLOCK - W4L12441 3 3/8"x5 1/4"x9" (86x134x228) (x1) A100325 SWING BEAM EXTENSION BRACKET-LEFT (x1) A4M00993 EXTENDED SWING BEAM BRACKET (x2) SWING BEAM - W4L12440 3 3/8"x5 1/4"x89 1/2" (86x134x2274) (x1) A100326 SWING BEAM EXTENSION BRACKET-RIGHT (x1) H100416 BOLT WH BLK...
  • Page 83 STEP 2 Phase 6 H100665 BOLT HEX SD (x12) 3/8x5 3/4 H100700 T-NUT SD A4M00926 H100708 H100703 WASHER LOCK INT SD WASHER FLAT SD SINGLE DUCTILE HANGER SD (x12) (x12) (x12) 10x18 11x25 (x12) T-NUT - 3/8" (x12) WASHER - 11x25 (x12) WASHER - 10x18 (x12)
  • Page 84 STEP 3 Phase 6 SWING BEAM SUPPORT - W4L12439 S.B. ANGLE BRACE - W4L12444 1 3/8"x3 3/8"x88 3/4" (36x86x2254) 3 3/8"x3 3/8"x49 3/8" (86x86x1254) (x1) (x2) S.B. END SUPPORT - W4L12443 GROUND BOARD - W4L12442 1 3/8"x3 3/8"x44 1/8" (36x86x1120) 1"x5 1/4"x86 3/4"...
  • Page 85 STEP 4 Phase 6 H100416 BOLT WH BLK (x2) H100192 5/16x3 NUT BARREL WH BLK (x2) 5/16x7/8 (x2) (x2) BOLT - 3" NUT BARREL - 7/8"...
  • Page 86 STEP 5 Phase 6 H100481 BOLT HEX BLK (x4) 5/16x1 1/4 SWING BEAM ASSEMBLY FROM PREVIOUS STEPS H100477 WASHER SPLIT BLK (x4) 5/16 H100478 WASHER FLAT BLK (x4) 8x27 ASSEMBLY NOTE: INSTALL HARDWARE USING THE T-NUTS THAT WERE PREVIOUSLY INSTALLED. (x4) WASHER - 8x27 (x4)
  • Page 87 STEP 6 Phase 6 A100164 BYD ID TAG (LARGE) AGES 3-10 A4M00927 (x1) QUICK LINK SD (x4) H100202 SCREW PWH BLK A4M01005 CHAIN GREEN 7mm x 1452mm (57in) (x4) (x4) 8x5/8 A4M01126 26" WEB SWING (x1) A6P00362 26" HD BELT SWING (x2) (x1) BYD ID TAG (LARGE) AGES 3-10...
  • Page 88 SETUP WEB SWING WEB SWING SETUP INSTRUCTIONS: FOLLOW INSTRUCTIONS BELOW BEFORE USING THE WEB SWING. H100832 BOLT PTH H100831 NUT BARREL PTH BLK 1/4x3/4 1/4x3/4 IMPORTANT: SLIDE ROPE LOOPS OVER TUBE ENDS FIRST! SLIDE NARROW END OF TUBES INTO LARGER OPENING AFTER SLIDING (x4) ROPE LOOPS ONTO TUBES.
  • Page 89 STEP 1 Phase 7 H100202 SCREW PWH BLK (x4) 8x5/8 H100385 SCREW PFH BLK A6P00333 FAUCET (x2) A6P00332 (x1) PREMIUM SINK (x1) (x1) FAUCET (x4) SCREW - 5/8" (x1) PREMIUM SINK (x2) SCREW - 1"...
  • Page 90 Electronics Safety Warnings Phase 7 CLASS B DIGITAL DEVICE STATEMENT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 91 STEP 2 Phase 7 A6P00330 INDUCTIVE BURNER KIT A6P00335 STOVE BASE (x1) "AA" BATTERY (x3) (Not Included) ASSEMBLY NOTE: ALWAYS WASH TOYS BEFORE USE. • REMOVE THE FIRST COVER BY TWISTING IT COUNTER CLOCKWISE. REMOVE THE BATTERY COVER AND INSTALL THE BATTERIES (NOT INCLUDED).
  • Page 92 STEP 3 Phase 7 H100202 SCREW PWH BLK (x4) 8x5/8 STOVE ASSEMBLY FROM PREVIOUS STEP (x4) SCREW - 5/8" STOVE ASSEMBLY...
  • Page 93 STEP 1 Phase 8 H100797 SCREW PWH BLK (x18) 9198012 LEFT HAND SLIDE (x1) FOR ASSEMBLY OF THE TUBE SLIDE, PLEASE NOTE: REFER TO THE LEFT EXIT TUBE SLIDE ASSEMBLY MANUAL FOUND IN THE TUBE SLIDE BOX. ASSEMBLY TIP: PLACE THE SLIDE ALL THE WAY INSIDE THE OPENING AS SHOWN.
  • Page 94 STEP 1 Phase 9 H100031 WASHER LOCK EXT H100008 BOLT WH (x3) 12x19 (x3) 5/16x1 A100287 SLIDE VF 10 FT (x1) SLIDE MOUNTING BOARD - W4L09040 H100004 H100088 SCREW PFH NUT BARREL WH (x1) 5/8"x1 3/8"x20 3/8" (16x34x517) (x4) (x3) 5/16 x 5/8 8x1 1/8 7 7/8 in...
  • Page 95 STEP 2 Phase 9 H100202 SCREW PWH BLK (x2) 8x5/8 A4M01045 BELL ASSEMBLY (x1) ASSEMBLY NOTE: CENTER THE BELL ASSEMBLY ON THE POST AS SHOWN AND SET TO YOUR DESIRED HEIGHT. (x2) SCREW - 5/8" (x1) BELL ASSEMBLY...
  • Page 96 STEP 3 Phase 9 H100202 SCREW PWH BLK (x8) 8x5/8 A6P00324 CHALK BOARD LARGE (x1) ASSEMBLY TIP: CENTER THE CHALK BOARD VERTICALLY AND (x8) HORIZONTALLY BETWEEN THE SCREW - 5/8" TWO WALL PANELS WHERE DESIRED AND MOUNT USING THE PROVIDED HARDWARE. (x1) CHALK BOARD LARGE...
  • Page 97 STEP 4 Phase 9 H100200 SCREW PFH BLK (x2) 8x1 1/2 A6P00096 TELESCOPE (x1) (x2) SCREW - 1 1/2" (x1) TELESCOPE SLIDE TELESCOPE SIDE VIEW...
  • Page 98 STEP 1 Phase 10 ASSEMBLY TIP: WARNING USE THIS PAGE TO GET FAMILIAR WITH THE LOCATIONS OF EACH GROUND STAKE FAILURE TO USE GROUND STAKES CAN VOID WARRANTY & CAUSE INJURY! BEFORE MOVING ON TO THE NEXT STEP. (x1) (x1) AUGER GROUND STAKE AUGER GROUND STAKE (x1)
  • Page 99 STEP 2 Phase 10 H100468 BOLT WH BLK H100469 NUT BARREL WH BLK (x6) 5/16x1 (x6) 5/16x5/8 H100199 WASHER LOCK EXT BLK A100178 AUGER GROUND STAKE (x6) 12x19 (x6) (x1) (x1) BOLT - 1" (x1) WASHER - 12x19 NUT BARREL - 5/8 (x1) (x1) NUT BARREL - 5/8...
  • Page 100 STEP 1 Phase 11 H100202 SCREW PWH BLK (x2) 8x5/8 A100314 "A" REVISION TAG (x1) (x2) SCREW - 5/8" (x1) "A" REVISION TAG...
