6.4

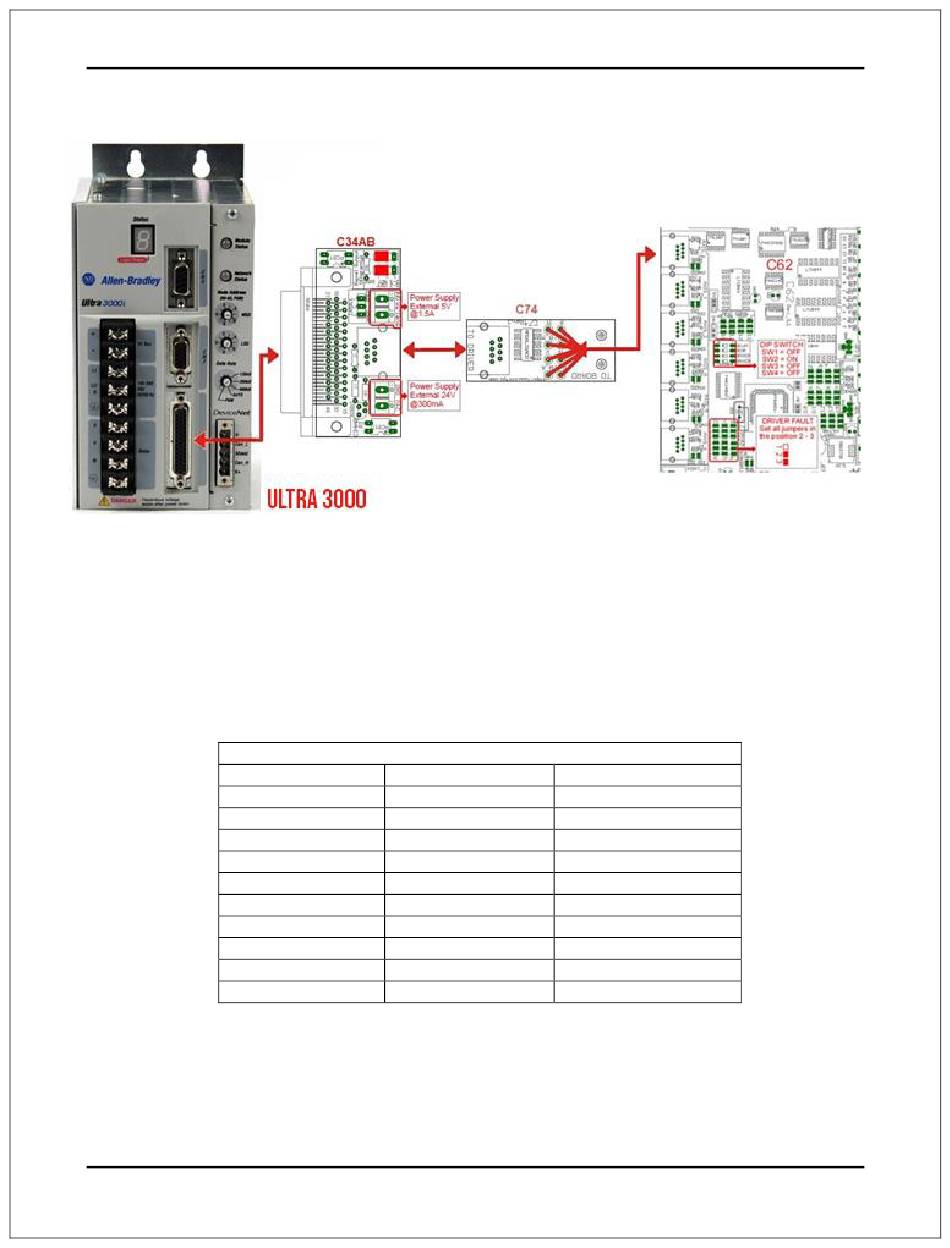

Diagram of connection with output signals Differential, C74 and C62.
Note: This wiring is just to illustrate a sample product application. Specific wiring may
vary from system to system. It is the user's responsibility to implement it correctly.
7.0

PINOUT

ULTRA 3000 AC SERVO DRIVE AND C34AB CONNECTION
HDM44D PIN
DIF = DIFFERENTIAL; When used signals Differentials, the pins of RJ45 are 1 and 3
User's Manual
FUNCTION
2 COM-(5v)
3 EXT_5V+
4 STEP+
5 STEP-
6 DIR+
7 DIR-
27 COM-(24V)
29 24V
31 SERVO ON
39 ALARM
RJ45 PIN
4
NOT USED
2
NOT USED/ DIF 1
6
NOT USED/ DIF 3
NOT USED
NOT USED
NOT USED
NOT USED
Page 5
