PS220 Configuration & Operation Guide
1. Configure the PATM.
This is the local barometric pressure at the location of the pump. (14.7 psi is normal)
2. Configure the BEP TDH
This is the Total Dynamic Head at the Best Efficiency Flow, at the rated speed, of the Pump.
3. Configure the SO TDH.
The pump Total Dynamic Head at the Shut Off (zero flow) condition at rated speed.
4. Configure the SUCTION DIA.
The pumps Suction Flange Diameter.
5. Configure the DISCHARGE DIA.
The pumps Discharge Flange Diameter.

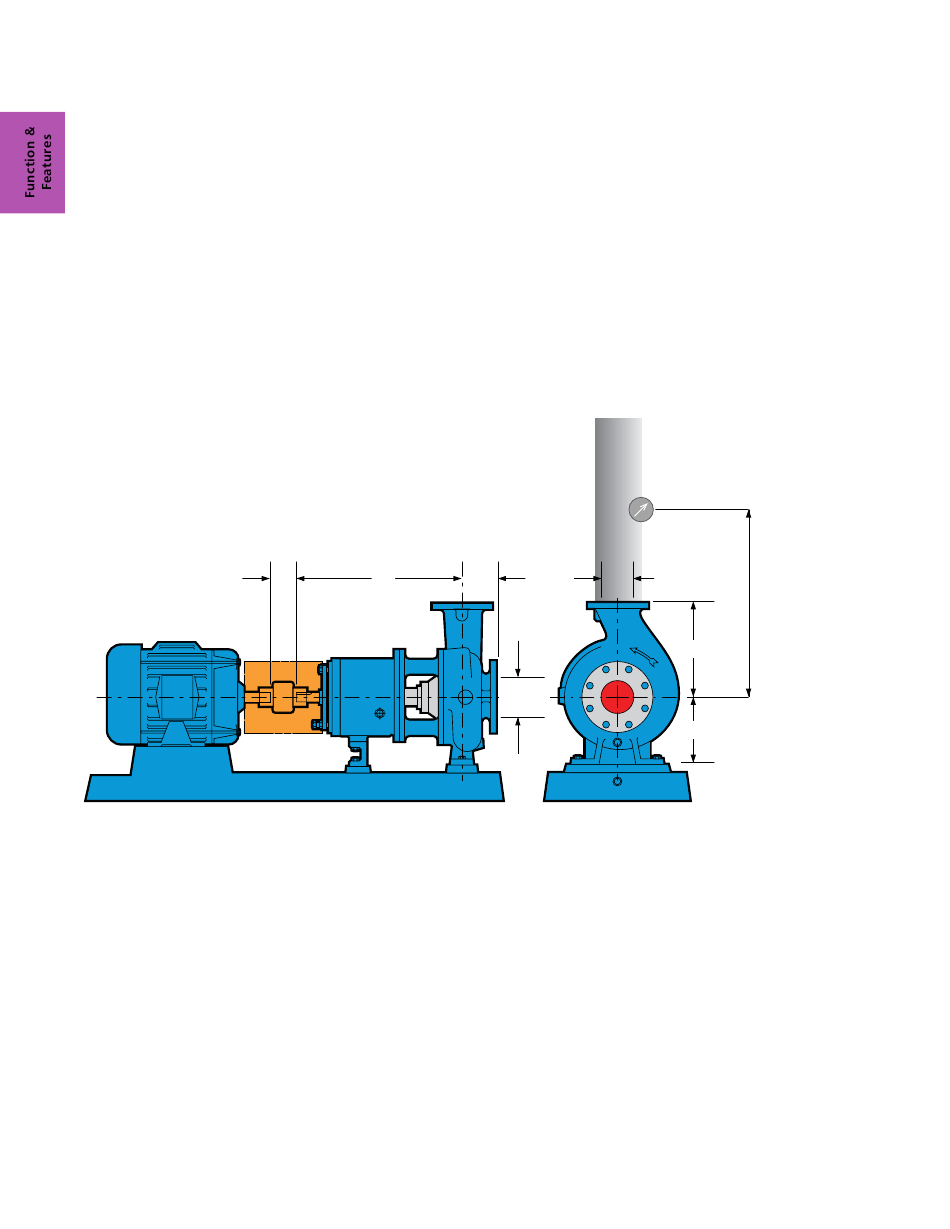

6. Configure the DELTA Z.
This is the dimension of the discharge pressure gauges height above the centerline of the
pumps centerline of piping.
213 PS220
SP A
PT
B 3"
SUCTION
DIAMETER
4"
DISCHARGE
DIAMETER
DELTA Z
(PT Location in Relation
to Centerline or Pump)
X
D
