PS220 Configuration & Operation Guide

Drive Composer

Drive Composer is a free Windows based computer Tool that will allow you connect to the ITT
PS220 PumpSmart through a connection on the Keypad that will all you to perform many tasks.
The link to download this may be found using this link: https://www.ittproservices.com/ittgp/
medialibrary/ITTPROServices/website/Literature/Technical%20Data/ITT-Drive-composer-entry-1-
12-1200-setup-(1).zip
The link to download the latest version of the user manual may be found using this link: https://
library.e.abb.com/public/bdc3281361014df8a4e25d92241b88aa/EN_DriveCompPC_tool_
UM_S_A4.pdf
The following is a procedure to allow you to connect to the PS220 to be able to save the pa-
rameter settings in PDF format.

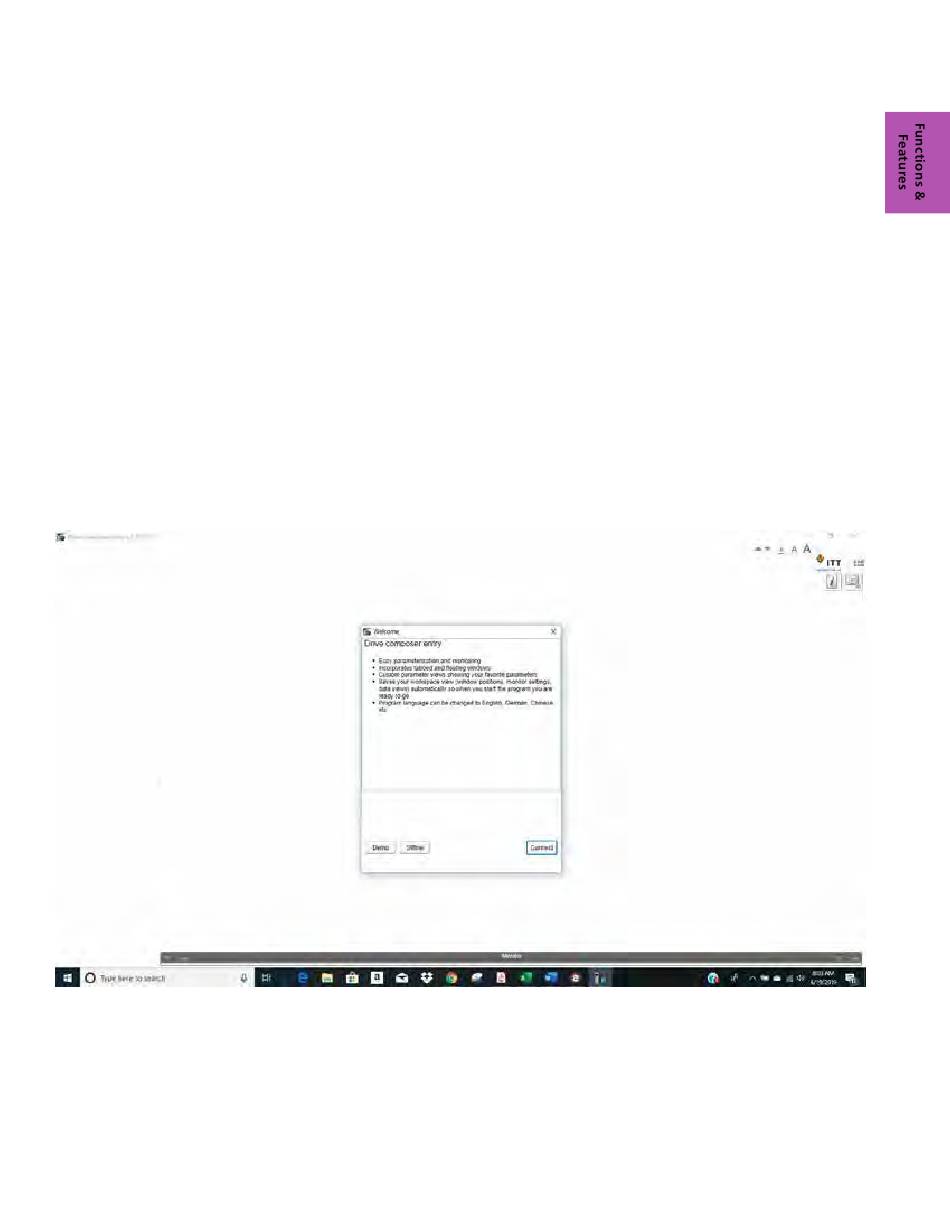

Once you launch the "Drive Composer Entry" application program, this is the first screen that
will populate. Click on "Connect".
