PS220 Configuration & Operation Guide
Auto Reset (VFD)
The PumpSmart PS220 can be configured to automatically reset specific VFD related faults. The drive will follow a routine
of faulting, waiting, and automatically resetting up to five time within a pre-determined amount of time. After this time if
the condition(s) still exists the PumpSmart PS220 drive will issue a "Hard" fault and will have to be manually restarted.
Please refer to the Pump and VFD Protection Wizard for more specific detail on how to set these parameters with your
pumping system. To access this wizard from the home view, follow the path: Menu>PS220 Configuration> Pump &VFD
Protection>VFD Protection

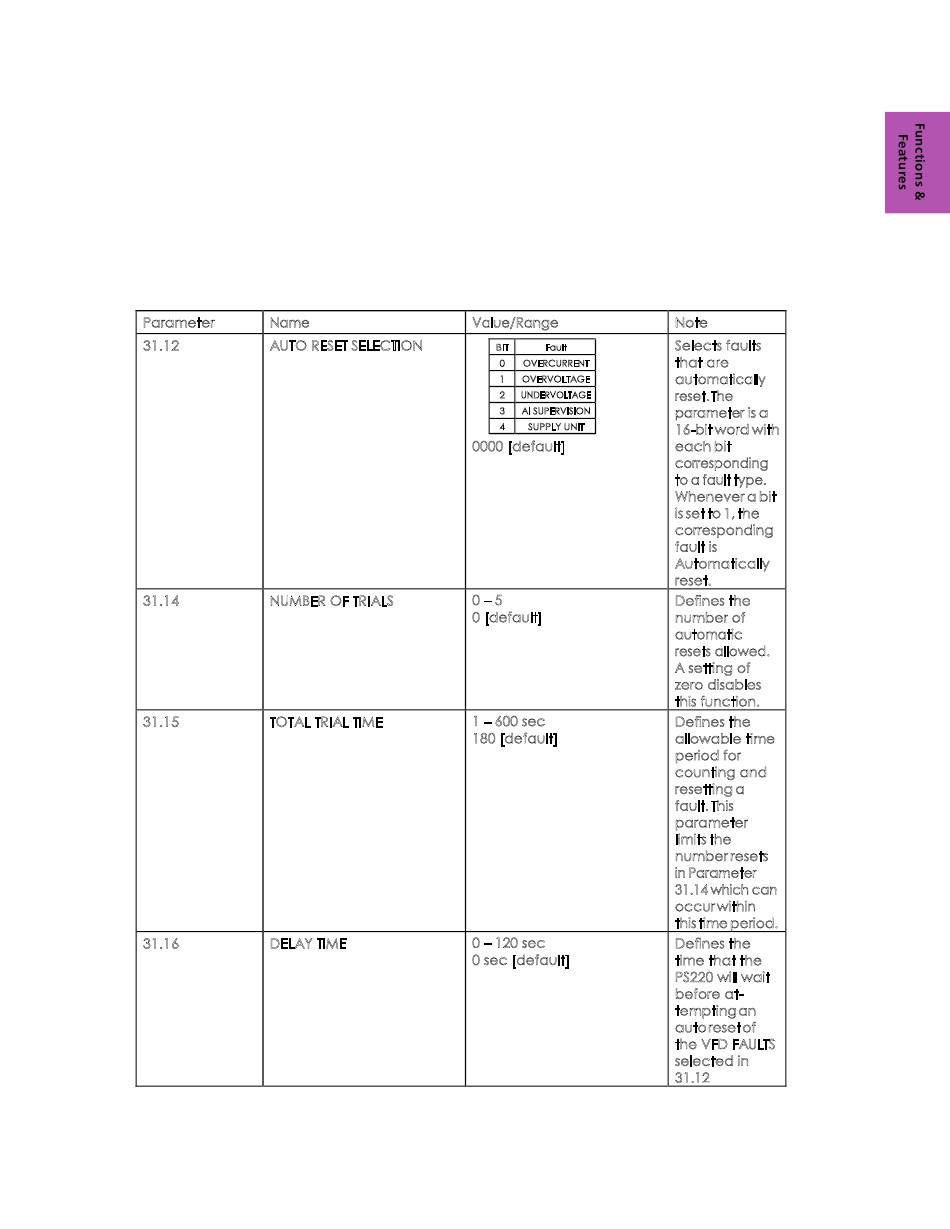

Parameter
31.12
31.14
31.15
31.16
Name
AUTO RESET SELECTION
NUMBER OF TRIALS
TOTAL TRIAL TIME
DELAY TIME
Value/Range
BIT Fault
0 OVERCURRENT
1 OVERVOLTAGE
2 UNDERVOLTAGE
3 AI SUPERVISION
4 SUPPLY UNIT
0000 [default]
0 – 5
0 [default]
1 – 600 sec
180 [default]
0 – 120 sec
0 sec [default]
Note
Selects faults
that are
automatically
reset. The
parameter is a
16-bit word with
each bit
corresponding
to a fault type.
Whenever a bit
is set to 1, the
corresponding
fault is
Automatically
reset.
Defines the
number of
automatic
resets allowed.
A setting of
zero disables
this function.
Defines the
allowable time
period for
counting and
resetting a
fault. This
parameter
limits the
number resets
in Parameter
31.14 which can
occur within
this time period.
Defines the
time that the
PS220 will wait
before at-
tempting an
auto reset of
the VFD FAULTS
selected in
31.12
