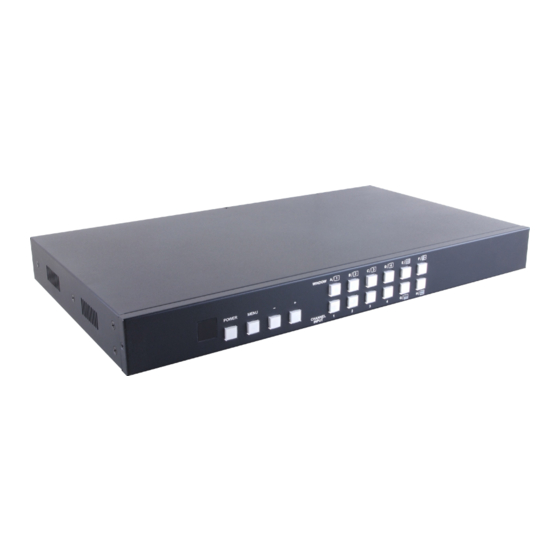

CYP CDPS-41SQ Operation Manual

4 x 1 hdmi seamless quad pip scaler
Hide thumbs Also See for CDPS-41SQ:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
CDPS-41SQ
4 x 1 HDMI Seamless Quad PIP Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-41SQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-41SQ

Summary of Contents for CYP CDPS-41SQ

  • Page 1 All manuals and user guides at all-guides.com CDPS-41SQ 4 x 1 HDMI Seamless Quad PIP Scaler Operation Manual Operation Manual...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 All manuals and user guides at all-guides.com SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: •...

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 RS-232 Protocols .......5 6.5 OSD MENU .........6...

  • Page 6: Introduction

    All manuals and user guides at all-guides.com 1. INTRODUCTION The 4 x 1 HDMI Seamless Quad PIP Scaler is a high performance, high speed zooming/shrinking system that can be easily configure and control for quad or picture-in-picture video processing. Allowing 4 different input sources to be freely selected and arranged on one single display with supporting output resolution up to 1080p and audio up to 8CH 192kHz for both input and output.

  • Page 7: Operation Controls And Functions

    All manuals and user guides at all-guides.com 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel WINDOW POWER MENU CHANNEL INPUT 1 2 3 4 2 3 4 1 2 3 IR Window Accept IR signal from the device’s remote control included in the package.

  • Page 8: Rear Panel

    All manuals and user guides at all-guides.com Under window E~H when the size setting is overlapping one another, channel display sequence is CH4 > CH3 > CH2 >CH1. That is, CH4 will cover CH3 and CH3 will cover CH2 and so on. Under some dislay the borderline may have interference, adjusting display's motion setting may resolve the interference issue.

  • Page 9: Remote Control

    All manuals and user guides at all-guides.com 6.3 Remote Control Power Power Info Press this button to switch on the device CH 1 or press it again to set it to standby mode. CH 2 Info CH 3 Press this button to show the device’s CH 4 firmware version.

  • Page 10: Rs-232 Protocols

    Press these buttons to select audio from HDMI input source 1~4. * Functions only work under Window A to D. The system will force to switch to Window A when operate under Window E~H. 6.4 RS-232 Protocols CDPS-41SQ Remote Control Assignment Assignment...

  • Page 11: Osd Menu

    All manuals and user guides at all-guides.com 6.5 OSD MENU Main Menu Layer Layer Layer 480P, 579P, 720P50/60, 1080P24/25/30/50/60, 1024x768, 1280x800, 1280x1024, 1366x768, Output 1440x900, 1600x900, 1600x1200, Resolution 1680x1050, 1920x1200, NATIVE Menu Back Info Display On/Off I/O Setup H Offset 0~20 (5) V Offset 0~20 (5)
  • Page 12 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer CH 1 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50) Hue Adjust CH 4 0~100 (50) Value Reset Menu Exit CH 1 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50)
  • Page 13 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer Vertical Hundred On/Off Image Output CH1→4,CH2→3, Priority CH3→2,CH4→1 Window Reset Menu Exit CH2 Wxxx Hxxx Width Unit Width Ten Size Width Hundred Height Unit Height Ten Height Hundred CH2 Hxxx Vxxx Channel 2 Horizontal Unit...
  • Page 14 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer CH3 Wxxx Hxxx Width Unit Width Ten Size Width Hundred Height Unit Height Ten Height Hundred CH3 Hxxx Vxxx Horizontal Unit Channel 3 Horizontal Ten Select Horizontal Position Hundred Vertical Unit Vertical Ten...
  • Page 15 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer Height Hundred Window Setup CH4 Hxxx Vxxx Horizontal Unit Horizontal Ten Channel 4 Horizontal Position Select Hundred Vertical Unit Vertical Ten Vertical Hundred On/Off Image Output CH1→4,CH2→3, Priority CH3→2,CH4→1 Window Reset Menu Exit...
  • Page 16 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer Off/1.0/1.1/1.2 Convert /1.3/1.4 /1.5/1.6/1.7/1.8/ Fade In-Out 1.9/2.0/2.1/2.2/ 2.3/2.4/2.5/2.6/ 2.7/2.8/2.9/3.0 Channel 1 R90/L90/Up-Side Rotation Convert Down180/Off Window Reset Menu Exit Window Convert Mirror On/Off Off/1.0/1.1/1.2 Convert /1.3/1.4 /1.5/1.6/1.7/1.8/ Fade In-Out 1.9/2.0/2.1/2.2/ 2.3/2.4/2.5/2.6/ 2.7/2.8/2.9/3.0...
  • Page 17 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer Off/1.0/1.1/1.2 Convert /1.3/1.4 /1.5/1.6/1.7/1.8/ Fade In-Out 1.9/2.0/2.1/2.2/ 2.3/2.4/2.5/2.6/ Channel 3 2.7/2.8/2.9/3.0 Convert R90/L90/Up-Side Rotation Down180/Off Window Reset Menu Exit Mirror On/Off Off/1.0/1.1/1.2 Convert /1.3/1.4 /1.5/1.6/1.7/1.8/ Fade In-Out 1.9/2.0/2.1/2.2/ Channel 4 2.3/2.4/2.5/2.6/ Convert...
  • Page 18 All manuals and user guides at all-guides.com Main Menu Layer Layer Layer IP Mode Static/DHCP Static Set IP/Mask/Gate XXX 192 255 192 Byte1 High 000~255 XXX 168 255 168 Byte2 000~255 XXX 5 255 5 Byte3 000~255 XXX 159 0 254 Byte4 Low 000~255 No/Yes...

  • Page 19: Rs-232 & Telnet Commands

    All manuals and user guides at all-guides.com 6.6 RS-232 & Telnet Commands Command Description RESO 0~18 SET OUTPUT RESOLUTION (0) 480p, (1) 576p, (2) 720p 50Hz, (3) 720p 60Hz, (4) 1080p 24Hz, (5) 1080p 25Hz, (6) 1080p 30Hz, (7) 1080p 50Hz, (8) 1080p 60Hz, (9) 1024x768 60Hz, (10) 1280x800 60Hz, (11) 1280x1024 60Hz, (12) 1366x768 60Hz, (13) 1440x900 60Hz, (14) 1600x900 60Hz, (15)1600x1200...
  • Page 20 All manuals and user guides at all-guides.com Command Description HUE 0~4 0~100 SET HUE VALUE FOR CHANNEL PORT (0) All, (1~4) CHANNEL, (0~100) VALUE HSIZE 1~4 0~X SET IMAGE HORIZONTAL SIZE (1~4) CHANNEL, (0~X) X=HORZONTAL PIXEL FOR CURRENT RESOLUTION VSIZE 1~4 0~X SET IMAGE VERTICAL SIZE (1~4) CHANNEL, (0~X) X=VERTICAL PIXEL FOR CURRENT RESOLUTION...
  • Page 21 All manuals and user guides at all-guides.com Command Description MIRROR 0/1 ENABLE/DISABLE MIRROR EFFECT (0/1) OFF/ON FADE 0~21 ENABLE/DISABLE FADE EFFECTS (0) OFF, (1) 1.0 s, (2) 1.1 s, (3) 1.2 s, (4) 1.3 s, (5) 1.4 s, (5) 1.5 s, (6) 1.6 s, (7) 1.7 s, (8) 1.8 s, (9) 1.9 s, (10) 2.0 s, (11) 2.1 s, (12) 2.2 s, (13) 2.3 s, (14) 2.4 s, (15) 2.5 s, (16) 2.6 s, (17) 2.7 s, (18) 2.8 s, (19) 2.9 s, (20) 3.0 s ROTATE 0~3...
  • Page 22 All manuals and user guides at all-guides.com Command Description ETHTIME 0~6 ETHERNET TIMEOUT (0) OFF, (1) 10 MINUTE, (2) 20 MINUTE, (3) 30 MINUTE, (4) 40 MINUTE, (5) 50 MINUTE, (6) 60 MINUTE RELINK RELINK THE UNIT IN 2 SECONDS DEFAULT RESET THE UNIT TO FACTORY DEFAULTS VICH 1~4 0~4...
  • Page 23 All manuals and user guides at all-guides.com Command Description Change to Window A WND001 WND002 Change to Window B Change to Window C WND003 Change to Window D WND004 WND005 Change to Window E Change to Window F WND006 WND007 Change to Window G WND008 Change to Window H...
  • Page 24 All manuals and user guides at all-guides.com Command Description Change CH4 to Source 1 CH4001 CH4002 Change CH4 to Source 2 Change CH4 to Source 3 CH4003 Change CH4 to Source 4 CH4004 IO1000 CH1 Image OFF IO1001 CH1 Image ON IO2000 CH2 Image OFF IO2001...
  • Page 25 All manuals and user guides at all-guides.com Command Description Store window format to FAV 1* SFA001 Store window format to FAV 2* SFA002 Store window format to FAV 3* SFA003 Store window format to FAV 4* SFA004 Recall window from FAV 1 RFA001 Recall window from FAV 2 RFA002...

  • Page 26: Telnet Control

    All manuals and user guides at all-guides.com 6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Scaler (via the ‘CONTROL’ port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the ‘Start’ menu and type “cmd”...

  • Page 27: Webgui Control

    All manuals and user guides at all-guides.com Type “IPCONFIG” To show all IP configurations. To reset the IP, type “IPMODE” to set static IP/DHCP (For a full list of commands, see Section 6.6). Note: All the commands will be not executed unless followed by a carriage return.
  • Page 28 All manuals and user guides at all-guides.com Click on the ‘mage Adjust’ tab to control power, Window Mode and the window setting. Clicking on the ‘Output Resolution’ tab to set the output display resolution.
  • Page 29 All manuals and user guides at all-guides.com Clicking on the ‘Windows Setup’ tab to set the output display fomate. Note: This function is only available under window E~H. Clicking on the ‘OSD Settings’ tab to set the OSD function and position.
  • Page 30 All manuals and user guides at all-guides.com Clicking on the ‘Window Convert’ tab to set the output display angle. Note: This function is only available under window A~D. Clicking on the ‘Chromakey Setup’ tab to set the output display color. Note: This function is only available under window E~H.
  • Page 31 All manuals and user guides at all-guides.com Clicking on the ‘Ethernet’ tab to reset the IP configuration. The system will ask for a reboot of the device every time when any of the settings is changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.

  • Page 32: Specifications

    All manuals and user guides at all-guides.com 7. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input Ports 4x HDMI Output Port 1 x HDMI Supports Input PC:VGA~WUXGA, HD: 480i~1080p Resolution Supports Output 1080p@60 Resolution HDMI Input Cable Up to 15M/1080p@12 bits Distance HDMI Output Cable Up to 15M/1080p@8 bits Distance Supports Sampling Rate...
  • Page 33 All manuals and user guides at all-guides.com HDMI Supported Resolutions Input Output 640x480@60,72,75,85 800x600@56,60,72,75,85 1024x768@60,70,75,85 V@60 1360x768@60 1280x768@60,75 1280x800@60 1280x1024@60,75 V@60 1366x768@60 1440x900@60 1600x900@60 1600x1200@60 1680x1050@60 1920x1200@60 480i60 576i50 480p60 576p50 720p50 720p60 1080i50 1080i60 1080p24 1080p25 1080p30 1080p50 1080p60...

  • Page 34: Connection And Installation

    All manuals and user guides at all-guides.com 8. CONNECTION AND INSTALLATION TV/Monitor PC/NB DVD/Blu-ray Player HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY PC/NB PC/NB...
  • Page 35 All manuals and user guides at all-guides.com...
  • Page 36 All manuals and user guides at all-guides.com CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130103 MPM-CDPS41SQ...
