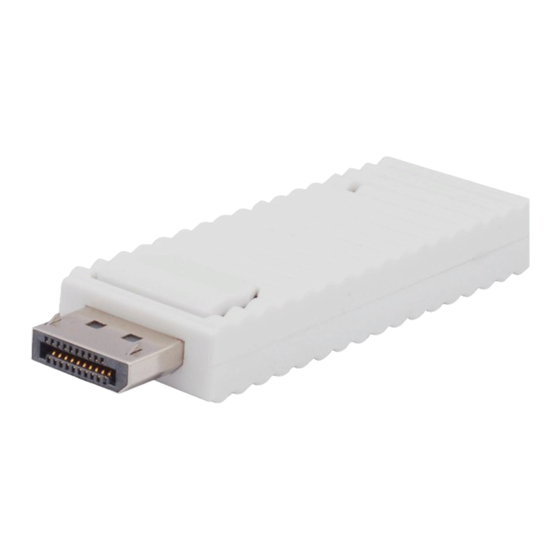

- Page 1 CDPH-1S DisplayPort to HDMI Converter Adaptor Operation Manual CDPH-1S...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Operation Controls and Functions………………...……..……… Front Panel................Rear Panel …………………….……………………..…….… Connection and Installation …….…………………..…..…..…... Acronyms …….…………………........…..…..…... -
Page 5: Introduction
1. Introduction Although most devices use HDMI ports, it is becoming more common that come upon products that use the Display Port (DP) interface instead of HDMI, as their primary graphics solution. When you wish to display on a large display, like an HDTV, users would need a device that can connect a DP source to an HDMI output. -
Page 6: Specifications
6. Specifications Frequency Bandwidth 2.7Gbps (single link) Input Port 1 x DisplayPort (Male type) Output Port 1 x HDMI (Female type) Output Resolution 480i ~ 1080p, 1080p24, VGA ~ UXGA Human body model: ± 10kV (air-gap discharge) ESD Protection ± 6kV (contact discharge) Core chipset: ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Top Panel DP input: Connect to a PC/source that has a DP output connector. In ① order to disconnect this adapter you first have to press the button on top of the device, fairly to do so will damage the device. -
Page 8: Connection And Installation
8. Connection and Installation LCD TV... -
Page 9: Acronyms
Acronyms Acronym Complete Term HDMI High-Definition Multimedia Interface Digital Visual Interface DisplayPort... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20091120 MPM-CDPH1S...
