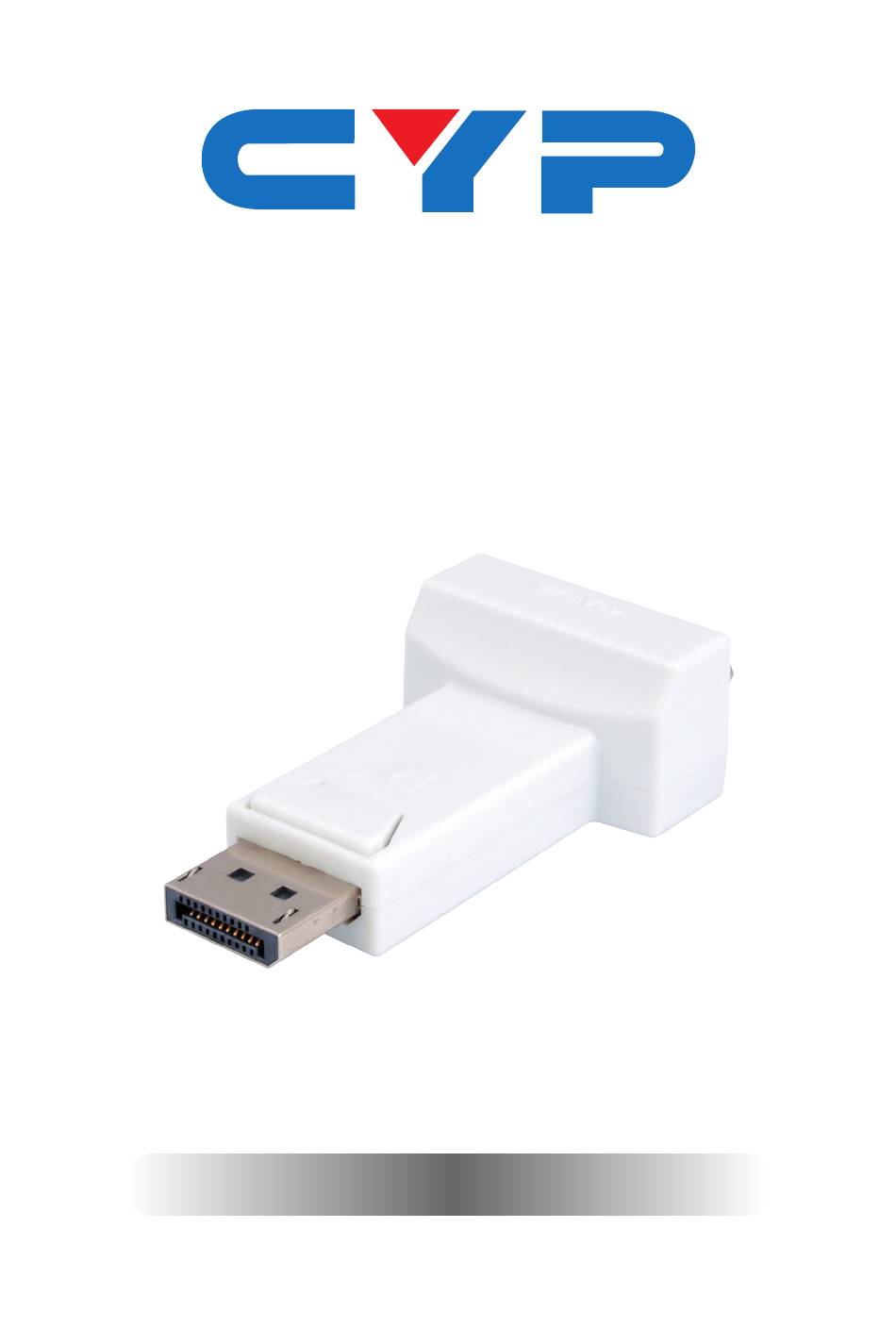

- Page 1 CDPV-1A DisplayPort to VGA Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Specifications ........2 7. Operation Controls and Functions ..3 7.1 Front Panel ........3 7.2 Rear Panel .........3 8. -
Page 6: Introduction
1. INTRODUCTION The DisplayPort to VGA Converter allows digital DisplayPort signal to be converted into analog VGA signal, supporting Display Data Channel (DDC) and auto-detecting the connected display. Use the DisplayPort to VGA Converter to connect a VGA monitor to display DisplayPort signal. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DisplayPort Input Connect to the DisplayPort equipped source device such as PC or Laptop. Hold the top button to safely remove the unit from the source device. 6.2 Rear Panel VGA Output Connect to VGA equipped displays such as a TV or monitor. - Page 8 7. CONNECTION DIAGRAM Monitor Projector...
- Page 9 8. SPECIFICATIONS Frequency Bandwidth 2.7Gbps (single link) Input Port 1 x DisplayPort Output Port 1 x VGA DP Input Resolution 640 x 480 ~ 1920 x 1200(Reduced Blanking), VGA ~WUXGA VGA Output Resolution 640 x 480 ~ 1920 x 1200(Reduced Blanking), VGA ~WUXGA ESD Protection Human body model:...
-
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM DisplayPort Video Graphic Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPV1A...
