Summary of Contents for CYP CDPH-1P

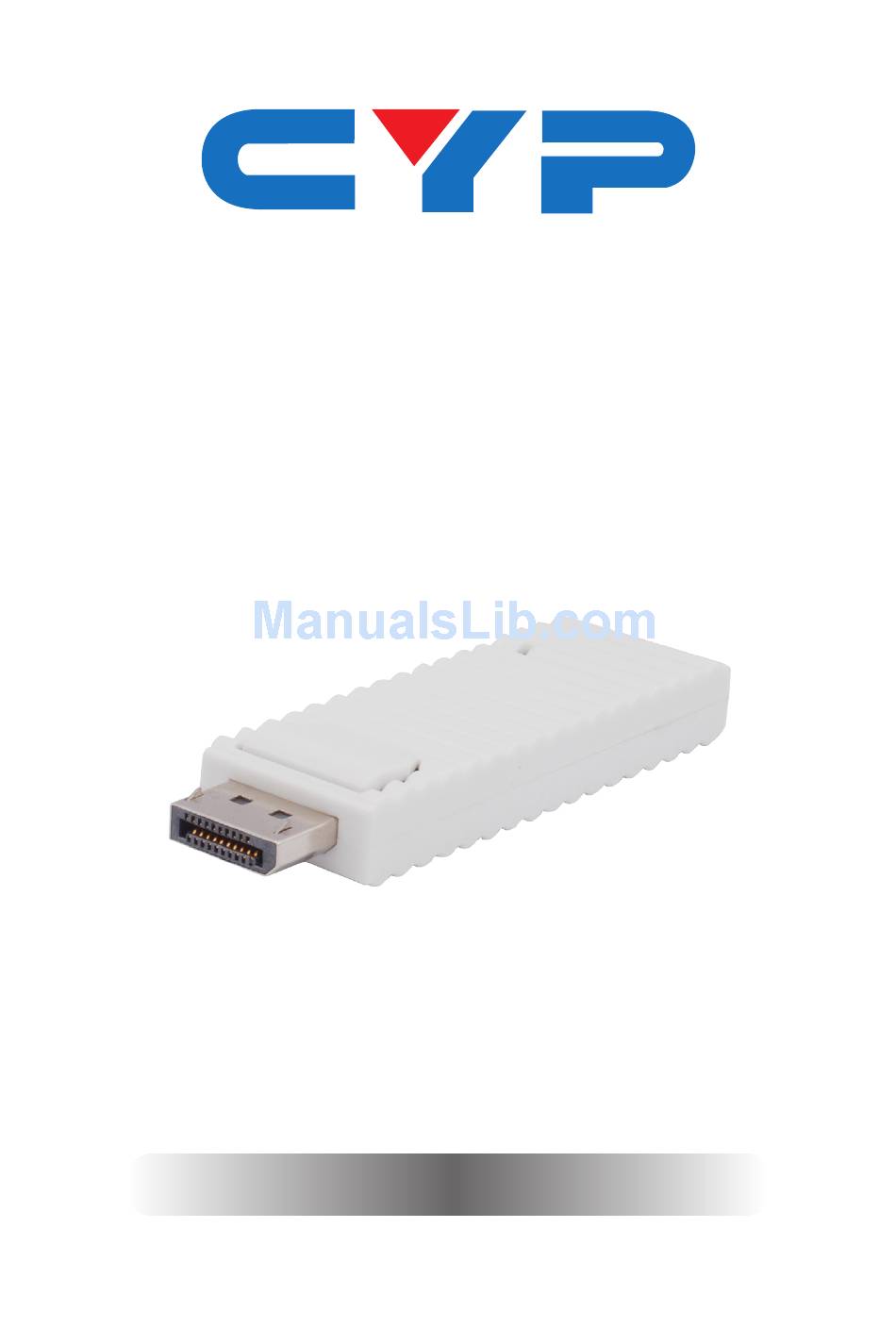

- Page 1 CDPH-1P DisplayPort to HDMI Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 7. Connection and Installation ....3 8. -
Page 6: Introduction
1. INTRODUCTION The Display Port to HDMI Converter provides digital signal conversion from DisplayPort to HDMI interface, utilizing ‘DisplayPort to HDMI Level Shifter’ technology this model is able to output TMDS signal fully compatible with HDMI, and so makes it the best solution to show DisplayPort content on HDTV / HDMI monitor. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DisplayPort Input: Connect to the DisplayPort equipped source device such as PC or Laptop. Hold the top button to safely remove the unit from the source device. 6.2 Rear Panel HDMI Output: Connect to HDMI equipped displays such as HDTV or HDMI monitor. -
Page 8: Connection And Installation
7. CONNECTION DIAGRAM LCD TV... -
Page 9: Specifications
8. SPECIFICATIONS Frequency Bandwidth 2.25Gbps (single link) Input Port 1 x DisplayPort (Male type) Output Port 1 x HDMI (Female type) Output Resolution 480p ~ 1080p, VGA ~ WUXGA ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) Dimensions (mm) 81(W) x 25(D) x 11(H) Weight(g) -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface Digital Visual Interface DisplayPort... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120830 MPM-CDPH1P...
