- Page 1 Video System Converter Operation Manual CDM-160...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Hardware Description..............2 3.1 Front Panel................2 3.2 Rear Panel................2 4. Connections and Installation............ 3 5. Specifications................3... -
Page 4: Introduction
1. Introduction The Video System Converter is designed to convert video signal from source of NTSC,N4 PAL, PAL M, PAL N and SECAM systems (automatically detected), to NTSC or PAL signal selectable for the connected display to work properly. It is a convenient device for users to connect source and display of different TV systems, with the on-panel H.pos. -
Page 5: Hardware Description

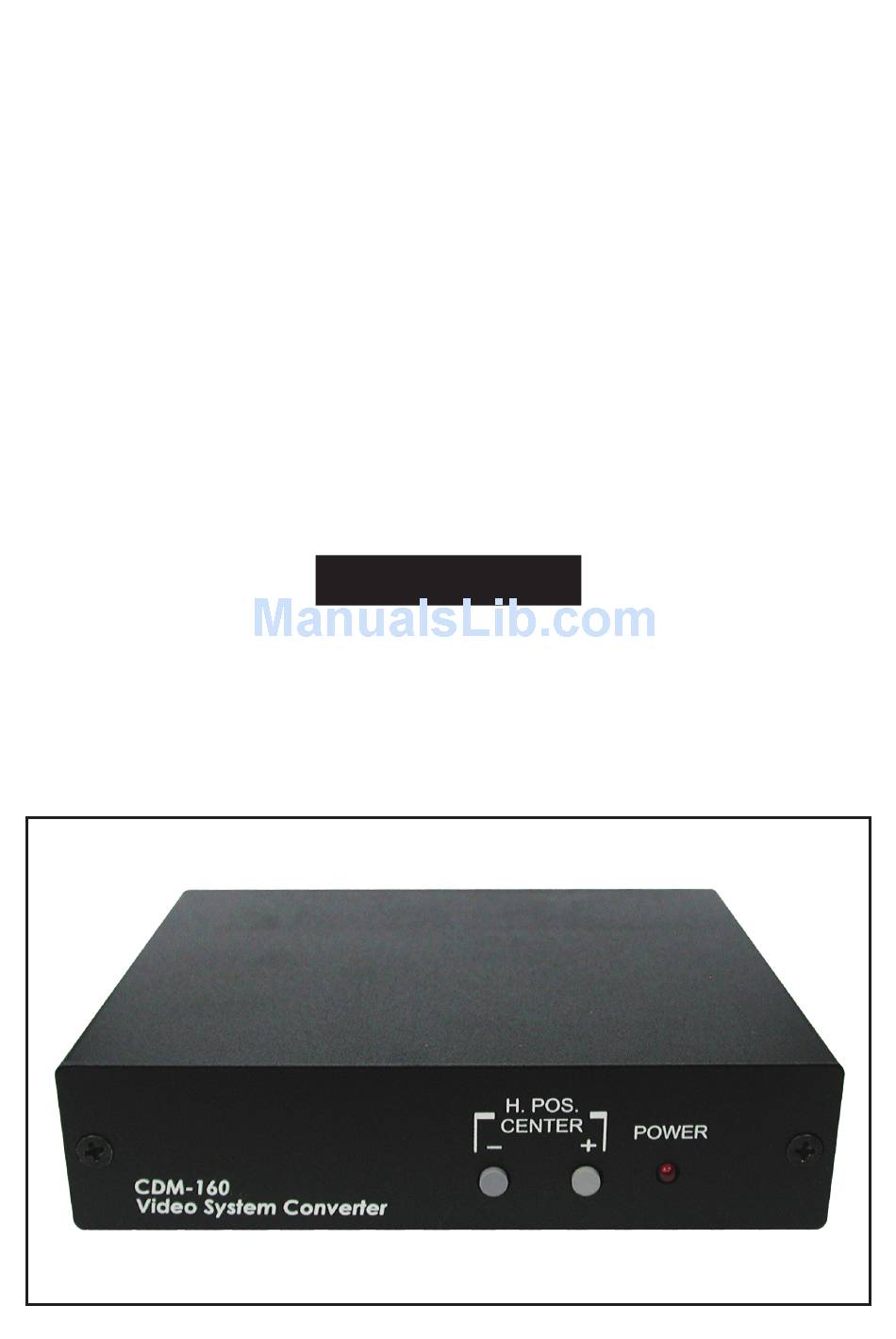

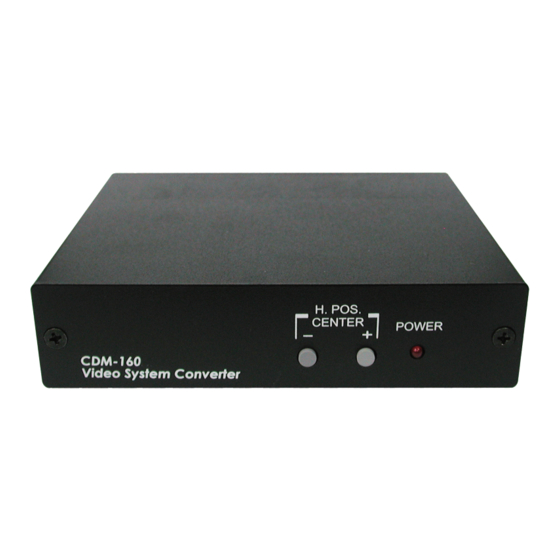

3.1. Front Panel H. POS. CENTER POWER CDM-160 Video System Converter 1. H. POS. Center: To adjust the display to right/left. 2. Power LED: The LED indicator will illuminate when the unit is powered on. 3.2. Rear Panel INPUT... -
Page 6: Connections And Installation
4. Connections and Installation Set-Top-Box Satellite Receiver Camcorder DVD Player NTSC SECAM INPUT OUTPUT DC 5V NTSC NTSC PAL TV NTSC or PAL Video Recorder 5. Specifications Input Systems NTSC, N4, PAL, PAL M, PAL N and SECAM Output Systems NTSC 3.58, PAL Input Port Video/S-Video... - Page 7 2008.1.28 MPM-CDM160...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
