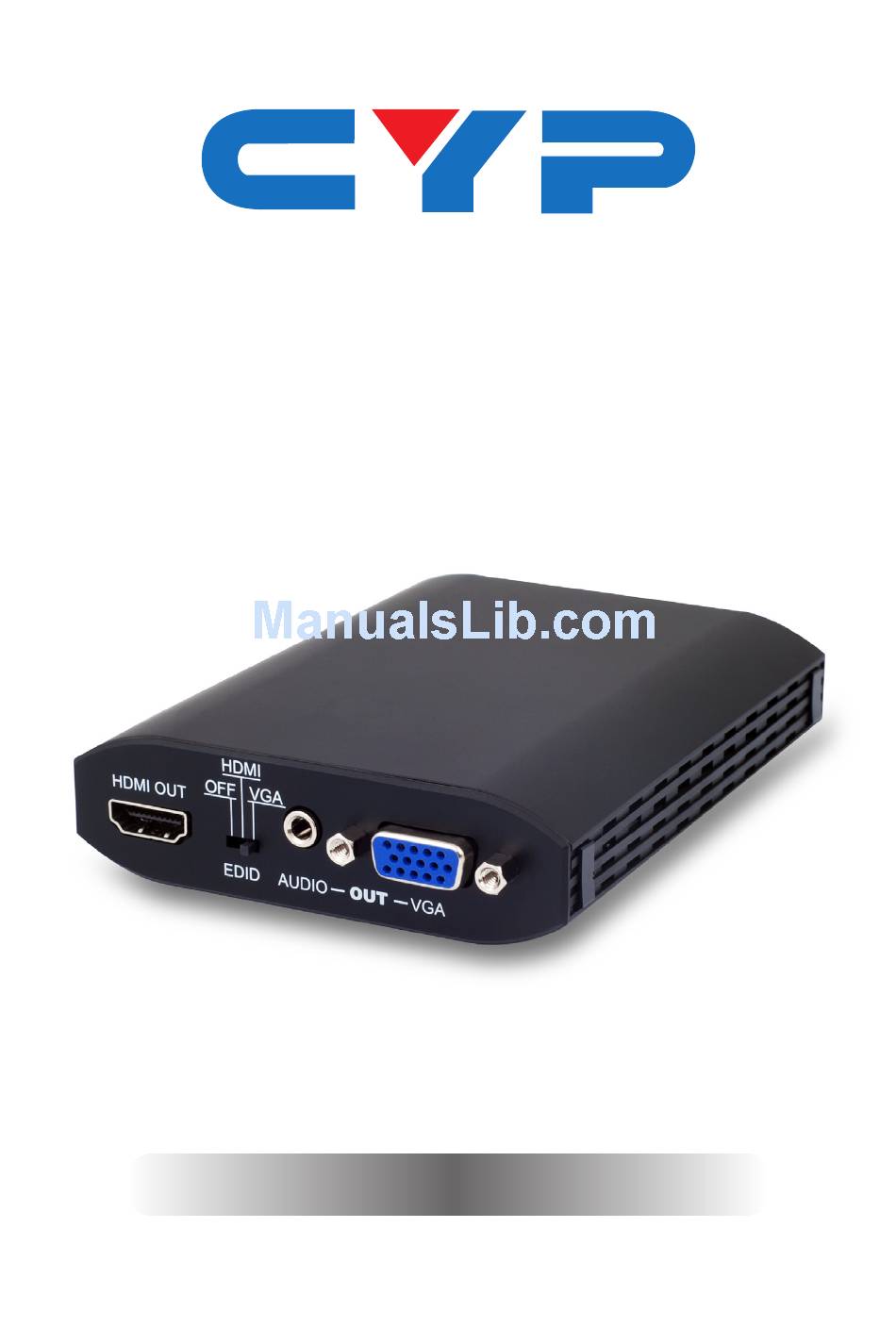

- Page 1 CDL-165ETHG ETHERNET/USB to HDMI/VGA Display Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Software Installation ......5 7.1 Install DispalyLink Software ....5 7.2 Install USB Server Software ....5 7.3 Using USB Server .......7... -
Page 6: Introduction
1. INTRODUCTION The device that can send audio/video signals from a Notebook/PC over a local area network through regular Ethernet cables to a TV which can be used as the primary display. When a keyboard and mouse are plugged in, the device will lets you to edit word processing documents and play your music/movies on a TV. -
Page 7: Features
whereas connection via USB supports Mac OS X (v10.4.11 and v10.5.6) • USB Port Extension: - An available USB 2.0 port with USB to mini-USB cable • Network Extension: - An available Ethernet port at home or a commercial network with RJ-45 cable 5. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V USB IN INPUT LAN IN USB PORT DC 5V Plug the 5V DC power supply into the unit and connect the adaptor included in the package to an AC wall outlet. INPUT LAN/USB Switch This switch allows users to choose the input source signal from ethernet or USB. -
Page 9: Rear Panel

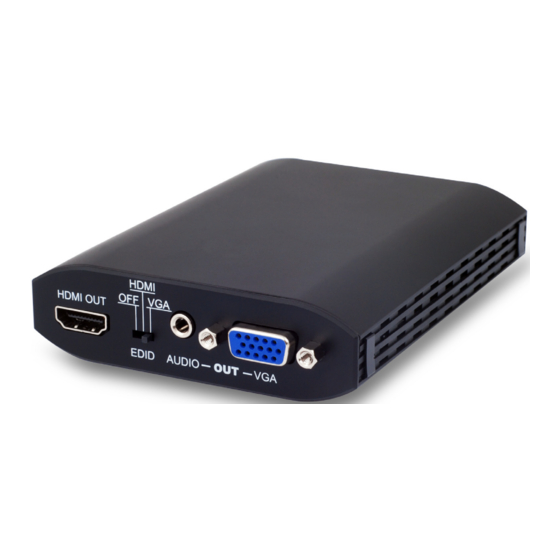

6.2 Rear Panel HDMI HDMI OUT EDID AUDIO HDMI OUT Connect to the HDMI TV/display with HDMI cable for video and audio output. EDID Control Switch The default setting for this switch is on HDMI, leave the switch here as long as the connected display is compatible. When the switch is set to 'OFF' this will allow use of the built-in EDID (the input source device must be re-powered/restarted in order for this to function). -
Page 10: Software Installation
7. SOFTWARE INSTALLATION The following sections list the procedures to follow when installing the USB to HDMI and USB device drivers. Insert the provided CD into your CD-ROM drive, then begin the USB Install Disc and follow the below steps to install the driver. 7.1 Install DispalyLink Software Insert the CD driver included in the package and double click on the DisplayLink icon to execute the setup. - Page 11 When both the DisplayLink and USB Server drivers have been installed the USB Server’s icon should appear on the desktop and in the system tray.
-
Page 12: Using Usb Server
7.3 Using USB Server Double click on the 'Launch USB Server' icon from the desktop or from the icon in the system tray and the USB Server window will appear on the desktop. Connect both the PC/Laptop and the unit with a RJ-45 patch cable. -
Page 13: Ip Property Setting
7.4 IP Property Setting When connecting PC/Laptop directly to the device or when the network has no DHCP server a special IP setting is required. Please follow the procedure below to make the correct setting. Click Control Panel from the Windows Start Menu. - Page 14 Click on the Network and Internet Connection and select Network Connections.
- Page 15 Double click on the Local Area Connection Double click on the Internet Protocol (TCP/IP) Click on “Use the follow IP address” and set the IP address and Subnet mask. The IP address setting should remain at 169.254.10.X (X can be 0~9&11~255) and Subnet mask can remain as 255.255.0.0 appear with “”...
-
Page 16: Using Displaylink Manager
8. USING DISPLAYLINK MANAGER 8.1 Using DisplayLink Manager After the driver is installed, a utility (DisplayLink Manager) will automatically appear in the system tray. The utility allows you to quickly change the settings and resolution for DisplayLink Manager. Right click on the icon will bring out the context menu. Screen Resolution Select the screen resolution (available only in extended mode).NOTE: When... - Page 17 Color Quality Select the screen color quality (available only in extended mode). Screen Rotation Rotate the screen on the additional monitor by 90, 180 or 270 degrees.
- Page 18 Extend to Reposition the extended screen to the top, bottom, left or right of the primary display. Extend Set the DisplayLink Manager to Extended mode.
- Page 19 Set as Main Monitor Set the monitor to be the main monitor. Notebook Monitor off Set the PC/notebook's monitor off.
- Page 20 Mirror Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional monitor. Disable the DisplayLink Manager on the system.
-
Page 21: Using More Displaylink Manager
Advanced Opening the Display Properties will allow you to adjust the resolution, color quality, position and refresh rate. 8.2 Using More DisplayLink Manager You don’t have to install a new driver as long as you have completed the above installation process in advance. It will automatically define the ID of the new Display Link Manager and will list everything in the Display properties or the display manager menu. -
Page 22: Uninstall The Device Driver
9. UNINSTALL THE DEVICE DRIVER Follow the steps below to uninstall the Multi View driver. Step 1: Open the Control Panel: Start → Control Panel → Add or Remove Programs. Step 2: Select DisplayLink Core Software and click Remove. Step 3: Click Yes to confirm the removal. - Page 23 Step 4: Click Yes to restart your computer. Then select DisplayLink Graphics and click Remove. Finally, select USB Server and click Remove.
-
Page 24: Connection Diagram
10. CONNECTION DIAGRAM Notebook Notebook Mini-USB Wireless Ethernet Hub USB Keyboard or Mouse DC 5V USB IN INPUT LAN IN USB PORT HDMI HDMI OUT HDD or USB Flash Disk EDID AUDIO HDMI TV/Monitor TV/Monitor Active Amplifier Speakers... -
Page 25: Troubleshooting
11. TROUBLESHOOTING Situation Check Point The device driver Make sure that the computer has has been installed, been restarted after the driver but the DisplayLink installation. Manager is not Check all the connectors are working plugged in correctly. Make sure the USB port that you are using is USB 2.0. -
Page 26: Specifications
12. SPECIFICATIONS Video Resolution Up to 1600×1200 /1920×1080 (wide) Video Input 1×Ethernet RJ-45, 1×USB 2.0 Network Protocol TCP/IP Video Output Ports 1×HDMI, 1×D-Sub 15pin VGA Extender Ports 2×USB Hubs (A type) Audio Output 1Vp-p 47 KΩ 3.5 mm Phone jack OS Support Windows XP SP2, Vista and 7 Power Supply... -
Page 27: Acronyms
13. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Consumer Electronics Control EDID Extended Display Identification Data HEAC HDMI Ethernet & Audio Return Channel HDMI Ethernet Channel HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface... - Page 28 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
