Summary of Contents for CYP AU-D6-192

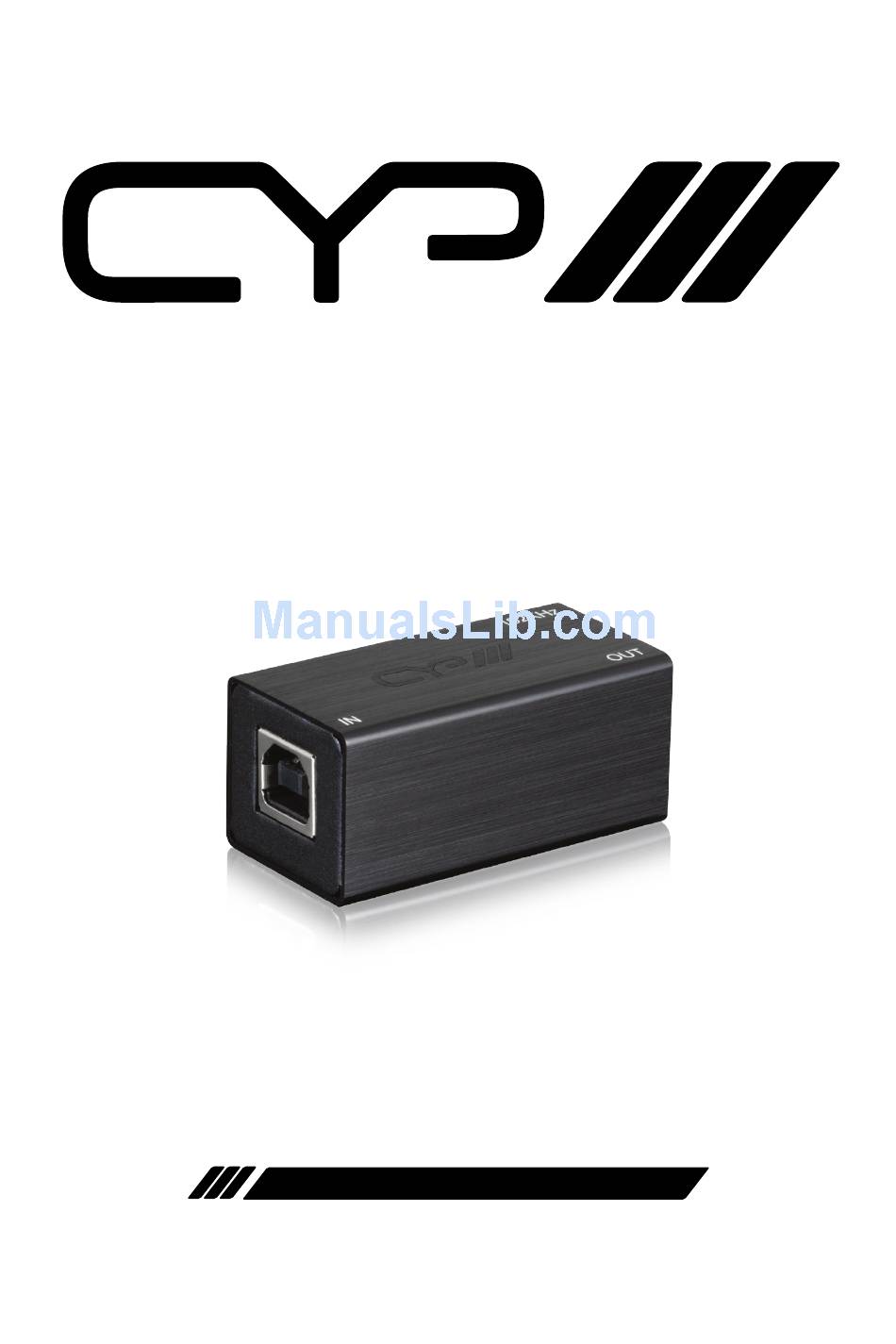

- Page 1 AU-D6-192 USB Digital Audio Converter (192KHz/24-bit) OPERATION MANUAL...
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Panel Description ......3 7. Connection Diagram ......4 8. Specifi cations ........5... -
Page 5: Introduction
1. INTRODUCTION This USB to Optical Audio Converter is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to an audio amplifi er or other audio destination that has a S/PDIF input without needing a dedicated audio card. -
Page 6: Features
5. FEATURES • Output HD audio from your Laptop/PC to an audio amplifi er • USB audio processor (XMOS U8A) supporting sample rates up to 192kHz/24-bit • Optical output module supports up to 192kHz for high resolution audio • Simple operation and compact design •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Panel Description 192KHz 192KHz HD AUDIO USB IN: Connect to computer source equipment with an available USB port such as a PC/Laptop (Windows and Mac Operating Systems are compatible). POWER LED: This LED will illuminate RED to indicate the unit is on and receiving power from the USB connection. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM Active Speakers Active Speakers PC/Laptop PC/Laptop 192KHz 192KHz HD AUDIO Optical Cable Optical Cable... -
Page 9: Specifi Cations
8. SPECIFICATIONS Input Ports 1 x USB (Type B) Output Ports 1 x Optical ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Chassis Material Aluminum Silkscreen color Black Dimensions 69mm × 22.5mm × 25mm (W×H×D) [Case Only] Operating Temperature 0˚C~40˚C/32˚F~104˚F Weight... - Page 12 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham NG6 8WB Tel: +44 (0)115 977 0075| Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com RDV1...
