Summary of Contents for CYP CDPS-US100R

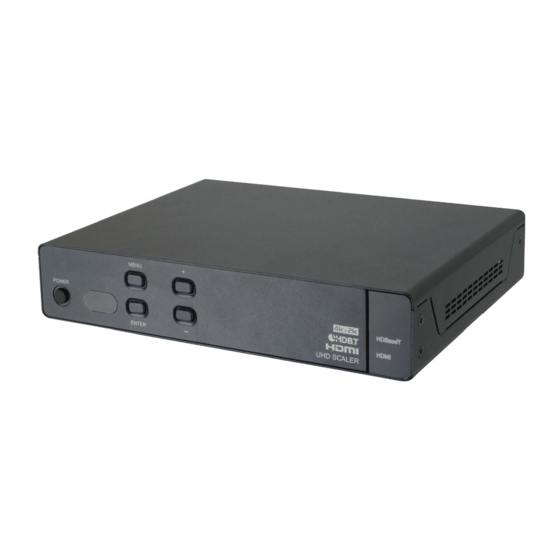

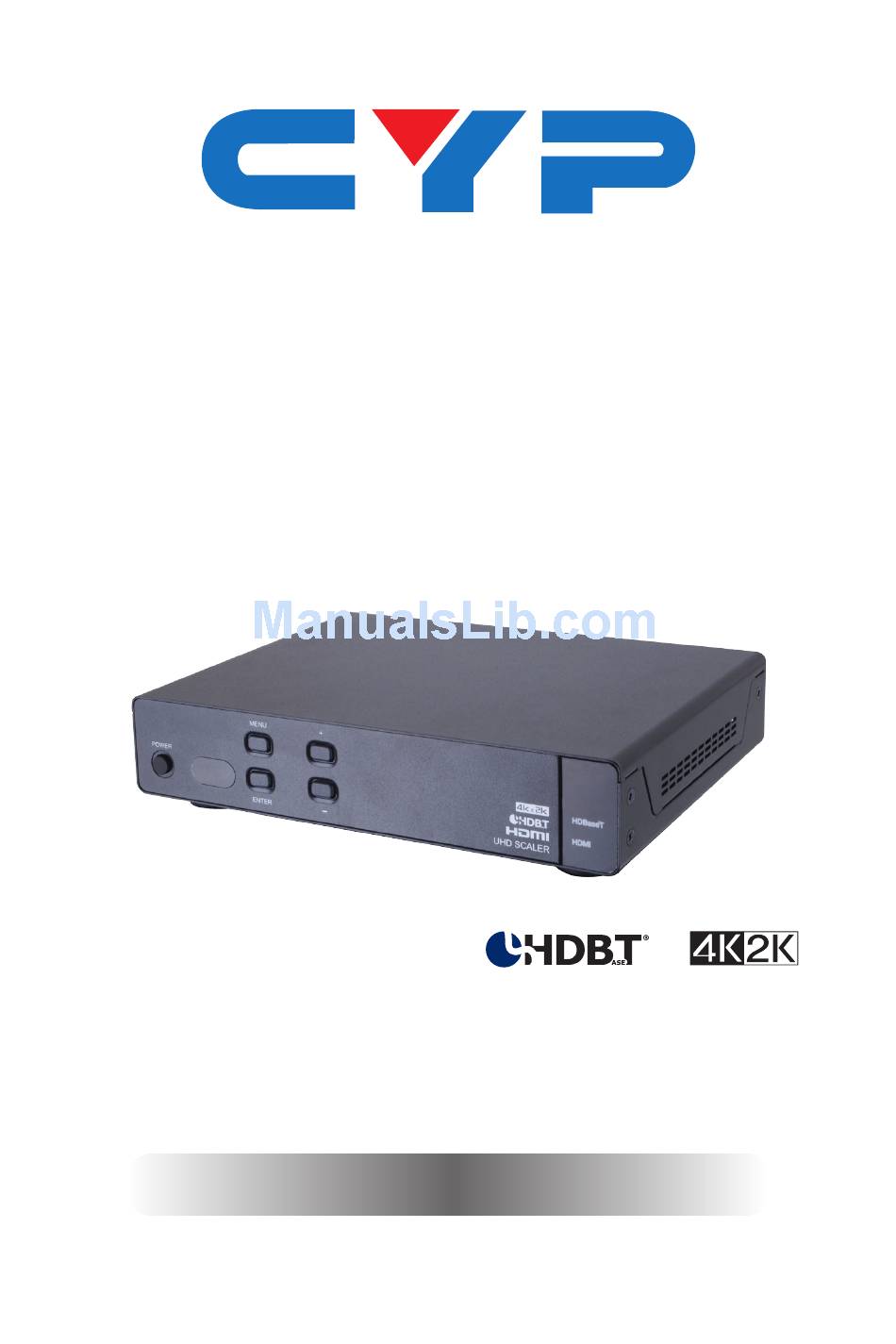

- Page 1 CDPS-US100R HDMI 4K UHD Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 OSD Menu .........5 6.5 IR Cable Pin Assignment....8 6.6 RS-232 Protocol .........8... -
Page 6: Introduction
1. INTRODUCTION The HDMI 4K UHD Scaler is designed to extend and upscale HDMI signal on to two HDMI output displays and one analog audio simultaneously. It supports 4K2K, 3D, 36-bit Deep Color, Hi-Def. lossless audio and other features defined by the latest HDMI specifications. Allowing uncompressed video and audio, as well as bi-directional IR control, RS-232 pass-through, also LAN serving from a single CAT5e/6/7 cable over 100m of distance. -
Page 7: Features
5. FEATURES • HDMI with 3D pass through supported, and HDCP compliant • Supports HDTV resolutions up to 4K2K (3840×2160@24/25/30, 3840×2160@50/60 YUV420 & 4096×2160@24/25/30) • Supports scale down HD resolution on to monitor/display • Supports data rate from 300Mbps to 3Gbps and Deep Color up to 1080p 36-bit •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER HDBaseT HDMI UHD SCALER ENTER POWER & LED: Press this button to turn ON the device or set the device to standby mode. The LED will illuminate in red when switch to ON. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT HDMI OUT HDMI IN CAT5e/6/7 SERVICE DC 24V RS-232 7 8 9 10 HDMI OUT 1~2: Connect to HDMI TV/display or HD Amplifier for output image and or audio display. HDMI IN: Connect from source equipment such as Blu-ray/DVD/ PS3 players, Set-Top-Box or any HDMI equipped source device for input signal sending. -
Page 10: Remote Control
6.3 Remote Control MENU POWER POWER: Press to turn on the unit or turn to standby mode. MENU: Press to enter OSD menu page. UP/DOWN/LEFT/RIGHT: When Entering ENTER Menu page, use those UP/DOWN keys to select up/ down, and Use LEFT/RIGHT HDMI HDBaseT key to browse selection. - Page 11 MAIN MENU SUB MENU DESCRIPTION DEFAULT Output Format 4K2K 2048×1080p@24, 1080p60 (Cont.) 2048×2080p@50, 2048×1080p@60, 2048×1152p@60, 3840×2160p@24, 3840×2160p@25, 3840×2160p@30, 4096×2160@24 PC-1 640×480@60, 640×480@72, 640×480@75, 800×600@60, 800×600@72, 800×600@75, 1024×768@60, 1024×768@72, 1024×768@75 PC-2 1280×768@60, 1280×800@60, 1280×960@60, 1280×1024@60, 1360×768@60, 1366×768@60, 1400×1050@60, 1440×900@60, 1600×900@60, 1600×1200@60, 1920×1200@60 NATIVE OSD Menu Timer 10 Sec...
- Page 12 MAIN MENU SUB MENU DESCRIPTION DEFAULT Network Status IP Status Static, DHCP Static MAC Address Show Unit MAC address IP Address Show Current IP 192.168.1.50 address Subnet Mask Show Subnet Mask 255.255.255.0 Gateway Show Gateway 192.168.1.254 System Info Input Resolution Show Input Resolution Output Show Output...
-
Page 13: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Grounding 6.6 RS-232 Protocol RECEIVER REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 14: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER Help Display all available NONE commands Help N Display command N=command name description PWON Power on NONE PWOFF Power off NONE PWSTA Display power status NONE VFmtRes Display format status NONE VFmtRes N Set output video format to N=0~42, 254 any resolution 480i ~ 4K2K... - Page 15 COMMAND DESCRIPTION PARAMETER VFmtRes N Set output video format to 31=1600×900p@60 any resolution 480i ~ 4K2K 32=1600×1200p@60 33=1920×1200p@60 34=2048x1080p24 35=2048x1080p50 36= 2048x1080p60 37=2048x1152p60 38=3840x2160p24 39= 3840x2160p25 40=3840x2160p30 41=4096x2160p24 42=4096x2160p25 254=Native Input N Set input source to HDMI/ N= HDMI, HBDT HDBT IPCFG Display IP address...
-
Page 16: Telnet Control
6.8 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 17 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-sensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 18: Webgui Control
6.9 WebGUI Control On a PC/Laptop which is connected to an active network system, open a web browser and type device’s IP address (available from OSD menu) on the web address entry bar. The browser will display the device’s Scaler settings and system Settings. 6.9.1 Scaler Settings Click on 'Scaler Settings' to Switch input Source or output format. -
Page 19: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player Games Console 1.5m HDMI Input LAN Connection 60° RS-232 In Transmitter HDMI Input IR Blaster HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 Active Speakers CAT 5e/6/7 Input Analog Audio Output AUDIO OUT HDMI OUT HDMI IN CAT5e/6/7 SERVICE DC 24V... -
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 MHz/10.2 Gbps Input Ports 1×HDMI, 1×CAT5e/6/7, 1×LAN (RJ-45), 1×IR (3.5mm), 1×RS-232 (Terminal Block), 1×USB (Service only) Output Ports 2×HDMI, 1×Stereo Audio (Terminal Block), 1×IR (3.5mm) HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30 IR Frequency 30~50 kHz Baud Rate 115200 bps... -
Page 21: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60/72/75 √ √ 720×480@60 √ √ 720×576p@50 √ √ 800×600@60/72/75 √ √ 1024×768@60/70/75 √ √ 1280×720@50/60 √ √ 1280×768@60 √ √ 1280×800@60 √ √ 1280×1024@60 √ √ 1360×768@60 √ √ 1600×1200@60 √ √ 1920×1080i@50/60 √... -
Page 22: Cat5E/6/7 Cable Specifications
8.3 CAT5e/6/7 Cable Specifications Cable Range Pixel Clock Video Data Supported Video Type Rate Rate Formats CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p@60 Hz, (HD Video) 36-bit, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Command Line Interface Digital Theater System Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Internet Protocol Infrared Local Area Network On-Screen Display... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
