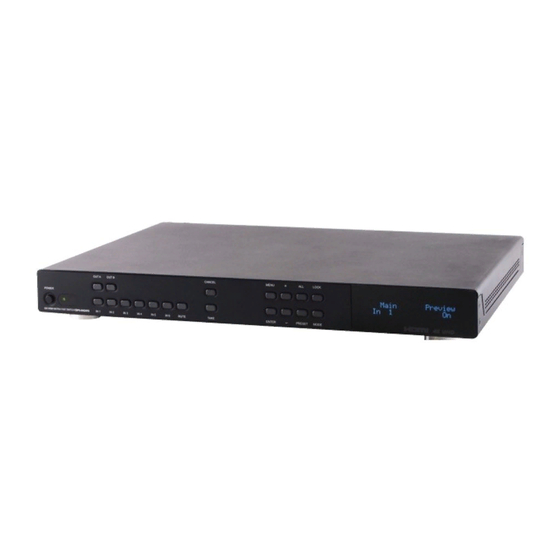

CDPS-6H2HFS
6 by 2 HDMI 4Kx2K Matrix
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-6H2HFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-6H2HFS

Summary of Contents for CYP CDPS-6H2HFS

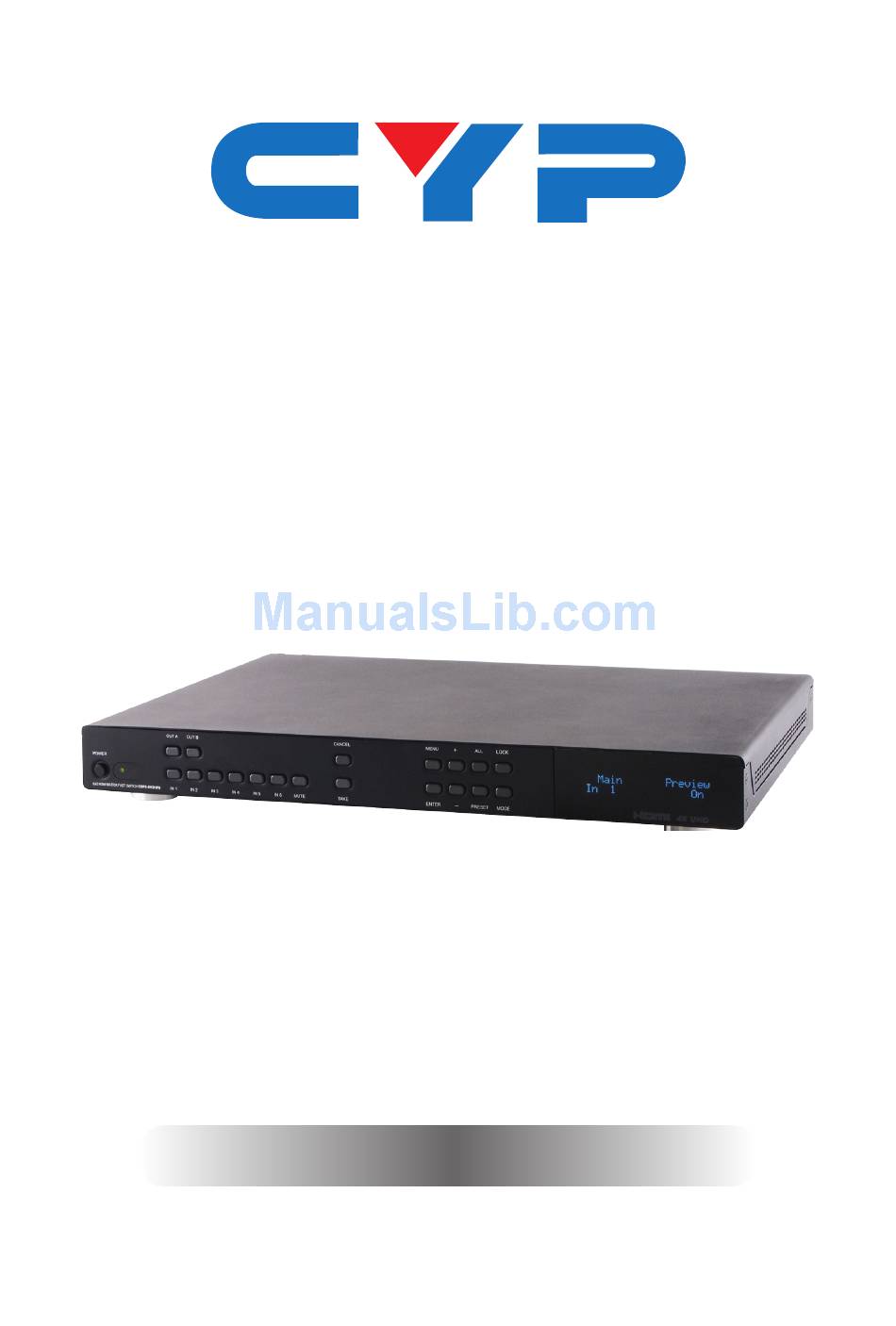

  • Page 1 CDPS-6H2HFS 6 by 2 HDMI 4Kx2K Matrix Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 OSD Menu .........6 6.4 Remote Control ......11 6.5 RS-232 Protocols ......12 6.6 Telnet &...

  • Page 6: Introduction

    1. INTRODUCTION The 6 by 2 HDMI matrix which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously with View All Mode and Picture-in- picture(PIP) supported. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays.

  • Page 7: Features

    5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Support six HDMI inputs and two HDMI outputs • Displays any of six (6) High-Definition sources on two (2) HDTV displays simultaneously with fast switch • When in Preview mode, the system will be treated as Switcher (two HDMI output same images at the same time) •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 9 10 12 14 OUT A OUT B CANCEL MENU LOCK POWER 4K UHD 6X2 HDMI MATRIX FAST SWITCH CDPS-6H2HFS IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 MUTE TAKE ENTER...
  • Page 9 Preset mode: Press “PRESET”, the OLED menu will show Preset then select IN 1~6. Preset 1~6 after the selection, press “TAKE” to confirm the selection or press “CANCEL” to cancel the selection. All: (SWAP) Press this button to select all outputs to display with an input source.

  • Page 10: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT S/PDIF OUT SERVICE CONTROL RS232 IR IN DC 5V HDMI IN: Connect from source equipments such as Blu-ray/DVD/ PS3 players, Set-Top-Box or any HDMI equipped source device for input signal sending. HDMI OUT: Connect to HDMI TV/display or HD Amplifier for output image and or audio display.

  • Page 11: Osd Menu

    6.3 OSD Menu Main Menu Sub Menu Description Default EDID Mode All Input port is using same EDID. In menu “EDID All”, can select suitable EDID. Appoint Each Input port can select individual EDID. In menu “EDID IN1~6” select suitable EDID. Exit EDID All Sink A...
  • Page 12 Main Menu Sub Menu Description Default 8/2D/PCM/ Standard EDID, AC3/4K2K Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, Y420 Content: deep color/2D3D/audio/ native resolution 8/2D/PCM/ Standard EDID, AC3/Y420 Content: deep color/2D3D/audio/ native resolution Exit EDID IN1 Same EDID All Select Input 1’s EDID Same EDID All EDID IN2 Same EDID All Select Input 2’s EDID...
  • Page 13 Main Menu Sub Menu Description Default IN5 Standard Set IN5 in Apple/ Standard /Apple Standard mode IN6 Standard Set IN6 in Apple/ Standard /Apple Standard mode Exit Preview View All 1 Main video source View All Mode and 5 Sub video source 1 Main video source and 1 Sub video...
  • Page 14 Main Menu Sub Menu Description Default OSD Timeout OSD Off Preview without OSD OSD Always On Info 5~20 Preview with OSD Info 5~20 sec and disappear OSD Always Preview with OSD Info remain ON Exit Network IP Mode DHCP , Static DHCP Setup Setup Static IP...
  • Page 15 Main Menu Sub Menu Description Default IN5 On/Off , IN5 , IN6 detect IN6 On/Off source with/without the signal Exit Sink A Info Type, Manuf. Detect and Analysis Output A display’s EDID Content: type(HDMI/ DVI/VGA), Manufactory/Model number Native Content: native resolution Video Format Content: deep color, 2D or 3D, 4K2K...

  • Page 16: Remote Control

    6.4 Remote Control POWER: Press this button to switch the system ON/OFF. OUT A IN 1 OUT A/B: Press these buttons once a time OUT B TAKE IN 2 along with an IN buttons to select an input MODE CANCEL IN 3 source for an output display.

  • Page 17: Rs-232 Protocols

    IN1~6: Press the IN buttons to select an input from the 6 input sources. MUTE: Press this button to mute both video and audio on the selected OUT A/B selected. 6.5 RS-232 Protocols CDPS-6H2HFS Remote Control Assignment Assignment ► ◄...

  • Page 18: Telnet & Rs-232 Commands

    6.6 Telnet & RS-232 Commands Command Name Description Description of Parameter POWER OFF NONE POWER ON NONE IPCONFIG DISPLAY THE CURRENT NONE IPCONFIG SIPADDR XXX.XXX. SET ETHERNET IP AD- XXX=0~255 XXX.XXX DRESS SNETMASK XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX NETMASK SGATEWAY XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX...
  • Page 19 Command Name Description Description of Parameter EDIDALL N SET EDID CONTENT N=0~9 FOR ALL (0)Sink A, (1)Sink B, (2) 8/2D/PCM/720p, (3)8/2D/PCM/AC3/720p, (4) 8/2D/PCM/1080p, (5)8/2D/PCM/ AC3/1080p, (6)8/2D/ PCM/AC3/4K2K, (7)8/2D/ PCM/AC3/4K2K, (8)8/2D/ PCM/Y420, (9)8/2D/ PCM/AC3/Y420 EDIDIN SHOW ALL INPUT EDID NONE SOURCE EDIDIN N1 SHOW INPUT N1 EDID N1=1~6...
  • Page 20 Command Name Description Description of Parameter PRESET SHOW ALL PRESET NONE CONFIG PRESET N1 RECALL PRESET N1 N1=1~6 PRESET N1 N2 SET PRESET N1 N1=1~6 CONFIGURE N2=AXBX (X=1~6) PVMODE SHOW PREVIEW NONE MODE PVMODE N1 SET PREVIEW MODE N1=(0)View All/(1)PIP PVPOS SHOW PREVIEW NONE...
  • Page 21 Command Name Description Description of Parameter PVSRC N1 N2 In View All Mode: NONE NOT SUPPORT In PIP Mode: SET N1=(0)MAIN/(1)SUB MAIN/SUB SCREEN N2=INPUT 1~6 SOURCE OSDTRANS SHOW OSD NONE Transparency OSDTRANS N1 SET OSD Transparency N1=0~15 (0)completely transparent (15)opaque OSDTO SHOW OSD TIME OUT NONE...
  • Page 22 Command Name Description Description of Parameter OUTNAME N1 SHOW OUTPUT N1 N1=A/B NAME OUTNAME N1 N2 SET OUTPUT N1 NAME N1=A/B N2=ABCDEFGH MATRIXMODE SHOW MATRIX NONE CURRENT MODE MATRIXMODE N1 SET MATRIX MODE N1=(0)Matrix/(1)Preview SHOW DESCRIPT OF NONE UNIT REBOOT SYSTEM REBOOT NONE SHOW COMMAND LIST NONE...

  • Page 23: Telnet Control

    6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the ‘CONTROL’ port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the ‘Start’ menu and type “cmd”...
  • Page 24 This will bring us into the device which we wish to control. Type "HELP" to list the available commands. Type “IPCONFIG” To show all IP configurations. Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.

  • Page 25: Web Gui Control

    6.8 Web GUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. The browser will display the device’s Status, IO Status, Matrix Control, Settings and Network Configuration control pages for users to control.
  • Page 26 Click on Matrix Control for outputs and EIDID selections. Click on Settings to set each input’s HDCP Control and Preset Configuration.

  • Page 27: Connection Diagram

    Click on Network Configuration to set the device’s IP configuration. Once the changes is saved the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the Web GUI function. 7.

  • Page 28: Specifications

    8. SPECIFICATIONS Frequency Bandwidth 300Mbps to 3Gbps Input Ports 6 x HDMI 1 x USB (Service only) 1 x Control 1 x RS-232 1 x IR Output ports 2 x HDMI 2 x Optical (S/PDIF) Resolution 480i~1080p@50/60, 1080p@24, 4K x 2K (3840x2160/4096x2160@30Hz) Output Level VGA~WUXGA...
  • Page 29 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB) 3840x2160@30 4096x2160@24...

  • Page 30: Acronyms

    Audio Sampling Rate Up to 192 kHz HDMI input (Up to 192kHz) HDMI output Optical output LPCM 2CH LPCM 5.1CH LPCM 7.1CH Dolby Digital 2~5.1CH/ DTS 2~5.1CH Dolby TrueHD/ DTS-HD Master Audio Audio Format LPCM 2/5.1/7.1CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio HDMI input...
  • Page 32 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPS6H2HFS...
