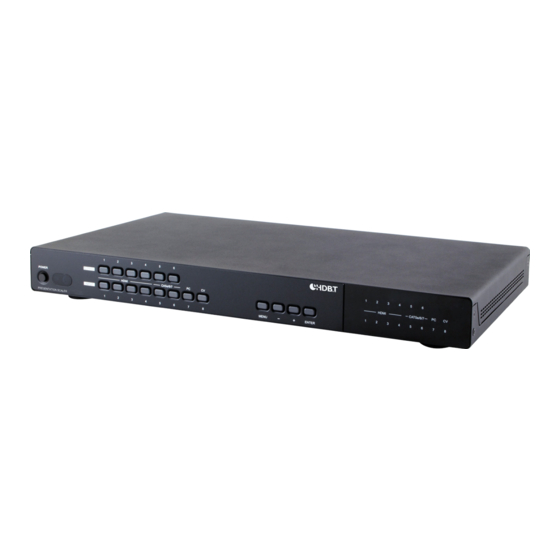

CYP CDPS-84HB Operation Manual

8 by 4 digital presentation scaler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CDPS-84HB
8 by 4 Digital Presentation Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-84HB and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CDPS-84HB

Summary of Contents for CYP CDPS-84HB

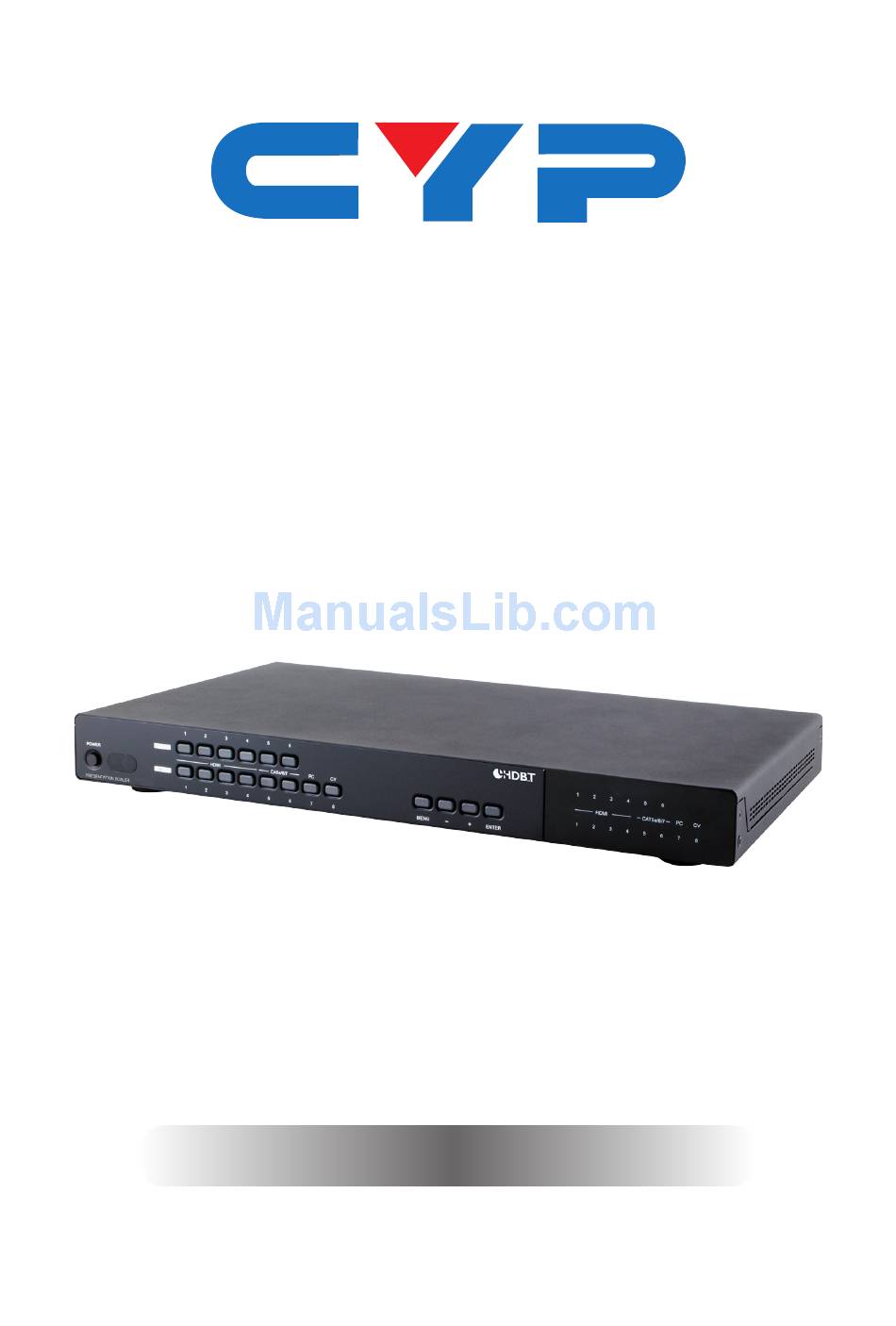

  • Page 1 CDPS-84HB 8 by 4 Digital Presentation Scaler Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control .......5 6.4 IR Pin Assignment ......6 6.5 RS-232 Pin Assignment .....7 6.6 RS-232/Telnet Commands ....8...

  • Page 5: Introduction

    1. INTRODUCTION This HDBaseT™ capable 8 by 4 Digital Presentation Scaler can switch and scale HDMI/HDBaseT/PC/Composite Video signals from any one of its eight inputs and simultaneously display it on any of its HMDI or HDBaseT outputs. The unit has and HDMI bypass output, allowing local monitoring of any of the HDMI or HDBaseT inputs, and features full 5play™...

  • Page 6: Features

    5. FEATURES • HDMI, HDCP and DVI compliant • Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass) • Supports distances of up to 100 meters over industry standard CAT5e/6/7 cable • Supports scaling of any input signals to a wide range of HDTV and PC output resolutions up to 1080p and WUXGA (RB) •...

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 9 10 POWER: Press this button to turn ON the device and the LED will illuminated. IR Window: This IR receiver receives only the remote control signal from the packaged included remote control. INPUT HDMI 1~4 &...

  • Page 8: Rear Panel

    6.2 Rear Panel IR OUT IR IN AUDIO AUDIO AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4 AUDIO 7 INPUT DSP PROG. OUTPUT COAX BYPASS RS-232 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 SERVICE 1 SERVICE 2 HDMI 1 HDMI 2 HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4...

  • Page 9: Remote Control

    INPUT CV: Connect this port to source equipment such as video player or Set-Top-Box for input signal selecting. RS-232: Connect from PC/Laptop for RS-232 command sending to control the device. LAN: Connect from PC/Laptop with active internet service for Web GUI control with RJ-45 terminated cable.

  • Page 10: Ir Pin Assignment

    ADJUST: Press this button when output image is not fitting the display's screen perfectly. The device will auto adjust the image to full screen. RESET: Press this button to set the deivice back into the fatory default setting. BYPASS: Press these buttons to select an input source for Bypass output port to display.

  • Page 11: Rs-232 Pin Assignment

    6.5 RS-232 Pin Assignment CDPS-84HB Remote Control Assignment Assignment ► ◄ Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 12: Rs-232/Telnet Commands

    6.6 RS-232/Telnet Commands COMMAND DESCRIPTION S SOURCE 1~8 1=HDMI 1 5=HDBT 1 2=HDMI 2 6=HDBT 2 3=HDMI 3 7=PC 4=HDMI 4 8=VIDEO R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 0~21 0=640×480 11=1600×1200 1=800×600 12=1920×1080 2=1024×768 13=1920×1200 3=1280×768...
  • Page 13 COMMAND DESCRIPTION R BRIGHTNESS Reports the numerical equivalent for BRIGHTNESS setting S HUE 0~60 Setups the numerical equivalent for HUE setting (as left) R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for...
  • Page 14 COMMAND DESCRIPTION S HDBTUART 0/1 0=HDBT1 1=HDBT2 R HDBTUART Reports the numeric equivalent for HDBT UART setting (as above) S AUTO SCAN 0/1 0=OFF 1=ON R AUTO SCAN Reports the numeric equivalent for AUTO SCAN setting (as above) S BYPASS 1~6 1=HDMI 1 1=HDMI 2 3=HDMI 3...

  • Page 15: Osd Menu

    6.7 OSD Menu 3rd Layer Remark Layer Layer 640X480 60 DISPLAY OUTPUT 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720X480P 60 1280X720P 60 1920X1080I 60 1920X1080P 60...
  • Page 16 OVER SCAN DISPLAY SIZE FULL FOLLOW INPUT PAN SCAN LETTER BOX UNDER 2 UNDER 1 MODE INFO INFO INPUT HDCP (HDMI mode only) AUTO SETUP Yes/No(Default No) (PC mode H_POSITION 0~60 only) V_POSITION 0~60 PHASE 0~31 CLOCK WXGA/XGA XGA/WXGA(Default XGA) RESET Yes/No(Default No)
  • Page 17 0~60(Default 30) COLOR CONTRAST BRIGHTNESS 0~60(Default 30) 0~1023(Default 512) COLOR 0~1023(Default 512) 0~1023(Default 512) R OFFSET 0~1023(Default 512) G OFFSET 0~1023(Default 512) B OFFSET 0~1023(Default 512) 0~60(Default 30) 0~60(Default 30) SATURATION SHARPNESS 0~30(Default 0) MIDDLE HIGH 0~100(Default 100) AUDIO VOLUME DELAY 40mS 110mS...
  • Page 18 OSD Setting back to SETUP FACTORY RESET factory default KEY LOCK POWER SAVE IP MODE DHCP STATIC SET STATIC IP IP ADDRESS 0.0.0.0~ 255.255.255.255 (Default 192.168.0.1) SUBNET MASK 0.0.0.0~ 255.255.255.255 (Default 255.255.255.0) Def. GATWAY 0.0.0.0~ 255.255.255.255 (Default 192.168.0.254) BLUE FREERUN COLOR BLOCK HDBTOUT...

  • Page 19: Connection Diagram

    7. CONNECTION DIAGRAM 1.5m 60° IR BLASTER Set-top Box Router with 60° Internet Blu-ray/DVD Connection Player IR Extender Active Speakers RS-232 Equipped PC RS-232 In Transmitter HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 Smartphone Active Speakers or Tablet 100M RS-232 Cable INPUT IR OUT...

  • Page 20: Specifications

    8. SPECIFICATIONS Frequency bandwidth Up to 10.2Gbps Input Ports 4 x HDMI 4 x L/R 2 x CAT5e/6/7 1 x PC + L/R 1 x CV+L/R 2 x USB (Service only) 1 x LAN 1 x RS-232 1 x IR Output ports 2 x HDMI 1 x HDMI Bypass...

  • Page 21: Input Resolution Support

    Storage Temperature -20˚C~60˚C / -4˚F ~ 140˚F Relative Humidity 20~90% RH (no condensation) Power Consumption 8.1 Input Resolution Support INPUT RESOLUTION HDMI NTSC/PAL  480i/576i  480p/576p  720p@50/60 Hz  1080i@50/60 Hz  1080p@50/60 Hz  VGA@60/72/75 Hz  ...

  • Page 22: Output Resolution Support

    8.2 Output Resolution Support OUTPUT RESOLUTION HDMI 480p/576p  720p@50/60 Hz  1080i@50/60 Hz  1080p@50/60 Hz  VGA@60 Hz  SVGA@60 Hz  XGA@60 Hz  SXGA@60 Hz  UXGA@60 Hz  1280×768@60 Hz  1280×800@60 Hz  1360×768@60 Hz ...

  • Page 23: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Composite Video Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared On-screen Display (Menu) Universal Serial Bus UXGA Ultra Extended Graphics Array Video Graphics Array Extended Graphics Array WUXGA Wide Ultra Extended Graphics Array...
