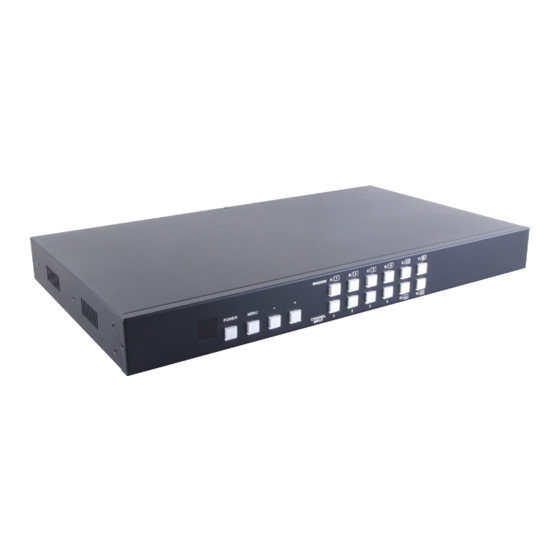

CDPS-41SQ
HDMI 4×1 Seamless Quad Switcher
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-41SQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-41SQ

Summary of Contents for CYP CDPS-41SQ

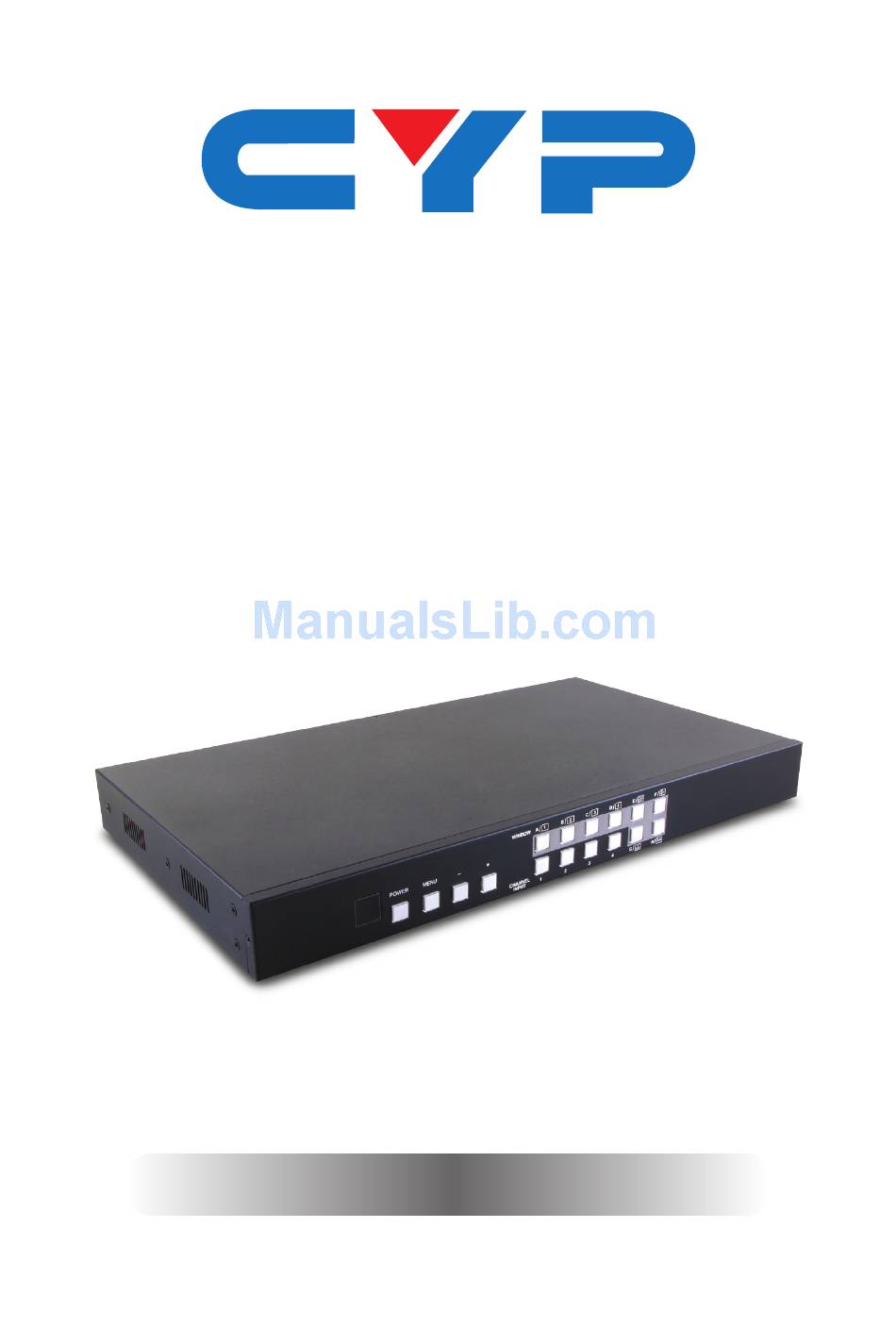

  • Page 1 CDPS-41SQ HDMI 4×1 Seamless Quad Switcher Operation Manual Operation Manual...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Remote Control .........5 6.4 RS-232 Protocols ........6 6.5 RS-232 and Telnet Commands ..7 6.6 OSD Menu ........10...

  • Page 6: Introduction

    1. INTRODUCTION This 4×1 HDMI Seamless Quad PIP Scaler is an advanced HDMI switch with integrated Picture-in-Picture (PIP) technology that can be easily configured and controlled. It allows 4 different sources to be selected and arranged on a single display and supports video resolutions up to 1080p and audio up to 8CH/192kHz.

  • Page 7: Features

    5. FEATURES • Integration of 4 HDMI sources to a single display or video wall system • Seamless switching of HDMI channels and windows • Supports individual channel size and position adjustments • Zoom, shrink and overlay the source channels •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel WINDOW POWER MENU CHANNEL INPUT 1 2 3 4 2 3 4 IR Window: Accepts the IR signal from the supplied remote control. POWER: Press to turn the unit on or to put it into standby mode. MENU Button: Press this button to bring up the On-screen Display (OSD) menu on screen.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI IN 1~4: Connect to up to four source HDMI equipped source devices such as DVD/Blu-ray players and or PC/Laptop devices. HDMI OUT: Connect to a HD TV/monitor or HDMI matrix for display of the image.

  • Page 10: Remote Control

    6.3 Remote Control Power Info Power: Press this button to switch the device CH 1 on or to set it to standby mode. CH 2 Info: Press this button to display the device’s CH 3 firmwareersion. CH 4 Mute Input Input CH 1/2/3/4: Press these buttons to cycle through the HDMI sources (1 to 4) for each channel to be displayed on screen.

  • Page 11: Rs-232 Protocols

    6.4 RS-232 Protocols Switcher Remote Control Assignment Assignment Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 12: Rs-232 And Telnet Commands

    6.5 RS-232 and Telnet Commands COMMAND DESCRIPTION POW000 Power Off POW001 Power On WND001 Change to Window A WND002 Change to Window B WND003 Change to Window C WND004 Change to Window D WND005 Change to Window E WND006 Change to Window F WND007 Change to Window G WND008...
  • Page 13 COMMAND DESCRIPTION CH4001 Change CH4 to Source 1 CH4002 Change CH4 to Source 2 CH4003 Change CH4 to Source 3 CH4004 Change CH4 to Source 4 MUT000 Mute Off MUT001 Mute On AUD001 Change Output Audio to Source 1 AUD002 Change Output Audio to Source 2 AUD003 Change Output Audio to Source 3...
  • Page 14 COMMAND DESCRIPTION RFA001 Recall Window from FAV 1 RFA002 Recall Window from FAV 2 RFA003 Recall Window from FAV 3 RFA004 Recall Window from FAV 4 IO1000 CH1 Image OFF IO1001 CH1 Image ON IO2000 CH2 Image OFF IO2001 CH2 Image ON IO3000 CH3 Image OFF IO3001...

  • Page 15: Osd Menu

    6.6 OSD Menu MAIN MENU LAYER LAYER LAYER Image Adjust Brightness Adjust CH 1 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50) CH 4 0~100 (50) Value Reset Menu Exit Contrast Adjust CH 1 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50)
  • Page 16 MAIN MENU LAYER LAYER LAYER Window Setup Channel 1 Select Size CH1 Wxxx Hxxx Width Unit Width Ten Width Hundred Height Unit Height Ten Height Hundred Position CH1 Hxxxxxx Horizontal Unit Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred Image Output On/Off Window Reset...
  • Page 17 MAIN MENU LAYER LAYER LAYER Window Setup Channel 3 Select Size CH3 Wxxx Hxxx Width Unit Width Ten Width Hundred Height Unit Height Ten Height Hundred Position CH3 Wxxx Hxxx Horizontal Unit Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred Image Output On/Off...
  • Page 18 MAIN MENU LAYER LAYER LAYER Window Setup Favorite Store FAV 1 Store On/Off/OK FAV 2 Store On/Off/OK FAV 3 Store On/Off/OK FAV 4 Store On/Off/OK Menu Exit Favorite Recall FAV 1 Recall On/Off/OK FAV 2 Recall On/Off/OK FAV 3 Recall On/Off/OK FAV 4 Recall On/Off/OK...
  • Page 19 MAIN MENU LAYER LAYER LAYER Chromakey Minimum For R 000~255 Setup* Maximum For R 000~255 Minimum For G 000~255 Maximum For G 000~255 Minimum For B 000~255 Maximum For B 000~255 Switch On/Off Menu Exit Ethernet IP Mode Static/DHCP Static Set IP/Mask/Gate Setup Byte1 High...

  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Camera Blu-ray Player Set-top Box Games Console HDMI Inputs Router Smartphone or Tablet 4 3 2 1 Device Power HDMI IN HDMI OUT CONTROL RS232 DC 12V Supply SERVICE ONLY HDMI Output RS-232 RS-232 Enabled PC/Laptop or Control System HDTV Screen Configurations:...

  • Page 21: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI Output Port 1×HDMI Input Resolution Support PC:GA~WUXGA HDTV: 480i~1080p Output Resolution Support 1080p@60 HDMI Input Cable Length Up to 15m@1080p/12-bit HDMI Output Cable Length Up to 15m@1080p/8-bit Supported Sampling Rate 32~192 kHz ESD Protection...

  • Page 22: Supported Resolutions

    8.2 Supported Resolutions RESOLUTIONS INPUT OUTPUT 640×480@60/72/75/85  800×600@56/60/72/75/85  1024×768@60/70/75/85  1360×768@60  1280×768@60/75  1280×1024@60/75  1620×1200@60  1920×1200@60  480i@60  576i@50  480p@60  576p@50  720p@50  720p@60  1080i@50  1080i@60  1080p@24  1080p@50 ...

  • Page 23: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digitalisual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Picture-in-Picture Picture out of picture Infrared...
  • Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
