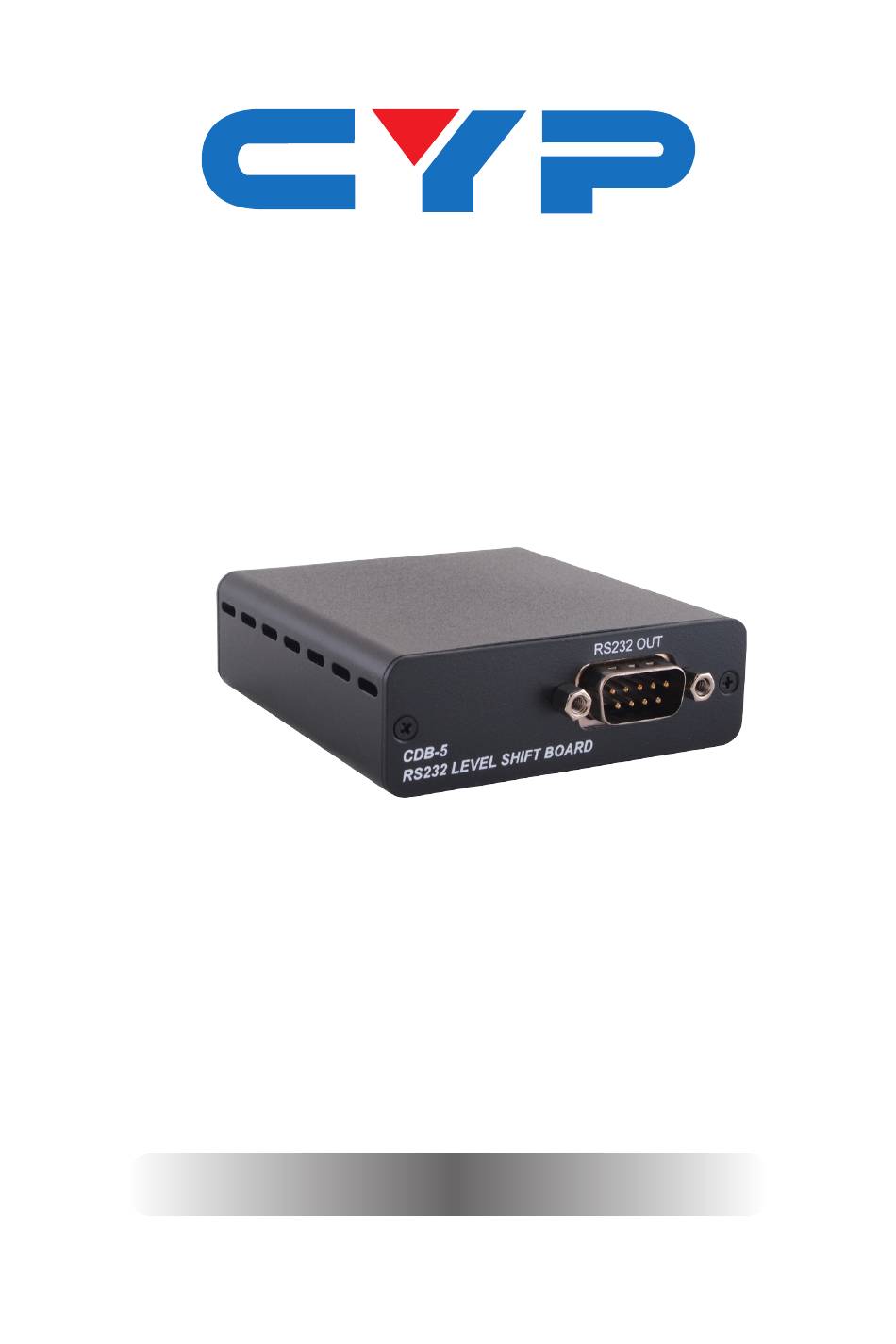

- Page 1 CDB-5 RS232 Level Shift Board Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7 RS-232 Protocols ........3 8 Connection and ........ -
Page 6: Introduction
1. INTRODUCTION This special RS232 level shift board is design to configurate RS232 command between PC and control device, here it is mainly for specific TV wall system. Allowing the PC protocol to be converted and readable to the control device and make activate the exact command action. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS232 IN POWER USB 5V RS232 IN: Connect from PC/laptop or any RS232 command system with D-Sub 9pin male null cable for RS232 command sending to control device. USB 5V: Connect the USB cable included in the package from the PC/ laptop or any USB supported power adaptor for power supply to the device. -
Page 8: Rear Panel

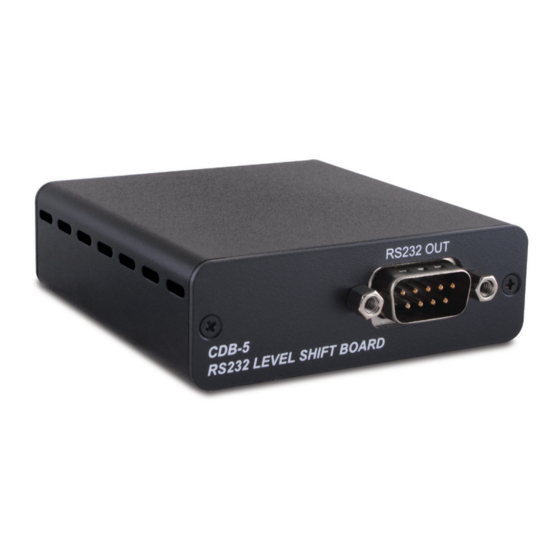

RS232 OUT CDB-5 RS232 LEVEL SHIFT BOARD RS-232 OUT: Connect to RS-232 equipped device for RS232 command receiving with D-Sub 9pin female null cables. 7 RS-232 PROTOCOLS CDB-5 IN CDB-5 OUT Definition Definition ► ◄ Connect to Pin 8 Connect to Pin 8... -
Page 9: Connection And
8 CONNECTION AND PC/NB RS232 IN RS232 OUT POWER USB 5V CDB-5 RS232 LEVEL SHIFT BOARD HDMI IN AUDIO IN PC IN RS 232 IN RS 232 OUT IR IN CVW-11HS Screen ① Screen ② Screen ③ Screen ④ CVW-11HS... -
Page 10: Specifications
9. SPECIFICATIONS Baud Rate 110bps~921600bps Input port D-Sub 9pin (Female type) Output port D-Sub 9pin (male type) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply USB bus power or USB to DC power supply Dimensions 71(W) x 81.5(D) x 23(H) Weight 110 g... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDB5...
