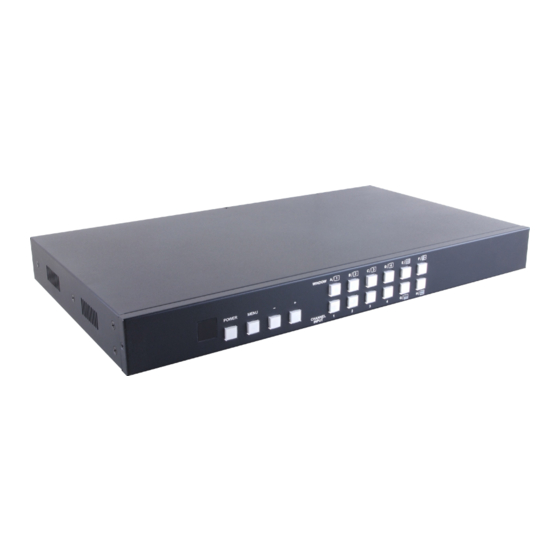

4 by 1 hdmi seamless switcher
Hide thumbs Also See for CDPS-41SQ:
Table of Contents

Advertisement

Quick Links

Download this manual
CDPS-41SQ
4 by 1 HDMI Seamless Switcher
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-41SQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-41SQ

Summary of Contents for CYP CDPS-41SQ

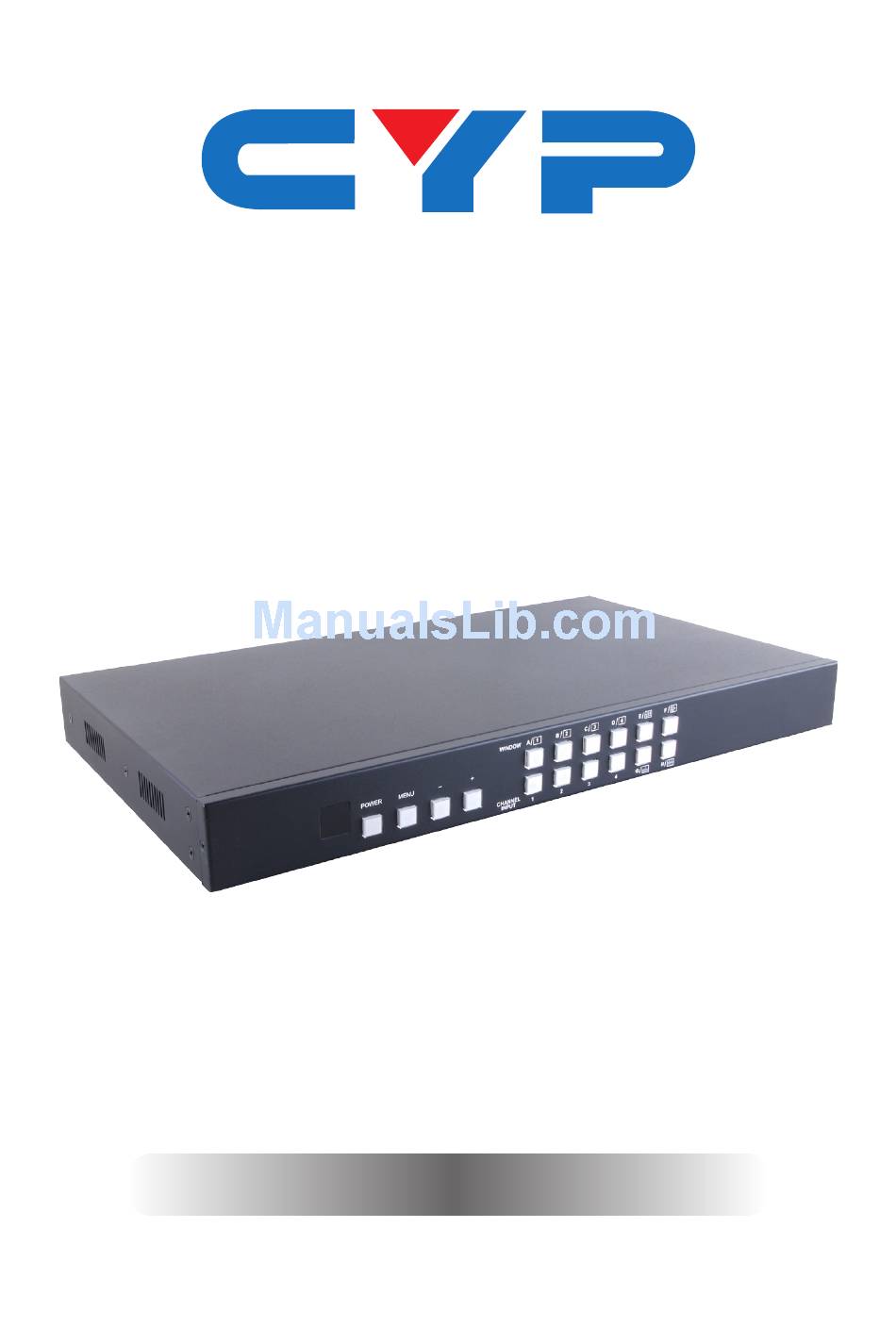

  • Page 1 CDPS-41SQ 4 by 1 HDMI Seamless Switcher Operation Manual Operation Manual...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 OSD Menu .........6 6.5 RS-232 Protocols ......15 6.6 RS-232 and Telnet Commands ..15...

  • Page 6: Introduction

    1. INTRODUCTION This 4 by 1 HDMI Seamless Switcher is an advanced HDMI switch with integrated Picture-in-Picture (PIP) technology that can be easily configured and controlled. It allows 4 different sources to be selected and arranged on a single display and supports video resolutions up to 1080p and audio up to 8CH/192kHz.

  • Page 7: Features

    5. FEATURES • Integrate 4 HDMI sources to a single display or video wall system • Seamless switching between channels and windows • Supports Picture-in-Picture (PIP), Picture-out-of-Picture (POP) and multi-window display • 8 screen preset hot keys and 4 extra customizable screen setting favourites •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel WINDOW POWER MENU CHANNEL INPUT 1 2 3 4 2 3 4 IR WINDOW: Accepts the IR signal from the supplied remote control. POWER: Press to turn the unit on or to put it into standby mode. MENU: Press this button to bring up the On-screen Display (OSD) menu on screen.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI IN 1~4: Connect to up to four source HDMI equipped source devices such as DVD/Blu-ray players and/or PC/Laptop devices. Note: When input 1 or 2 has no source connected a warning message will appear on the OSD.

  • Page 10: Remote Control

    6.3 Remote Control Power Info Power: Press this button to switch the unit on CH 1 or to set it to standby mode. CH 2 Info: Press this button to display the unit’s CH 3 firmware version. CH 4 Mute Input Input CH 1~CH 4: Press these buttons to cycle through the HDMI sources (1 to 4) for...

  • Page 11: Osd Menu

    6.4 OSD Menu MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER I/O Setup Output 480P Resolution 579P 720P50 720P60 1080P24 1080P25 1080P30 1080P50 1080P60 1024×768 1280×800 1280×1024 1366×768 1440×900 1600×900 1600×1200 1680×1050 1920×1200 NATIVE Menu Back OSD Settings Info Display On/Off 0~20 (5) H Offset...
  • Page 12 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Image Adjust 0~100 (50) Brightness CH 1 Adjust 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50) CH 4 Value Reset Menu Exit 0~100 (50) Contrast CH 1 Adjust 0~100 (50) CH 2 0~100 (50)) CH 3...
  • Page 13 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Window Setup Channel 1 Size CH1 Wxxx Hxxx Select Width Unit Width Ten Width Hundred Height Unit Height Ten Height Hundred Position CH1 Hxxx Vxxx Horizontal Unit Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred On/Off...
  • Page 14 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Window Setup Channel 2 Size CH2 Wxxx Hxxx (Cont.) Select Width Unit Width Ten Width Hundred Height Unit Height Ten Height Hundred Position CH2 Hxxx Vxxx Horizontal Unit Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred...
  • Page 15 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Window Setup Channel 3 Size CH3 Wxxx Hxxx (Cont.) Select Width Unit Width Ten Width Hundred Height Unit Height Ten Height Hundred Position CH3 Hxxx Vxxx Horizontal Unit Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred...
  • Page 16 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Window Setup Channel 4 Size CH4 Wxxx Hxxx (Cont.) Select Width Unit Width Ten Width Hundred Height Unit Height Ten Height Hundred Position CH4 Hxxx Vxxx Horizontal Unit Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred...
  • Page 17 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Window Setup Favors Store FAV 1 Store On/Off/OK (Cont.) FAV 2 Store On/Off/OK FAV 3 Store On/Off/OK FAV 4 Store On/Off/OK Menu Exit Menu Exit Window Channel 1 Mirror On/Off Convert Convert Off/1.0/1.1/1.2 Fade In-Out Convert /1.3/1.4...
  • Page 18 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Window Channel 3 Mirror On/Off Convert Convert Off/1.0/1.1/1.2 Fade In-Out (Cont.) Convert /1.3/1.4 /1.5/1.6/1.7/1.8/ 1.9/2.0/2.1/2.2/2 .3/2.4/2.5/2.6/2.7 /2.8/2.9/3.0 Rotation R90/L90/Up-Side Down180/Off Window Reset Menu Exit Channel 4 Mirror On/Off Convert Off/1.0/1.1/1.2 Fade In-Out Convert /1.3/1.4 /1.5/1.6/1.7/1.8/ 1.9/2.0/2.1/2.2/2...
  • Page 19 MAIN MENU 1ST LAYER 2ND LAYER 3RD LAYER Ethernet Setup IP Mode Static/DHCP Static Set IP/Mask/Gate XXX 192 255 192 000~255 Byte1 High XXX 168 255 168 000~255 Byte2 XXX 5 255 5 Byte3 000~255 XXX 159 0 254 Byte4 Low 000~255 No/Yes Re-Link...

  • Page 20: Rs-232 Protocols

    6.5 RS-232 Protocols HDMI SWITCHER REMOTE CONTROL (PC) Definition Definition ► ◄ Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.6 RS-232 and Telnet Commands COMMAND A DESCRIPTION RESO 0~18 Set output resolution: 0=480p 10=1280×800@60Hz 1=576p...
  • Page 21 COMMAND A DESCRIPTION OSDH 0~20 OSD H offset 0~20. OSDV 0~20 OSD V offset 0~20. OSDTIME 0~50 OSD timeout 0~50. OSDGAIN 0~10 OSD gain value 0~10. BRI 0~4 0~100 Set brightness value for channel: 0=All, 1~4=Channel, 0~100=Value. CON 0~4 0~100 Set contrast value for channel port: 0=All, 1~4=Channel, 0~100=Value.
  • Page 22 COMMAND A DESCRIPTION RECALL 1~12 Recall a window state: 1=WINDOW A 7=WINDOW G 2=WINDOW B 8=WINDOW H 3=WINDOW C 9=WINDOW FAV. 1 4=WINDOW D 10=WINDOW FAV. 2 5=WINDOW E 11=WINDOW FAV. 3 6=WINDOW F 12=WINDOW FAV. 4 MIRROR 0/1* Enable/disable mirror effect: 0=Off, 1=On. FADE 0~21 Enable/disable fade effects: 0=OFF...
  • Page 23 COMMAND A DESCRIPTION GAADD XXX. Set Gateway address: XXX=0~255. XXX.XXX.XXX ETHTIME 0~6 Ethernet timeout: 0=Off, 1=10 Minute, 2=20 Minute, 3=30 Minute, 4=40 Minute, 5=50 Minute, 6=60 Minute. RELINK Relink the unit in 2 seconds. DEFAULT Reset the unit to factory defaults. VICH 1~4 0~4 Video channel command: 1~4=Video, 0=All channel outputs, 1~4=Channel outputs.
  • Page 24 COMMAND B DESCRIPTION WND001 Change to window A WND002 Change to window B WND003 Change to window C WND004 Change to window D WND005 Change to window E WND006 Change to window F WND007 Change to window G WND008 Change to window H CH1001 Change CH1 to source 1 CH1002...
  • Page 25 COMMAND B DESCRIPTION IO4000 CH4 image off IO4001 CH4 image on MUT000 Mute off MUT001 Mute on AUD001 Change output audio to source 1 AUD002 Change output audio to source 2 AUD003 Change output audio to source 3 AUD004 Change output audio to source 4 FAD000* Fade in-out off FAD001*...

  • Page 26: Telnet Control

    6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Scaler (via the ‘CONTROL’ port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the ‘Start’ menu and type "cmd"...
  • Page 27 This will bring us into the unit which we wish to control. Type "?" to lists all the available commands. Type "IPCONFIG" to show all IP configurations. To reset the IP, type "IPMODE" to set static IP/DHCP (see Section 6.6 for details). Note: Commands will be not executed unless followed with a carriage return.

  • Page 28: Web Gui Control

    6.8 Web GUI Control On a PC/Laptop that is connected to the same active network as the Scaler, open a web browser and type the unit's IP address on the web address entry bar. The browser will display the unit’s Image Adjust, Output Resolution, etc.
  • Page 29 Click on the ‘Windows Setup’ tab to set the output display format. This function is only available under window E~H. Click on the ‘OSD Settings’ tab to set the OSD function and position. Click on the ‘Window Convert’ tab to set the output display angle. This function is only available under window A~D.
  • Page 30 Click on the ‘Chromakey Setup’ tab to set the output display color. This function is only available under window E~H. Click on the ‘Ethernet’ tab to reset the IP configuration. The system will ask for a reboot of the unit when any of these settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.

  • Page 31: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Camera Blu-ray Player Set-top Box Games Console HDMI Inputs Router Smartphone or Tablet 4 3 2 1 Device Power HDMI IN HDMI OUT CONTROL RS232 DC 12V Supply SERVICE ONLY HDMI Output RS-232 RS-232 Enabled PC/Laptop or Control System HDTV Screen Configurations:...

  • Page 32: Specifications

    8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI Output Port 1×HDMI Supported Input Resolutions PC:VGA~WUXGA, HD: 480i~1080p Supported Output Resolutions 1080p@60 HDMI Input Cable Distance Up to 15m@1080p/12-bit HDMI Output Cable Distance Up to 15m@1080p/8-bit Supports Sampling Rate 32~192 kHz ESD Protection...

  • Page 33: Supported Resolution

    8.2 Supported Resolution HDMI RESOLUTION INPUT OUTPUT 640×480@60/72/75/85  800×600@56/60/72/75/85  1024×768@60/70/75/85 1024×768@60  1360×768@60  1280×768@60/75  1280×800@60  1280×1024@60/75 1280×1024@60  1366×768@60   1440×900@60  1600×900@60  1600×1200@60   1680×1050@60  1920×1200@60   480i@60  576i@50 ...

  • Page 34: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digitalisual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Picture-in-Picture Picture out of picture Infrared...
  • Page 36 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
