Wiring Diagram - Without Oem Remote Start And Without T-Harness - Directed Directechs DS4+ Installation Manual

Wiring Diagram - without OEM Remote Start and
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 12 for important information on this installation.

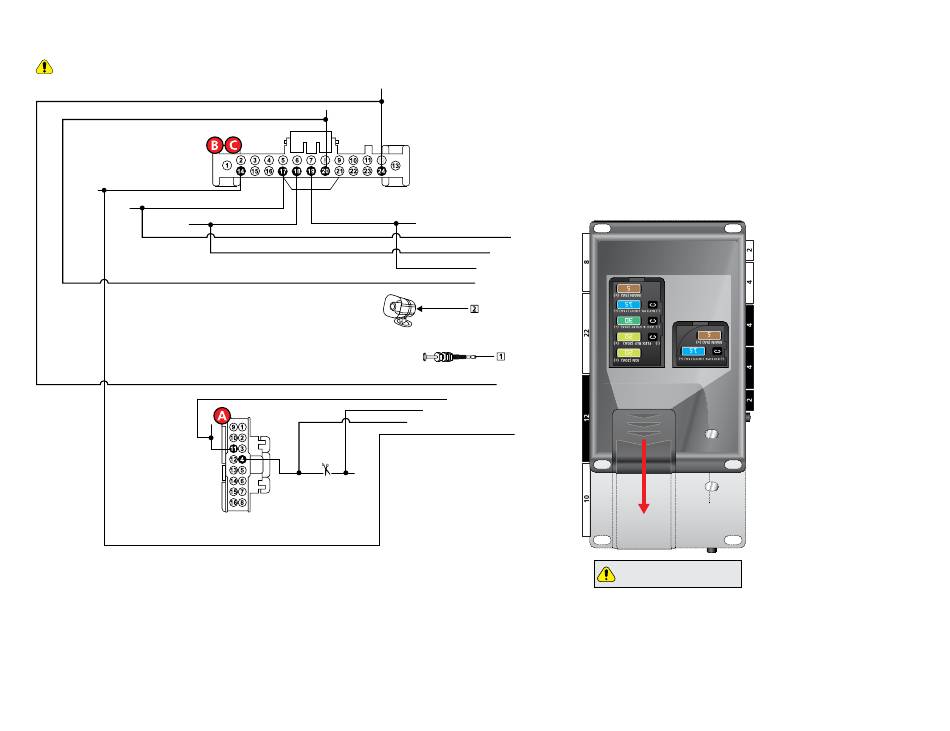

Wiring diagram
HS CAN 2 High: White/Blue or Blue, pin 20
(-) Ground: Pin 14
HS CAN 1 Low: Gray, pin 17
HS CAN 1 High: Green, pin 18
(-) Parking Lights:
Gray or Yellow, pin 11
Headlight Switch
11
without T-Harness
(+)12V: Pin 24
Gateway Module
(black conn. on OBDII connector)
HS CAN 2 Low: White, pin 19
Siren
Hood Pin
(-) Parking Lights Output: Lt. Green/Red: 7
Parking Lights Interrupt (vehicle side): Lt. Green: 8
Parking Lights Interrupt (conn. side): Lt. Green/White: 9
Cut
Parking Light Interrupt: Pin 4
HS CAN 1 Low: Tan: 1
HS CAN 1 High: Tan/Black: 2
HS CAN 2 Low: Orange/Brown: 3
HS CAN 2 High: Orange/Green: 4
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
DS4+
(+) 12V Input: Red: 6 & 12
Proper Fuse
Positioning
(-) Ground: Black: 10
Slide
to open
It is important to check that the
fuses are positioned correctly.
DS4
DS4
DS4+
DS4+ FORD11
