Chapter 3

RTMS Statistics

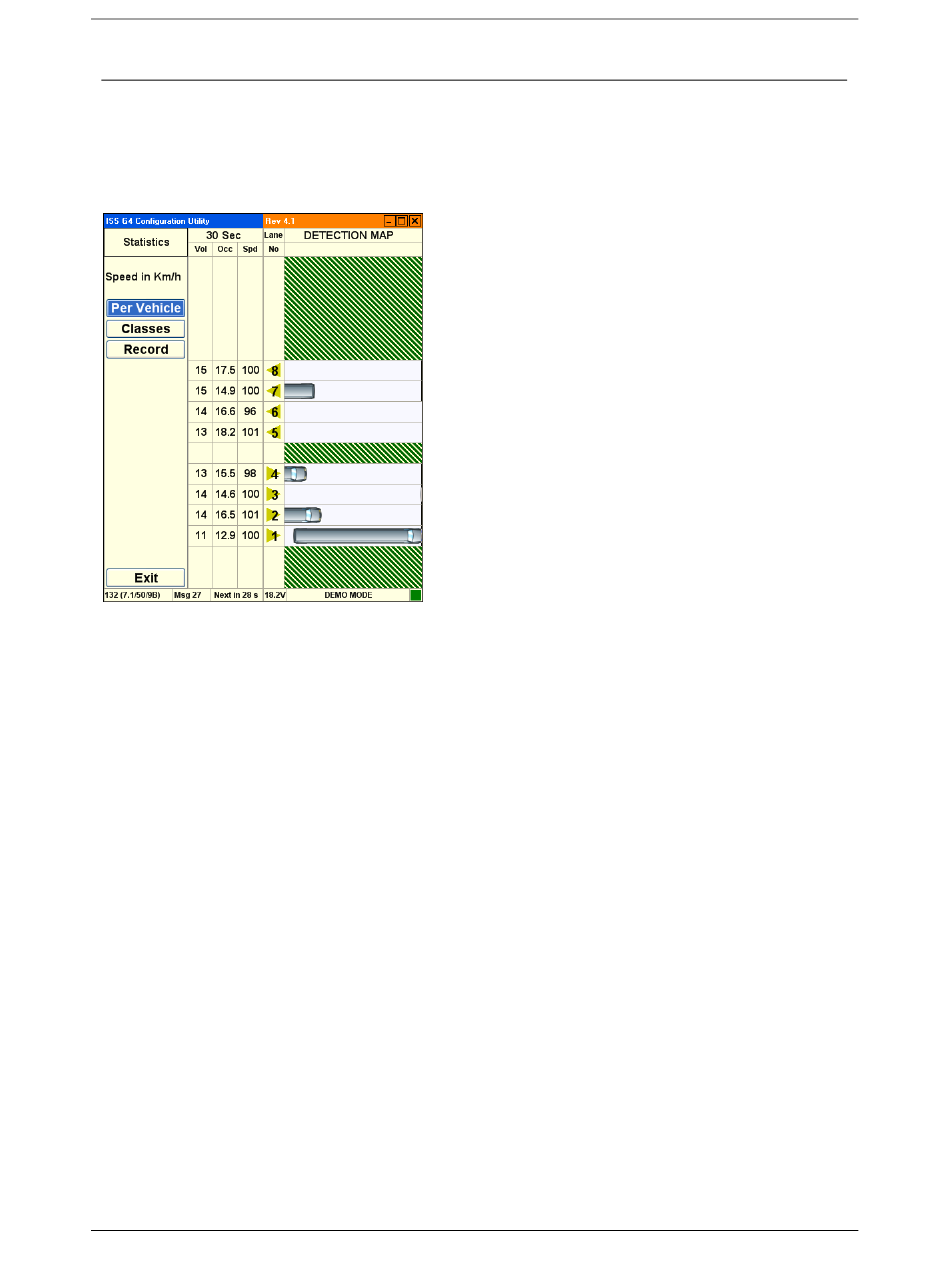

The WinRTMS statistics screen displays traffic count information including number of cars
and average speed. Statistics are displayed only as Volume, Occupancy and Average Speed
over the message period as shown.
Options are:
•
Per Vehicle. Provides statistical information for each vehicle as the vehicles are detected.
•
Classes. Displays the number of vehicles from each class that are detected during the
message period.
•
Record. Records a stream of human-readable ASCII from the RTMS sensor. This data is
typically used for troubleshooting.
•
Exit. Returns to the main screen.
•
{ "30 Sec" Time Elapsed }. Displays in minutes and seconds the amount of time elapsed
in the current monitoring period.
•
Vol. Displays the total number of vehicles per lane.
•
Occ. % of lane occupancy for the time period.
•
Spd. Displays the average speed of traffic in the lane in Km/H or MPH.
•
Lane No. Displays the lane number.
•
Detection Map. Displays a real-time visualization of traffic.
