Chapter 2

Connecting a Cable to the RTMS

Use the following procedure to connect a cable to the RTMS device:
1. Thread cable through the backshell before inserting pins into shell.
2. Use the insertion tool (red) to insert wires with crimped pin into shell.
3. Use the extraction tool (white) to remove a crimped wire to correct an error.
4. Access to the serial connection should be available within view of the monitored lanes.
−
For example: inside an access panel or cabinet on the pole.
−
Verifying the sensor's calibration is easy when the user sees the RTMS data together
with manual counts.

MS Connector Pin-Out

Pin labeling above is a guideline only – verify pin location on actual
connector before inserting wire.
Caution
The RTMS unit can be configured for a variety of communication
options. It is important to know which options are included with your
unit prior to preparing cables. MS connector pins cannot be shared.
Warning
Take note of the individual wiring instructions provided in this manual.
G4 User Manual

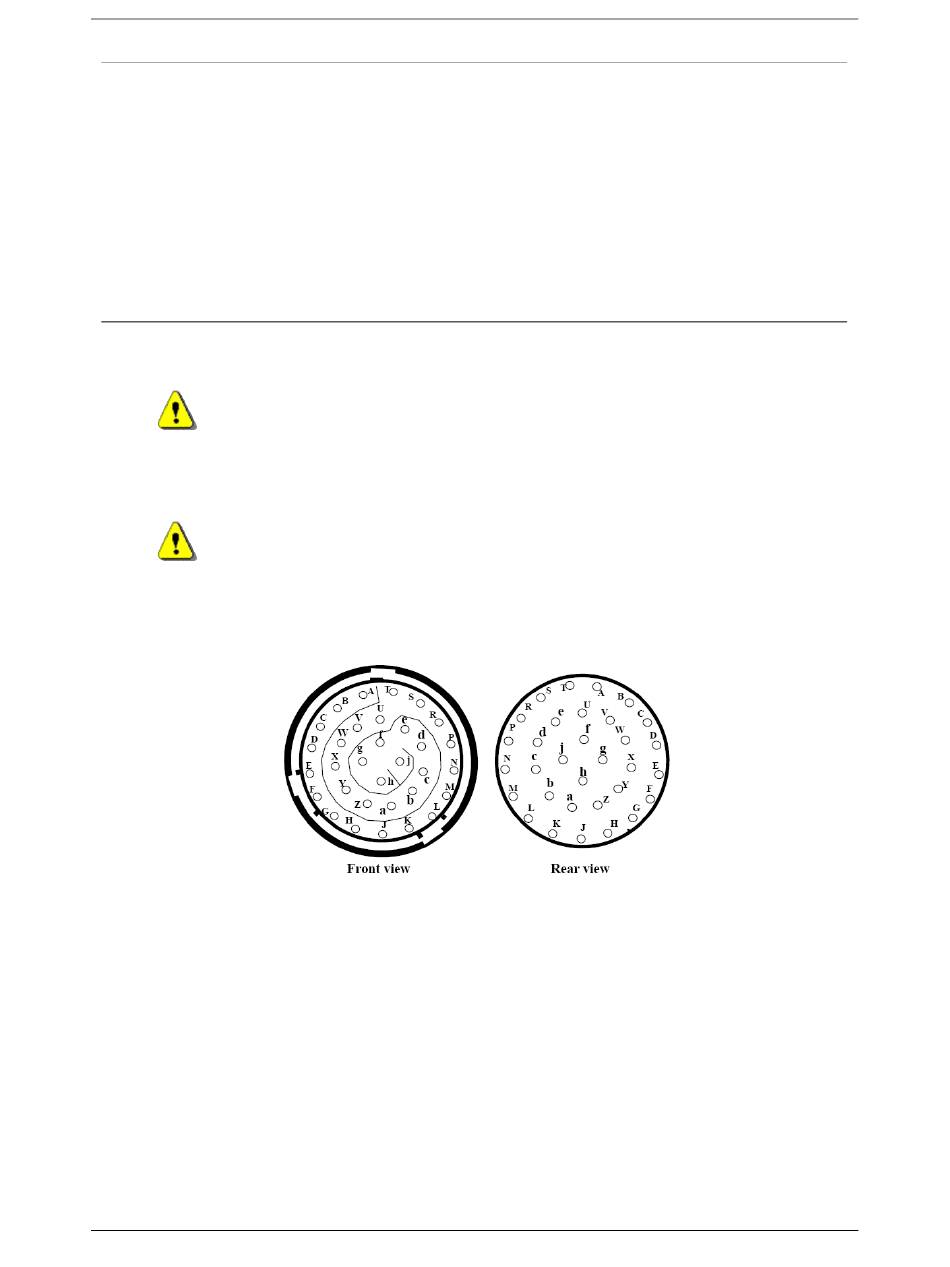

Figure 2.4. MS Connector
© 2009 ISS Canada
RTMS G4 Installation
2-5
