Chapter 3

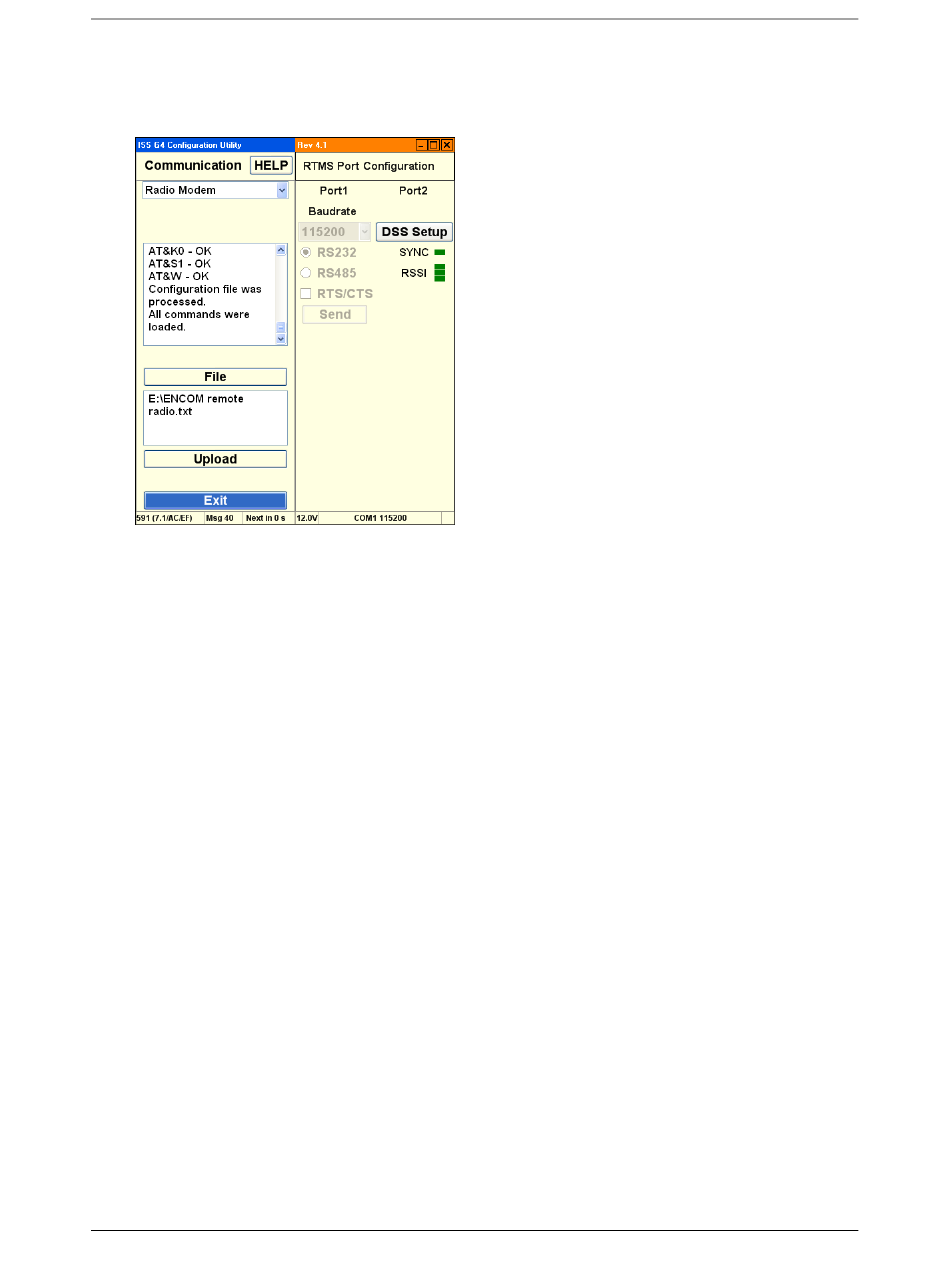

10. Select Radio Modem from the drop down menu. (PC Serial is selected by default.)
11. Proper communication is indicated by the green synchronization indicator below the DSS
Setup button.
−
The master DSS communicating with the RTMS slave or repeater must be of the same
type and frequency band. All units supplied on the same order will be of the same type
and frequency. Refer to the manufacturer's documentation and instructions for setup of
the master DSS parameters.
−
Output Power Level is determined based upon the Radio Site Survey. Strength of
signal is important to ensure data quality. If power setting is too high it may interfere
with other radio systems in the area, if it is too low the data messages may be missed.
−
It is mandatory to make Unit Address = RTMS Sensor ID.
12. Click Exit.
